GEPRC TAKER F405 BLS 80A V2 STACK
Description:

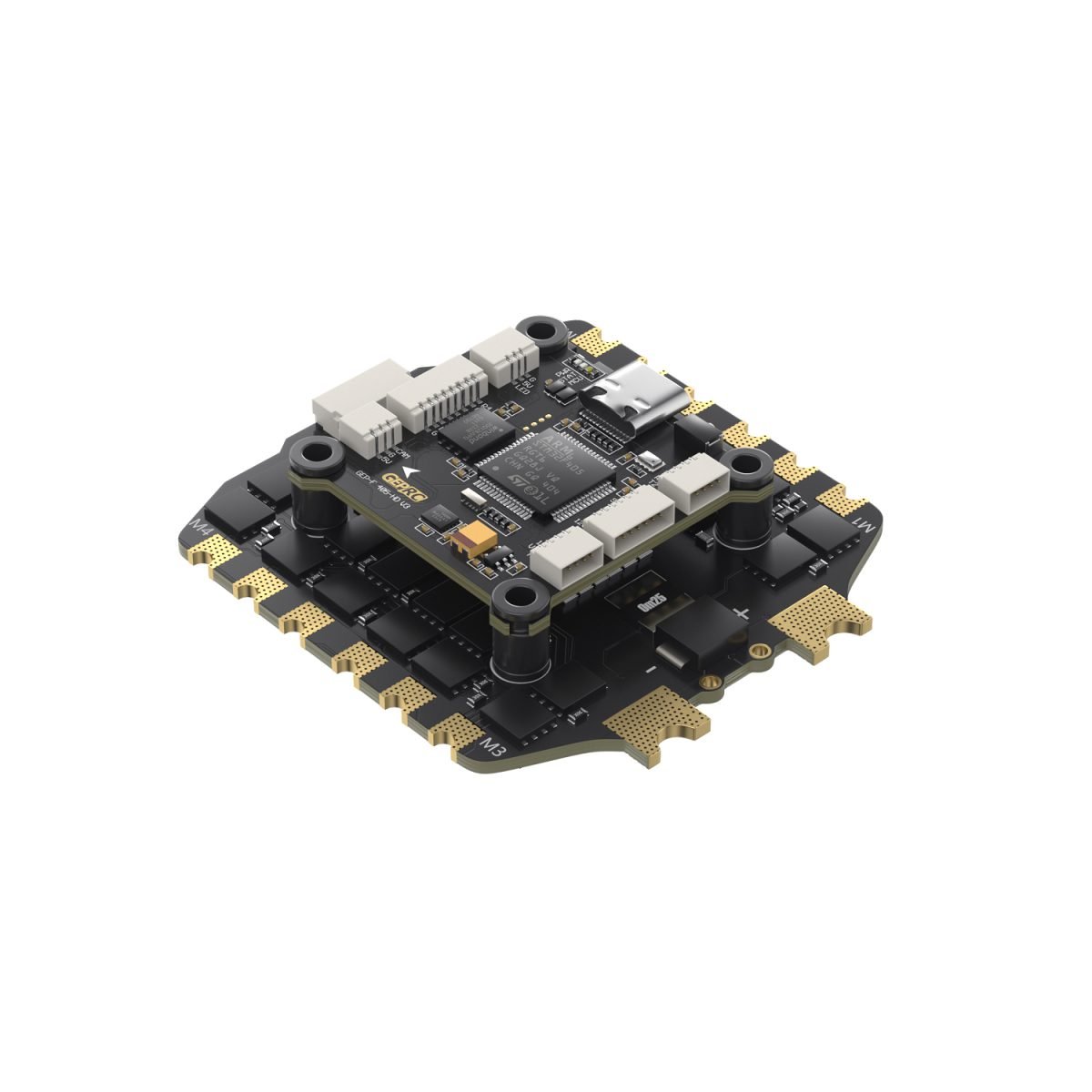

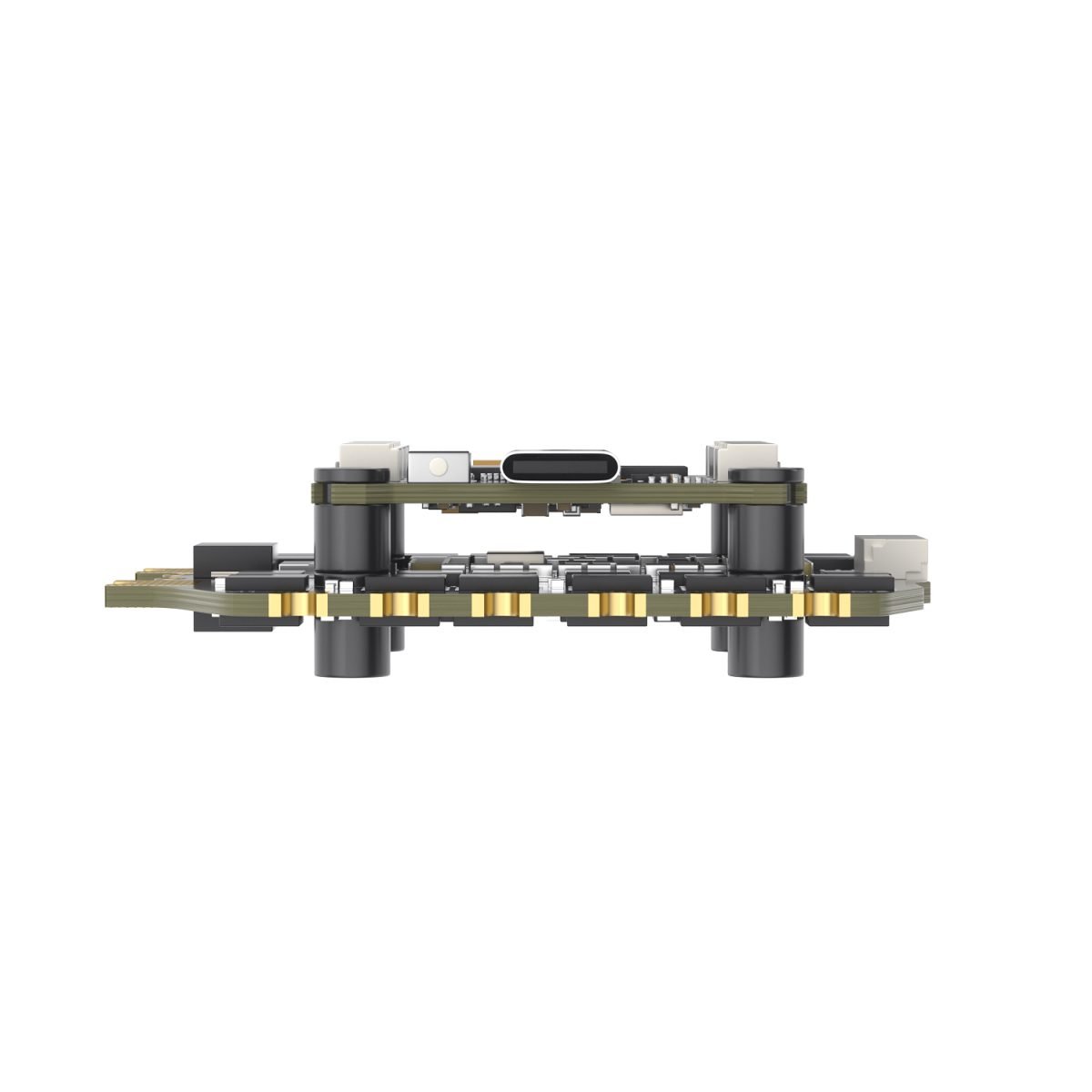

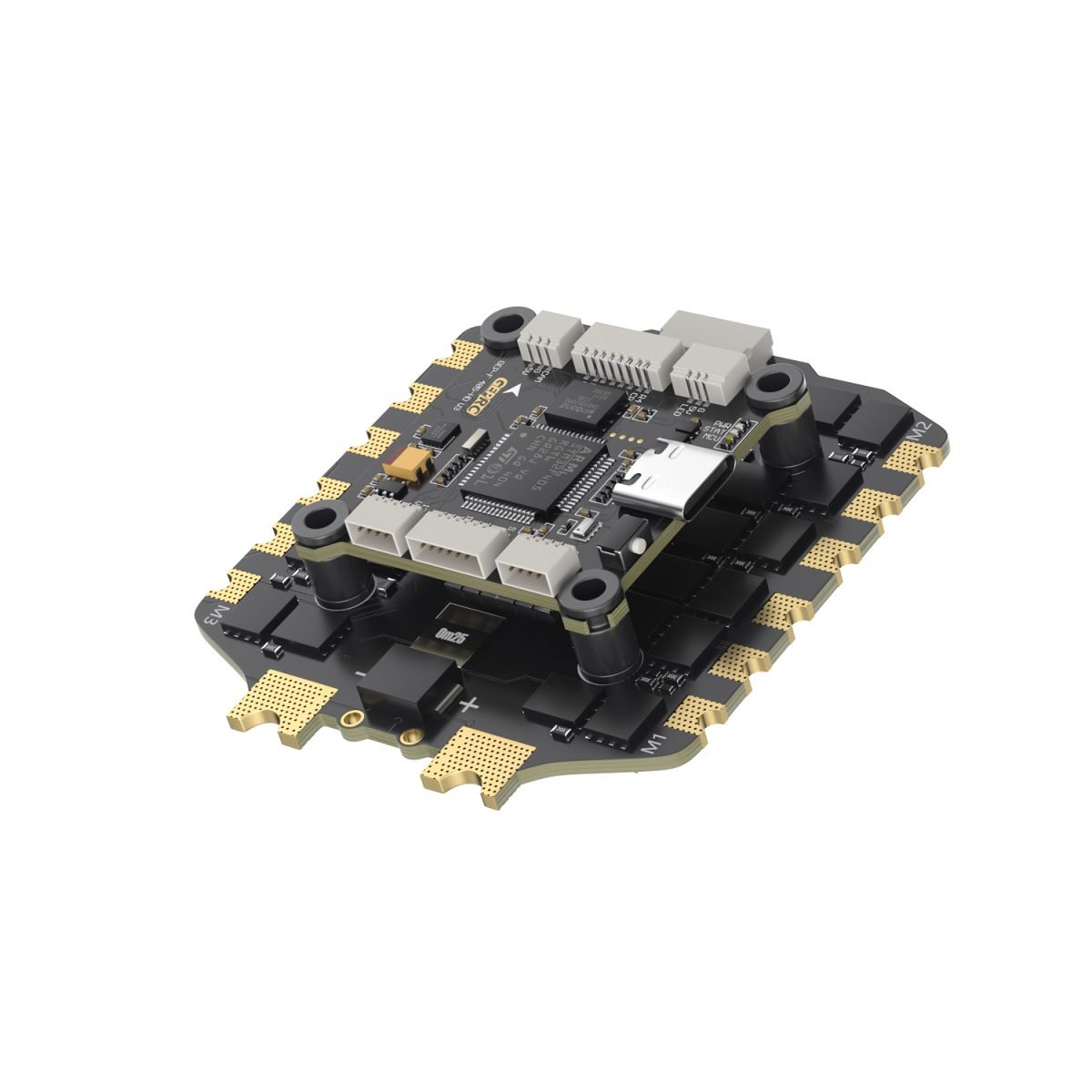

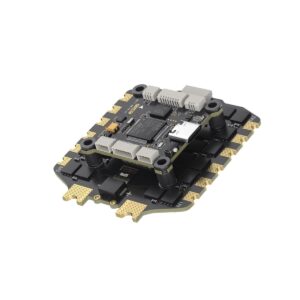

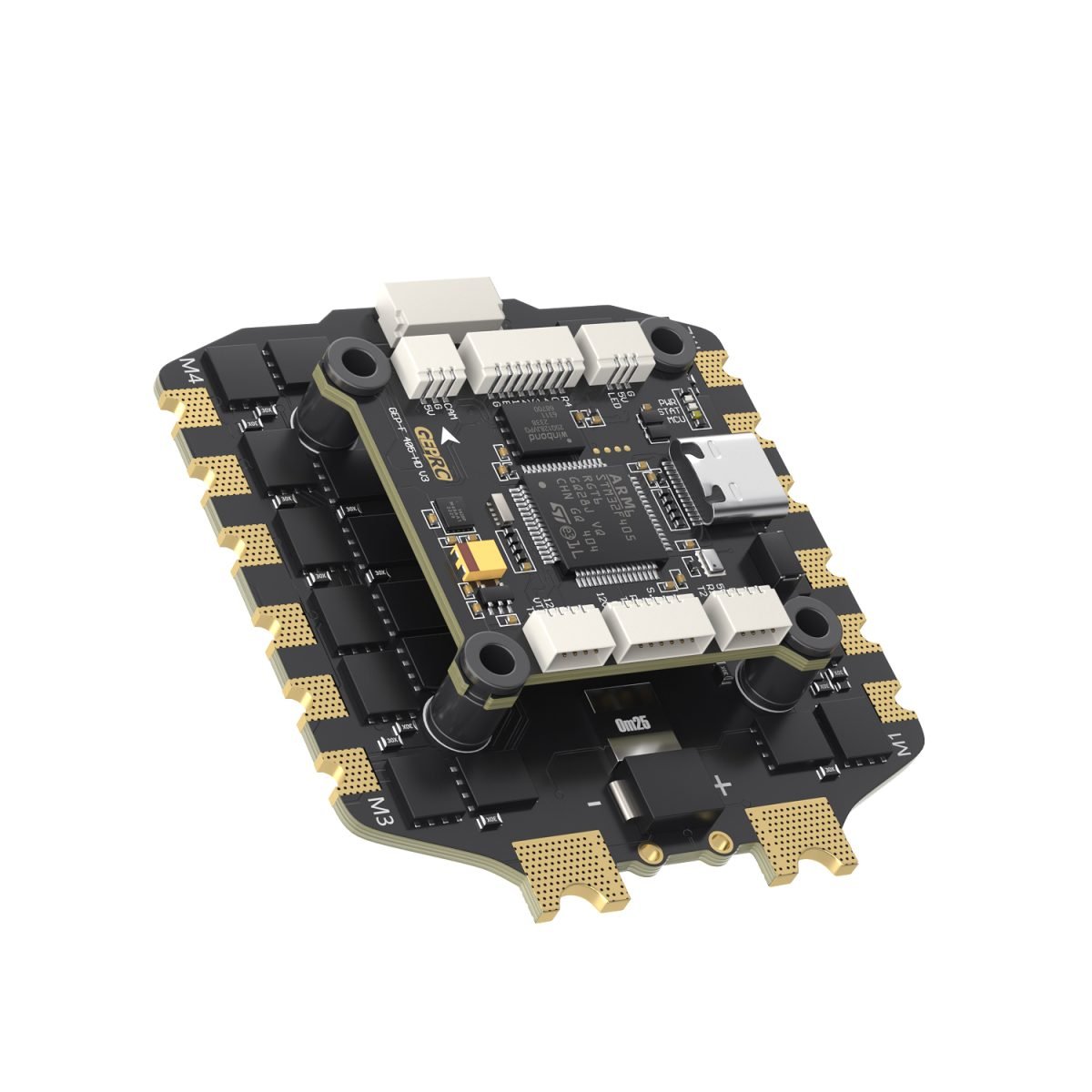

The GEPRC TAKER F405 BLS 80A V2 Stack is a high-performance flight controller and ESC stack designed for demanding FPV racing and freestyle applications. It combines an F405 32-bit flight controller with an 80A BLS ESC, providing responsive flight control and reliable high-current motor performance.
The V2 stack offers a compact integrated design that helps simplify installation and keeps the drone’s electronics organized. It is suitable for performance-oriented FPV builds requiring dependable motor control and efficient power handling.
Features
- Use mainstream STM32F405 chip
- Equipped with the latest 42688-P gyroscope
- 16M black box storage
- Integrated LC filter
- Upgrade type-C USB interface
- Directly plugged into the DJI Air Unit
- With TAKER H80_BLS 80A 4IN1 ESC, Dual MOS, high current, silky flight
- Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
- [email protected] + 5V@3A dual independent BEC
- Specifications

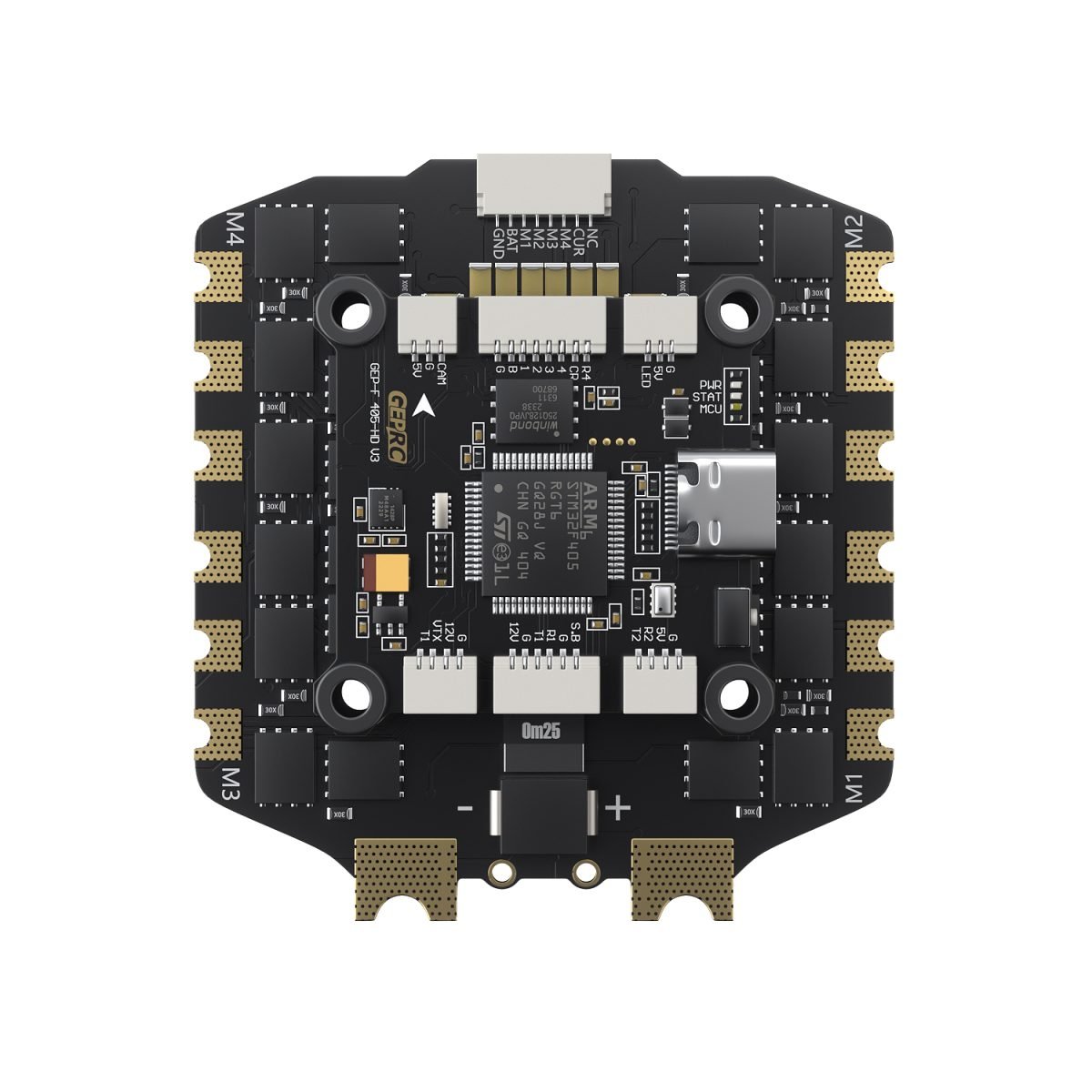

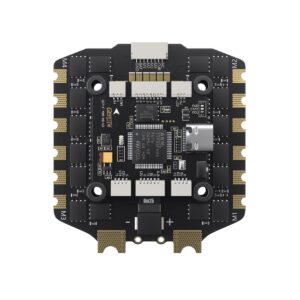

GEP-F405-HD V3 Flight Controller
- MCU：STM32F405
- IMU：ICM42688-P(SPI)
- Air Unit Connection：Direct plugging into DJI Air Unit
- Black Box：16M onboard
- Barometer: support
- Motor outputs：M1-M6
- USB Interface：Type-C
- OSD：BetaFlight OSD w/ AT7456E chip
- BEC：5V@3A,[email protected] dual BEC
- Firmware Target：GEPRCF405
- Size：37.15×37.15mm
- Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
- Input Voltage：3-6S LiPo
- UART：6 UARTs
- Power Filter：Integrated LC filter
- Weight：7.3g

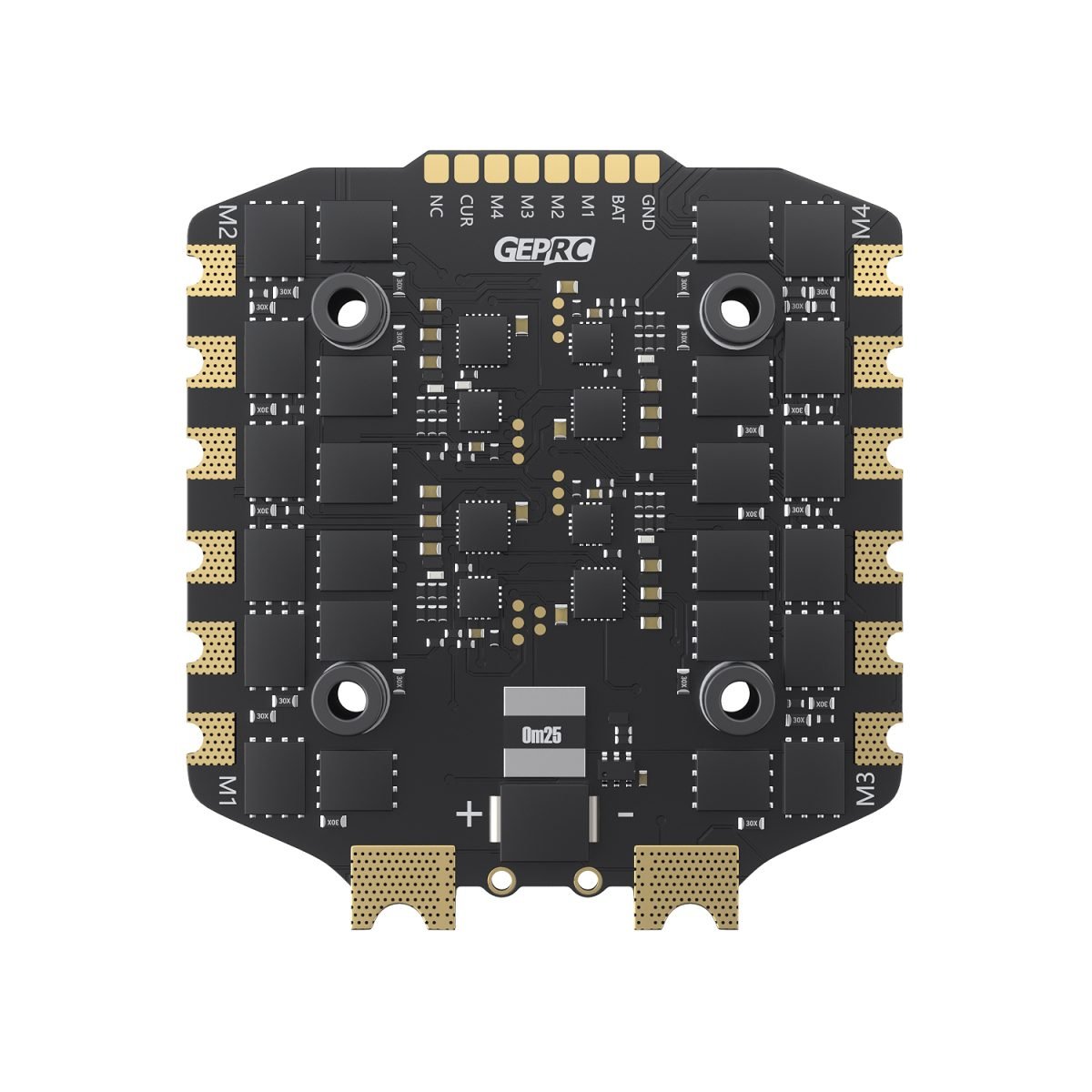

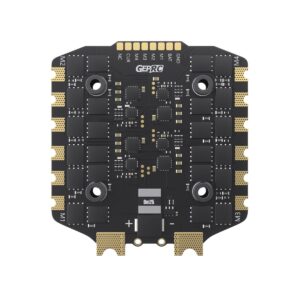

TAKER H80_BLS 80A 4IN1 ESC
- Input Voltage: 3-6S Lipo
- Ammeter: Support
- Continue Current：80A
- Burst Current：85A（5 second）
- Support Protocol: Dshot 150/300/600
- Size：56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
- Weight: 28.1g
- Target: B_X_30
Package Include:
ArduPlane Setup: Complete Guide to Building a Fixed-Wing Autonomous UAV (2026)
ArduPlane is the world's most capable open-source autopilot system for fixed-wing unmanned aerial vehicles. Developed by the ArduPilot...
Read More →
Drone Propeller Selection: Pitch, Diameter, and Material
Table of Contents Understanding Drone Propeller Selection Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Walksnail Avatar HD: Budget Digital FPV System India
Table of Contents What is Walksnail Avatar HD Walksnail vs DJI FPV System Avatar HD VTX and Camera...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 80A |
| SKU | AI5017 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC TAKER F405 BLS 80A V2 STACK is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
