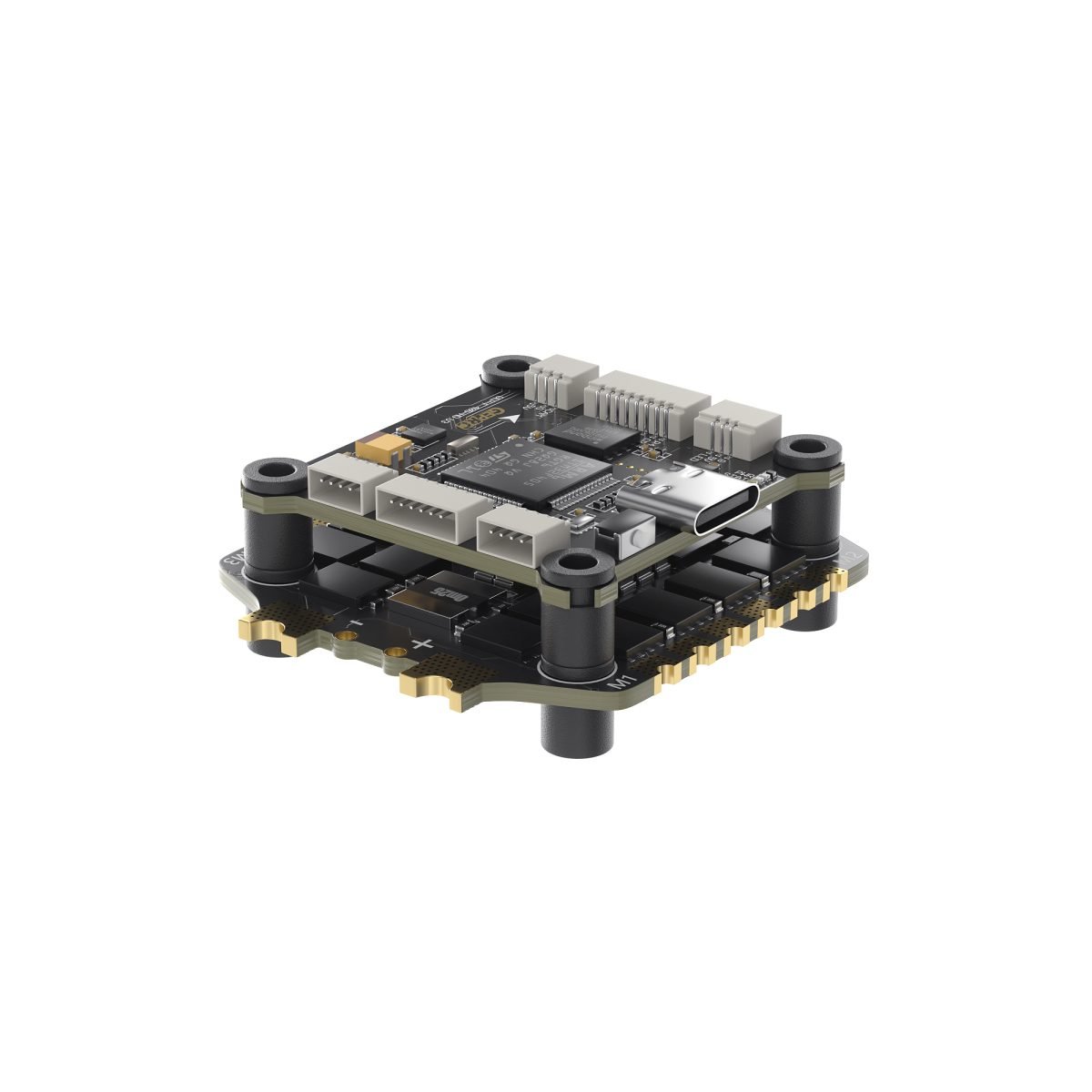

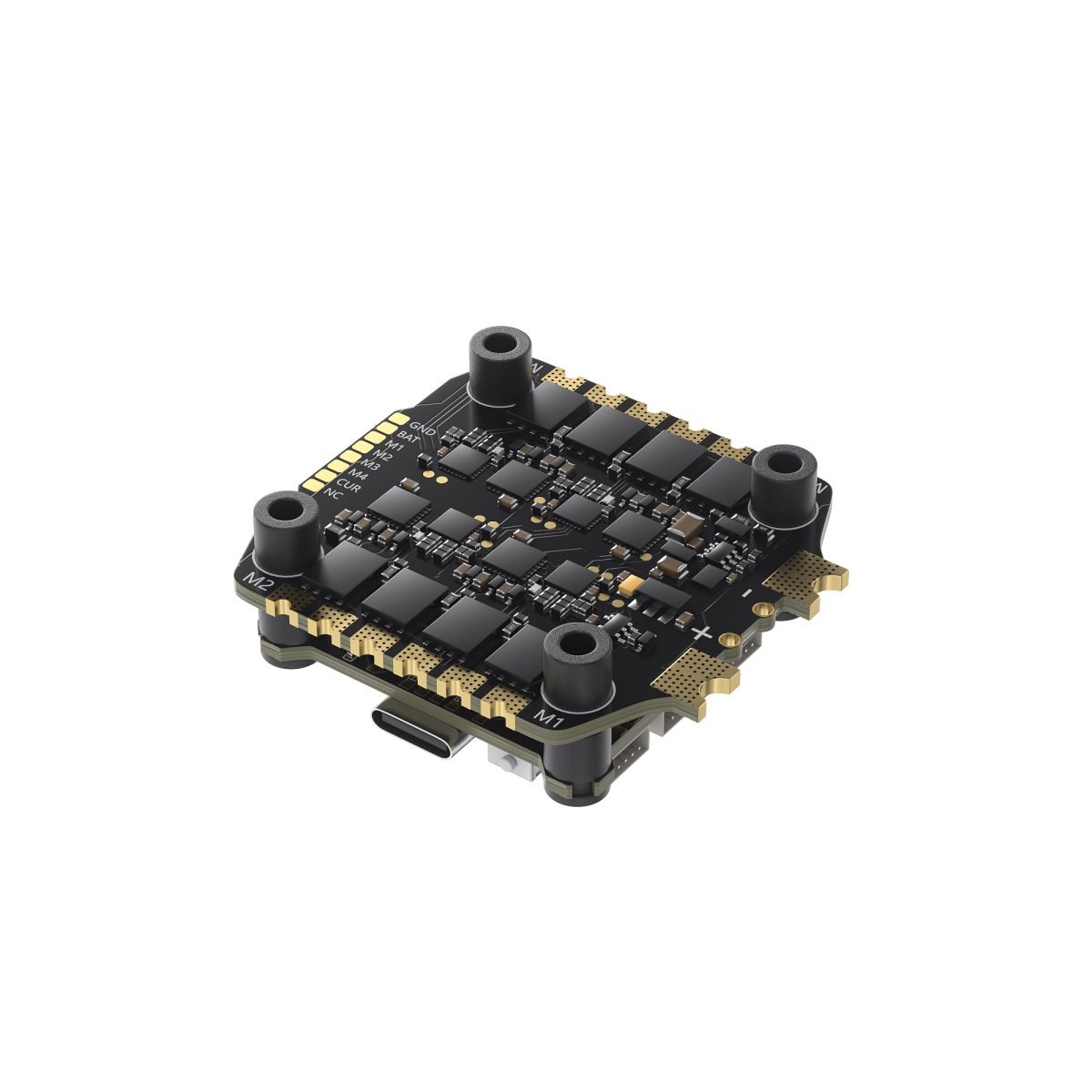

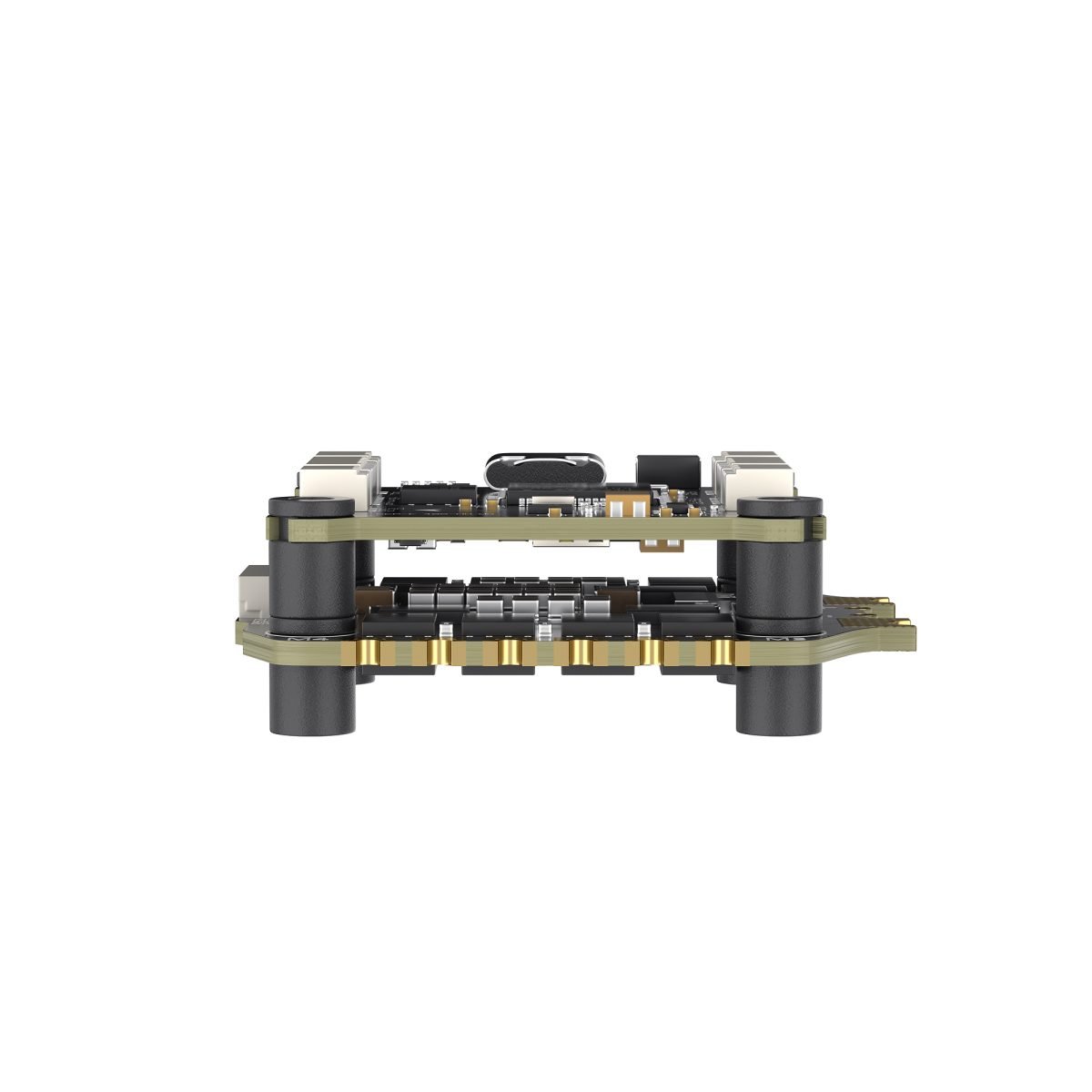

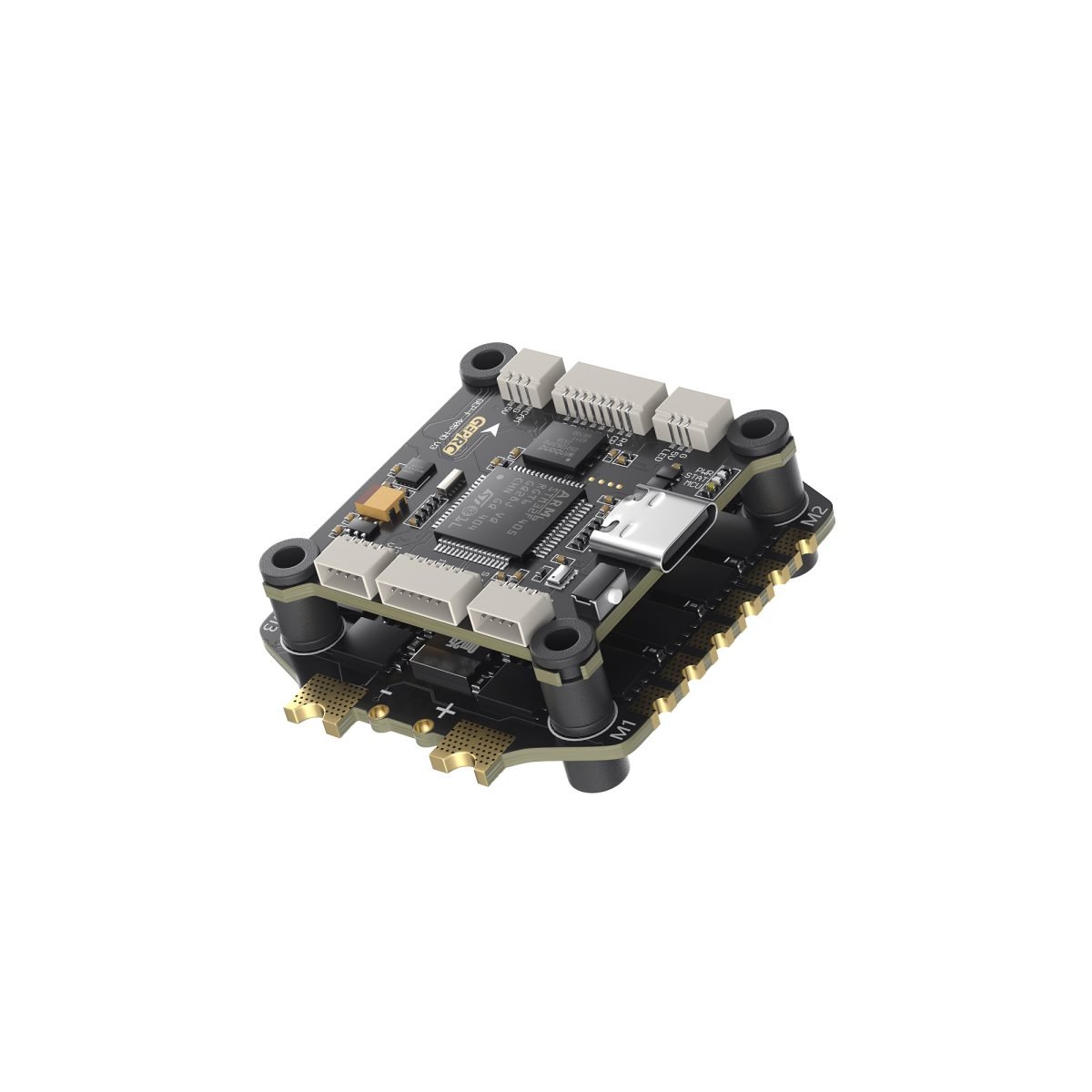

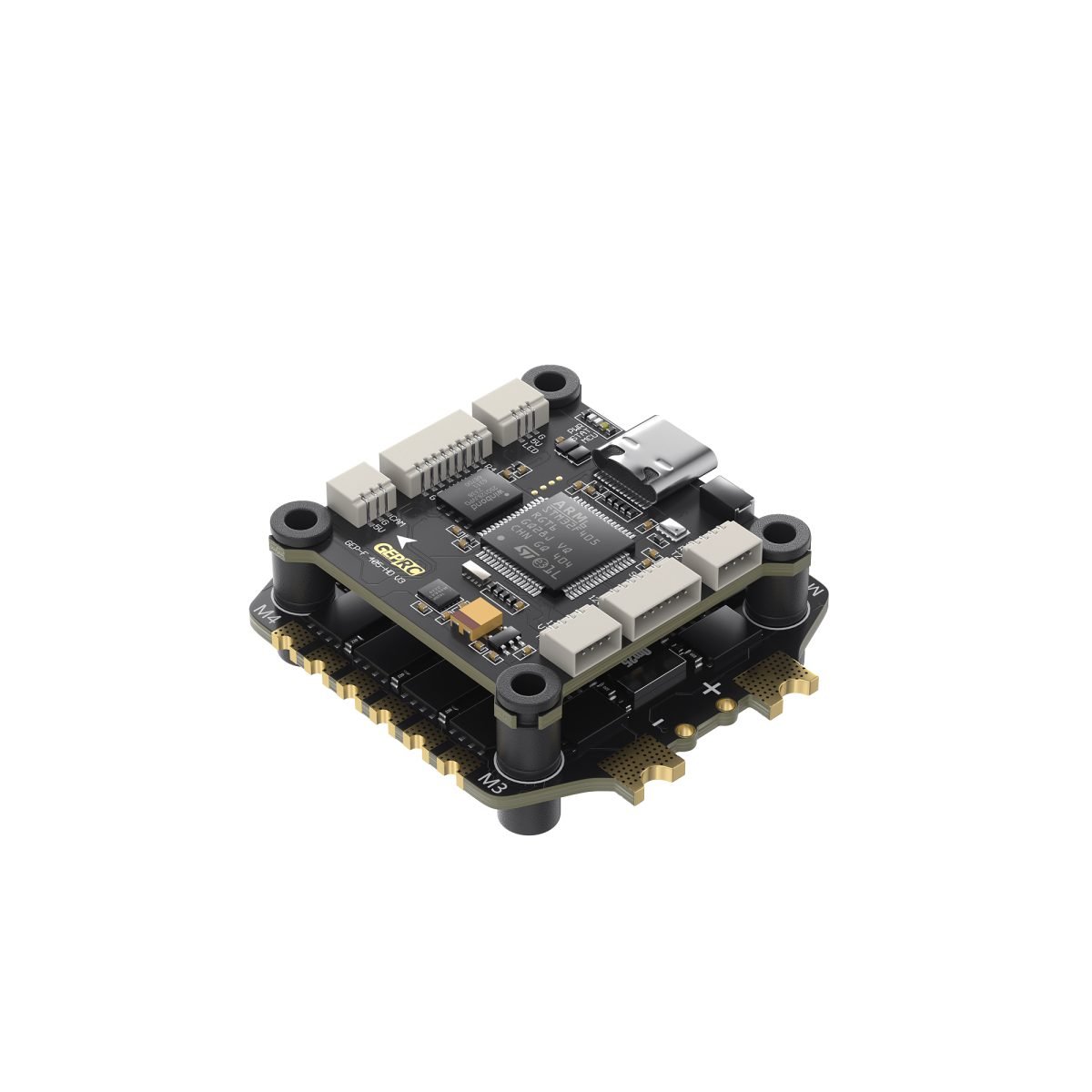

GEPRC TAKER F405 BLS 65A V2 STACK

Features:

• Use mainstream STM32F405 chip
• Equipped with the latest 42688-P gyroscope
• 16M black box storage
• Integrated LC filter
• Upgrade type-C USB interface
• Directly plugged into the DJI Air Unit
• With TAKER H65_8S_BLS 65A 4IN1 ESC, the flying feel is silky
• Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
• [email protected] + 5V@3A dual independent BEC

Specifications:

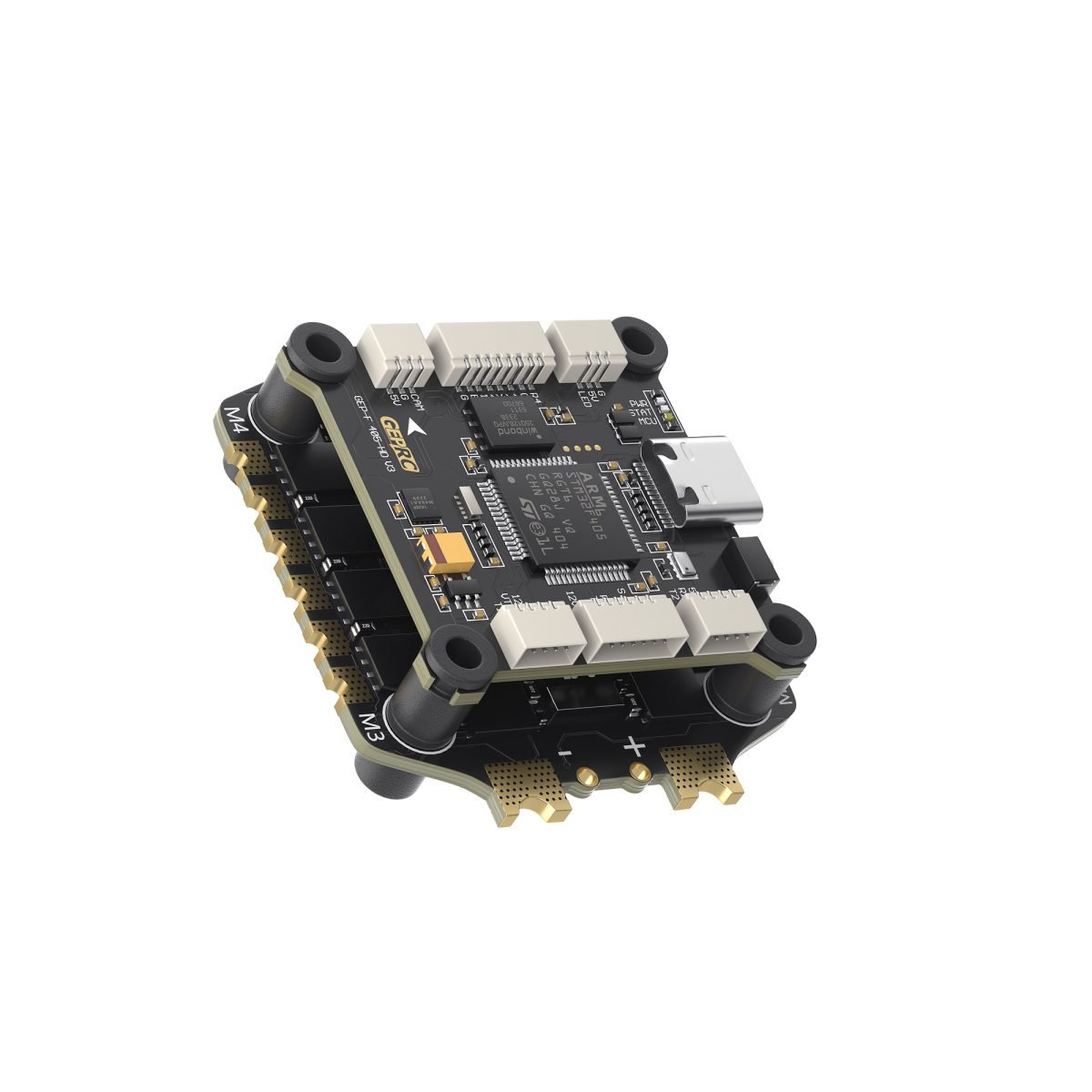

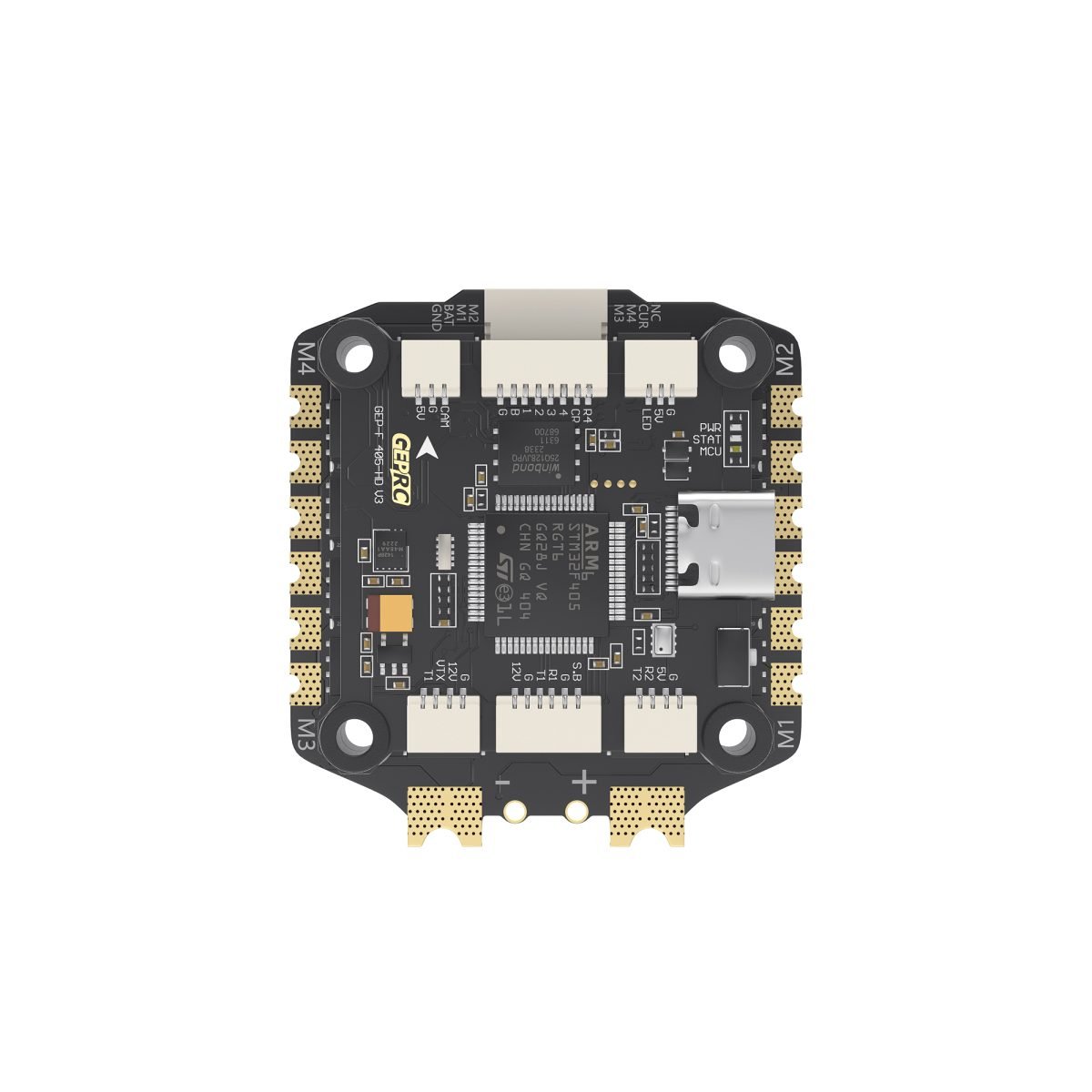

GEP-F405-HD V3 Flight Controller

• MCU：STM32F405
• IMU：ICM42688-P(SPI)
• Air Unit Connection：Direct plugging into DJI Air Unit
• Black Box：16M onboard
• Barometer: support
• Motor outputs：M1-M6
• USB Interface：Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,[email protected] dual BEC
• Firmware Target：GEPRCF405
• Size：37.15×37.15mm
• Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
• Input Voltage：3-6S LiPo
• UART：6 UARTs
• Power Filter：Integrated LC filter
• Weight：7.3g

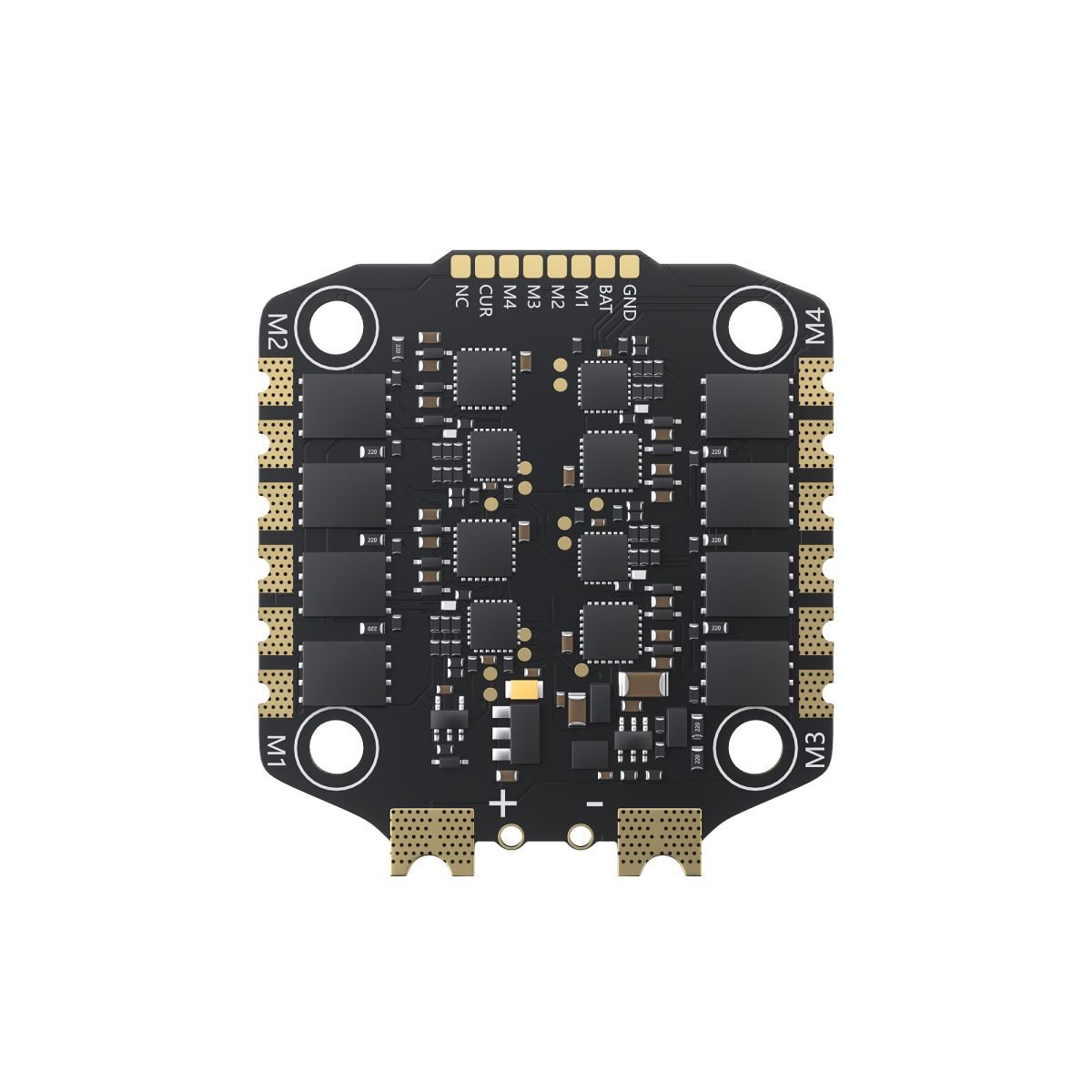

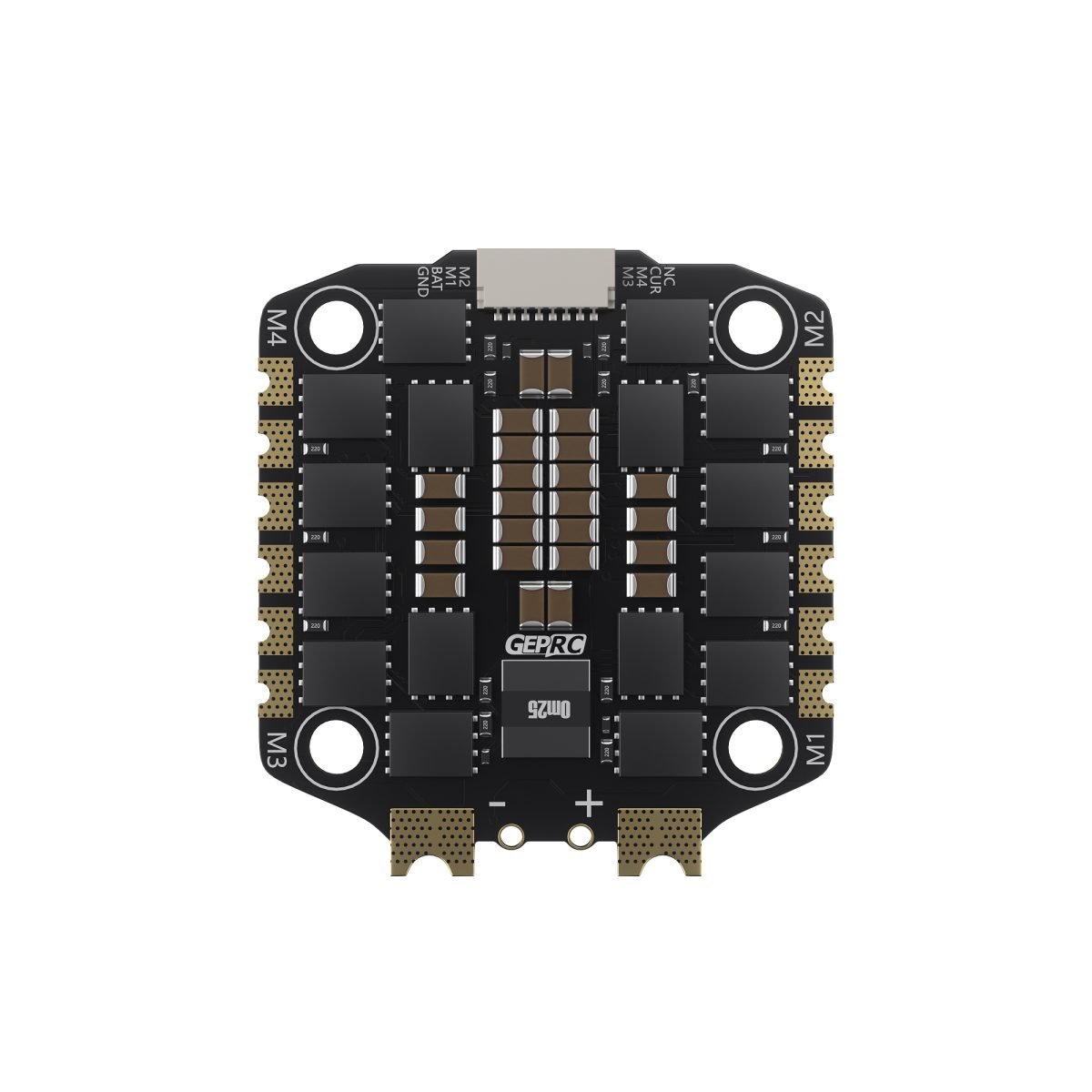

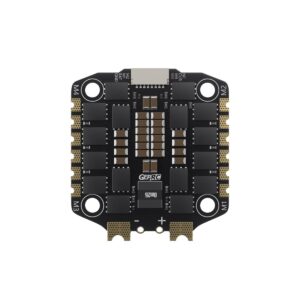

TAKER H65_8S_BLS 65A 4IN1 ESC

• Input Voltage: 3-8S Lipo
• Ammeter: Support
• Continue Current：65A
• Burst Current：70A（5 second）
• Support Protocol: Dshot 150/300/600
• Size：42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
• Weight: 14.9g
• Target: B_X_30

Package Include:

1 x Flight Controller

1 x ESC

1 x Capacitor

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

1 x XT60 Power cable

4 x M3*30 Screws

4 x M3*25 Screws

8 x Nylon nuts

8 x Silicone grommets

2 x sh1.0 4pin silicone cable

1 x Camera connection cable
