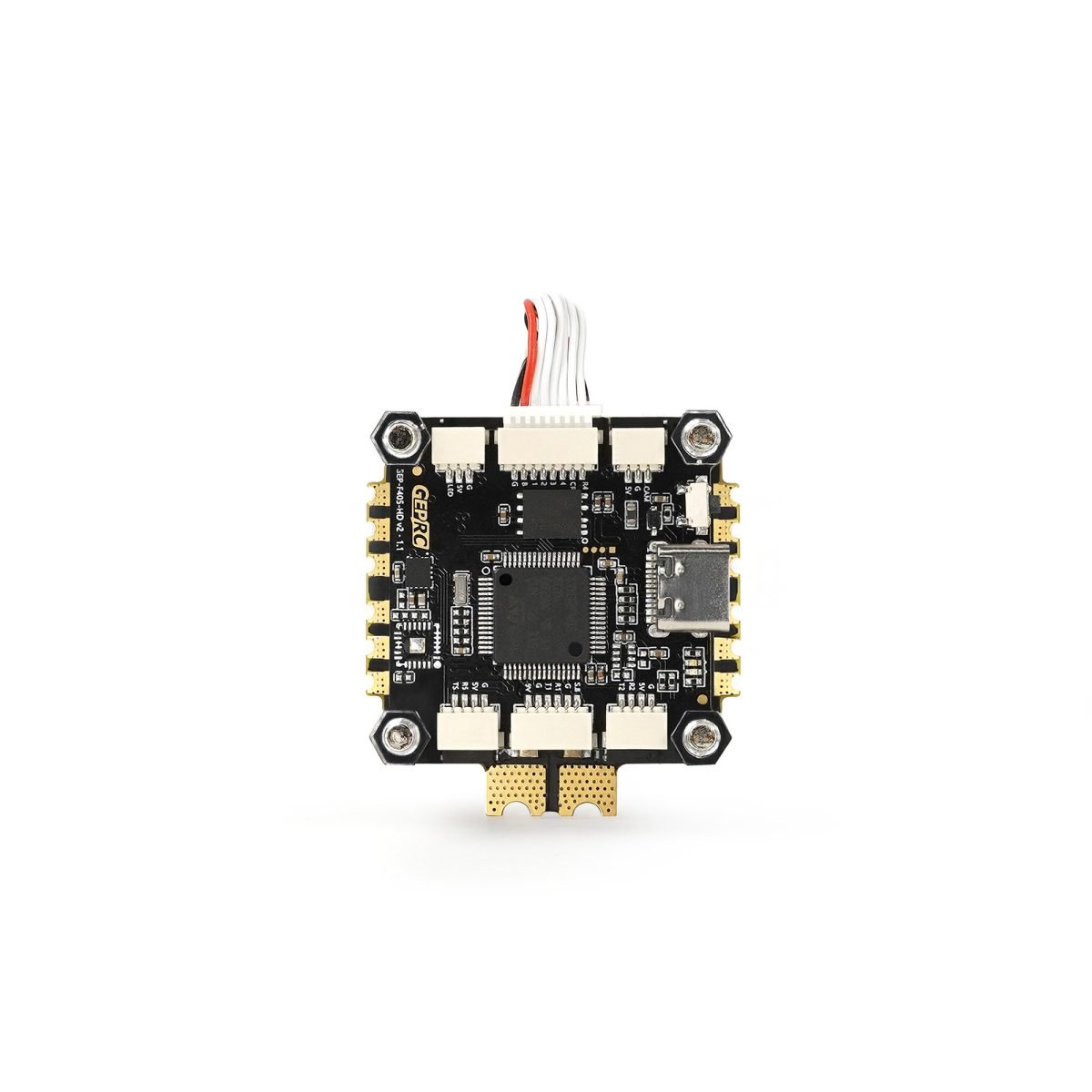

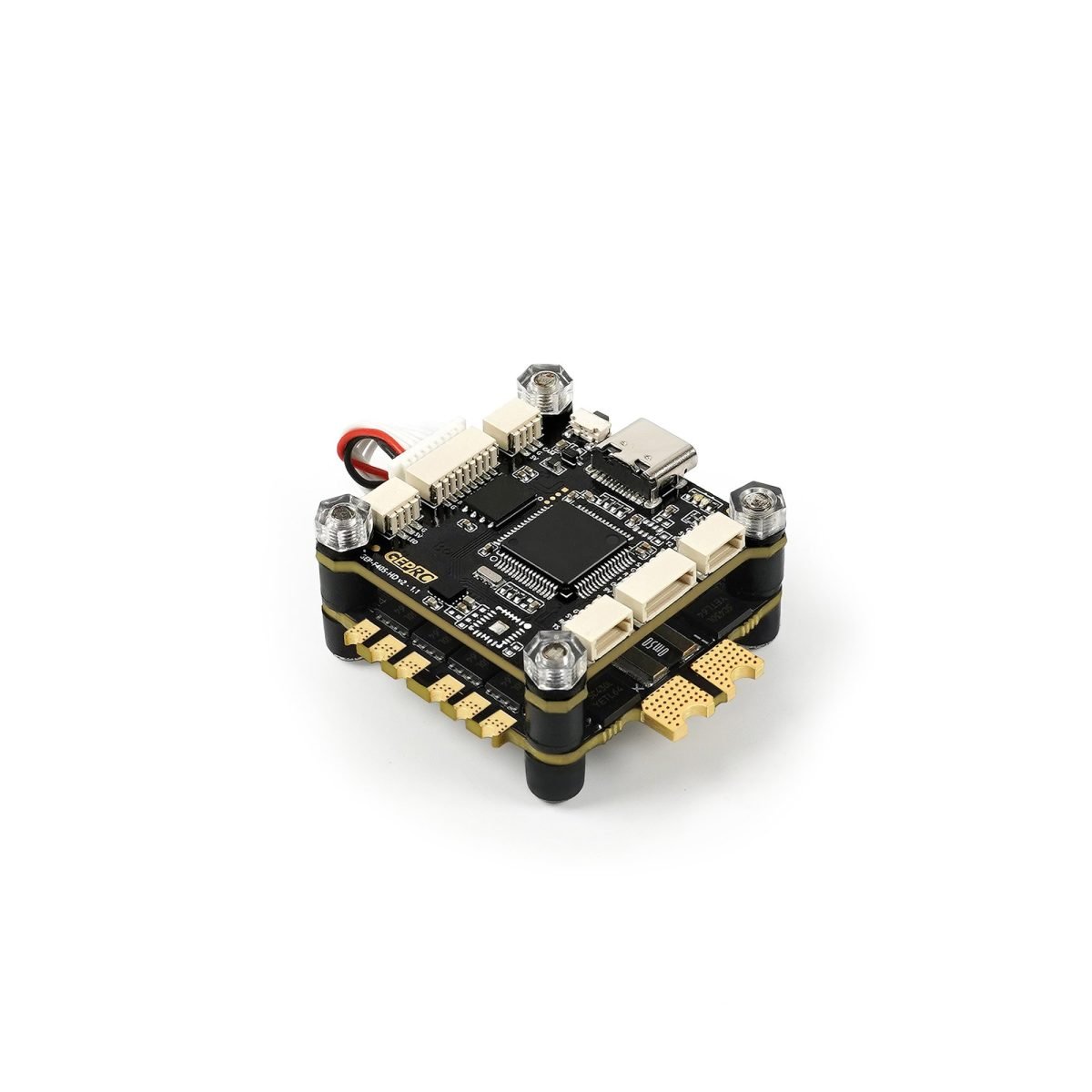

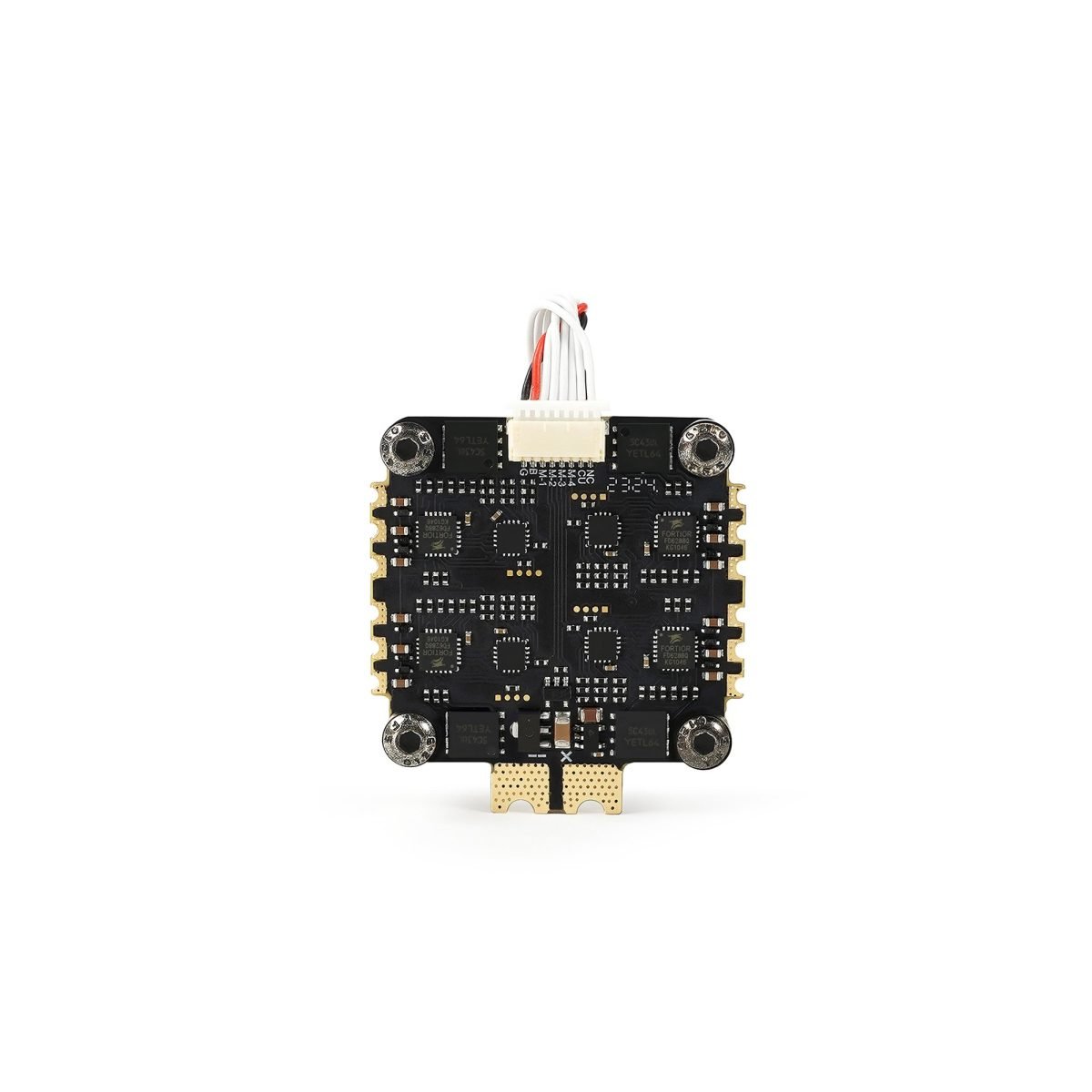

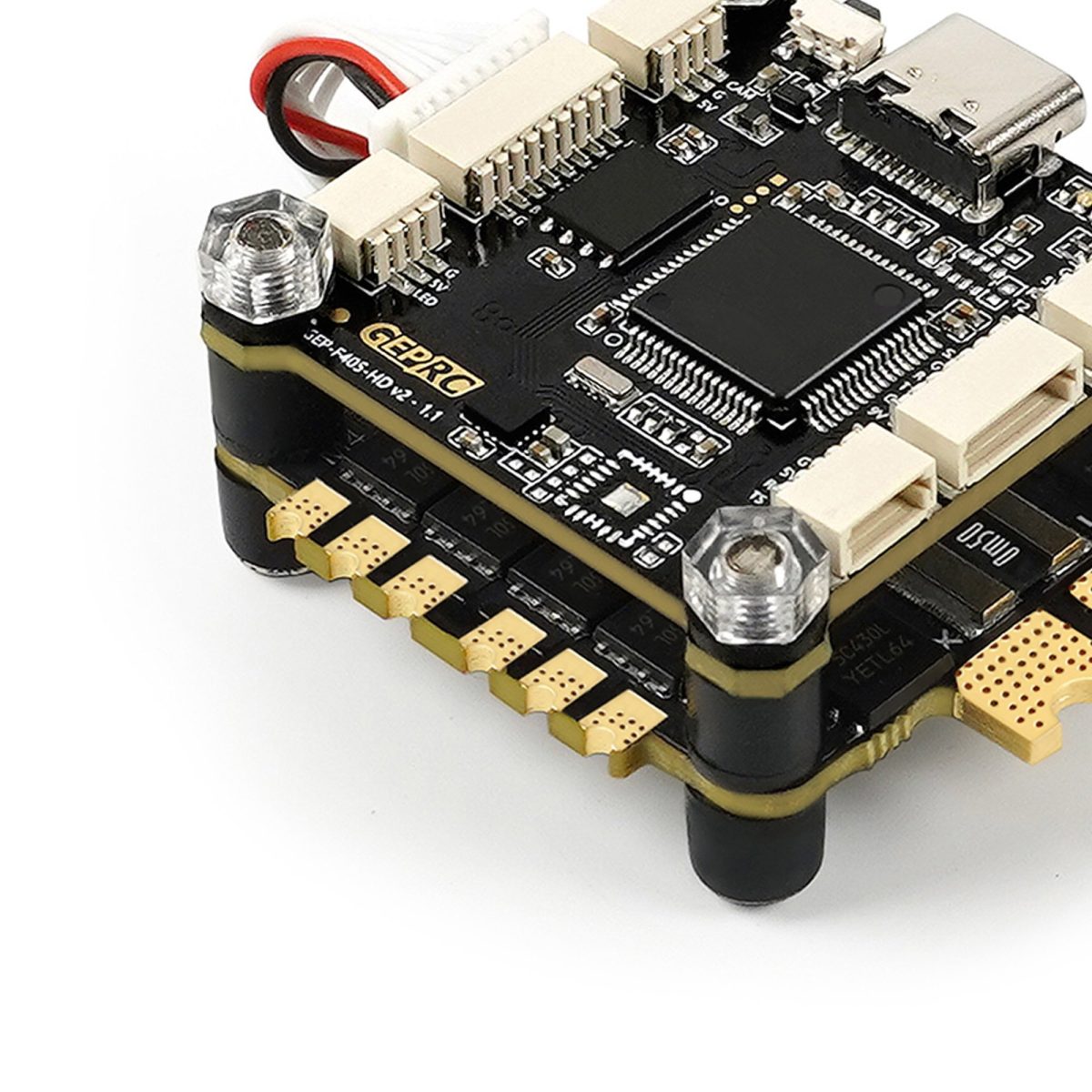

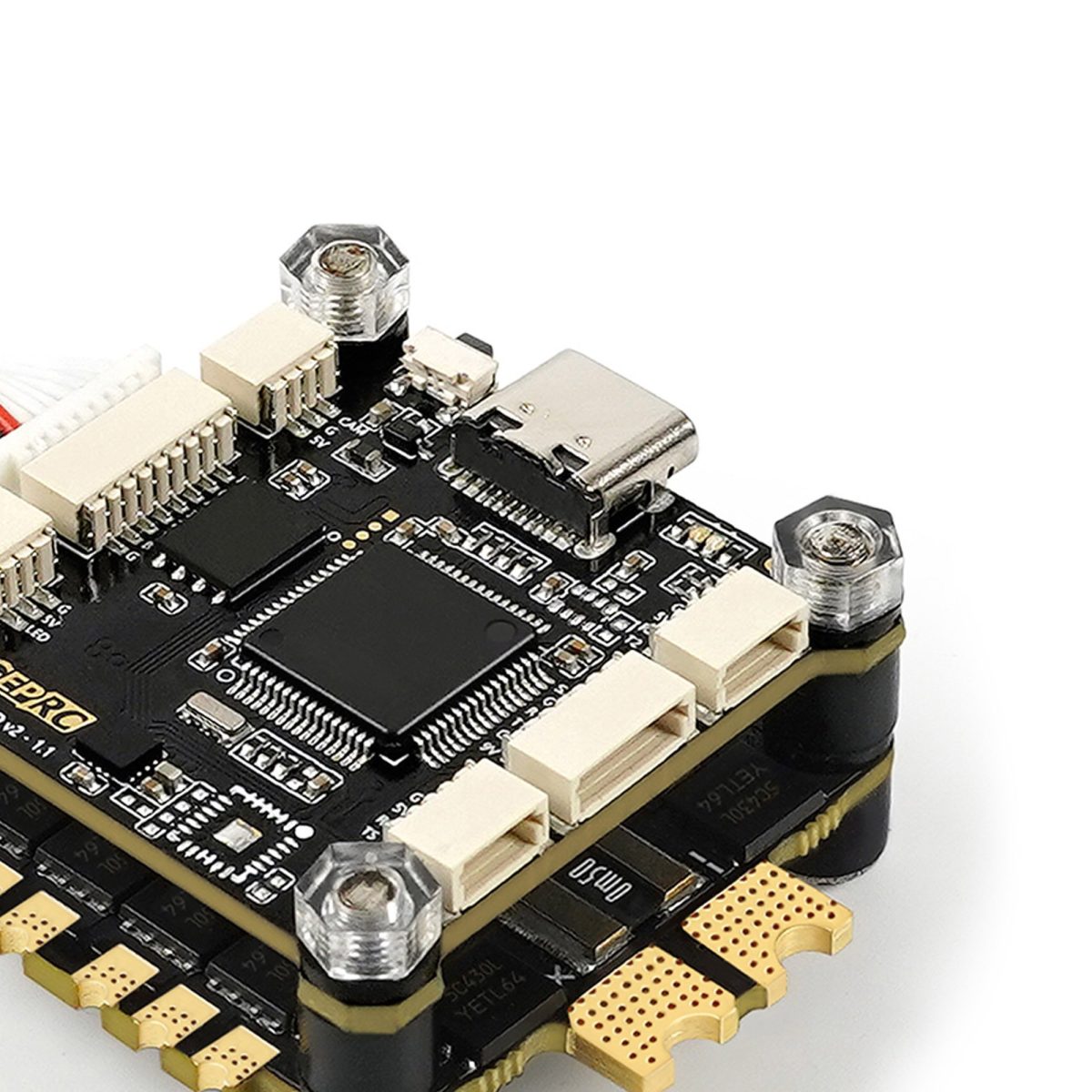

GEPRC TAKER F405 BLS 60A STACK
Description:
The GEPRC TAKER F405 BLS 60A Stack is a compact and high-performance flight controller and ESC stack designed for FPV racing, freestyle, and other multirotor applications. It combines an F405 32-bit flight controller with a 60A BLS ESC, providing responsive flight control and reliable motor performance.
The integrated FC and ESC design helps simplify installation while keeping the drone’s electronics organized. It is suitable for performance-focused FPV builds that require dependable control and efficient high-current motor operation.
GEPRC TAKER F405 BLS 60A STACK is a plug-and-play flying tower system specially designed for DJI Air Unit.Use STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS60A-4IN1 ESC to have a more delicate hand feeling experience.
The TAKER F405 BLS 60A STACK can be directly plugged into the DJI Air Unit, which can save the trouble of welding. Upgrade the type-C USB interface, which greatly improves the service life of the socket and reduces the risk of poor contact. [email protected] + 5V@3A dual independent BEC, more stable power supply for external devices.
Features:
- Use mainstream STM32F405 chip
- Equipped with the latest 42688-P gyroscope
- 16M black box storage
- Integrated LC filter
- Upgrade type-C USB interface
- Directly plugged into the DJI Air Unit
- With GEP-BLS60A-4IN1 ESC, the flying feel is silky
- Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
- [email protected] + 5V@3A dual independent BEC
Specifications:
GEP-F405-HD v2 Flight Controller
- MCU：STM32F405
- IMU：ICM42688-P(SPI)
- Air Unit Connection：Direct plugging into DJI Air Unit
- Black Box：16M onboard
- USB Interface：Type-C
- OSD：BetaFlight OSD w/ AT7456E chip
- BEC：5V@3A,[email protected] dual BEC
- Firmware Target：GEPRCF405
- Size：36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
- Input Voltage：3-6S LiPo
- UART：6
- Power Filter：Integrated LC filter
- Weight：7.7g
Package Include :
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
Where to Buy Drone Parts in India: Complete Guide 2026
Whether you are building your first FPV racing quad or assembling a heavy-lift aerial photography rig, knowing where...
Read More →
Drone Motor KV Rating Explained: How to Pick the Right Motor
Table of ContentsWhat is KV Rating in a Drone Motor?How KV Affects RPM and PerformanceLow KV vs High...
Read More →
FPV Camera & Video Transmitter Buying Guide
A good FPV camera and VTX (video transmitter) combo is what turns a flying quad into a truly...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 60A |
| SKU | AI5024 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC TAKER F405 BLS 60A STACK is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
