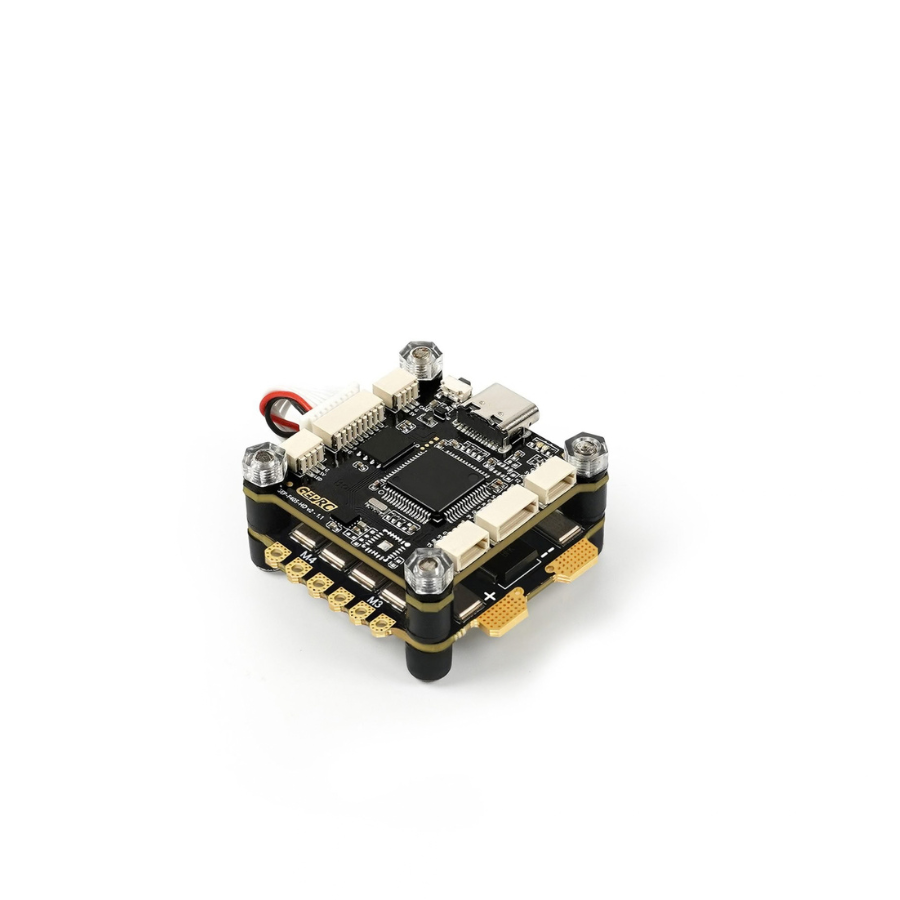

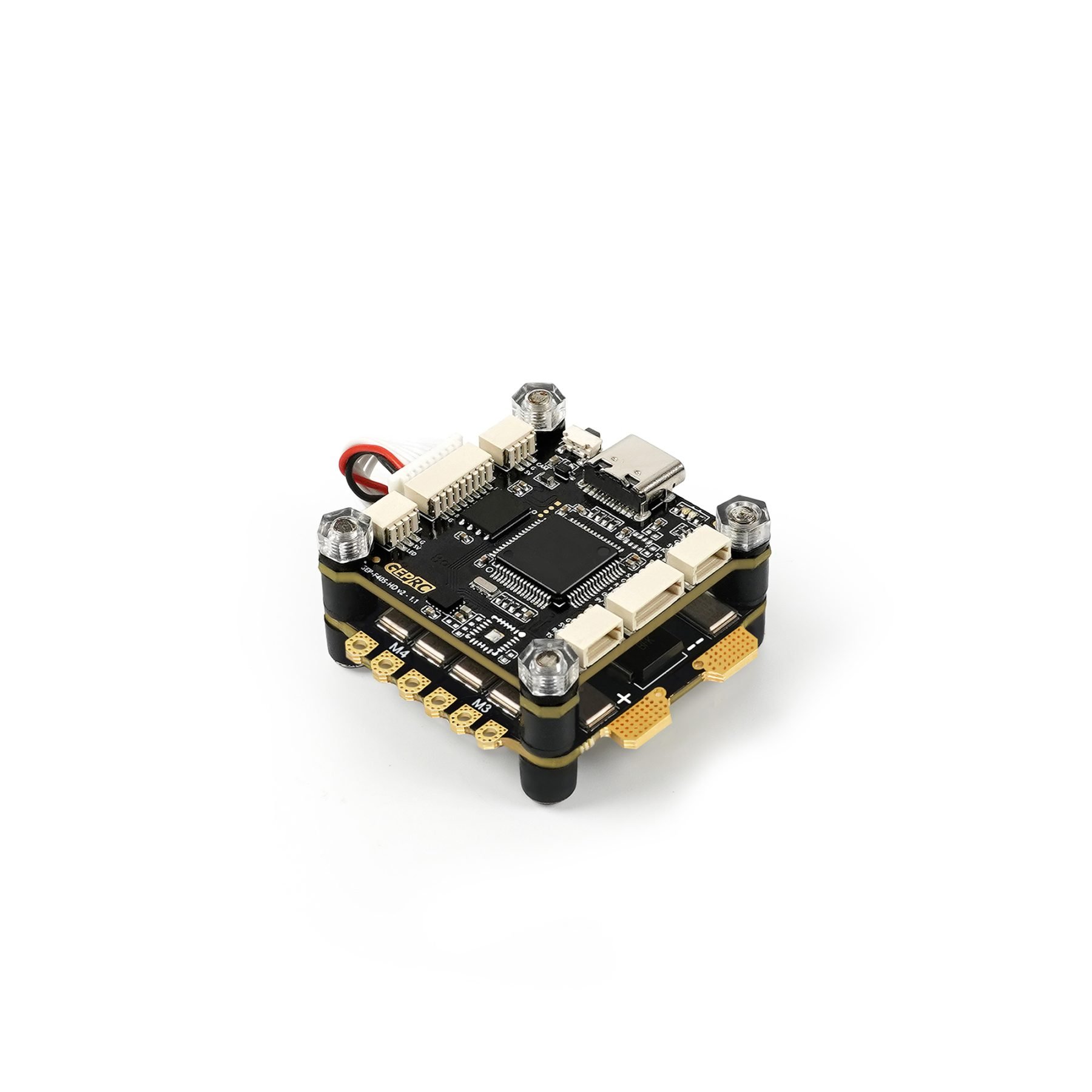

GEPRC TAKER F405 BL32 70A STACK

GEPRC TAKER F405 BL32 70A STACK

Description:

GEPRC TAKER F405 BL32 70A STACK is a plug-and-play flying tower system specially designed for DJI Air Unit.Use STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box, and collocation TAKER H70_96K 4IN1 ESC, flight dynamics is strong, have a more delicate hand feeling experience.

The GEPRC TAKER F405 BL32 70A STACK can be directly plugged into the DJI Air Unit, which can save the trouble of welding. Upgrade the type-C USB interface, which greatly improves the service life of the socket and reduces the risk of poor contact. [email protected] + 5V@3A dual independent BEC, more stable power supply for external devices.

Features:

1. Use mainstream STM32F405 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M black box storage
4. Integrated LC filter
5. Upgrade type-C USB interface
6. Directly plugged into the DJI Air Unit
7. With TAKER H70_96K ESC, 70A continuous current, strong power, and the feeling of flight is silky
8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9. [email protected] + 5V@3A dual independent BEC

Specifications

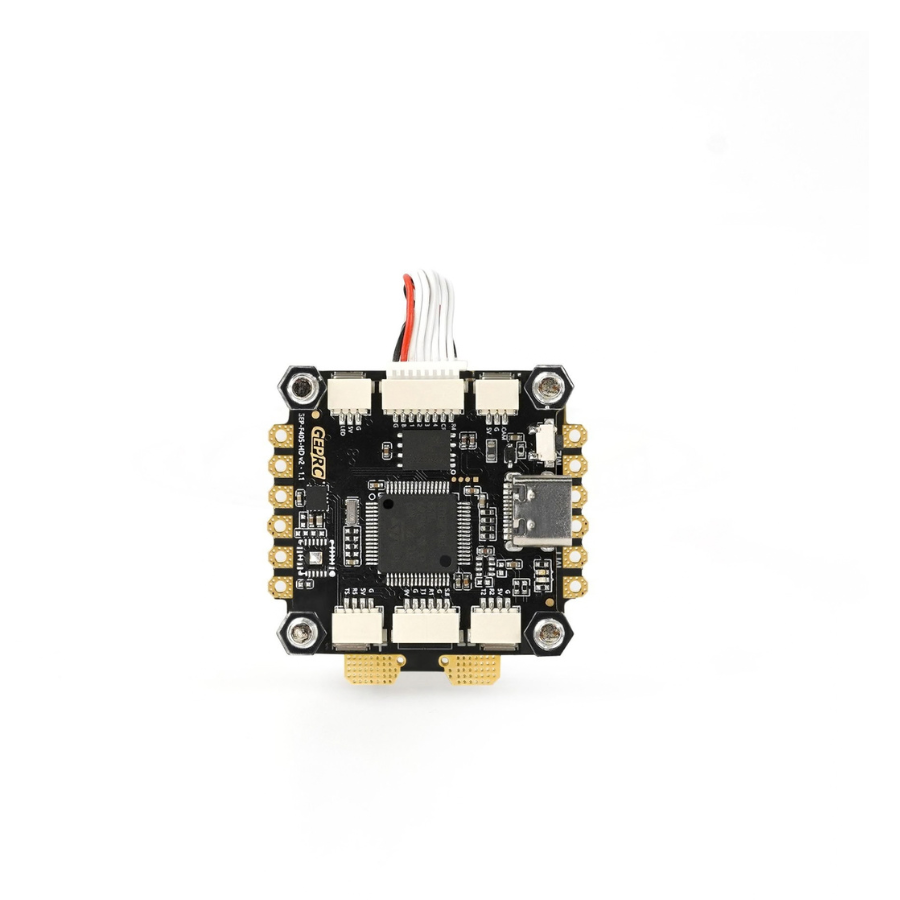

GEP-F405-HD v2 Flight Controller

• MCU：STM32F405
• IMU：ICM42688-P(SPI)
• Air Unit Connection：Direct plugging into DJI Air Unit
• Black Box：16M onboard
• USB Interface：Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,[email protected] dual BEC
• Firmware Target：GEPRCF405
• Size：36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
• Input Voltage：3-6S LiPo
• UART：6
• Power Filter：Integrated LC filter
• Weight：7.7g

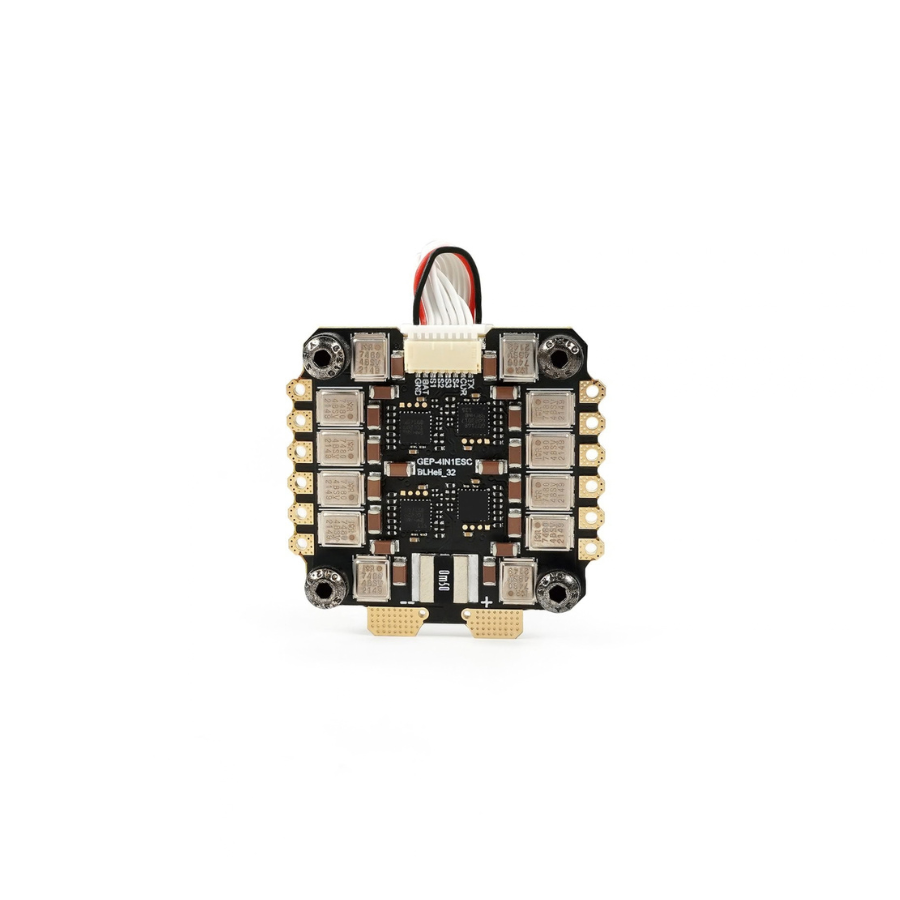

GEPRC TAKER H70_96K ESC

• Input Voltage：3-6S Lipo
• Galvanometer：Support
• PWM frequency: 24~96K
• Continue Current：70A
• Burst Current：80A（5 second）
• Support Protocol：Dshot 150/300/600
• Size：42.6*42.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.
• Weight：12.8g
• Target：GEPRC_G071_4IN1_96K

Package Includes

1 x Flight Controller

1 x ESC

1 x Capacitor

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

1 x XT60 Power cable

4 x M3*30 Screws

4 x M3*25 Screws

8 x Nylon nuts

8 x Silicone grommets

2 x sh1.0 4pinsilicone cable

1 x Camera connection cable
