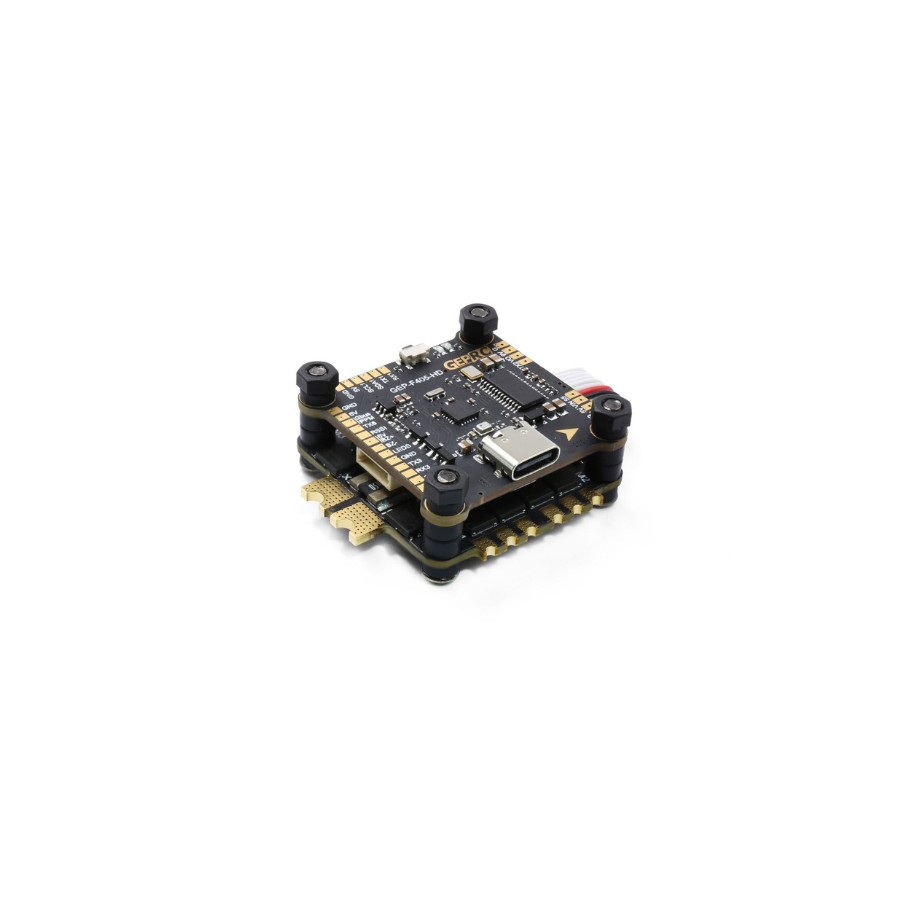

GEPRC SPAN F722-BT-HD V2 Stack
Description:
The SPAN F722-BT-HD v2 stack is specially designed for DJI Air Unit, plug and play, is a flight tower system with F722 chip flight controller and BLheli_32 50A 96K 4 in 1 32-bit ESC, equipped with 42688 -P gyroscope, integrated 512MB on-board SD card and on-board Bluetooth parameter tuning. So as to have a more delicate flying experience.

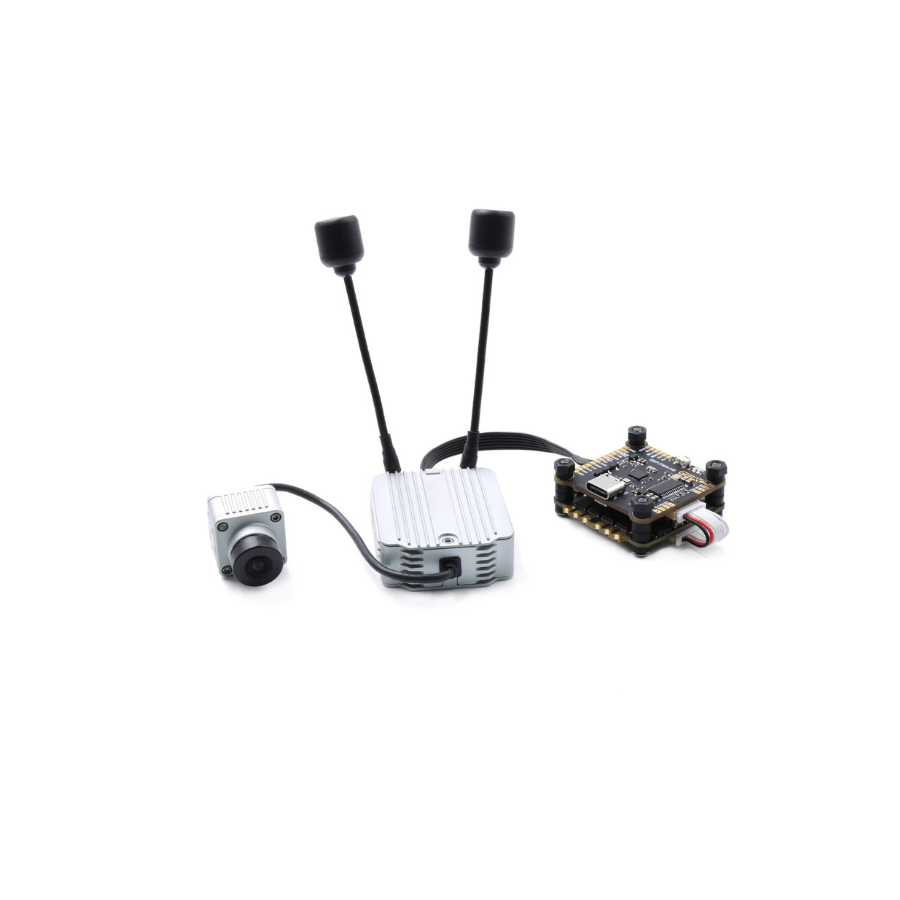

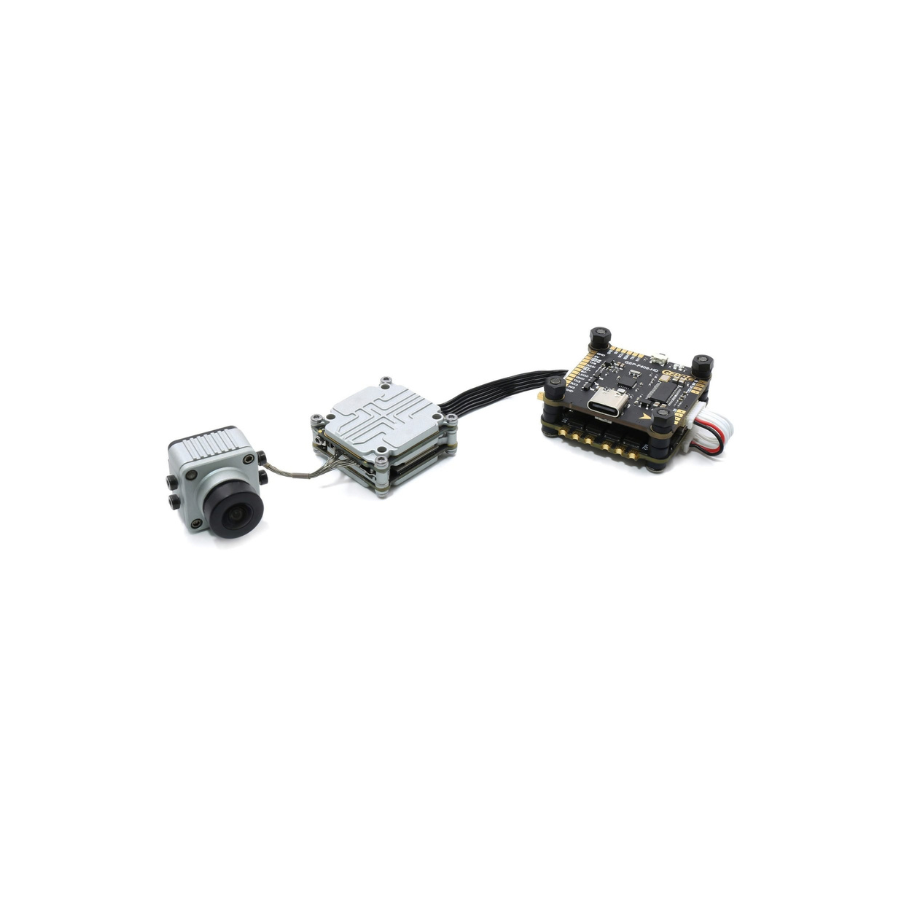

The SPAN F722-BT-HD v2 flight controller supports direct plug-in the DJI Air Unit, which can save the trouble of soldering. The upgrade of the type-C USB connector greatly improves the life of the socket and reduces the risk of poor contact.
F722-BT-HD v2 flight controller can be well matched with BLheli_32 50A 96K 4-in-1 32-bit ESC.
It can be used together to achieve perfect flight effect.
The flight controller supports various receivers, including Sbus, PPM, CRSF, DSMX, iBus, DUMD and other protocols, so don’t worry that the remote controller in your hand cannot be used.
Features
1. Using mainstream STM32F722RET6 main control
2. Equipped with the latest 42688-P gyroscope
3. Support Bluetooth parameter tuning
4. 512MB on-board SD card
5. Integrated LC filtering
6. Upgraded type-C USB connector

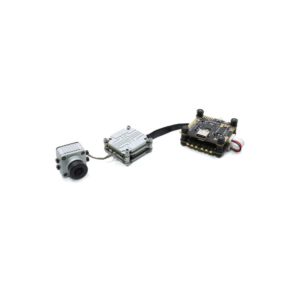

7. Direct plugging into DJI Air Unit
8. Combined with BLHeli_32 50A 96K 4IN1 ESC to achieve silky smooth flight experience
9. Simple and reasonable installation method, shock absorption ring can make the gyroscope work stably
10. Support major receivers: Sbus, PPM, CRSF, DSMX, iBus
Specification

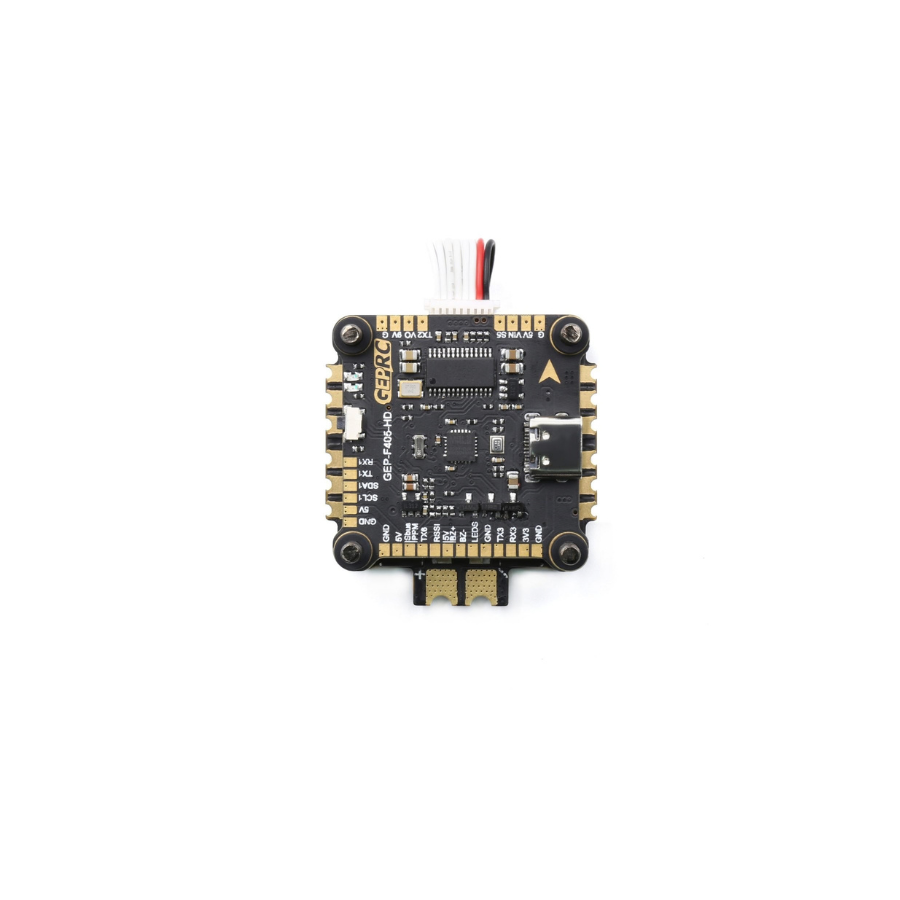

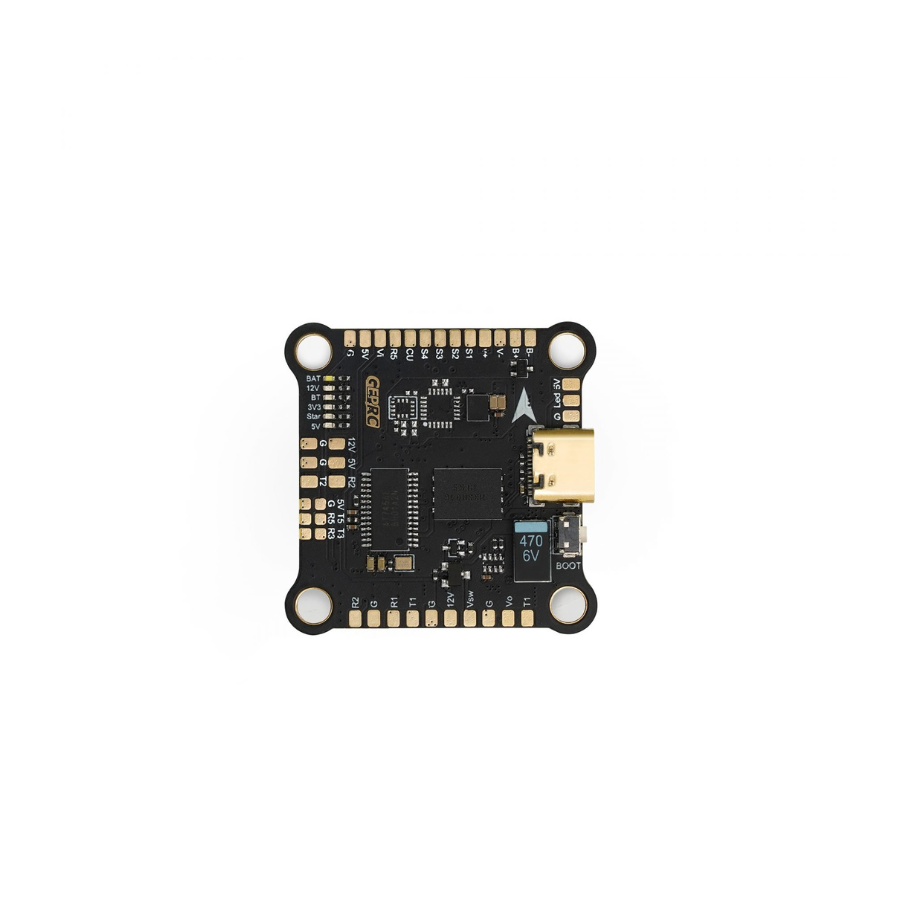

Model: SPAN F722-BT-HD v2 flight controller
- MCU: STM32F722RET6
- IMU: 42688-P(SPI)
- Black Box: 512MB onboard SD card
- USB Connector: Type-C
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC Output: 5V 3A / 12V 3A
- Integrated LC filtering
- Firmware: GEPRCF722-BT-HD
- Size: 36x36mm, φ4mm hole becomes φ3mm after using silicone grommets
- Input Voltage: LiPo 3-6S
- UARTS: 5
Model: BL32 50A 96K 4IN1 ESC
- MCU: SMT32G071 (32bit 96K Hz)
- Continuous Current: 50A
- Peak Current: 55A (5 seconds)
- Galvanometer: Support
- Telemetry: Support
- Supported Protocols: DSHOT600, PWM, Multishot, OneShot
- Firmware: GEPRC_G071_4IN1_96K
- Input Voltage: 3-6S Lipo
Pacakge Includes
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*24 Screws
8 x Nylon nuts
4 x Silicone gromm
ArduCopter Guided Mode: Complete Mission Planner Waypoint Tutorial
Table of ContentsIntroductionPrerequisites and HardwareMission Planner Installation and ConnectionPre-Flight ConfigurationUnderstanding AUTO Mode vs Guided ModeCreating a Waypoint MissionKey...
Read More →
Betaflight Setup Guide: PID Tuning for Beginners
Table of ContentsWhat is Betaflight?What Are PIDs and Why Do They Matter?Tools You Need Before You StartStep 1:...
Read More →
Agricultural Drone Spraying System: Components and Setup
A well-designed agricultural drone spraying system is the heart of any crop protection drone, directly determining spray coverage,...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| SKU | AI5029 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The GEPRC SPAN F722-BT-HD V2 Stack is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine GEPRC product sourced from authorized channels
