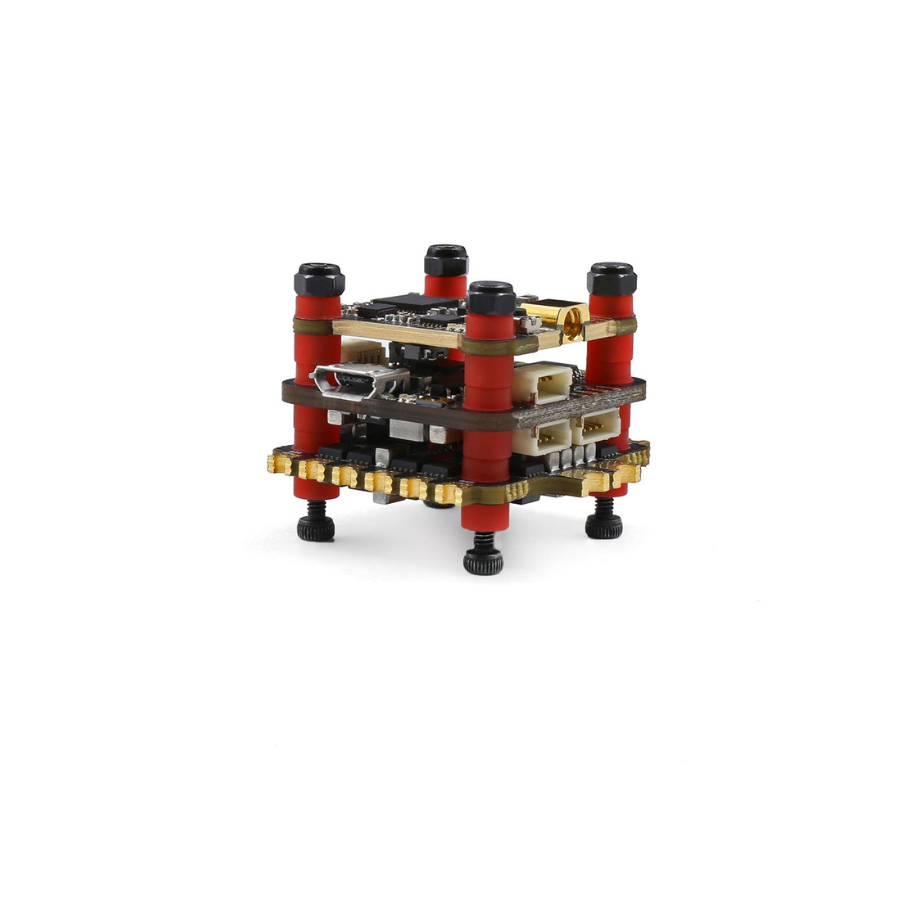

GEPRC GEP-STABLE V2 F4 35A
Description:
The GEPRC GEP-STABLE V2 F4 35A is a compact and reliable FPV drone flight controller and 4-in-1 ESC stack designed for smooth, stable, and responsive flight performance. Featuring an F4 flight controller and 35A ESC, it provides efficient motor control and reliable power management for FPV racing, freestyle, and DIY drone builds. Its compact design makes it easy to integrate into a wide range of FPV frames while maintaining a clean and organized setup.

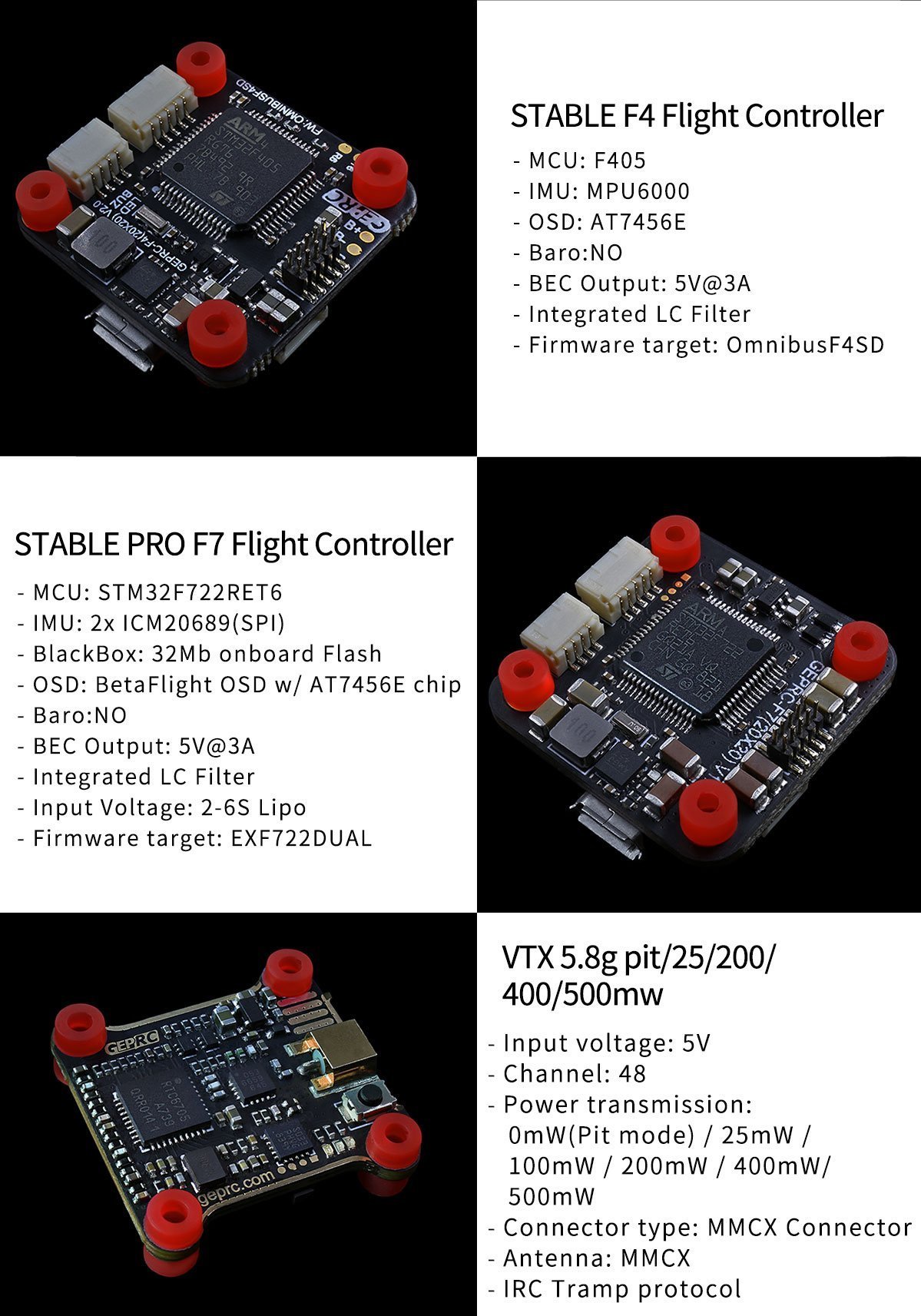

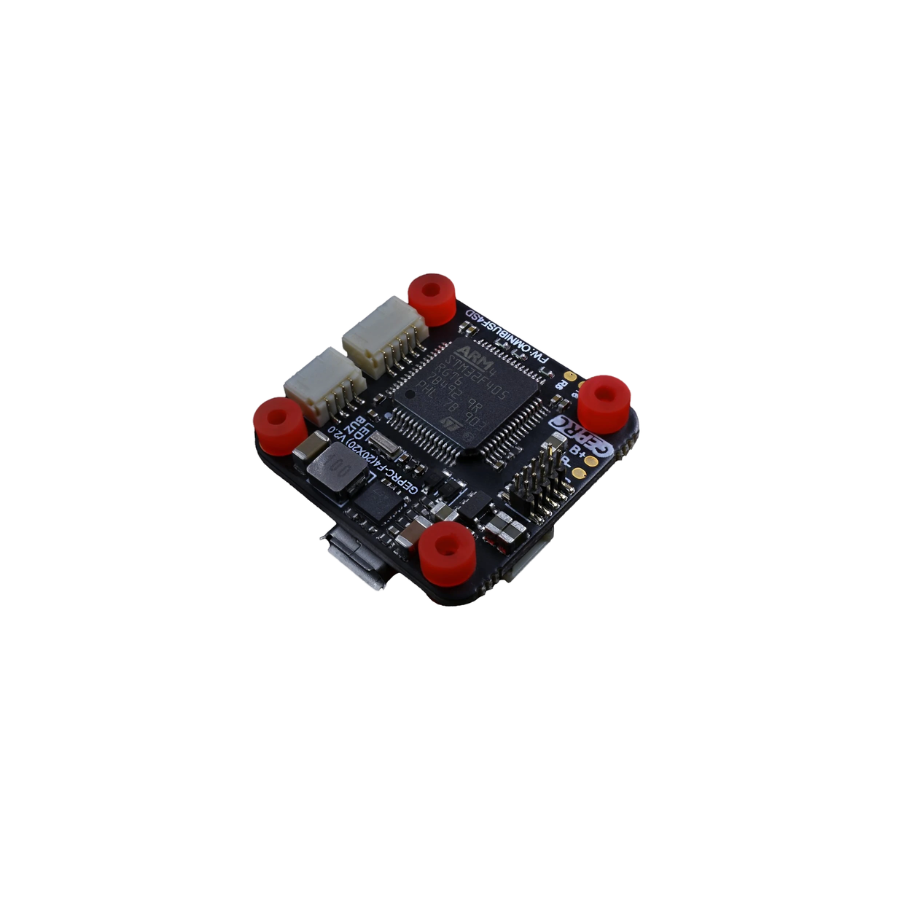

STABLE V2 F4 Flight Controller Specs：
- Model:STABLE F4 35A
- MCU: F405
- IMU: MPU6000 gyro/accelerometer (SPI)
- OSD: BetaFlight OSD w/ AT7456E chip
- Baro:NO
- BEC Output: 5V@3A
- Integrated LC Filter
- Firmware target: OmnibusF4SD
- Size: 26x26mm board, 20mm mounting holes (M2)

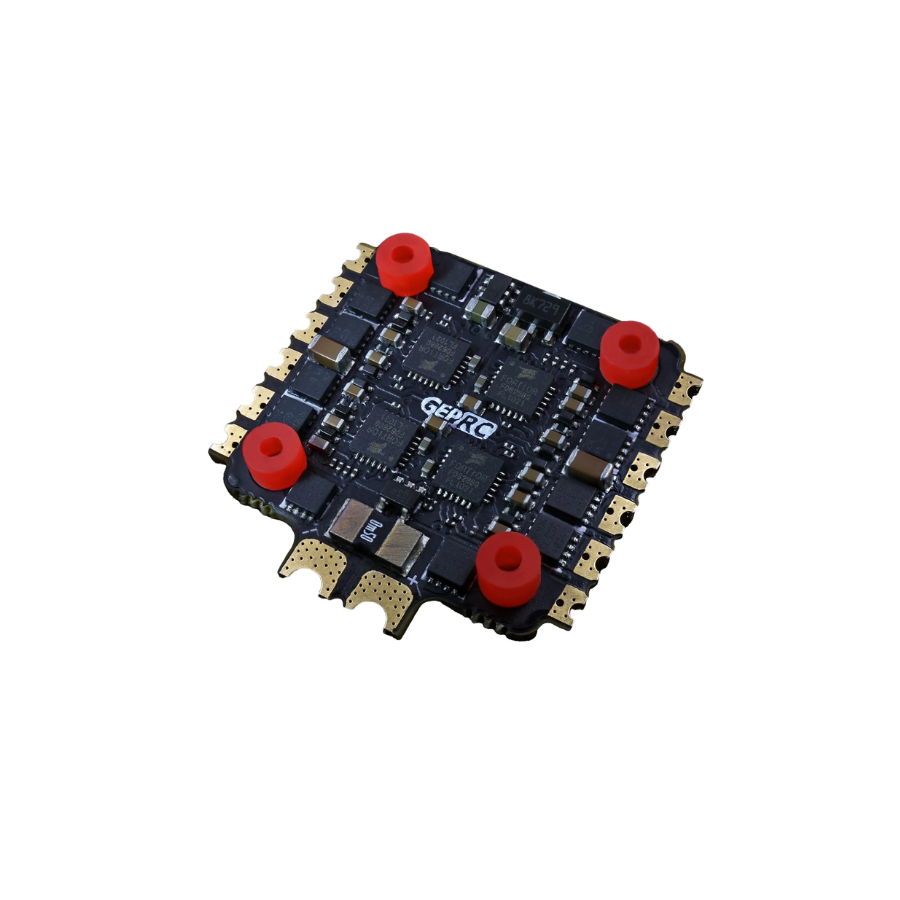

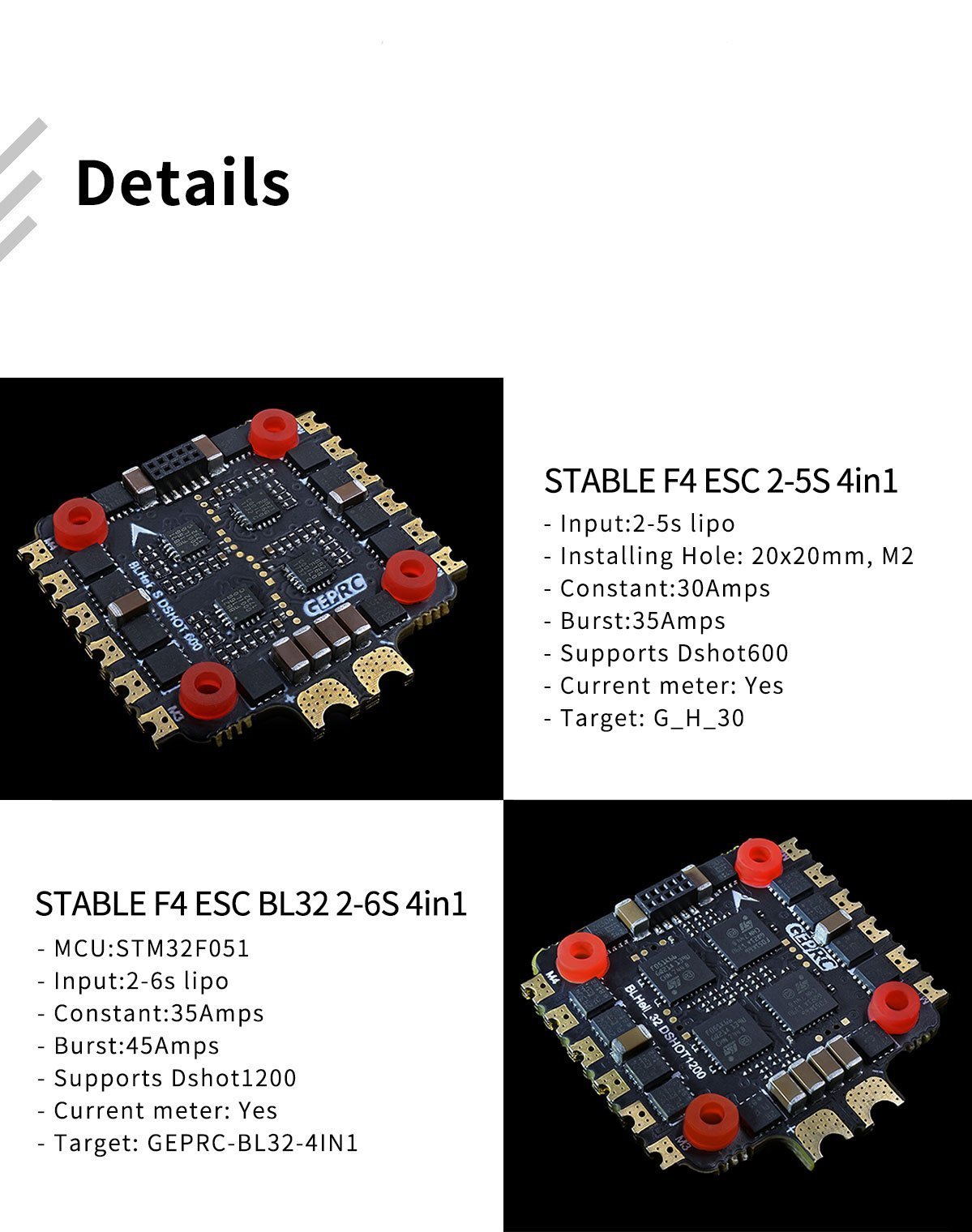

STABLE V2 F4 ESC BL32 2-6S 4in1 Specs：
- MCU:STM32F051
- Input:2-6s lipo
- Constant:35Amps
- Burst:45Amps
- Dimensions:31*31mm(including the power pads)
- Mounting Holes:20*20mm,M2
- Supports Dshot1200,Proshot,Oneshot,Multishot
- Current meter: Yes
- Target: GEPRC-BL32-4IN1
STABLE F4 5.8g 600mW VTX Specs:
- Input voltage: 5V
- Channel: 48
- Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 600mW
- Size: 24 * 26 mm
- Mounting Holes Dimension: 20mm x 20mm
- Connector type: MMCX Connector
- BEC Output：5V/1A for Camera of FC
- Weight: 2.3g
- Traditional button
- IRC Tramp protocol
Features:

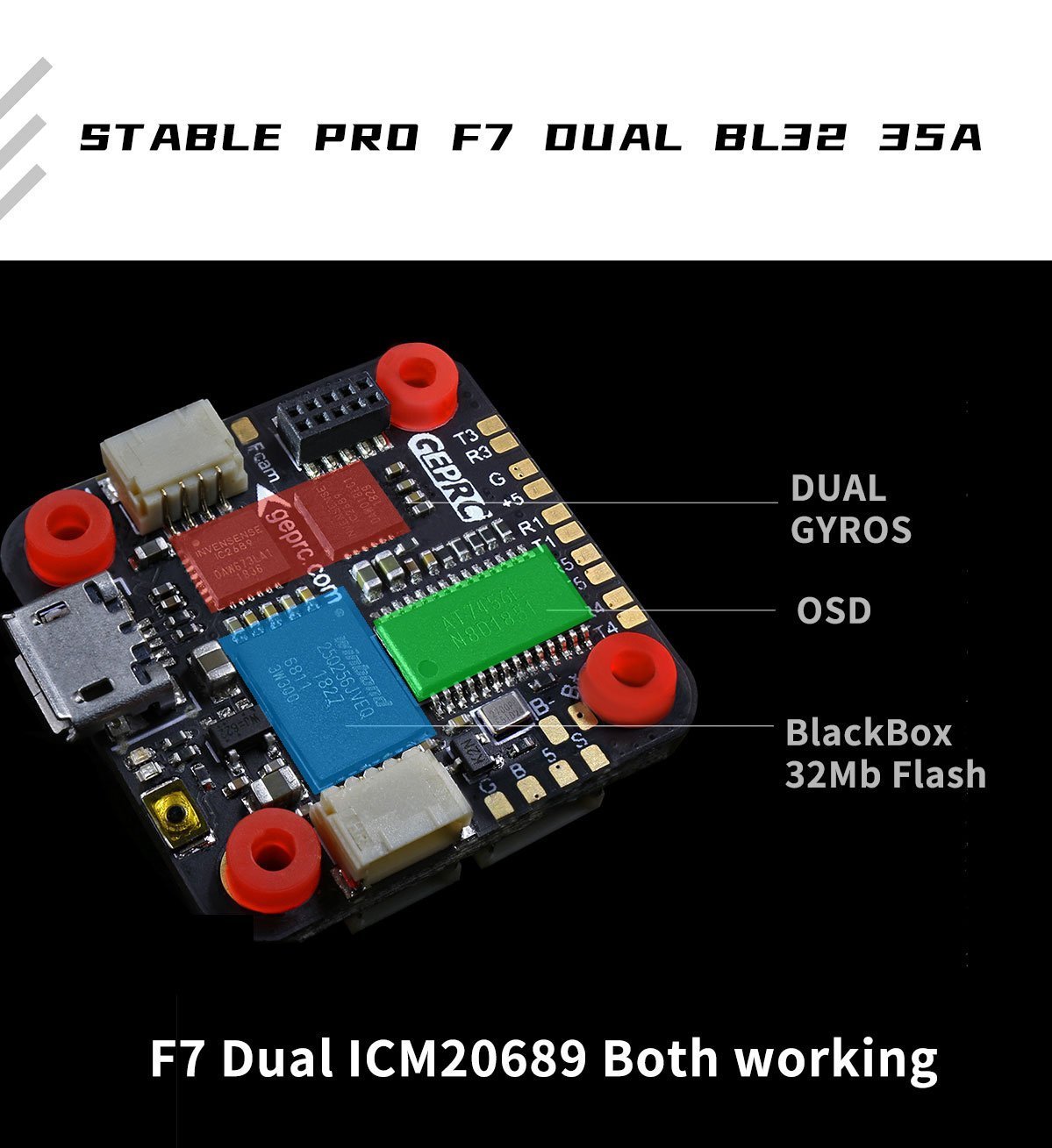

- F7 Support both dual ICM20689 gyroscopes to work simultaneously, Exquisite and perfect flight experience

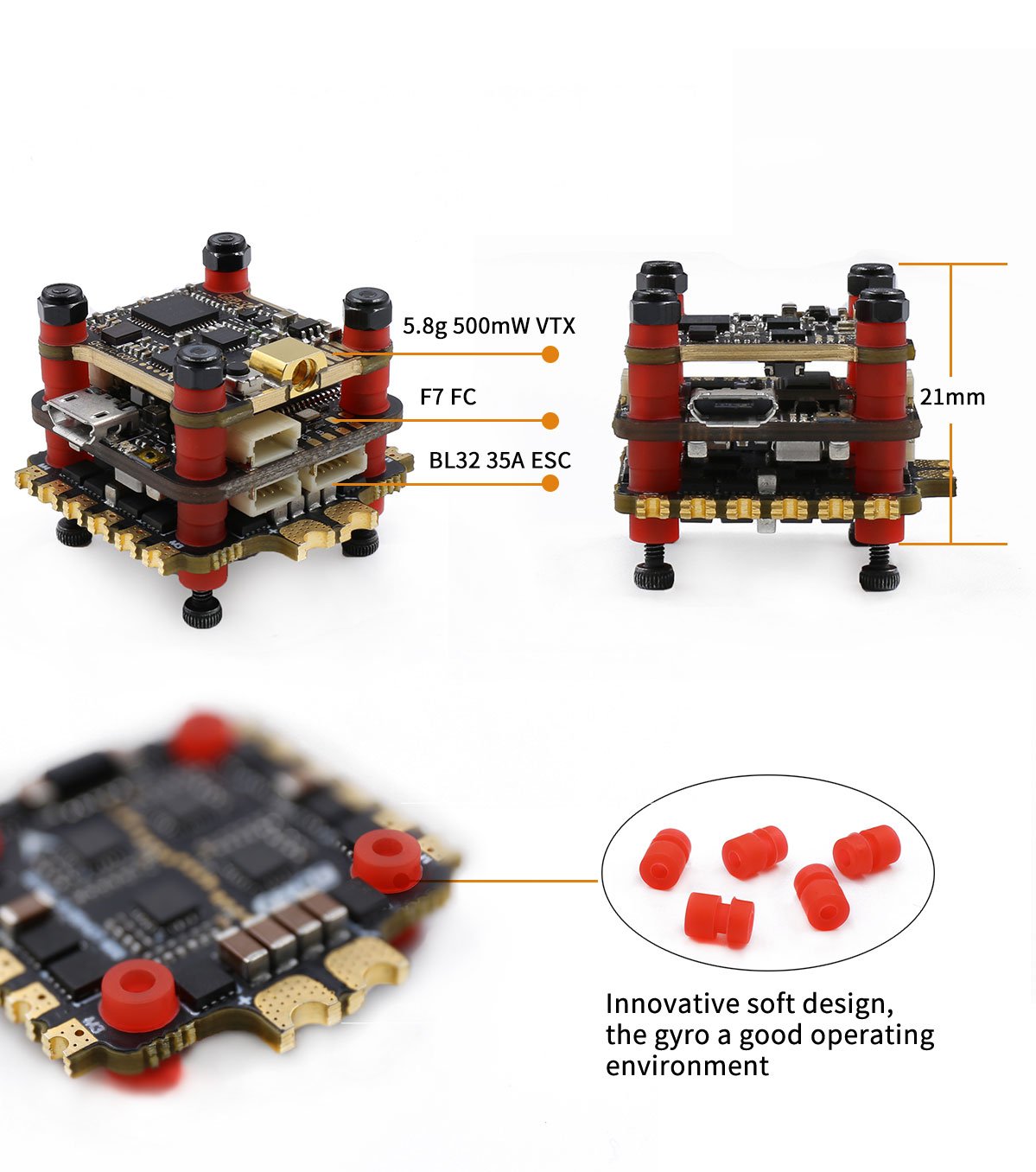

- Innovative soft damping design, suitable for most frame, ensures flight control and gyroscope without noise
- Simple installation method, compact space

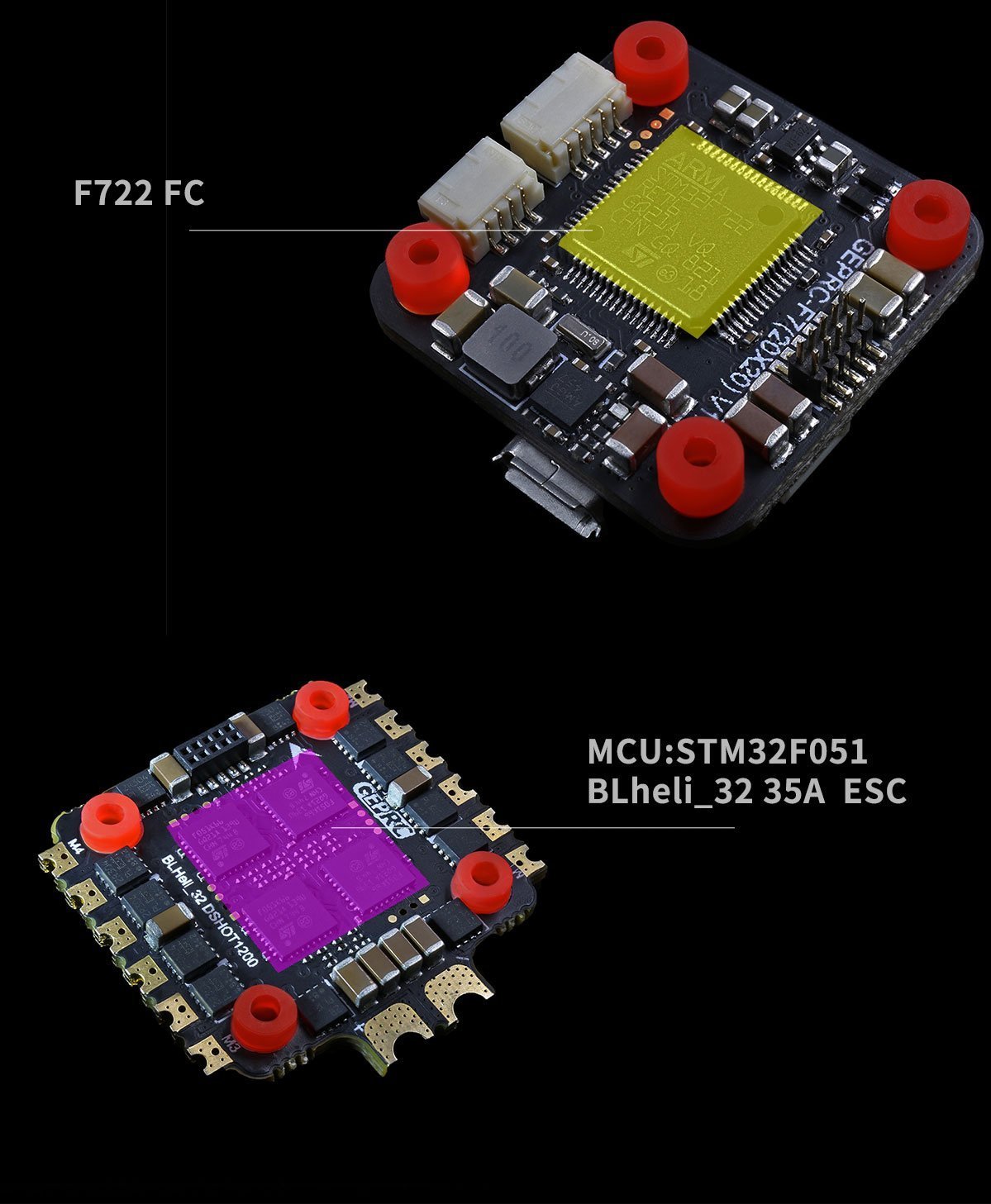

- STM32 F405 MCU or STM32F722RET6 MCU
- Newly upgraded BLheli_32 ESC, high-speed operation, 35A stable working voltage, maximum 45A (3 seconds)
- Support 2-6s battery and current meter
- Support blackbox and use 32M on-board flash storage
- 8g VTX Support IRC protocol, PIT/ 25/100/200/600mw adjustable, 48 frequency
- Mounting Holes: 20x20mm(M2)
- Size: 26x26x21mm
- Weight 16.5g (Including Wire and screws)

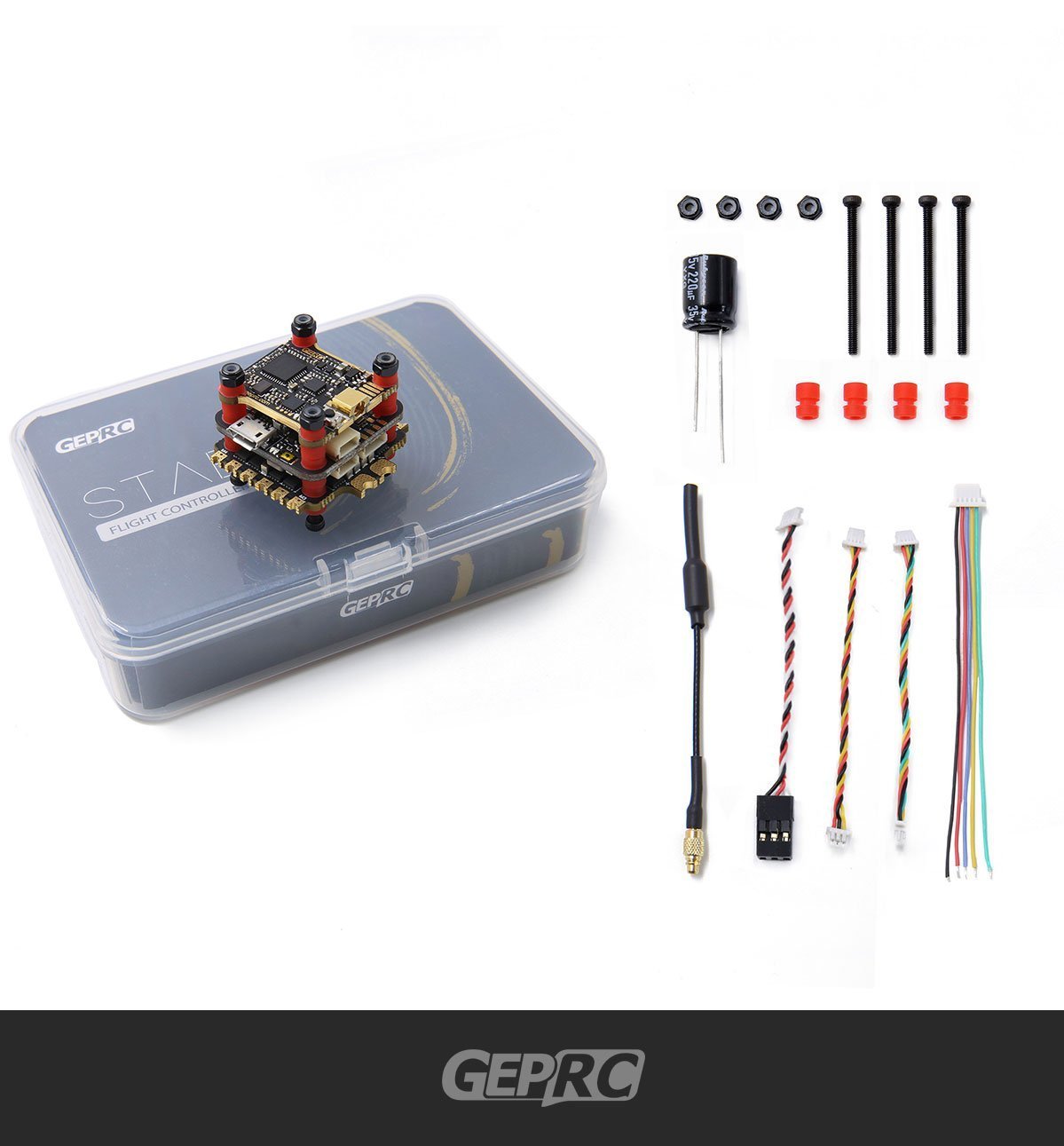

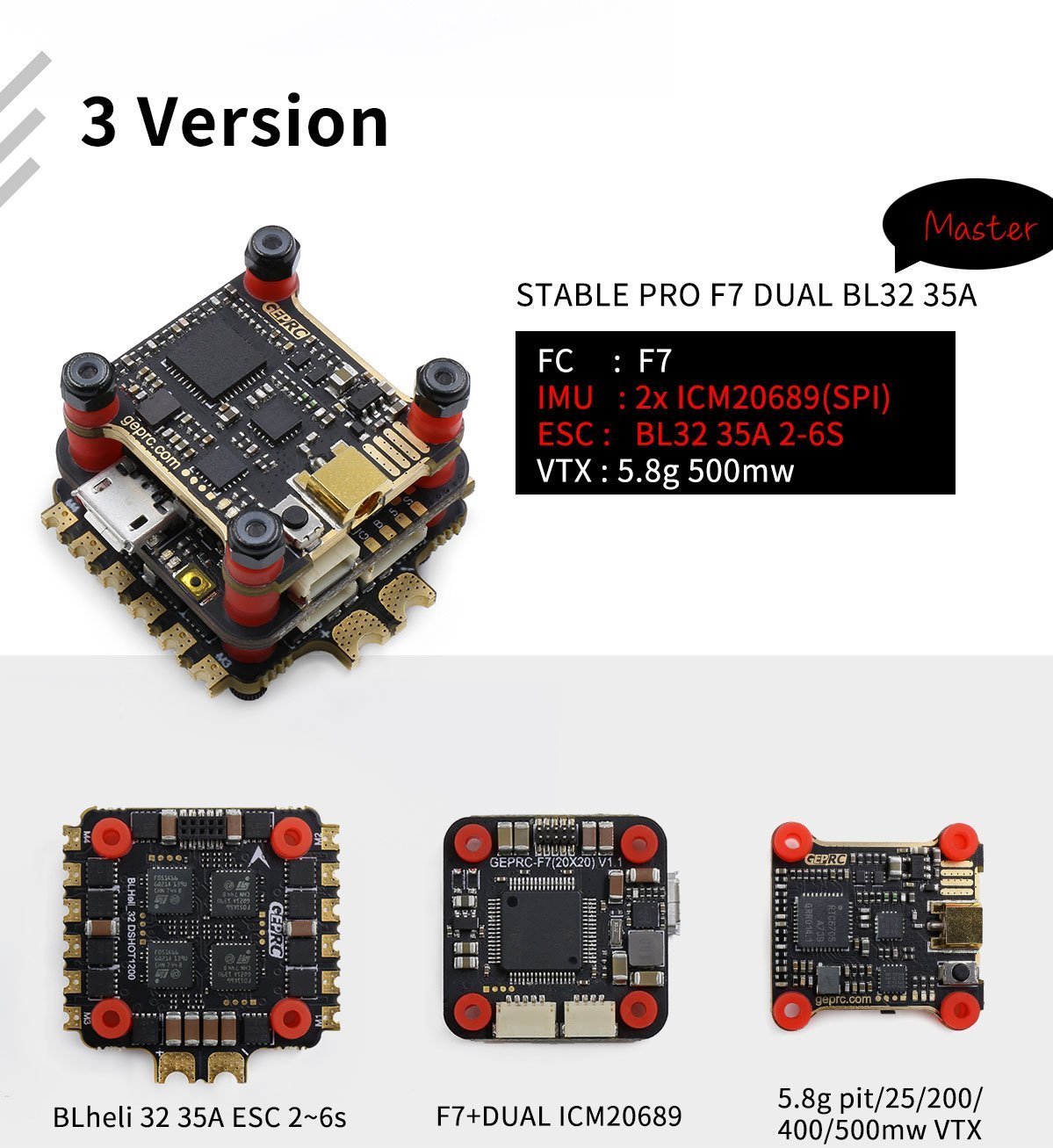

Package Include：
– 1 x F4 Flight Controller
– 1 xBLheli_32 35A 2-6S ESC
– 1 x 5.8g 500mW VTX
– 1 x Antenna
– 1 x Capacitance
– 5 x cable set
– 4 x M2*28mm screw
– 16 x Soft silicone
