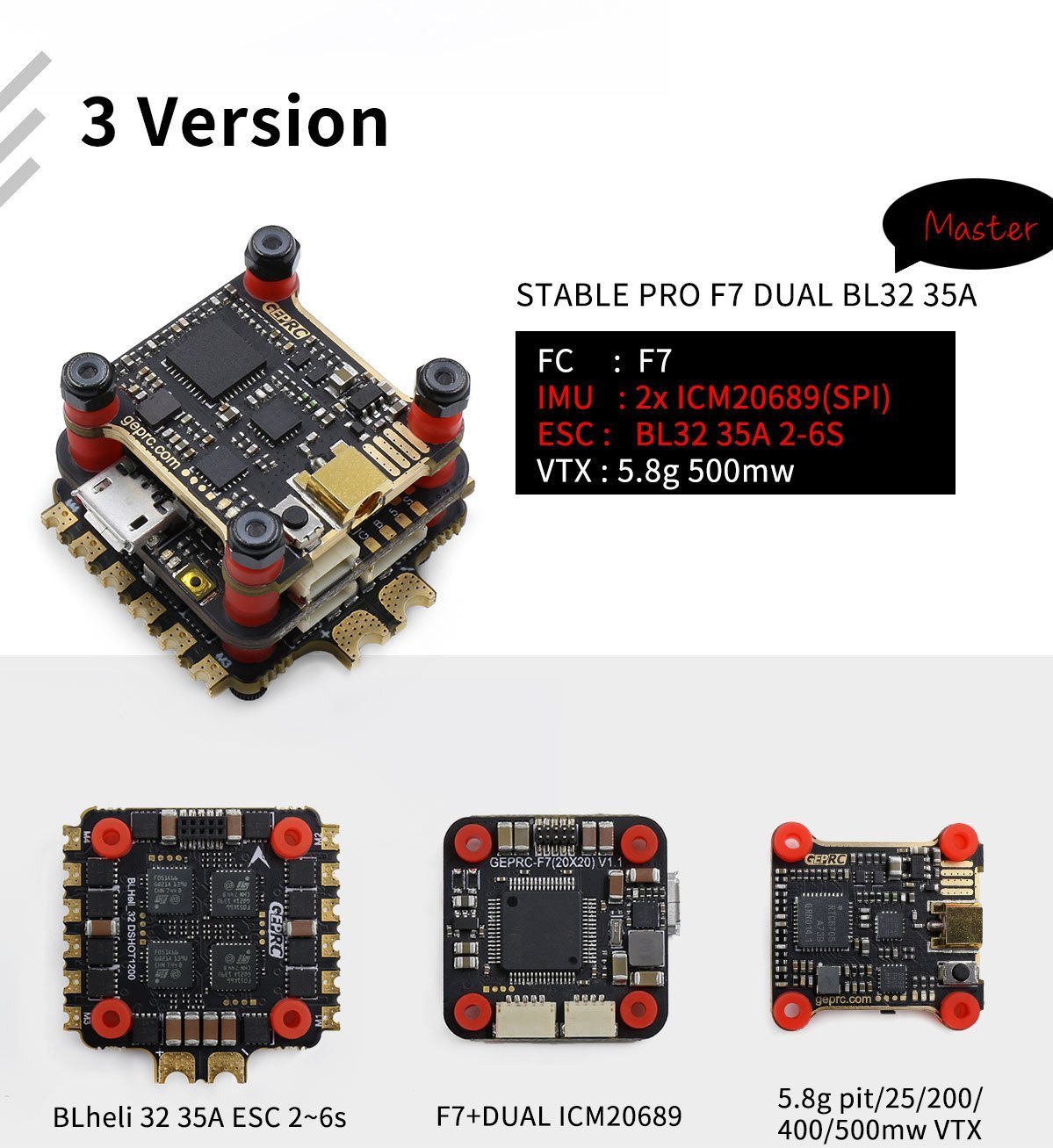

GEPRC GEP-STABLE PRO F7 DUAL BL32 35A

GEPRC GEP-STABLE PRO F7 DUAL BL32 35A

Description:

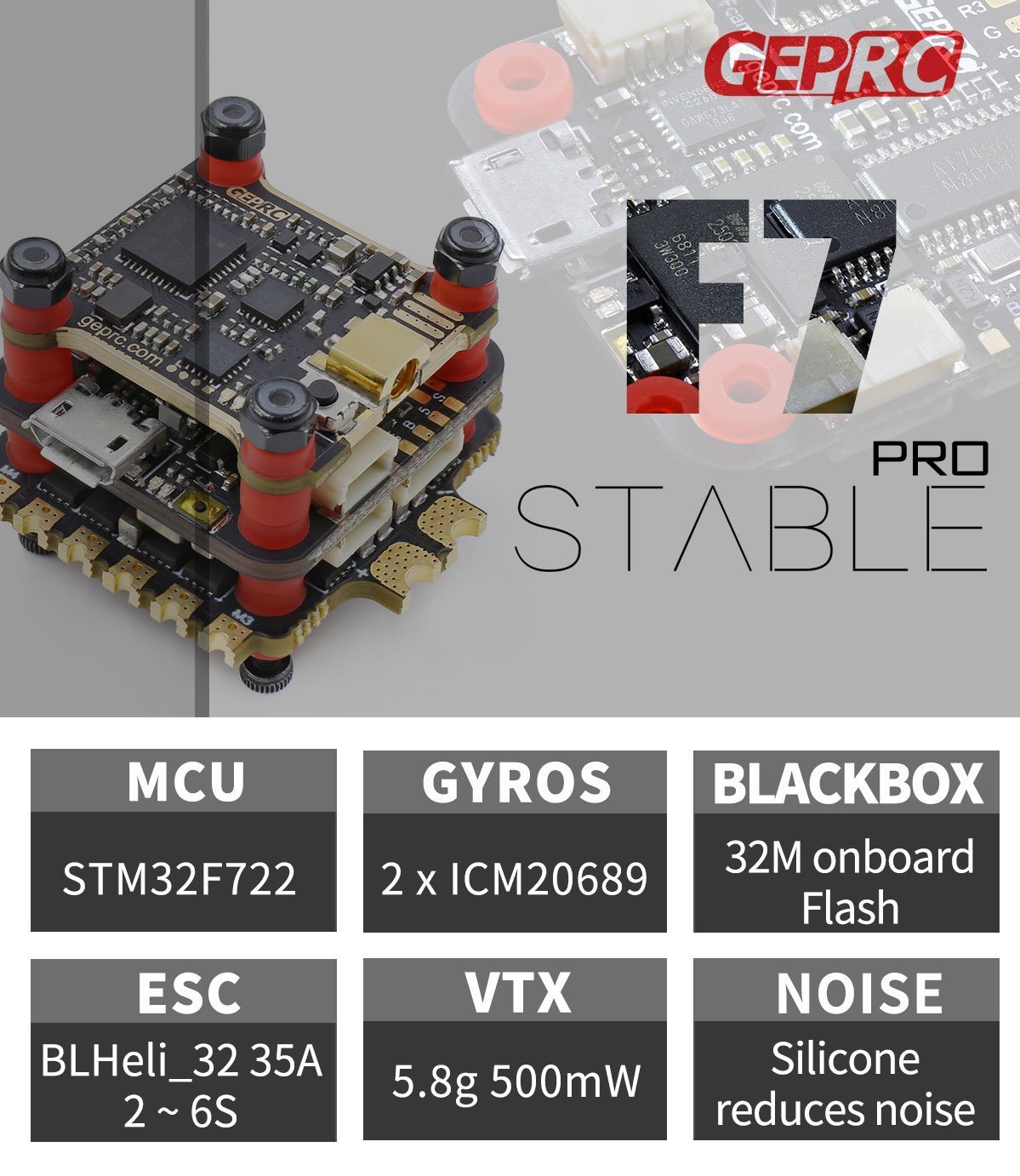

The GEPRC GEP-STABLE PRO F7 DUAL BL32 35A is a high-performance FPV flight controller and 4-in-1 ESC stack designed for reliable and responsive drone operation. It features a powerful F7 flight controller paired with BLHeli_32 35A ESCs, providing precise motor control, smooth throttle response, and efficient power management. Designed for FPV racing, freestyle, and custom drone builds, its compact integrated design helps simplify wiring and installation while delivering stable flight performance.

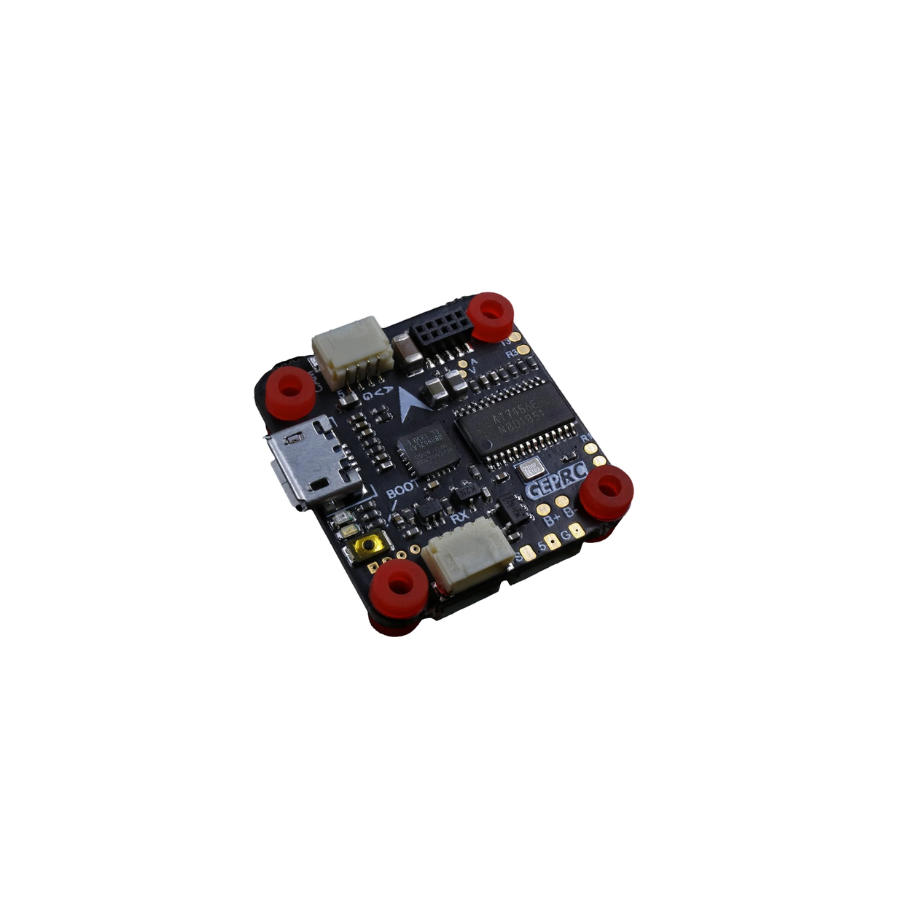

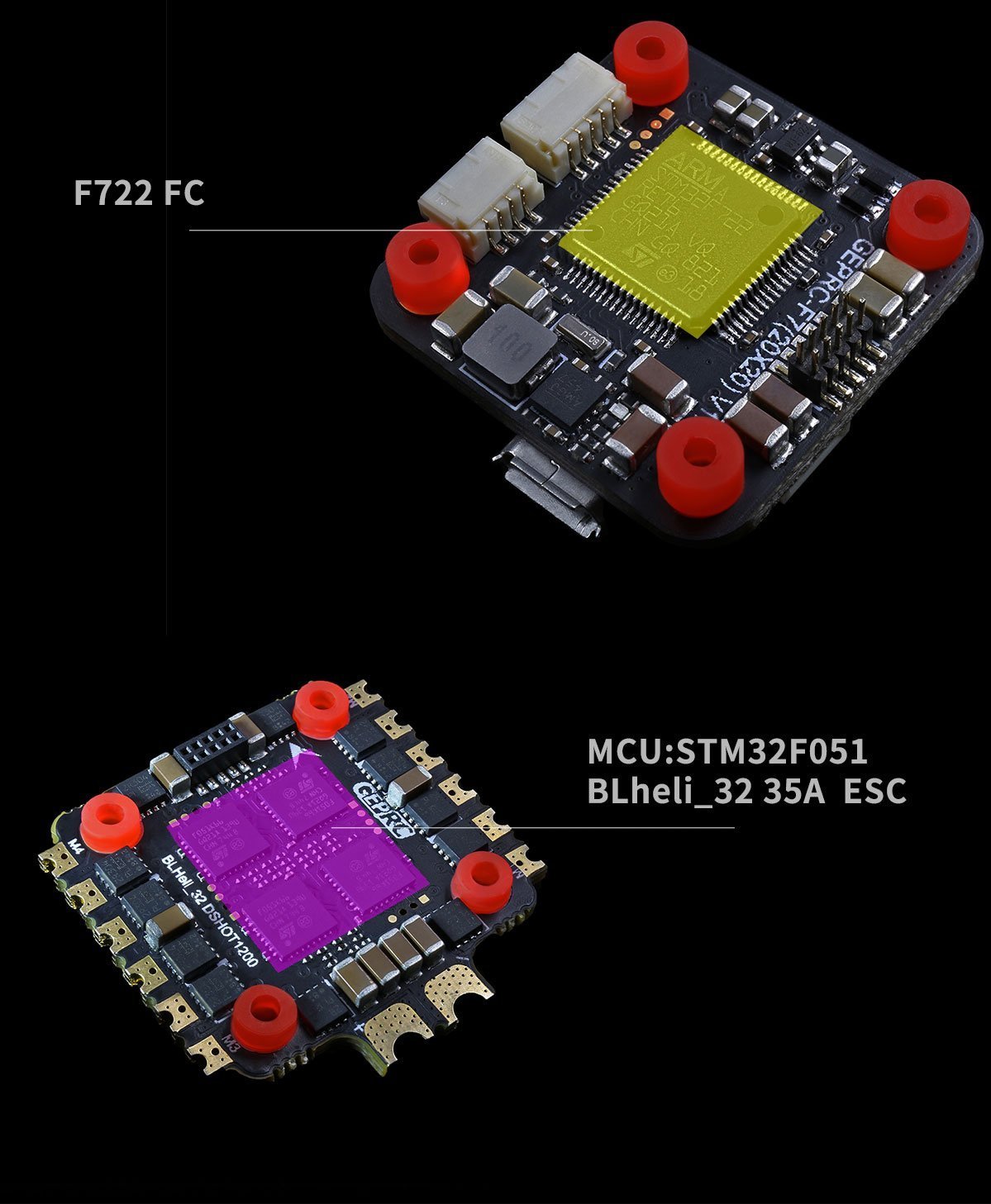

STABLE PRO F7 Flight Controller Specs：

• Model:STABLE PRO F7 35A
• MCU: STM32F722RET6
• IMU: 2x ICM20689(SPI)
• BlackBox: 32Mb onboard Flash
• OSD: BetaFlight OSD w/ AT7456E chip
• Baro:NO
• BEC Output: 5V@3A
• Integrated LC Filter
• Input Voltage: 2-6S Lipo
• Firmware target: EXF722DUAL
• Size: 26x26mm board, 20mm mounting holes (M2)

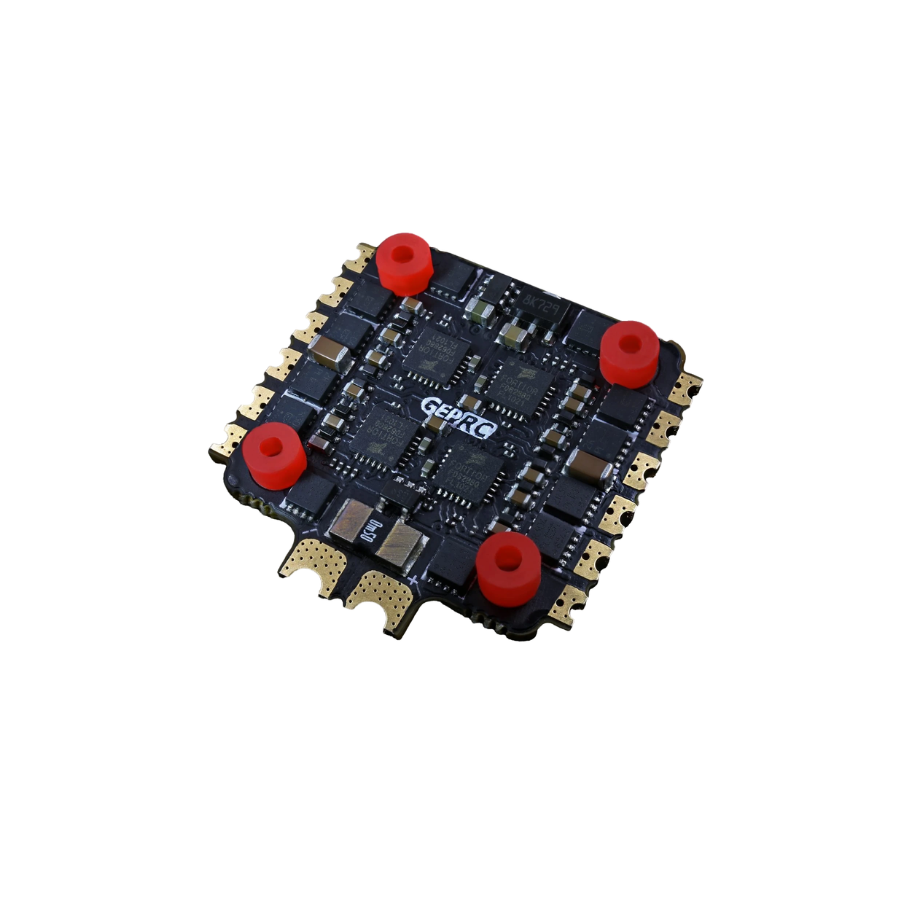

STABLE PRO F7 ESC BL32 2-6S 4in1 Specs：

• MCU:STM32F051
• Input:2-6s lipo
• Constant:35Amps
• Burst:45Amps
• Dimensions:31*31mm(including the power pads)
• Mounting Holes:20*20mm,M2
• Supports Dshot1200,Proshot,Oneshot,Multishot
• Current meter: Yes
• Target: GEPRC-BL32-4IN1

STABLE PRO F7 5.8g 600mW VTX Specs:

• Input voltage: 5V
• Channel: 48
• Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 600mW
• Size: 24 * 26 mm
• Mounting Holes Dimension: 20mm x 20mm
• Connector type: MMCX Connector
• BEC Output：5V/1A for Camera of FC
• Weight: 2.3g
• Traditional button
• IRC Tramp protocol

Features:

• F7 Support both dual ICM20689 gyroscopes to work simultaneously, Exquisite and perfect flight experience
• Innovative soft damping design, suitable for most frame, ensures flight control and gyroscope without noise
• Simple installation method, compact space
• STM32 F405 MCU or STM32F722RET6 MCU
• Newly upgraded BLheli_32 ESC, high-speed operation, 35A stable working voltage, maximum 45A (3 seconds)
• Support 2-6s battery and current meter
• Support blackbox and use 32M on-board flash storage
• 8g VTX Support IRC protocol, PIT/ 25/100/200/600mw adjustable, 48 frequency
• Mounting Holes: 20x20mm(M2)
• Size: 26x26x21mm
• Weight 16.5g (Including Wire and screws)

Package Include：

– 1 x F7 Flight Controller
– 1 x BLheli_32 35A 2-6S ESC
– 1 x 5.8g 600mW VTX
– 1 x Antenna
– 1 x Capacitance
– 5 x cable set
– 4 x M2*28mm screw
– 16 x Soft silicone
