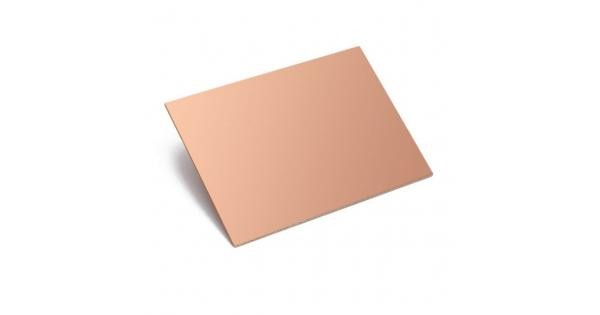

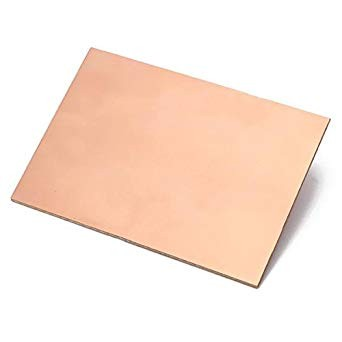

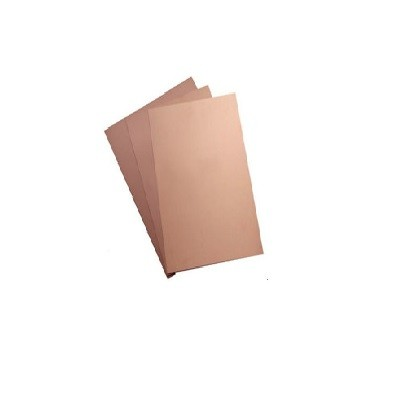

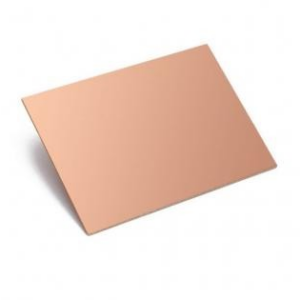

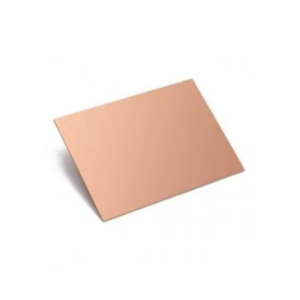

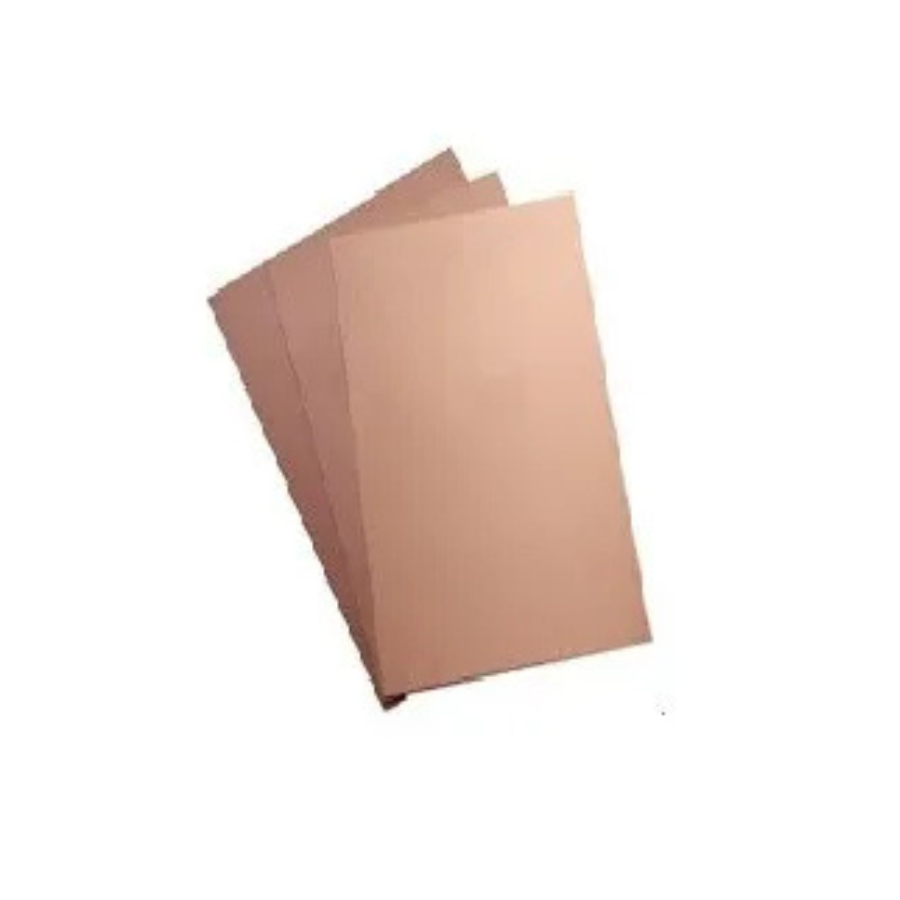

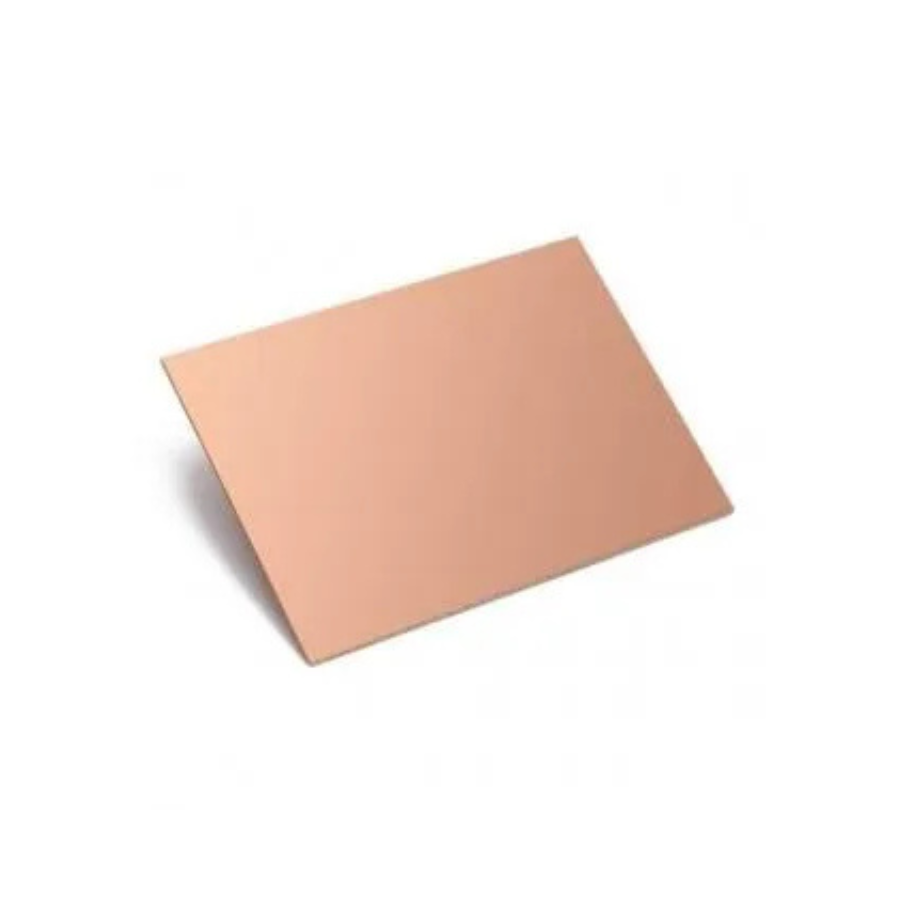

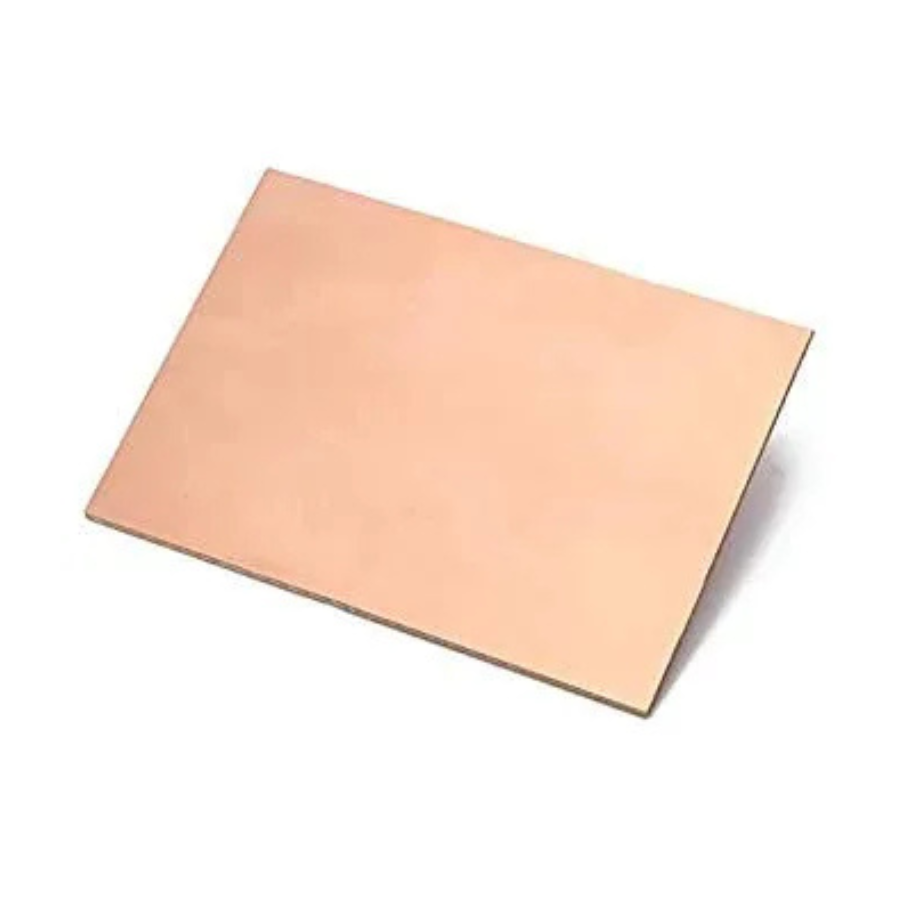

FR4 Copper Clad Laminate Double Side PCB 100 x 75 x 1.5 mm
FR4 Copper Clad Laminate Double Side PCB is one of the most commonly used PCBs in the world. It consists of a glass fiber laminate as a reinforcing material on the core, with copper-clad on both sides.
The core in itself has copper in it along with two layers on top and bottom. Hence the name copper clad. With the addition or removal of the glass fiber epoxy layers, the thickness of the PCB can be controlled. The glass fiber epoxy layers provide the necessary electrical insulation between the two copper foils and also gives the laminate rigidity.
Here, FR in the FR4 stands for fire retardant.
It is widely used for prototyping as the circuit can be designed easily.
Note:
1. The PCB may have scratches as it is cleaned before shipping.
2. The product dimensions may vary from the images.
Features:
- Foil: Copper.
- Ideal for prototyping.
Specifications:
| Material: | Glass fiber epoxy reinforced copper core |
|---|---|
| Length (mm): | 100 |
| Width (mm): | 75 |
| Height (mm): | 1.5 |
| Weight (g): | 25 |
Package Includes:
1 x FR4 Copper Clad Laminate Double Side PCB.
Instrumentation Amplifier INA128: Differential Signal Guide
Instrumentation Amplifier INA128: Differential Signal Guide The instrumentation amplifier INA128 is one of the most popular and versatile...
Read More →
PCB Gerber Files: From KiCad Design to Manufacturer
PCB Gerber Files: From KiCad Design to Manufacturer If you've ever designed a printed circuit board, you know...
Read More →
MIDI Foot Controller: Guitar Effects Pedal Switch
Understanding the midi foot controller is essential for anyone working with electronics in India. This comprehensive guide covers...
Read More →Technical Specifications
| Model | FR4 |
|---|---|
| Dimensions | 100x75x1.5mm |
| Interface / Protocol | BLE |
| Package Quantity | 75 pcs |
| SKU | AI5939 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The FR4 Copper Clad Laminate Double Side PCB 100 x 75 x 1.5 mm is a versatile breadboard and zero pcbs used across a wide range of applications including circuit prototyping, electronics learning, temporary circuit testing, proof-of-concept builds, and lab experiments.
Common use cases:
- Building and testing circuits without soldering
- Learning electronics fundamentals
- Rapid prototyping of sensor circuits
This product is ideal for students, educators, and electronics hobbyists.
Technical Tip: Standard breadboards accept 22AWG solid-core wire. Ensure components are firmly seated. Use jumper wires for connections between rows.
