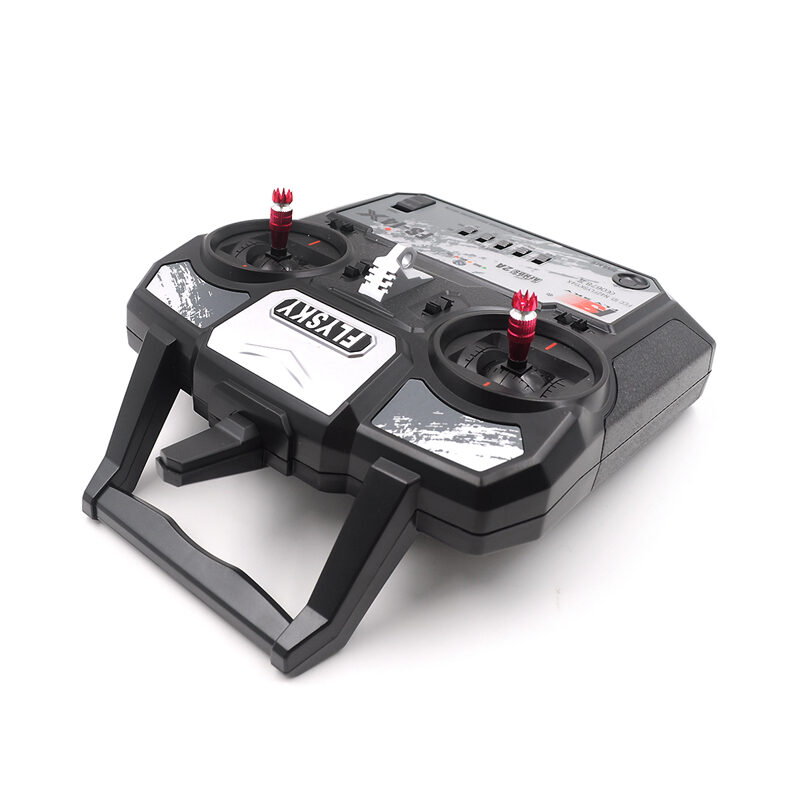

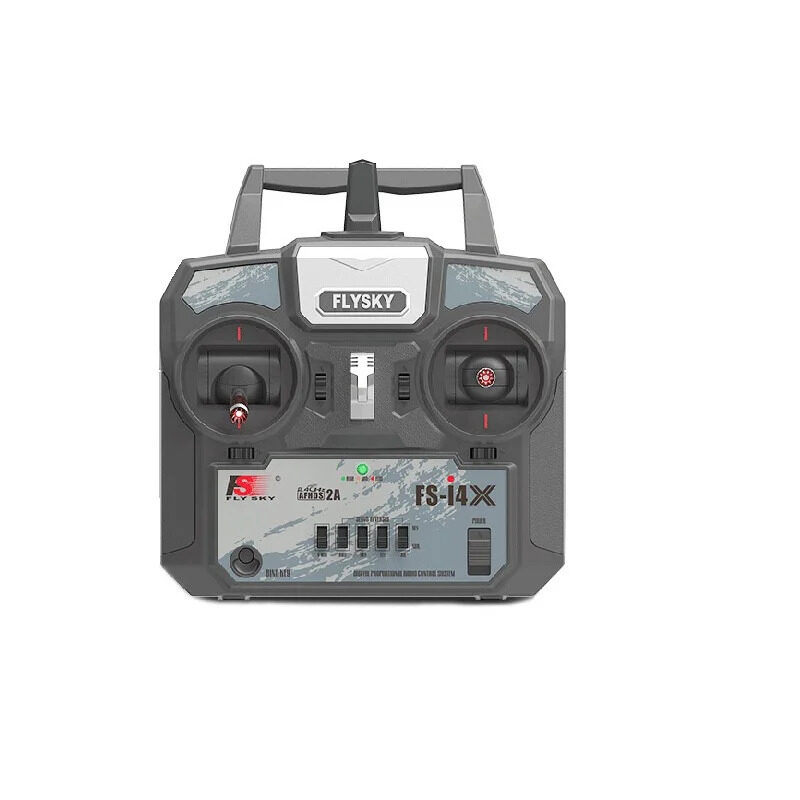

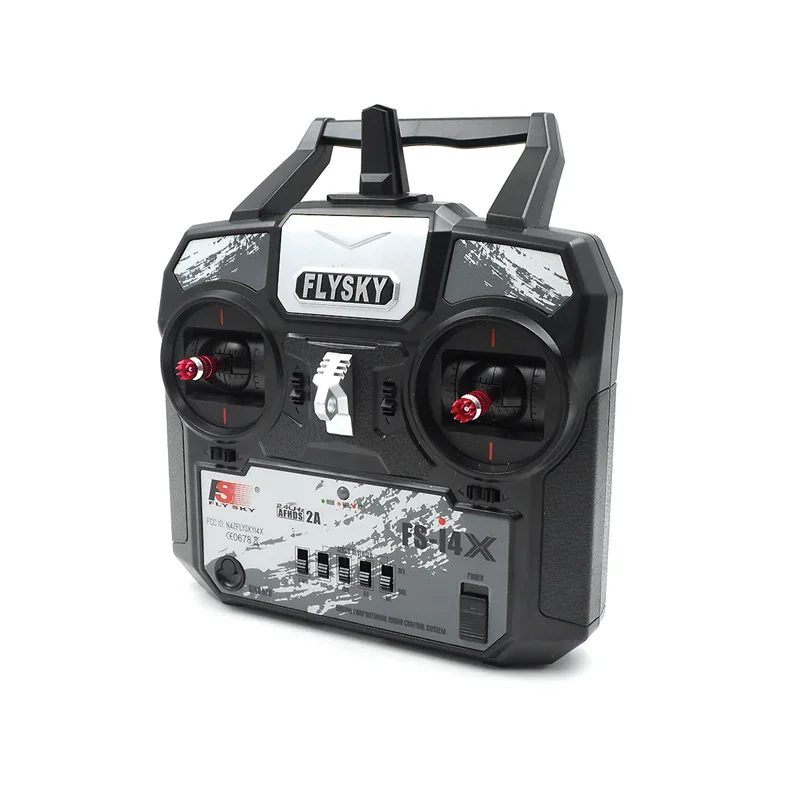

FlySky FS-i4X 2.4GHz 4CH AFHDS R/C Transmitter + FS-A6 Receiver

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Add to wishlist

Operating Voltage (VDC):6
Antenna Length (mm):26
Code Type: Digital
Color: Black
No. of Channels:4
RF Power: Less Than 20 dbm
Sensitivity (dBm):1024

Out of stock

Brand: Flysky SKU: AI1250

Category: Drone Transmitter and Receiver

Tags: Drone Transmitter, Multirotors, Quadcopters, Transmitter

₹2,143.05 (₹2,041.00 + GST)

Description

Additional information

Warranty

COO

In drone operation, the transmitter is a crucial component. Without it, you cannot pilot a multirotor as it transmits commands wirelessly to a Radio Receiver attached to the remotely controlled aircraft or multirotor.

The FlySky FS-i4X 2.4GHz 4CH AFHDS R/C Transmitter + FS-A6 Receiver employs a high-gain, quality multi-directional antenna, encompassing the entire frequency band. Paired with a highly sensitive receiver, it ensures jamming-free, long-range radio transmission. The transmitter supports AFHDS 2A, allowing multiple radios to function simultaneously without mutual interference. Each transmitter binds with a unique ID to a receiver, which only accepts data from that specific transmitter, enhancing interference immunity and safety.

This system boasts robust active and passive anti-interference capabilities and a V-MIX mix control system, making it compatible with various models. You can customize the expansion channel according to your needs, up to 10CH. Operating within a frequency range of 2.405 to 2.475GHz, the brand allocates 140 independent channels. It features low-power electronic components and a sensitive receiver chip, with RF modulation using intermittent signals to further reduce power consumption.

AFHDS2A’s integrated multiple channel coding and error-correction enhance communication stability, minimize error rates, and increase the transmission distance reliably.

Item specifics

Use: Vehicles & Remote Control
Remote Control Peripherals/Devices: Remote Controller
RC Parts & Accs: Transmitters
Model Number: FS-I4X
Material: Plastic

Specifications

Transmitter:

Item Name: FS-i4X(Latest Released Model)
Mode(optional): Mode 1 (Right Hand Throttle), Mode 2 (Left-Hand Throttle)
Default Mode: Mode 2
Band Range: 2.4055-2.475GHz
Bond Amount: 140
No. of Channel: 4
Model Type: RC Airplane/Glider/Helicopter
RF Power: <20dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFHDS
Modulation Type: GFSK
Stick Resolution: 1024
Low Voltage Warning: <4.2V
DSC Port: PS2 PPM
Antenna Length: 26mm *2
Weight: 335g
Power: 6V DC 1.5AA*4(Not included)
Display: LED Indicators

Receiver:

Item Name: FS-A6
No. of Channels: 6
Model Type: Fixed-Wing/Glider/ Helicopter
RF Range: 2.4055-2.475GHz
RF Channel: 140
RF Receiver Sensitivity: -105dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A
Modulation Type: GFSK
Power: 4.0-6.5V DC
Antenna Length: 26mm

Package Includes:

1 x FS-i4X 2.4GHz 4CH AFHDS R/C Transmitter.
1 x FS-A6 Receiver.
1 x User Manual.

User Manual

Videos

Weight	1.31859 kg

15 Days Warranty

Please note that this item is only covered by a standard supplier warranty against manufacturing defects for a period of 15days from the time of delivery. It is important to understand that only manufacturing defects are covered under this warranty, and any other issues will not be considered for reimbursement or replacement. We strongly advise inspecting the product upon delivery to ensure it meets your expectations. In case of any manufacturing defects, we guarantee reimbursement or replacement.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Country Of Origin: China
