EFT Z30P Drone Frame
Description:

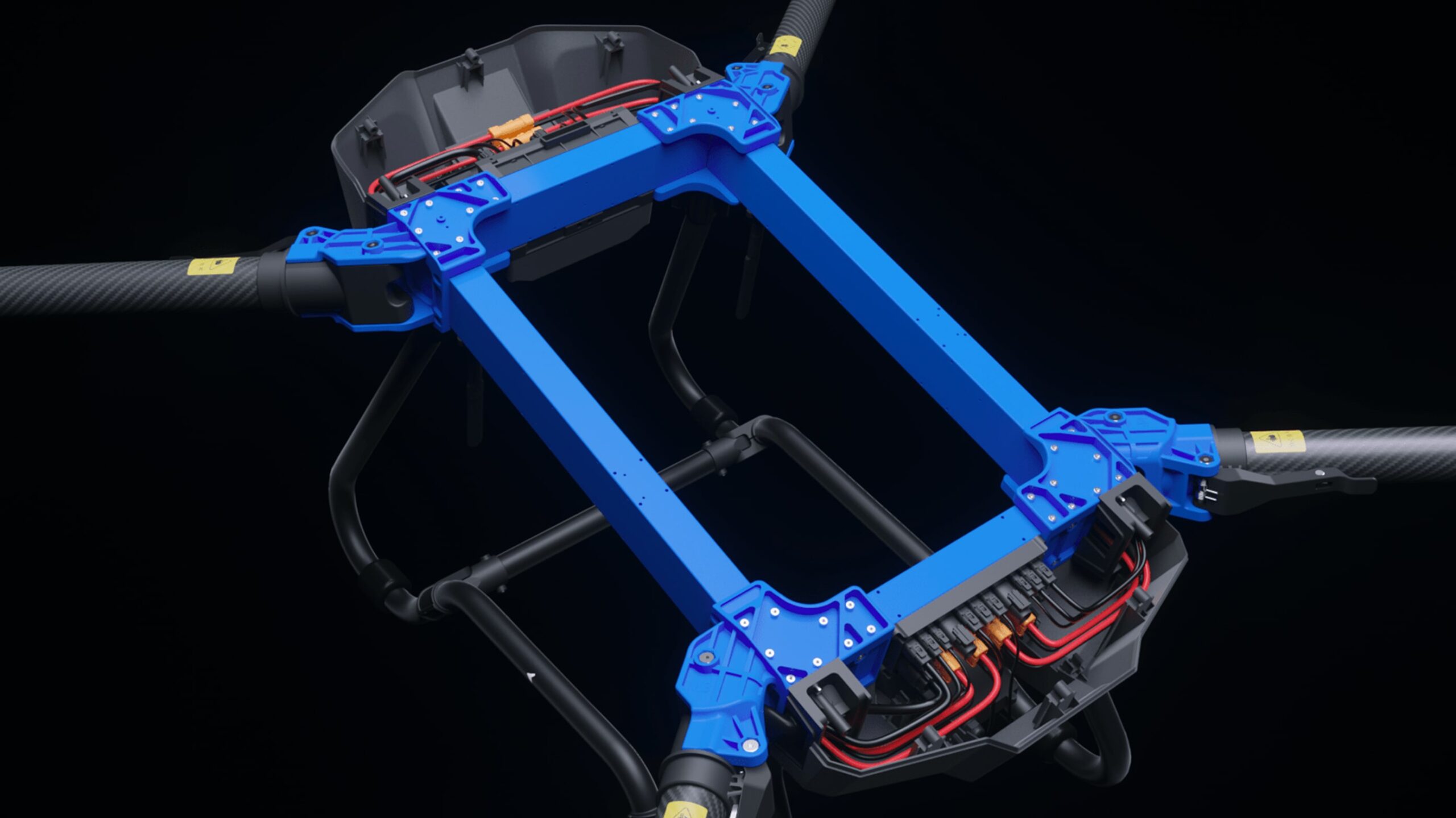

EFT just released the Z series heavy payload agriculture drones, 30kg capacity payload Z30 and 50kg capacity payload Z50 agriculture drones. The Z30/Z50 series agriculture drones adopts new truss structure with better strength and durability. Z-shaped folding structure makes it small in folded size, easy to transport.

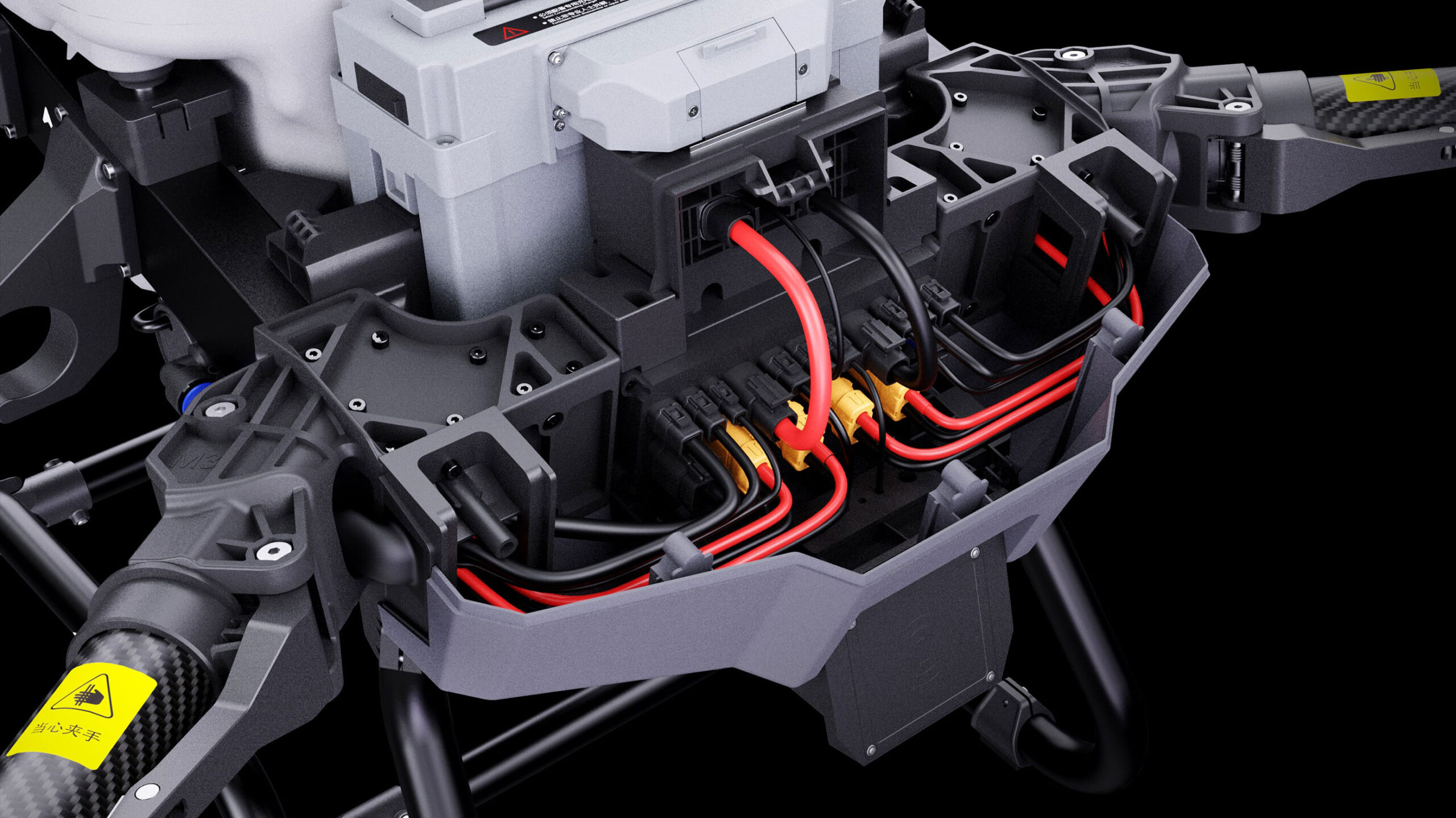

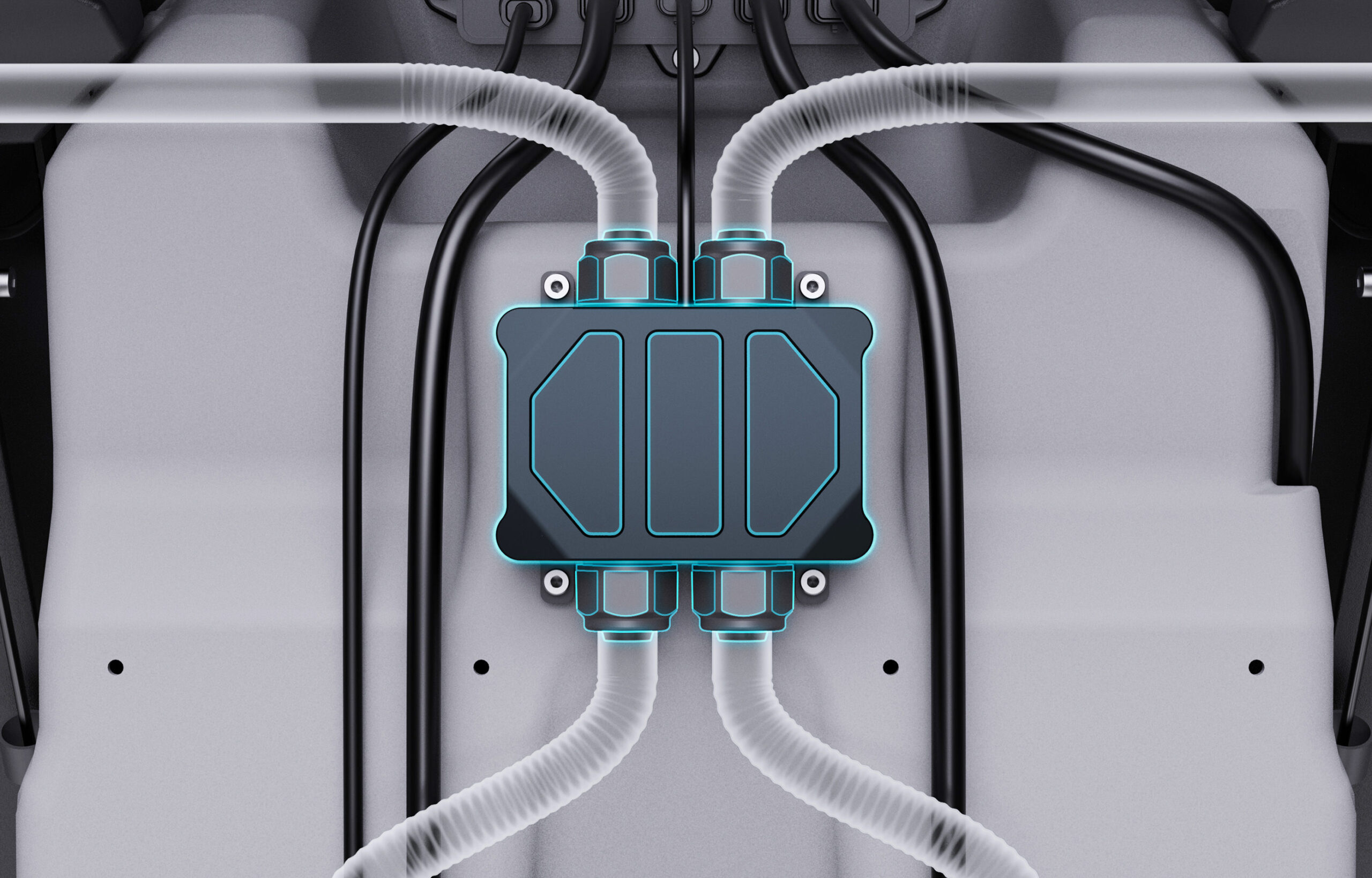

The flight controller system adopts group modular design, convenient to install without cumbersome wiring.With ultrasonic flow-meter, high precision weighing module and other parts,you can get the real-time disply of remaining liquid information. Original creation of water-cooled centrifugal nozzle effectively reduce the working temperature, extend the working life. The waterproof level of the whole drone reaches IP67, the EFT Z30 and Z50 can be widely used in various fields.
Specifications:
| Specification | Z30P |
|---|---|
| Unloaded Spraying Drone Weight (Without Batteries) | 30.4 kg |
| Unloaded Spraying Drone Weight (With Batteries) | 41.6 kg |
| Unloaded Spreading Drone Weight (Without Battery) | 31.5 kg |
| Unloaded Spreading Drone Weight (With Battery) | 42.7 kg |
| Max. Take-Off Weight | 71.6 kg |
| Wheelbase | 2025 mm |
| Expand Size – Spraying Drone | 2485 × 2591 × 752 mm |
| Expand Size – Spreading Drone | 2485 × 2591 × 774 mm |
| Folded Size – Spraying Drone | 979 × 683 × 752 mm |
| Folded Size – Spreading Drone | 979 × 683 × 774 mm |
| No-Load Hovering Time | 14.8 min (14S 30,000 mAh) |
| Full-Load Hovering Time | 7.5 min (14S 30,000 mAh) |
| Working Temperature | 0–40°C |
| Weight Tolerance | ±1 kg |
Z30P – Spraying System
| Specification | Z30P |
|---|---|
| Spraying Tank | 30 L |

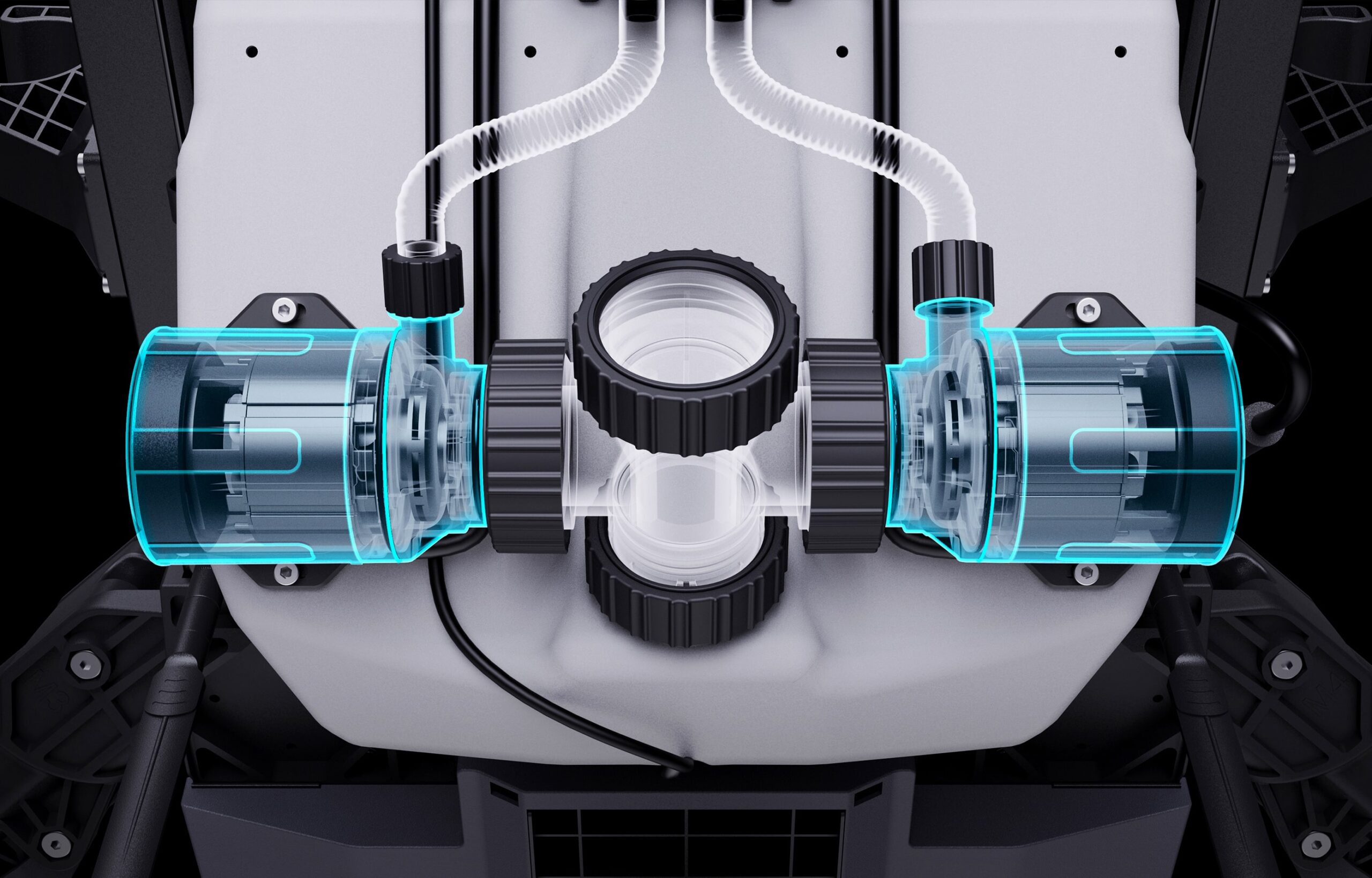

| Water Pump | Voltage: 12–18S; Power: 30 W × 2; Max. Flow: 8 L/min × 2 |
| Nozzle | Voltage: 12–18S; Power: 500 W; Atomized Particle Size: 50–500 μm |
| Spray Width | 4–8 m |
Z30P – Spreading System
| Specification | Z30P |
|---|---|
| Spreading Tank | 50 L |
| Max. Load | 30 kg |
| Applicable Granule | 0.5–6 mm Dry Solids |
| Spread Width | 8–12 m |
Z30P – Motor System
| Specification | Z30P |
|---|---|
| Model | 11118 |
| Voltage | 14S |
| KV | 85 KV |
| Maximum Power | 7810 W |
| Constant Power | 2410 W |
| Propeller Size | 43 inch |

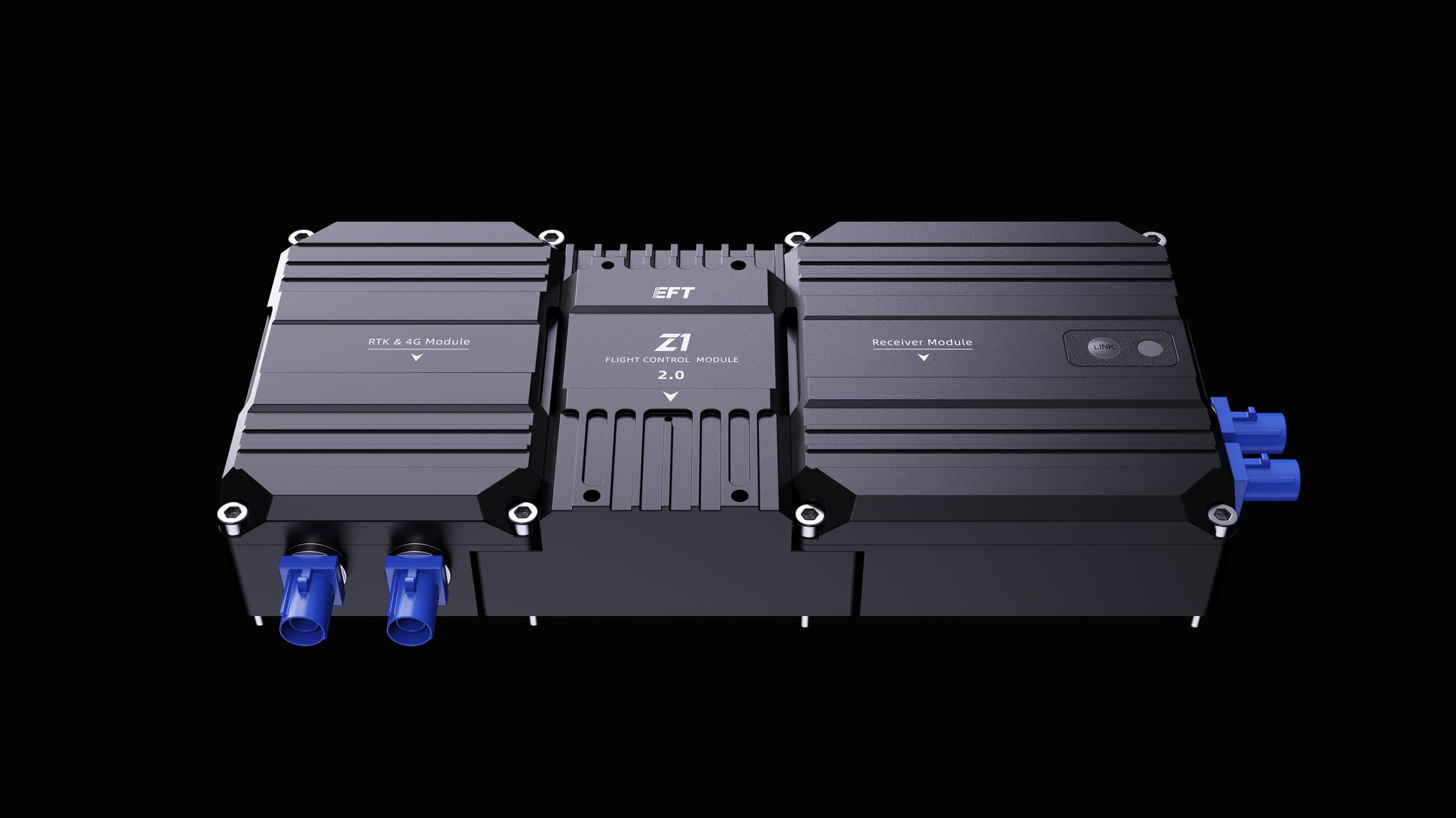

Z30P – Flight Control System
| Specification | Z30P |
|---|---|
| Operating Voltage | 12–80 V |
| Working Temperature | -10–60°C |
| RTK Accuracy | Horizontal: ±0.1 m; Vertical: ±0.1 m |
| GPS Accuracy | Horizontal: ±1.5 m; Vertical: ±0.5 m |
| Wind Resistance Level | Sustained Wind: Level 4; Gust: Level 5 |
Features:
- 30 L spraying capacity
- 50 L spreading tank
- 30 kg maximum spreading load
- 43-inch propellers with 85 KV motors
- Maximum motor power up to 7,810 W
- Spray width of 4–8 m
- Spread width of 8–12 m
- 50–500 μm atomized particle size
- RTK positioning accuracy up to ±0.1 m
- GPS positioning accuracy up to ±1.5 m
- Wind resistance up to Level 5 gusts
- 12–80 V flight control operating voltage
- Operating temperature: -10°C to 60°C
Datasheet:
Package Includes:
Z30 Agriculture drone frame kit x 1
Power system x 4
Water pump x 2
Flow meter x 1
Level Gauge x1
Centrifugal nozzle x 2
Adapter Board x 1
Pipes and Fittings x 1
Flight controller x 1
Receiver module x 1
Camera x 1
Remote Control x 1
