Description

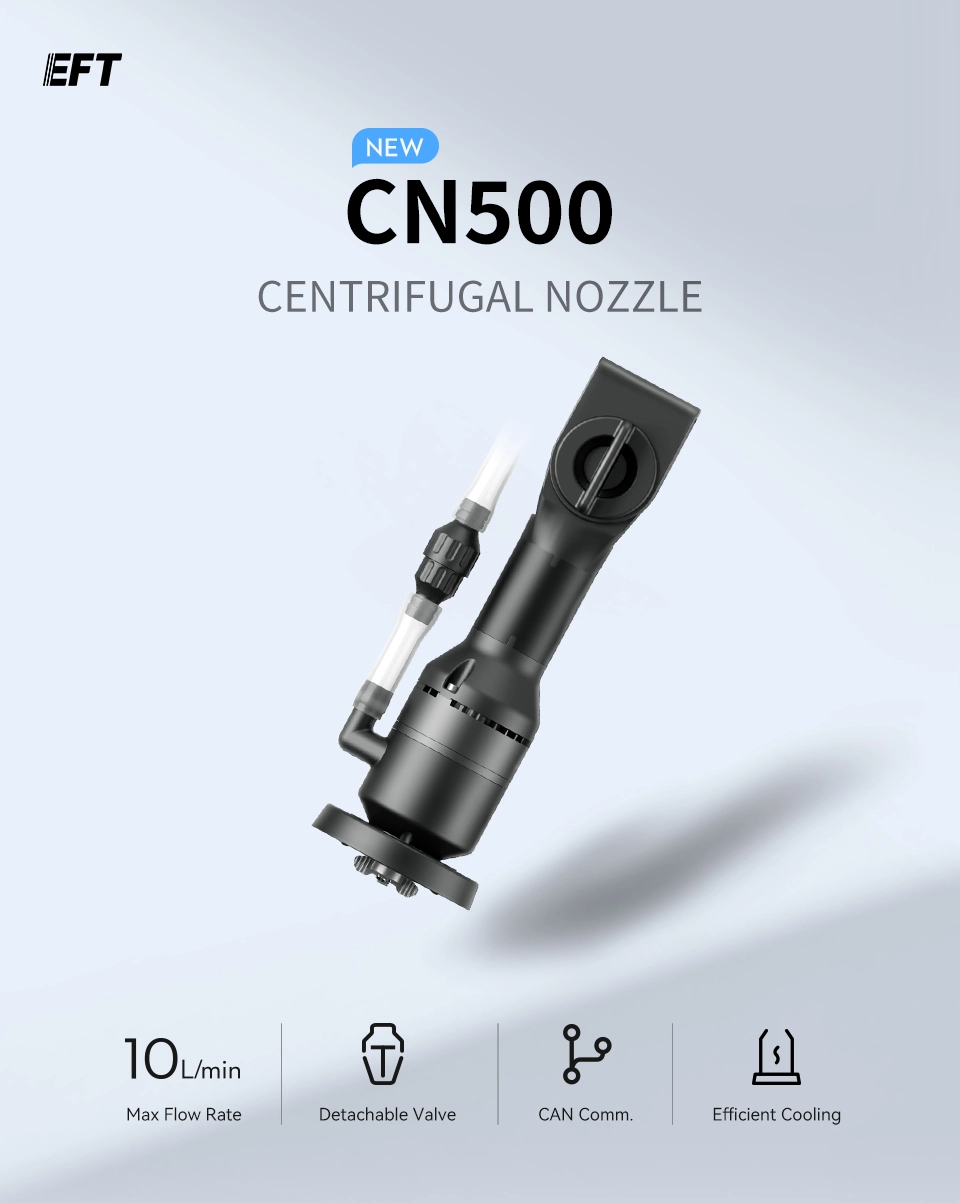

- The CN500 Centrifugal Nozzle is newly upgraded and efficient spraying.The feature is max flow rate‑10L/min and detachable valve and CAN Comm. and efficient cooling
-

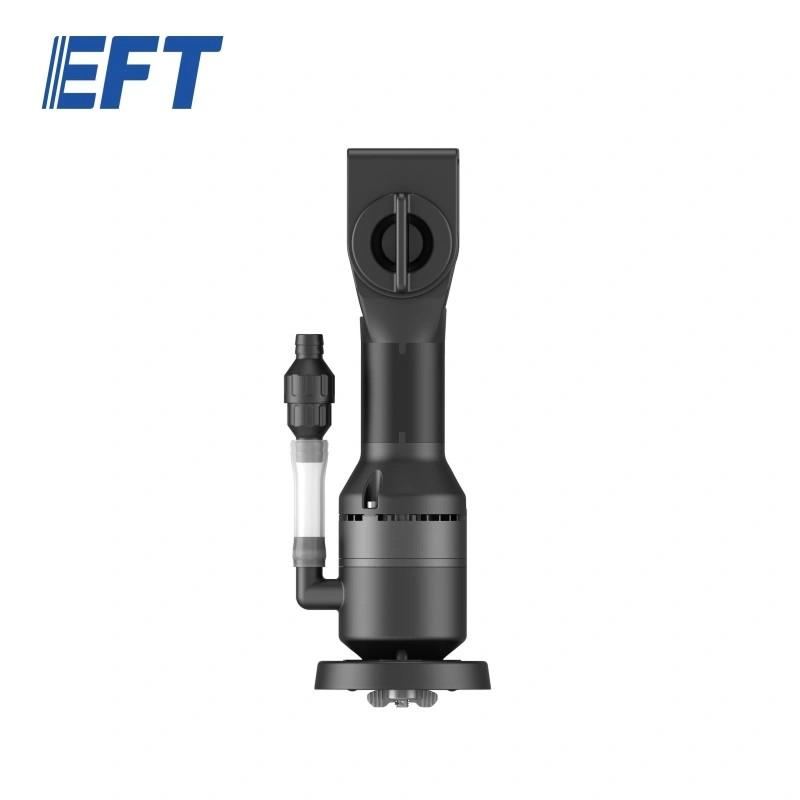

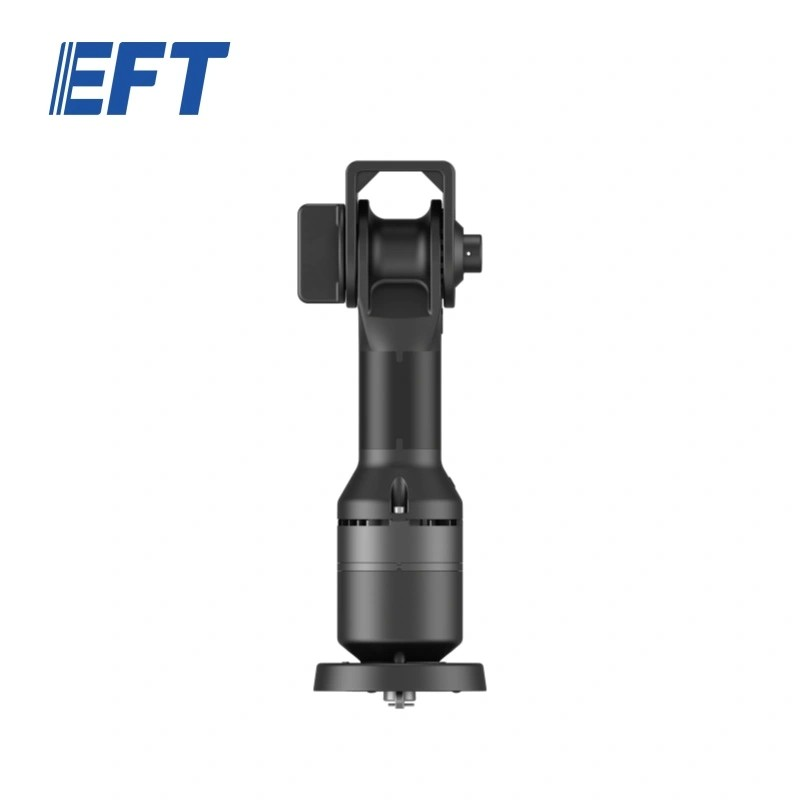

The EFT CN500 Centrifugal Nozzle is a newly upgraded spraying solution designed for precision agriculture. This advanced nozzle delivers efficient and consistent spray distribution, making it ideal for a wide range of agricultural tasks.
With its centrifugal spray mechanism, the CN500 ensures fine droplet atomization, reduced drift, and even coverage—perfect for pesticides, herbicides, and fertilizers.
Its design is compatible with multiple agricultural drone models, offering easy installation, durability, and optimized field performance.
- Centrifugal Spraying for fine mist and uniform coverage
- Compatible with various agricultural drones
- Suitable for pesticide, herbicide, and fertilizer spraying
Benefits at a Glance
-
Wide Compatibility
Thanks to its adaptable design, this centrifugal nozzle can be installed and used across various agricultural drone platforms. -
Enhanced Durability & Performance

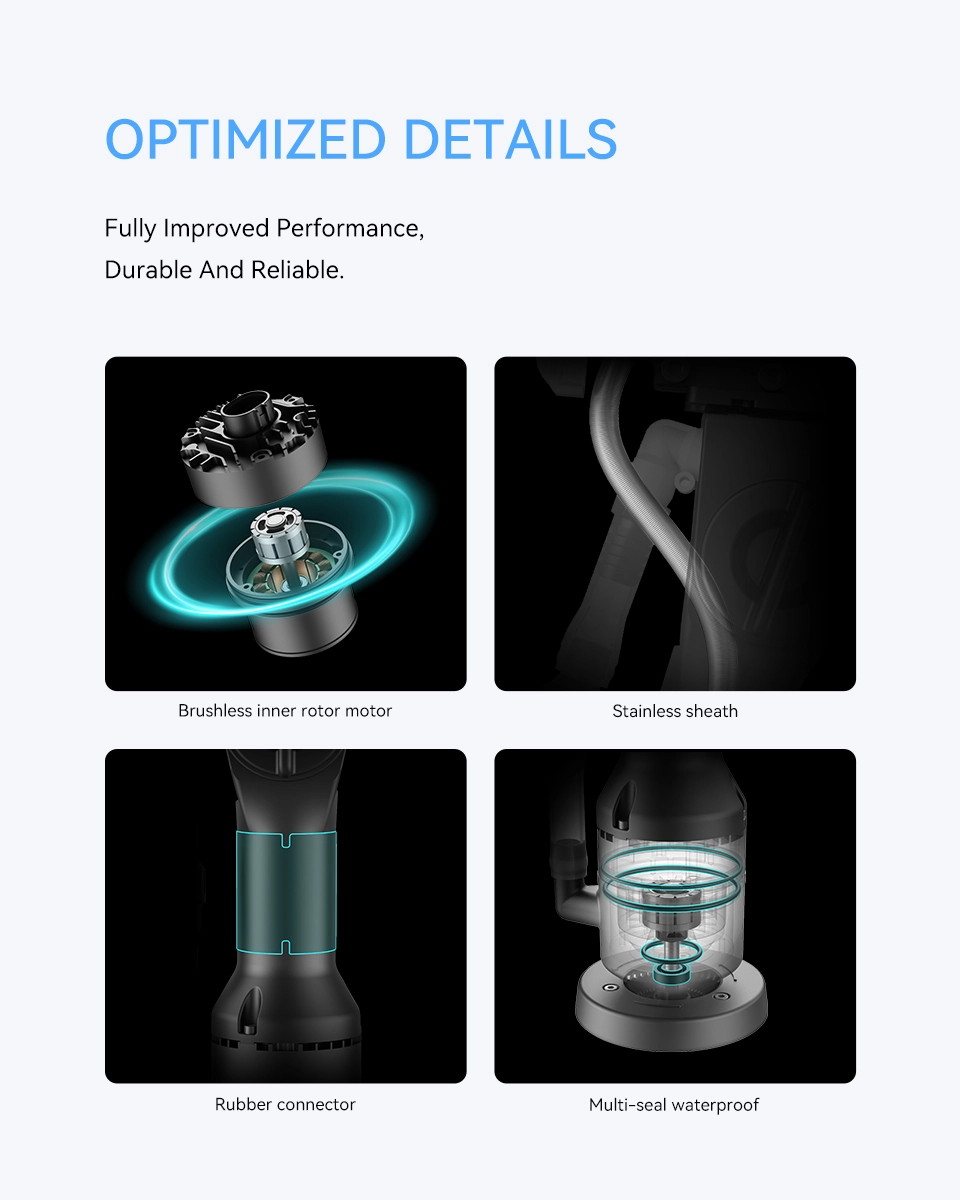

As a V3.0 upgrade, it features improved parts and design for higher reliability and efficiency. -
Precision Spraying
Its centrifugal mechanism ensures fine droplet atomization, leading to even spray distribution and enhanced field effectiveness. -
User-Centric Support
Backed by warranty protection and comprehensive setup assistance, the nozzle ensures seamless deployment and maintenance.

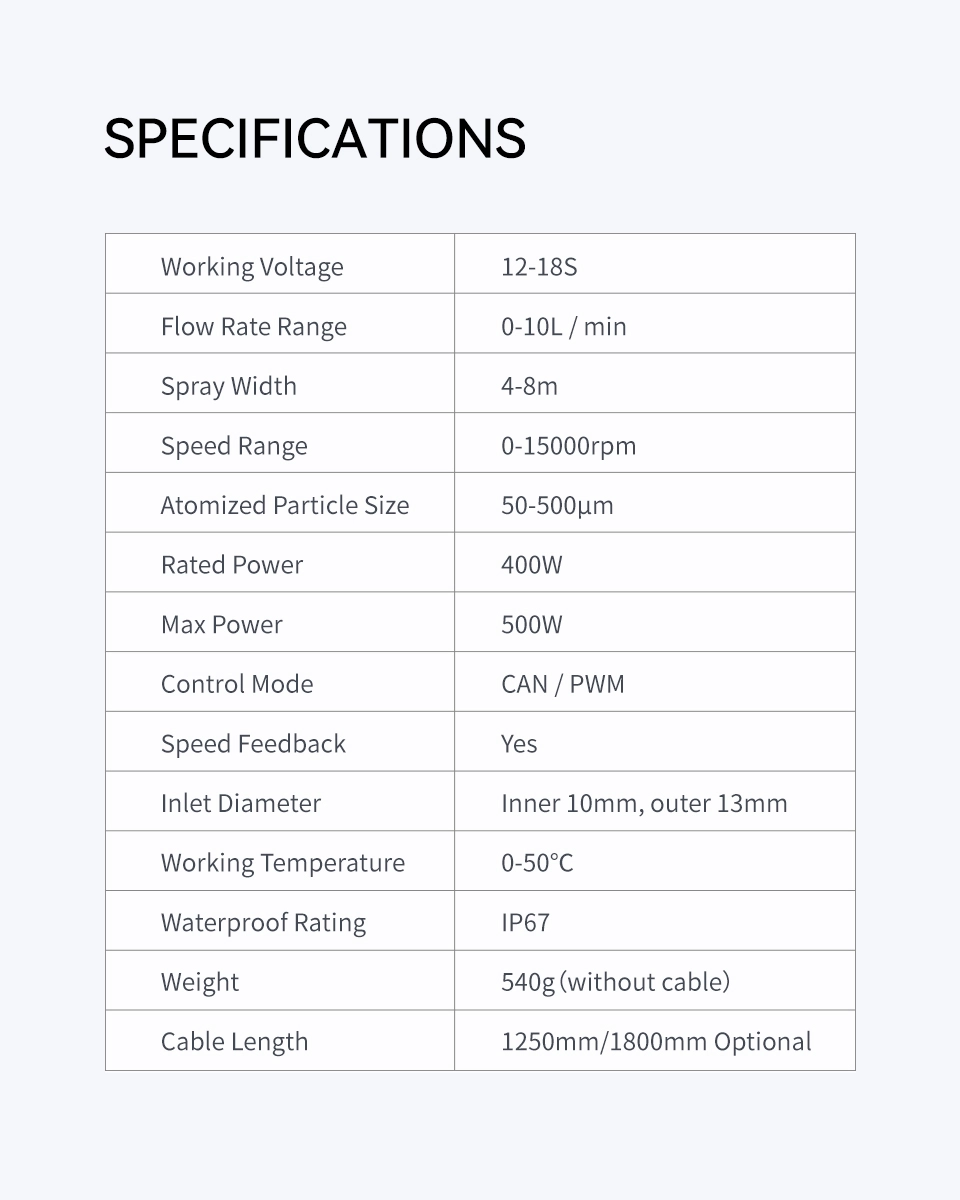

Specifications
| Specification | Value |
|---|---|
| Working Voltage | 12–18S |
| Flow Rate Range | 0–10 L/min |
| Spray Width | 4–8 m |
| Speed Range | 0–15,000 rpm |
| Atomized Particle Size | 50–500 μm |
| Rated Power | 400 W |
| Max Power | 500 W |
| Control Mode | CAN / PWM |
| Speed Feedback | Yes |

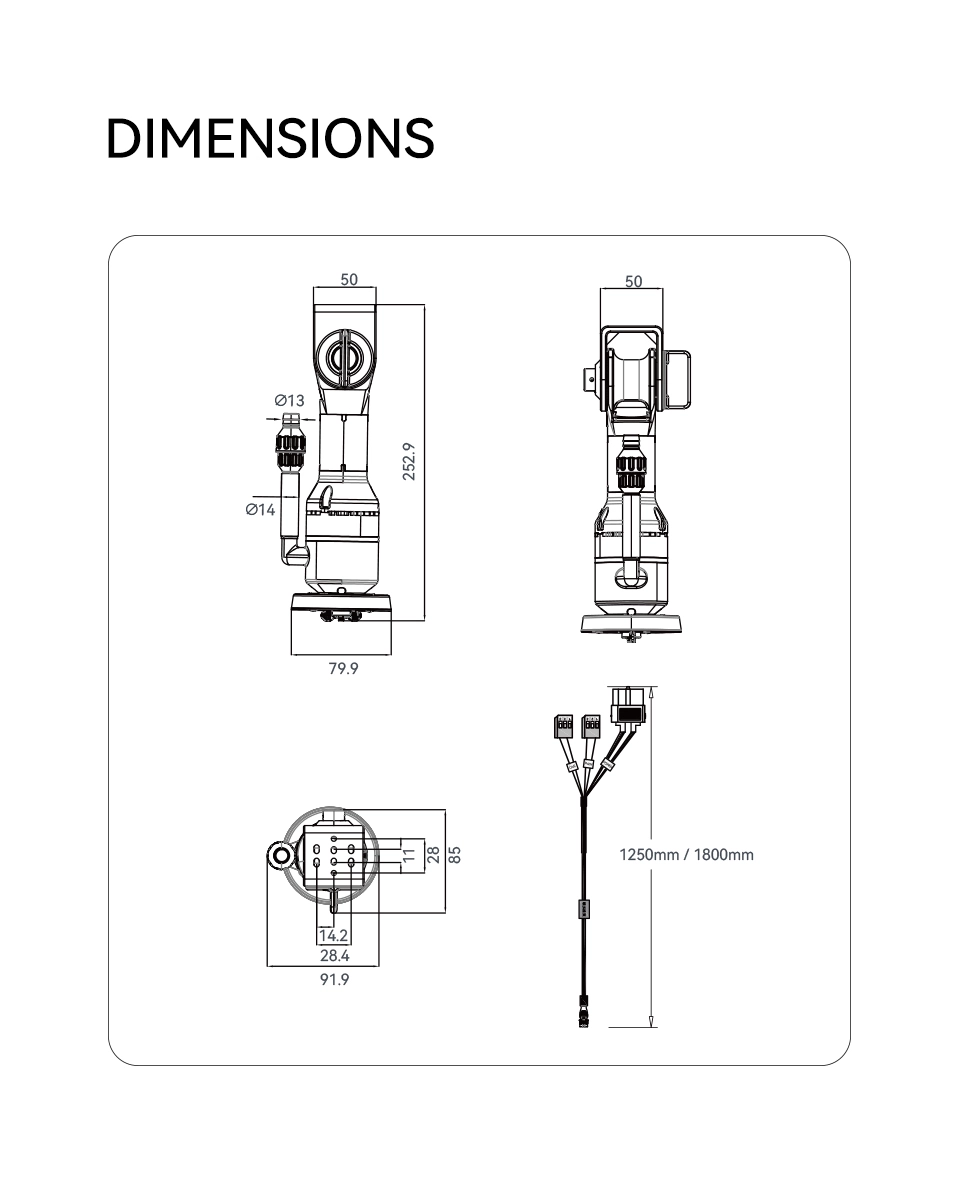

| Inlet Diameter | Inner 10 mm, outer 13 mm |
| Working Temperature | 0–50 ℃ |
| Waterproof Rating | IP67 |
| Weight | 540 g (without cable) |
| Cable Length Options | 1250 mm / 1800 mm Optional |
Package Includes
-
1x EFT CN500 Centrifugal Nozzle V3.0
-
1x Anti-drip Throttle Valve (Pre-installed or included)
-
1x Connector Cable (Length: 1250 mm or 1800 mm depending on selection)
-
1x User Manual / Installation Guide (PDF or printed, varies by seller)
-
1x Mounting Kit (if applicable) – Includes screws or brackets for drone attachment
EFT CN500 centrifugal nozzle Overview
The EFT CN500 centrifugal nozzle is a high-performance spray head designed for agricultural drones, delivering precise and uniform coverage for pesticides, herbicides, and fertilizers. Its centrifugal mechanism produces fine droplets, minimizes drift, and ensures consistent field application.
Key Features of EFT CN500 centrifugal nozzle
- Max Flow Rate 10 L/min: Enables rapid coverage of extensive areas with consistent output.

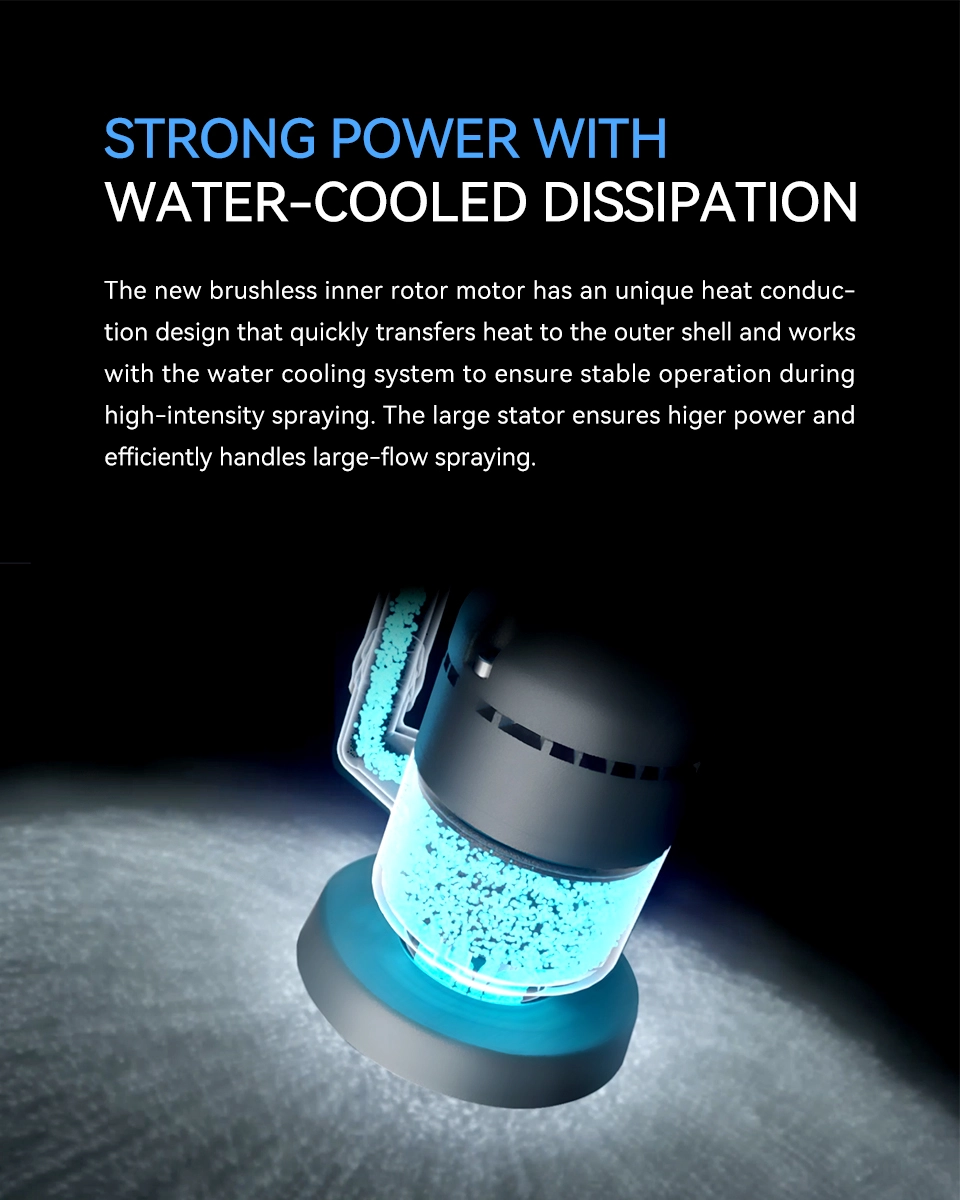

- Water-Cooled Dissipation: Maintains stable temperature under heavy-duty operation for reliable performance.

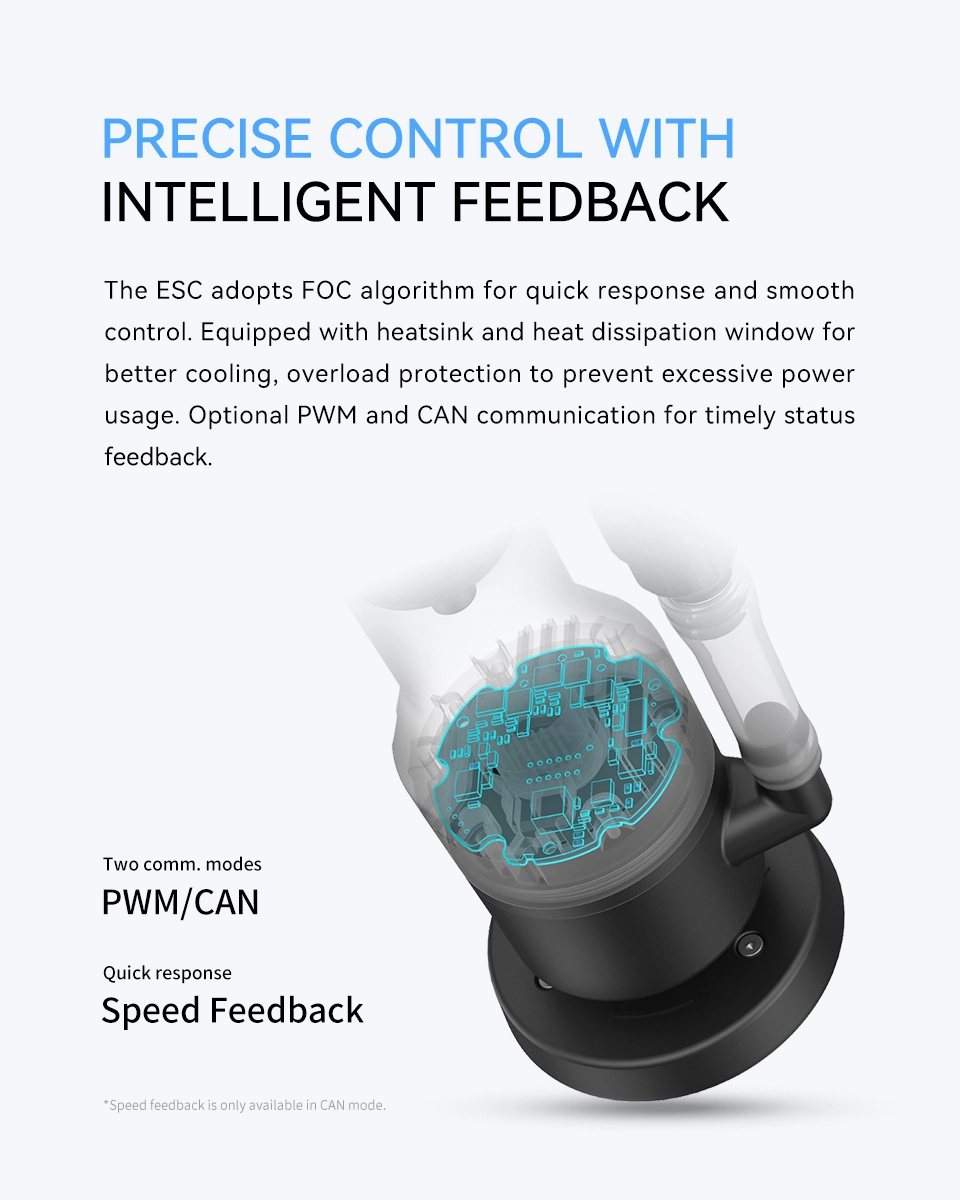

- Intelligent Feedback via CAN Comm: Offers real-time monitoring and precise control over spray parameters.

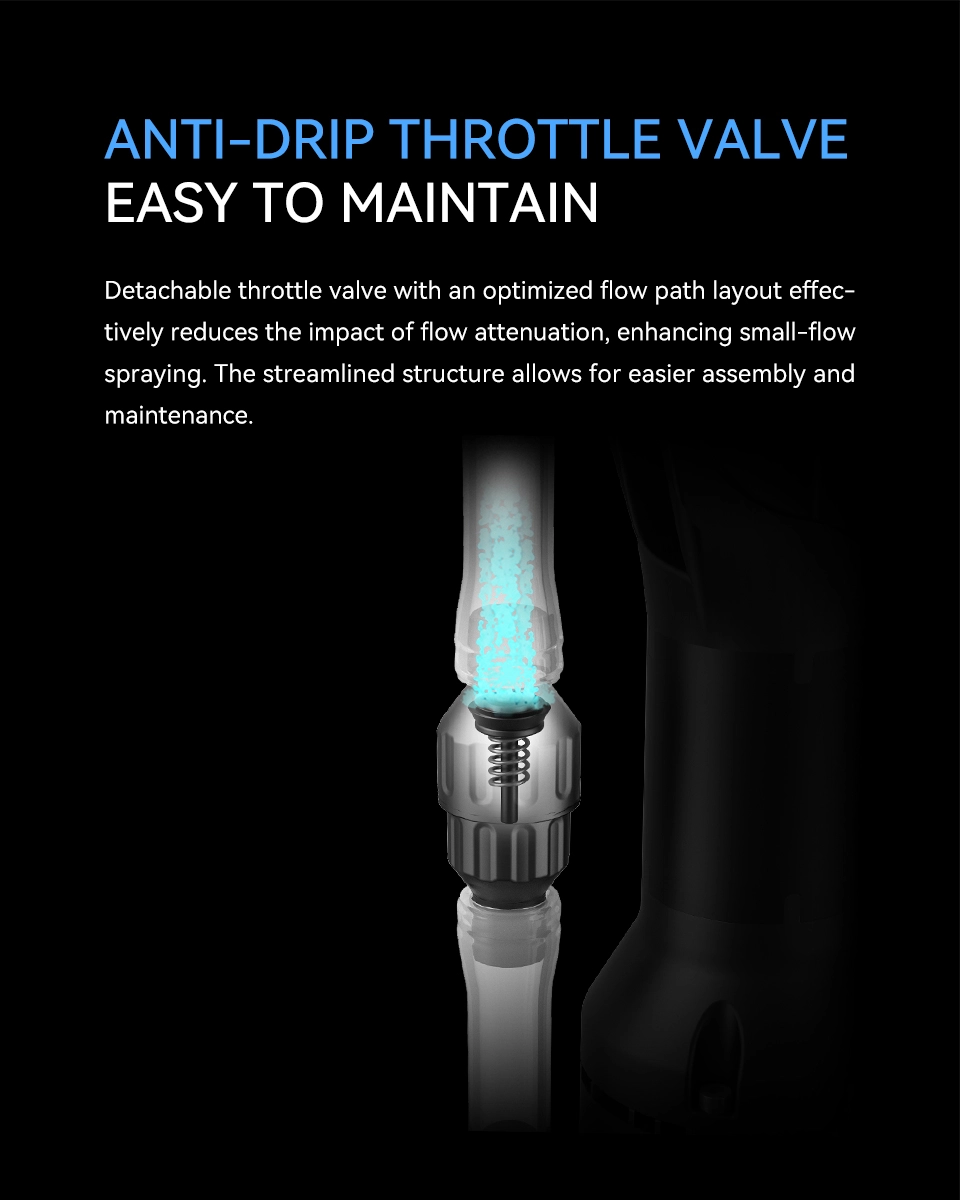

- Anti-Drip Throttle Valve: Detachable design prevents leakage and simplifies routine maintenance.

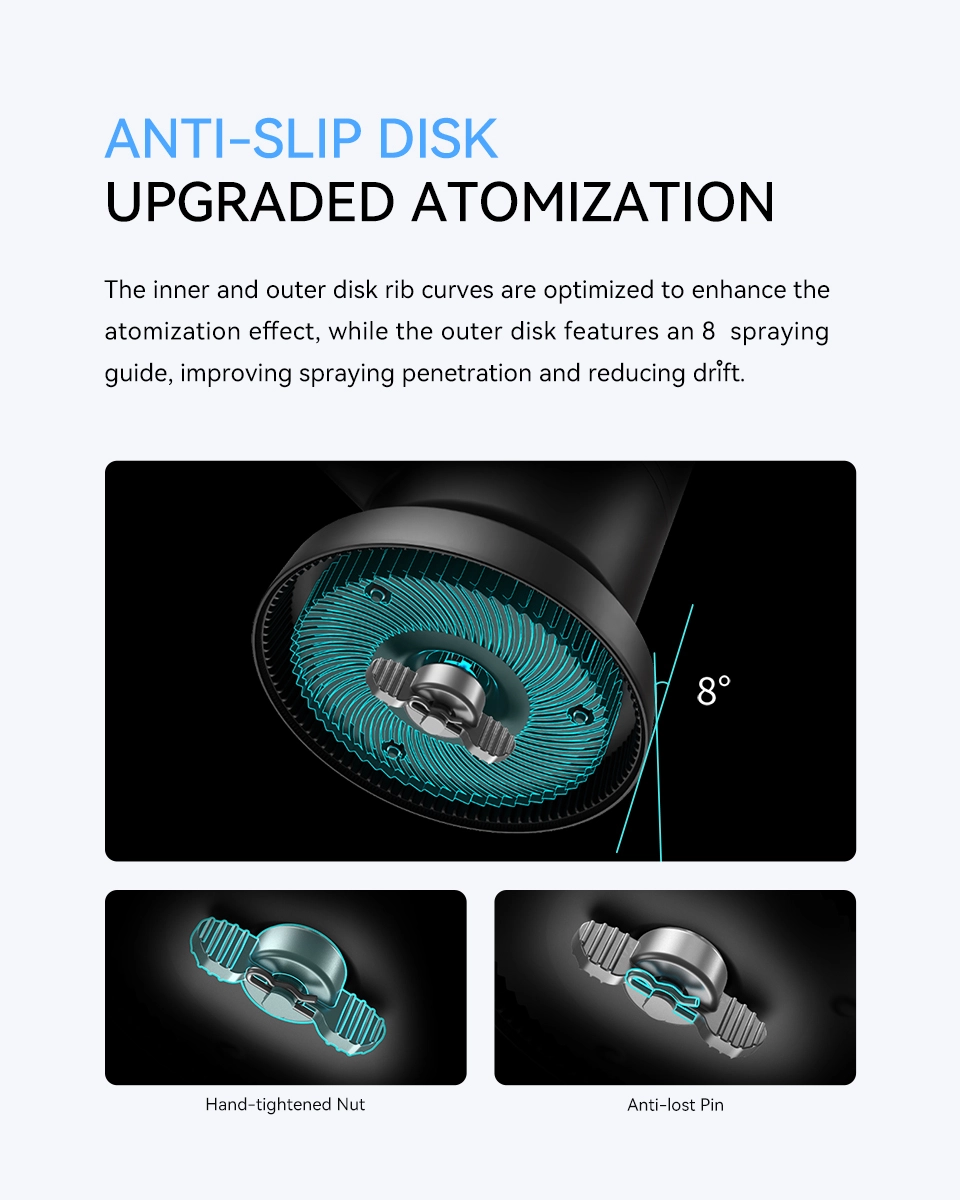

- Upgraded Anti-Slip Atomization Disk: Ensures uniform droplet size and improved spray distribution.

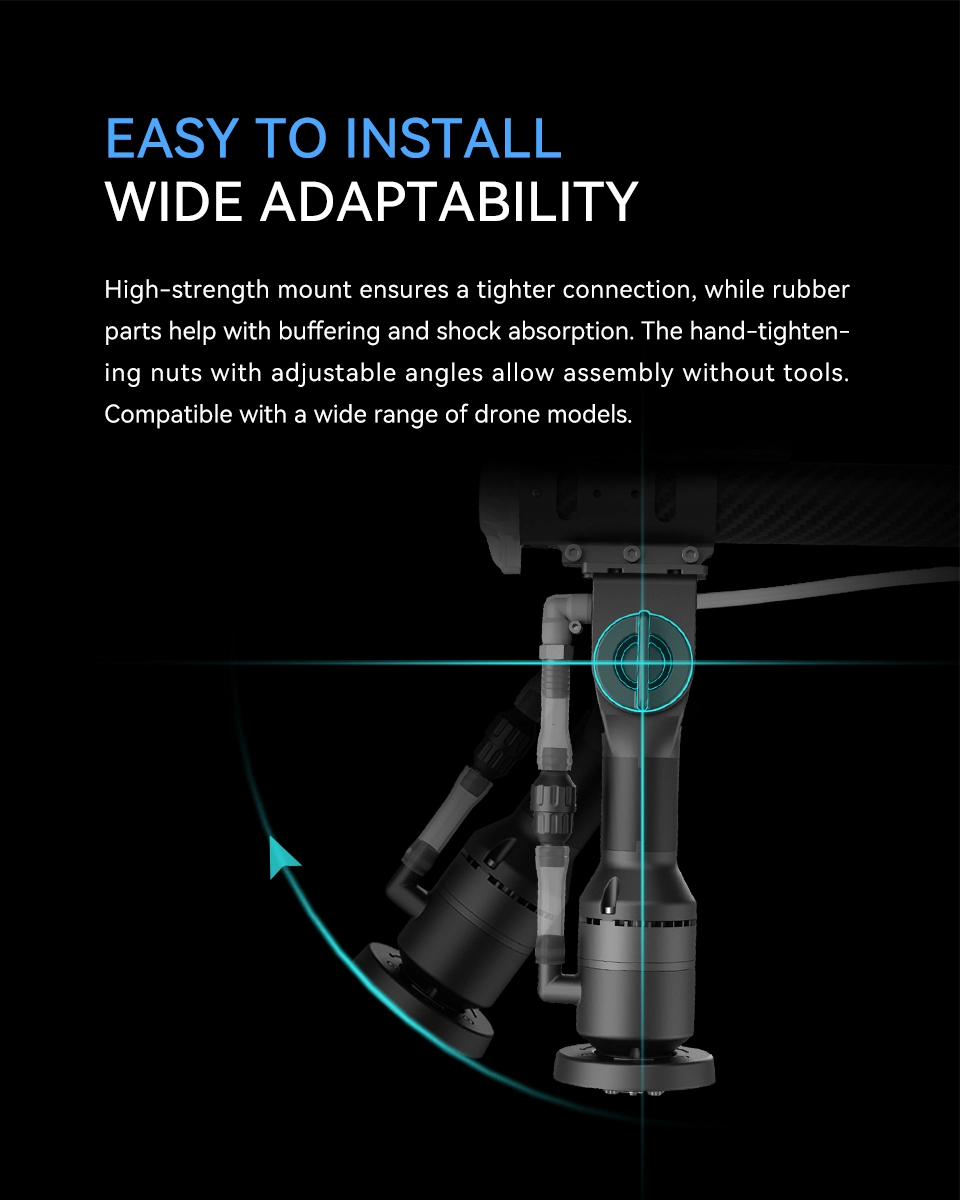

- Wide Compatibility & Fast Shipping: Universal mounting interface for multiple drone models, with genuine products dispatched swiftly from Zbotic.
Applications and Use Cases
- Drone-based pesticide application across large crop fields
- Precision herbicide spraying for targeted weed control in orchards
- Uniform fertilizer distribution over rice paddies and grain fields
- Fungicide deployment in vineyards and greenhouse environments
- Aerial inoculant spraying for seed and turf treatments
How to Use EFT CN500 centrifugal nozzle
Attach the CN500 to your agricultural drone’s spray boom via the universal mounting interface, connect the inlet hose to your chemical tank, and link the CAN bus cable for feedback. Secure the anti-drip valve, power on the drone controller, then set and calibrate flow rate and spray parameters. Conduct a brief ground test to confirm atomization quality before commencing aerial operations.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum flow rate of the EFT CN500 centrifugal nozzle?
The EFT CN500 delivers up to 10 liters per minute, enabling efficient coverage of large agricultural areas in a single flight.
Is the CN500 compatible with my existing drone model?
Yes, the CN500 features a universal mounting interface and standard CAN bus support, making it compatible with most agricultural drones equipped for spray operations.
How do I clean and maintain the anti-drip throttle valve?
The detachable throttle valve can be easily removed for rinsing with clean water or a mild solvent, preventing residue buildup. After cleaning, reassemble and perform a quick leak check before use.
