This is the 30cm variant of the All complete Bowden V6 with Fan Cable 30cm Length for 1.75 mm filament 0.2 mm Nozzle in 3D Printer Extruder Kit. Available at ₹560.50 (₹475.00 + GST) with free shipping across India.

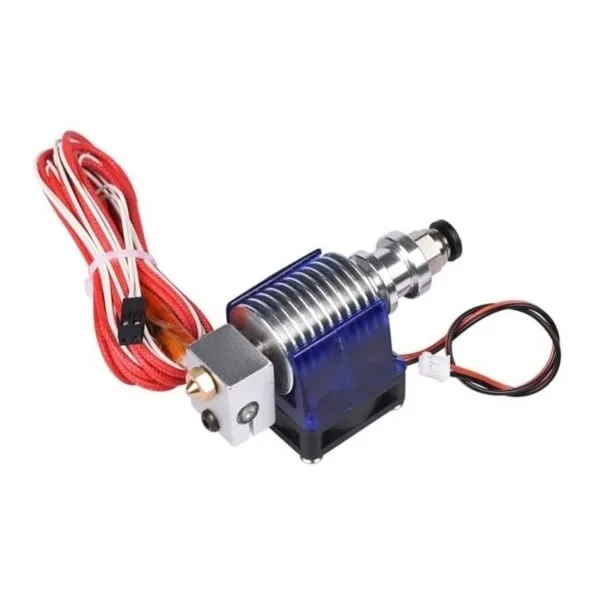

All complete Bowden V6 with Fan Cable 30cm Length for 1.75 mm filament 0.2 mm Nozzle
This is a complete Bowden V6 kit with a 30cm fan cable for 1.75 mm filament and a 0.2 mm nozzle. It has the same signature high-temperature performance as other V6 models, which allows you to print with materials like Polycarbonate and Nylon. It also has improved functionality for printing soft and flexible filaments, thanks to the PTFE (Polytetrafluoroethylene) liner tube that extends from the hotend to the extruder. This gives you more control and precision when printing with flexible materials.
The V6 hotend is designed to prevent overheating and melting failures that can occur with PTFE designs. The PTFE liner inside the hotend is never exposed to high temperatures, so it remains intact and reliable. The V6 hotend also has a compact and sleek design, with an overall length of only 62mm and reduced X/Y dimensions. The new injection moulded fan duct helps to cool the hotend and the printed part.
The V6 hotend is easy to install and remove, without the need for adhesives, Kapton tape, or soldering. The hotend components screw together securely, and the thermistor legs are insulated with high-temp glass sleeving. The fan duct clips on to the hotend and can be adjusted as needed.
Specification:
| Nozzle Diameter (mm) | 0.2 |
|---|---|
| Cable Length (cm) | 30 |
| Length (mm): | 75 |
| Width (mm) | 28 |
| Height (mm) | 37 |
| Weight (g): | 74 |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 15 × 5 × 5 cm |
This kit contains:
1 x Aluminium Heatsink (Contains embedded fitting for tubing in 1.75mm)
1 Stainless Steel Heatbreak
1 x Brass Nozzle (0.2 mm)
1 x Aluminium Heater Block
1 x 100K Semitec NTC thermistor
1 x 12v 30 x 30 x 10mm Cooling fan with Fan Duct
1 x High-Temperature Fiberglass Wire – for Thermistor (150mm)
Package Includes:
1 x All complete Bowden V6 with Fan Cable 30cm Length for 1.75 mm filament 0.2 mm Nozzle
