Product Description

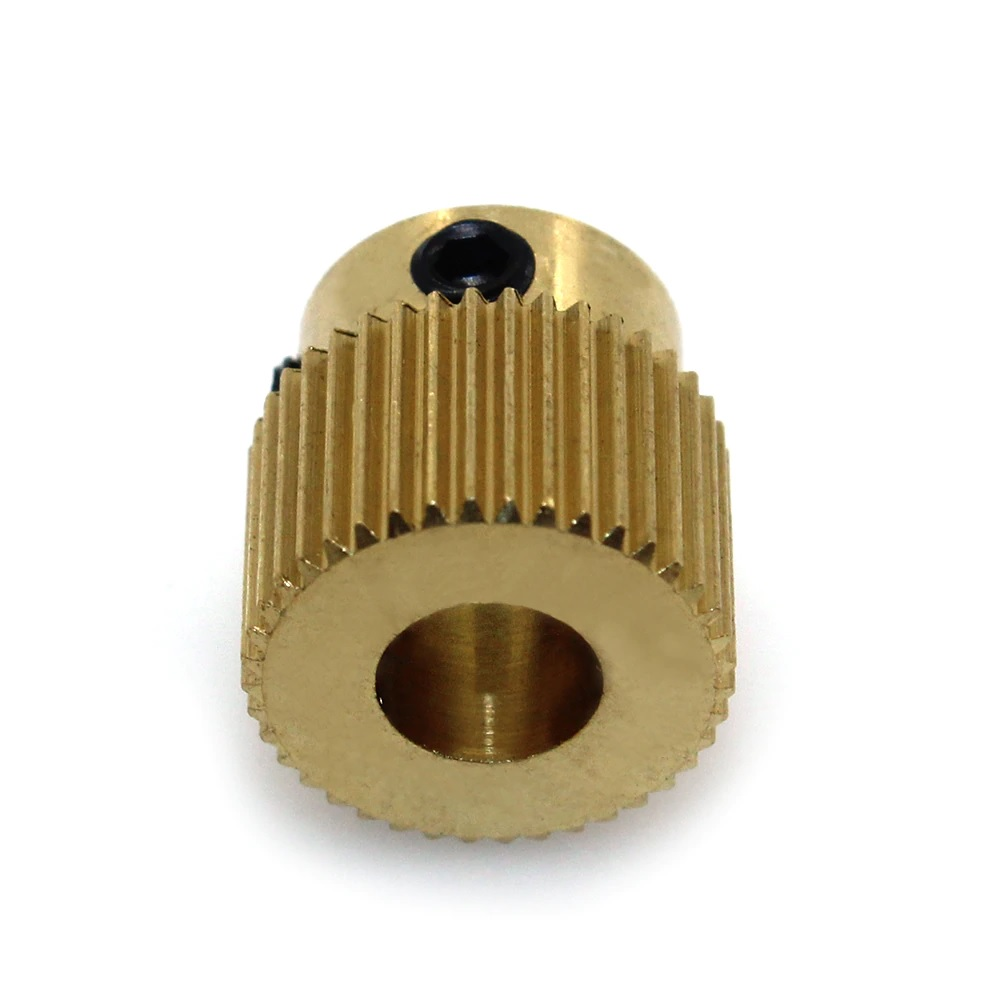

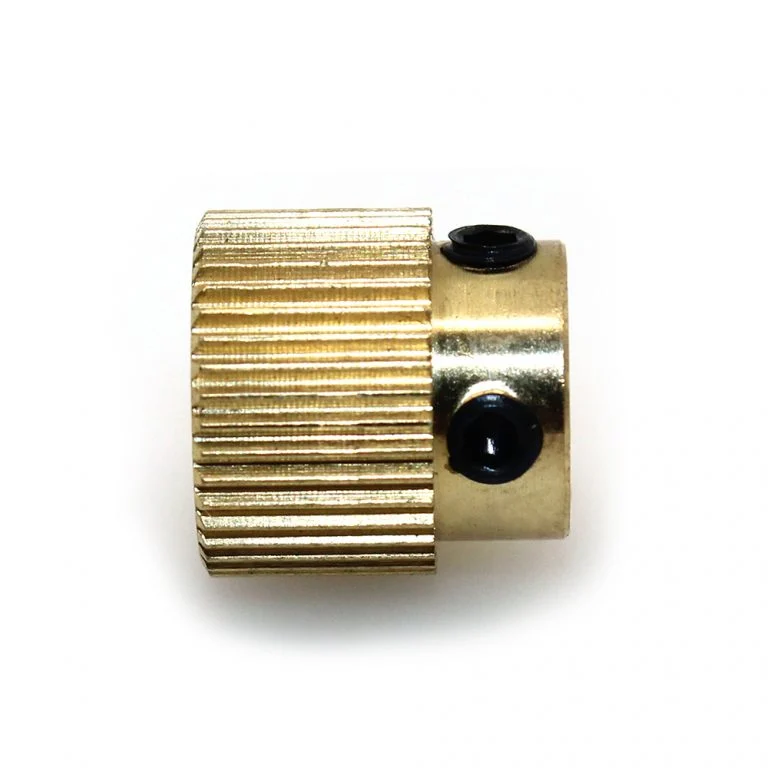

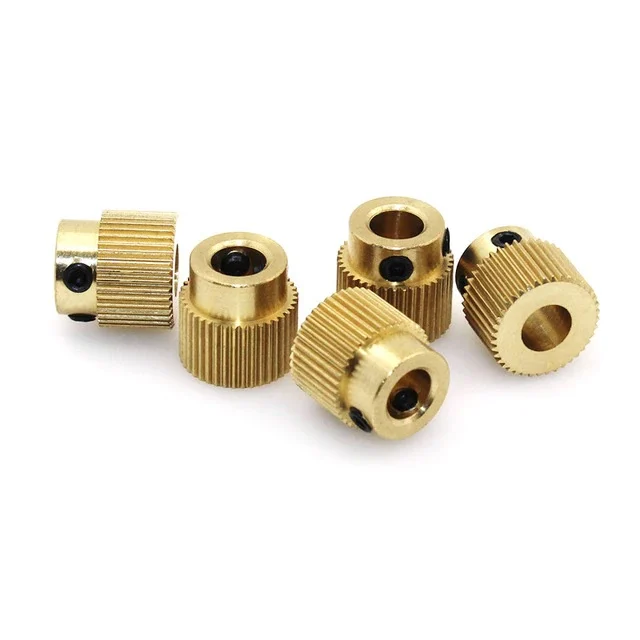

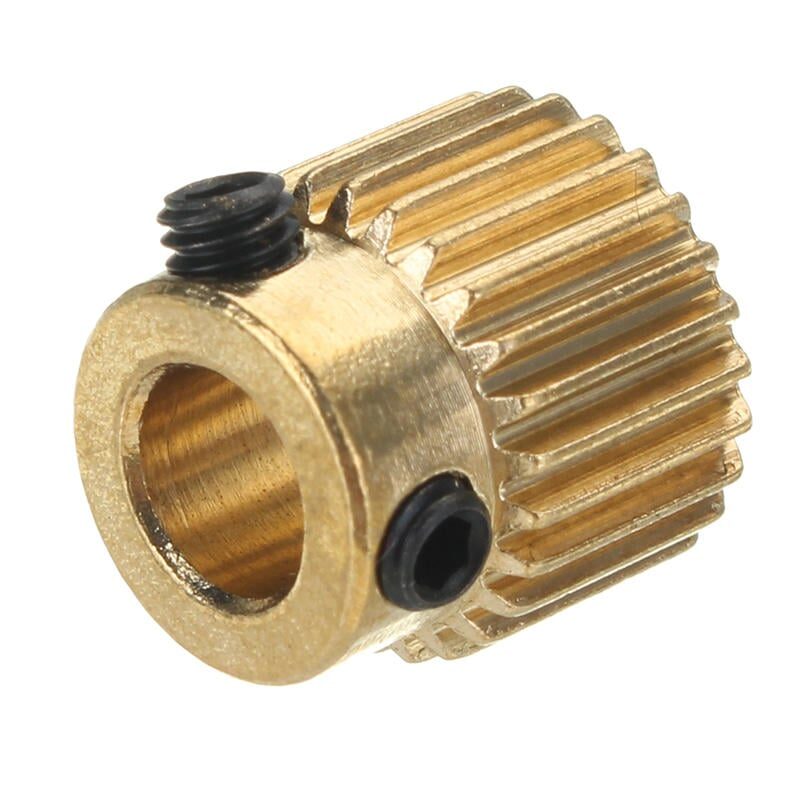

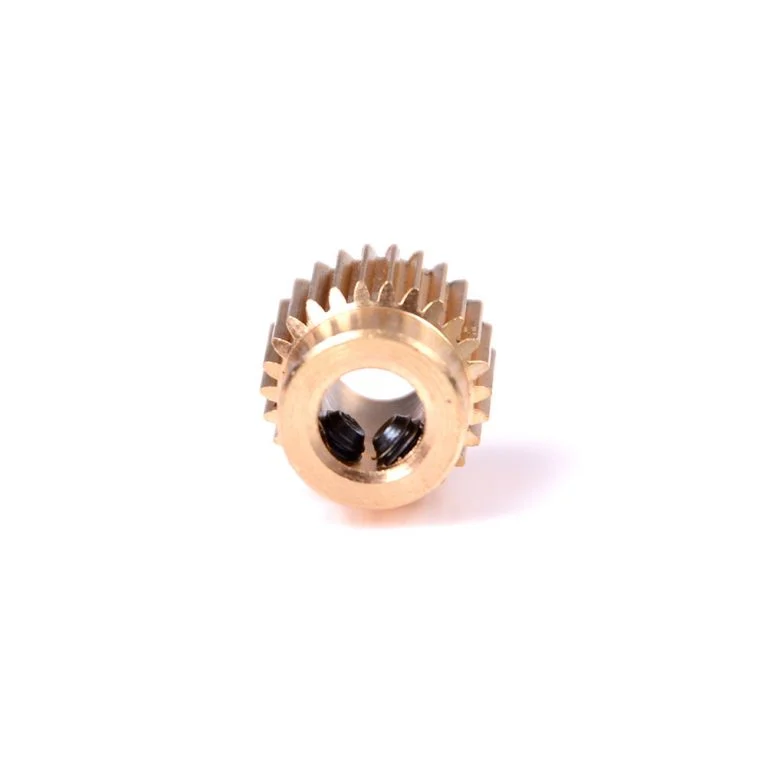

This extruder drive gear has 26 teeth and fits into extruder assemblies. It grips the 3D printing filament firmly and moves it towards or away from the hotend assembly. It can handle high torque without harming the filament, and it attaches easily to the shaft of NEMA 17 stepper motors. It helps with consistent extrusion.
These extruder drive gears are suitable for all types of 3D printer extruders. They move the filament into the melt zone when extruding and pull it back when the hotend is moving over the print bed. This results in smooth and consistent extrusion, better print quality, and less risk of clogging or other issues. This is a simple but essential part of the extruder system. It balances the back-pressure of the melted filament in the hotend assembly.
The extruder drive gear is designed for the TEVO Tarantula, but it can work with many other similar 3D printers, or even different machines. It is made of brass, which is durable but soft enough to protect the filament. It has a small size and does not need any extra modifications to fit.
Features:
- Suitable for 1.75 mm. filament.
- Widely used in desktop FDM 3D printers.

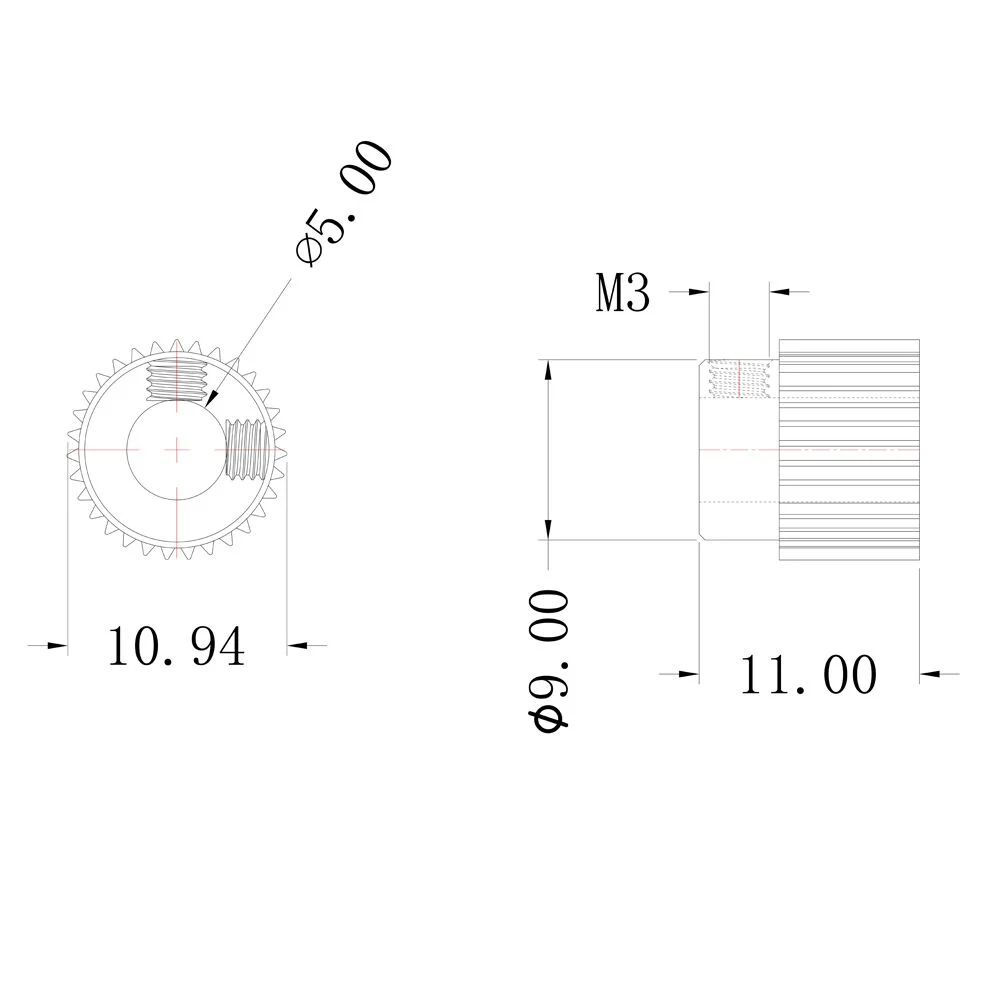

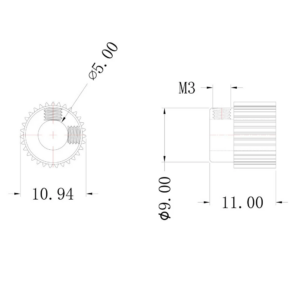

Specification:
| Inner Diameter | 5 mm |
|---|---|
| Gear Toothed Length | 7mm |
| Outer Diameter | 11mm |
| Size (LxW) | 11mm x 11mm |
| Number of Tooth | 26 Teeth |
| Material | Stainless Steel |
| Weight (gm) | 26 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 7 × 5 × 3 cm |
Package Includes:
1 x 26 Teeth Universal Stainless Steel Extrusion Gear for 3D Printer
3D Printing PETG-CF Carbon Fiber: Strong Lightweight Parts
Table of Contents Introduction: Why Carbon Fibre Changes Everything What Is PETG-CF? Mechanical Properties and What They Mean...
Read More →
How to Prepare Your 3D Print File: STL Export Checklist
Proper 3D print file preparation and STL export is the most overlooked step in 3D printing, yet it...
Read More →
Bambu Lab X1C vs Prusa MK4: Best 3D Printer for India in 2026
Table of ContentsOverview: Two Different PhilosophiesSpecifications ComparisonPrint Speed and QualityMaterial CompatibilityAutomation and Ease of UseSoftware EcosystemReliability and MaintenanceIndia-Specific...
Read More →Technical Specifications
| SKU | AI2830 |
|---|---|
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 26 Teeth Universal Stainless Steel Extrusion Gear for 3D Printer is a versatile 3d printer extruder parts and fans used across a wide range of applications including 3D printer maintenance, printer upgrades, custom printer builds, and replacement parts.
Common use cases:
- Replacing a worn-out nozzle or extruder gear
- Upgrading to a direct drive extruder
- Building a custom CoreXY printer
This product is ideal for 3D printer owners and custom printer builders.
Technical Tip: Keep spare nozzles, PTFE tubes, and belts on hand. Regular maintenance significantly extends printer life and print quality.
