The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improving on performance and durability while retaining the same affordability.
Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability.
In order to improve the performance of its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust are generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation.
The ECO II Series marks the next evolution in affordable brushless motor technology, bringing in a new era of performance for everyone
Features:
- Frecision bearing
- Steel shaft
- Anodizing
- 19*19mm hole pattern
- Multi-strand winding
- 200mm 18 AWG silicone wire
- Fully mirror-polished finish that shines and glistens with even the smallest hint of light
- Upgraded N52SH curved arc magnets for tighter airgap and better performance
- Massive 12mm EZO bearing for unparalleled smooth operation
Specification
| Motor KV (RPM/V) | 1300 |
|---|---|
| Motor Type | Brushless Motor |
| Model | Emax ECOII-2807-1300KV |
| Bearing | 4mm |
| Idle Current(A) | 1.3A |
| Internal Resistance(mΩ) | 58mΩ |
| No. of Cells | 3-6 cell |
| Compatible Prop (inch): | 06-07″ |
| Max. Power (W) | 1310W |

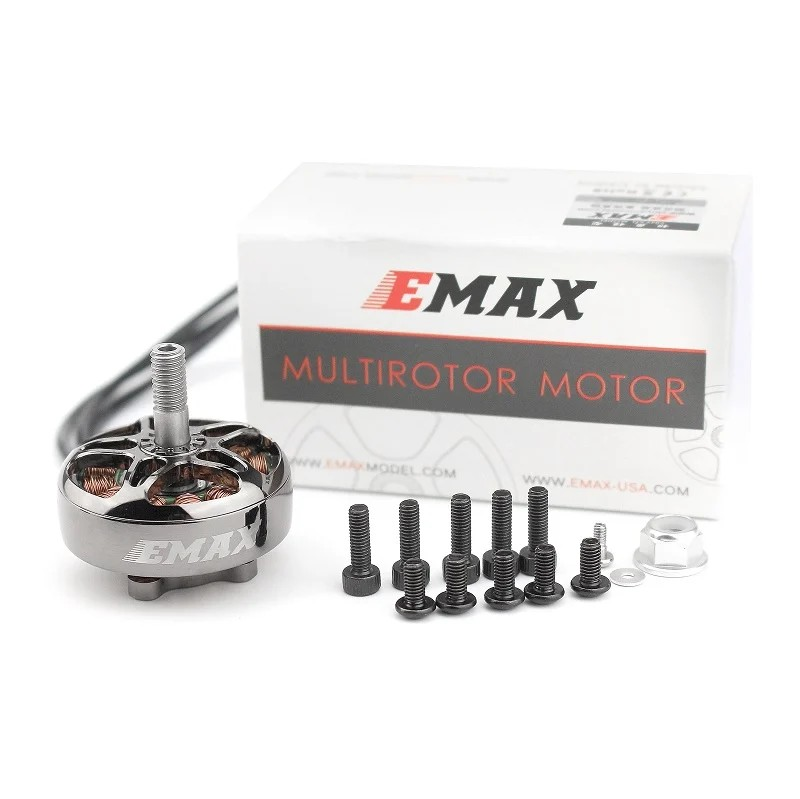

Packages Include:
1 x Emax ECOII-2807-1300KV Brushless Motor
Drone Motor KV Rating Explained: How to Pick the Right Motor
Table of ContentsWhat is KV Rating in a Drone Motor?How KV Affects RPM and PerformanceLow KV vs High...
Read More →
FPV Drone Range Extender: Booster Amplifiers for Video TX Explained
Table of ContentsUnderstanding FPV Video Range LimitationsHow Video TX Booster Amplifiers WorkTypes of Range Extension SolutionsAntenna Selection for...
Read More →
12V DC Motor Speed & Direction Control: Circuit Diagram
Table of Contents Introduction: Why Control Speed and Direction? Understanding the H-Bridge Circuit Components You Need Circuit Diagram...
Read More →Technical Specifications
| Brand | Emax |
|---|---|
| Model | ECOII-2807-1300KV |
| KV Rating | 1300KV |
| SKU | AI6139 |
| Weight | 0.09 kg |
| Availability | In Stock |
Applications & Use Cases
The Original Emax ECOII-2807-1300KV Brushless Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
