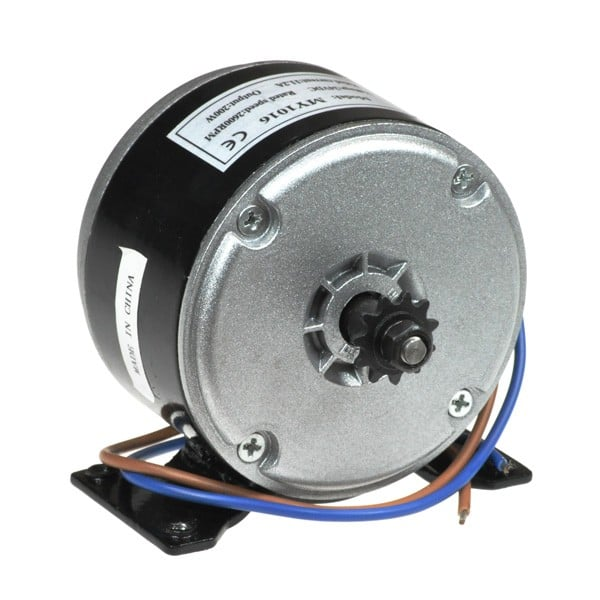

The Ebike MY1016 350W 24V 2750RPM DC motor is a motor for electric scooters and bikes. It has an 11-tooth, #25 chain sprocket and a 4-bolt mounting bracket on the base.
This motor can rotate in both clockwise and counterclockwise directions by reversing the battery polarity. It can also be controlled by speed controllers. You can find our available speed controllers here.
specification-
Model | MY1016 350W |
---|---|
Operating Power | 350W |
Operating Voltage (VDC) | 24 |
Rated Current(A) | 2.5 |
No load Speed (RPM) | 3300 |
Rated Speed (RPM) | 2750 |
Rated Torque (Kg-Cm) | 11.1 |
Stall Torque(Kg-Cm) | 55.11 |
Weight (Kg) | 2.56 |
Efficiency | ≥78%. |
Shipping Weight | 3.1 kg |
Shipping Dimensions | 20 × 15 × 10 cm |
Package Includes :
1 x Ebike MY1016 350W 24V 2750RPM DC motor.
