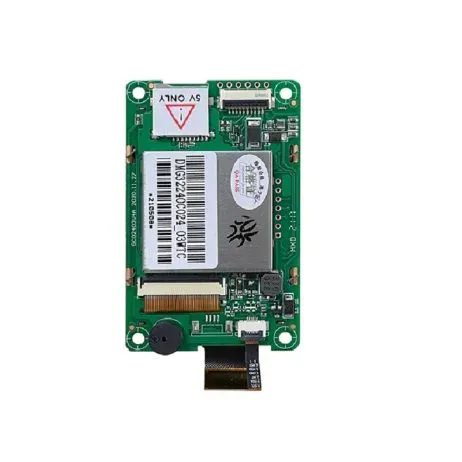

DWIN IPS, Resistive touch 2.4 inch HMI display

Looking for Dwin Ips, Resistive Display? DWIN IPS, Resistive touch 2.4 inch HMI display is available at Zbotic with fast shipping across India.

DWIN IPS, Resistive touch 2.4 inch HMI display

Description:

This DWIN IPS 2.4inch inch Smart HMI (Human Machine Interface) LCD module with Resistive touch screen. This LCD module allows the user to design a rich GUI based interactive system on the LCD. It has an audible ton indication s the user interacts with the module. This type of smart LCD can be used in a variety of machines such as vending machines etc where an end-user needs to interact with the machine.

Any microcontroller can serially communicate with this module to send or receive the data. Standard UART based serial communication interface allows the same. Special GUI and functionality design software is available for the design of the interaction flow on the smart LCD. Flexible approach to communicating with the LCD module open a lot of applications possibility. A variety of HMI utilities can be achieved using this fast response, Resistive touch smart HMI display module.

If comparing TFT screen in display performance, IPS LCD is better than traditional a-is TN TFT LED display in viewing angle and color conversion, IPS is with higher contrast than TN TFT LCD

Resistive touchscreens: which allow both finger and non-finger input (e.g., glove, stylus), are used in feature phones, global positioning systems (GPS), printers, digital cameras, and larger displays. They generally support single-finger touch and basic gestures, and cost less to produce

HMI Touch screen displays: are panel-mounted devices with responsive touch screens for operator input. They display graphics and allow the easy selection of options, making them helpful in many industrial and commercial environments. The touch panels aid control and visualization in a wide range of applications

In-Plane Switching (IPS) technology is another type of LCD TV technology. These panels are more accurate in their picture reproduction and show more accurate color from narrow viewing angles. In simple terms, IPS was better than LCD

In Conclusion. Like other touchscreen technologies, resistive has several advantages and disadvantages. They are strong and durable while also supporting all forms of touch commands. On the other hand, resistive touchscreens offer a lower level of sensitivity, as well as display resolution, than capacitive touchscreens

Features:

1. Based on self-designed T5L ASIC, 2.4 Inches, 262K Colors, 320×240 Pixel TFT LCD
2. No/Resistive/Capacitive touch screen Optional
3. 10Pin1.0mm FCC connection wire
4. Two Development System: DGUS II/ TA(Instruction set)
5. SD card or DGUS TOOL on-line serial port downloading ways
6. Net Weight: DMG32240C024_03WTR : 35g / DMG32240C024_03WTC: 35g
7. It is easy to use DWIN DGUS V7.6 GUIs Development, no coding skills required

Datasheet:

Packages includes:

1 x DWIN IPS, Resistive touch 2.4 inch HMI display

This Dwin Ips, Resistive Display is a popular choice among hobbyists and professionals. The Dwin Ips, Resistive Display offers reliable performance for your projects.

About Dwin Ips, Resistive Display

DWIN IPS, Resistive touch 2.4 inch HMI display is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by DWIN, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: DWIN
• SKU: AI1818
• Category: HMI LCD Display

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Dwin Ips, Resistive Display and other products.

Applications

Dwin Ips, Resistive Display can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Dwin Ips, Resistive Display today and start building.

DWIN IPS, Resistive touch 2.4 inch HMI display Overview

The DWIN IPS, Resistive touch 2.4 inch HMI display is a compact human-machine interface module featuring a vivid TN TFT LCD and four-way orientation support. With a built-in resistive touch panel and audible feedback, it enables developers to build interactive GUIs for industrial and consumer applications.

Key Features of DWIN IPS, Resistive touch 2.4 inch HMI display

• 2.4-inch TN TFT LCD with 320×240 pixel resolution and 0°/90°/180°/270° viewing angles
• 4-wire resistive touch panel for reliable stylus or finger input
• Standard UART serial communication for easy integration with microcontrollers
• Operating voltage 4.5 – 5.5 V (typical 5 V) with low power consumption
• Built-in audible tone feedback on touch events
• Fast shipping across India from Zbotic for immediate project deployment

Applications and Use Cases

• Vending machines requiring user selection menus and payment guidance
• Industrial control panels for machine status monitoring and parameter adjustment
• Medical devices needing a compact touchscreen for setting and display
• Home automation hubs to control lighting, HVAC, and security systems
• 3D printer controllers with on-screen file browsing and print status
• Point-of-sale terminals displaying transaction details

How to Use DWIN IPS, Resistive touch 2.4 inch HMI display

Connect the module to a 5 V power supply and wire the UART TX/RX lines to your microcontroller. Use DWIN’s GUI design software to create screens, then upload the layout via serial commands. Calibrate the resistive touch through the built-in routine, mount the display, and interact with your custom interface using finger or stylus inputs.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which communication interface does this HMI display use?

The module uses a standard UART-based serial interface for bi-directional communication with any microcontroller supporting TTL-level serial data.

What is the required supply voltage for the display?

This HMI display operates from 4.5 V to 5.5 V, with a typical operating voltage of 5 V, making it compatible with most 5 V logic systems.

How do I interact with the touch screen?

The screen features a 4-wire resistive touch panel that responds to finger or stylus input, and it includes an audible tone to confirm each touch event.
