DWIN HMI 4.3 Inch IPS LCD Resistive Touch Display

Description:

This DWIN 4.3 inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software from the manufacturer which gives user great and useful tools to develop their own UI with great Features. One can design UI SUch as a button, slider, Graph, Text Display, etc on their own.

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed) . Also, it supported with RGB color and 16.7M colors. It is also equipped with 200 nit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards. which can be interface with I2C communications.

Features:

1. UI Version: TA / DGUS II ( DGUS II pre-installed)
2. Powerful data management
3. Dimensions:121.9(W) × 73.2(H) ×14.1 (T) mm
4. Capacitance touch panel, Buzzer, WIFI module interface
5. Powerful data management
6. Built-in DGUS II intelligent software
7. 16.7M colors
8. FLASH Memory 16Mbytes
9. RAM Memory:128Kbytes

Display:

1. Size -4.3″
2. Display Format -480×800 Pixel Matrix
3. Brightness -200nit
4. Active Area – 56.16mm (W) ×93.6mm (H)
5. Colour – 24-bit colour 8R8G8B
6. Backlight – LED

Interface:

• UART2 : N81 , 3.3V TTL/CMOS
• UART4 : Optional N81/E81/O81/N82 four mode , 3.3V TTL/CMOS

Datasheet:

Package Includes :

1 x 4.3″SMART SCREEN

About Dwin Hmi 4.3 Display

DWIN HMI 4.3 Inch IPS LCD Resistive Touch Display is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by DWIN, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: DWIN
• SKU: AI1811
• Category: HMI LCD Display

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Dwin Hmi 4.3 Display and other products.

Applications

Dwin Hmi 4.3 Display can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Dwin Hmi 4.3 Display today and start building.

DWIN HMI 4.3 Inch IPS LCD Resistive Touch Display Overview

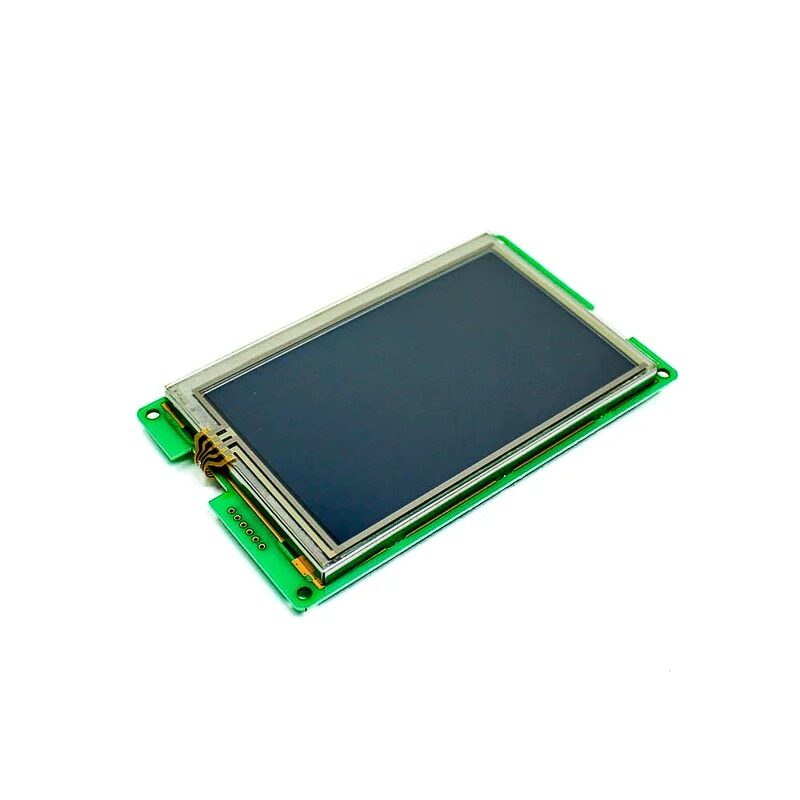

The DWIN HMI 4.3 Inch IPS LCD Resistive Touch Display is a self-contained smart screen module featuring a 4.3″ IPS panel and built-in touch controller. It’s designed for rapid development of graphical user interfaces in industrial, DIY and embedded control applications.

Key Features of DWIN HMI 4.3 Inch IPS LCD Resistive Touch Display

• 4.3″ IPS LCD with resistive touch panel for reliable input
• 200 nit brightness and 16.7 million colors for vivid daylight-readable graphics
• 16 Mbyte Flash memory and 128 Kbyte RAM to store complex UI elements
• Pre-installed TA/DGUS II firmware plus PC-based UI development software
• Operates from a single 5 V supply (4.5 V–5.5 V) for easy integration
• Available at Zbotic as a genuine DWIN module with fast shipping across India

Applications and Use Cases

• Industrial machine control panels for real-time status and input
• Home automation dashboards for lighting, HVAC and security systems
• Embedded electronics projects and prototyping with microcontrollers
• Touchscreen interface for 3D printers and CNC machines
• Educational kits and training modules on HMI design and development

How to Use DWIN HMI 4.3 Inch IPS LCD Resistive Touch Display

Connect the module to a 5 V regulated supply and interface it with your microcontroller via its serial port. Use the DGUS II PC software to design screens—buttons, sliders, graphs—and upload your UI project into the 16 Mbyte flash. Power on the display, and your custom touchscreen interface is ready for operation.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What development tools are provided for creating a custom UI?

This module comes pre-installed with DGUS II firmware and includes the TA/DGUS II PC software, enabling drag-and-drop design of buttons, sliders, graphs and text displays without additional licensing fees.

What power supply requirements does the DWIN 4.3″ HMI have?

The display requires a stable 5 V DC input (acceptable range 4.5 V–5.5 V) and consumes minimal current, making it suitable for battery-powered and industrial systems.

Which controllers can interface with this HMI module?

Any microcontroller or embedded system that supports TTL-level serial communication (UART) can send and receive commands to the DWIN module, making it compatible with Arduino, STM32, Raspberry Pi and similar platforms.
