Looking for Bidirectional? Dual Way Bidirectional Brushed ESC 10A x 2 Mixed Control Electric Speed Controller is available at Zbotic with fast shipping across India.
Description:
– The midpoint of the remote controller is fixed at PWM 1500us (+50 -50), and the run is automatically adjusted from 900-1100 and 1900-2100.
– Start with the midpoint (one beep at power-on, and two beeps at midpoint 1500, ESC will start).
– With out-of-control protection (lost signal or disconnected signal line), for safety and motor protection, you need to return the throttle to the center and unlock again.
– With power-down protection: if the power supply voltage is lower than 4V, ESC restart protection activates (e.g., high current discharge, poor battery performance causing voltage drop). The motor stops after protection, and once the battery voltage recovers, the motor returns to the midpoint, and you hear the motor unlock again.
– BEC output max 1.5A to meet your needs for receiving and steering gear power supply. Note: The onboard MCU is also powered by 5V (connected with BEC). If you plug the 2S lithium battery (7.4V) directly into the receiver, the MCU will burn in seconds (maximum withstand voltage 6.5V).
– With overheating protection (overheating at 90 degrees), the ESC stops output and recovers after cooling down.
Key Points of Mixed Control Debugging:
l First make sure the forward and backward motors are in the same direction. (If a motor is turning incorrectly, exchange the +-stage wires behind the motor)
l Then adjust the direction, if it is not as expected, the remote control may be reversed, set it back

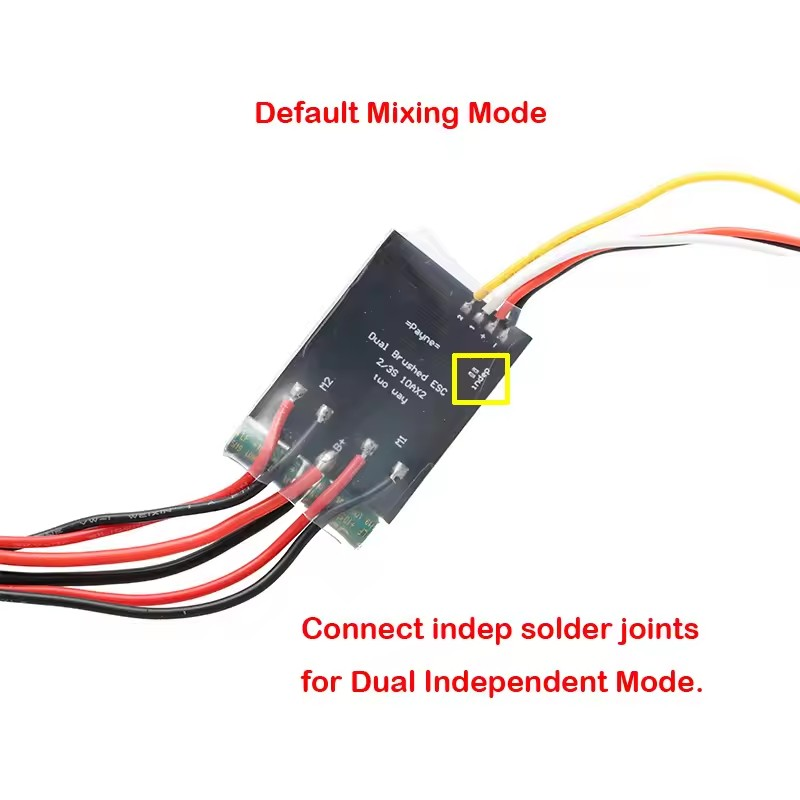

The Dual-mix ESC Has the Following Modes:
l Mixed control mode (both throttle / steering mode): 2 or 3 channels (2 channels are recommended because 2 channels automatically return to center) to control the throttle, 1 channel (or 4 channels) to control speed difference steering, throttle ratio 100%, steering ratio 100%, steering priority. Suitable for: tank (in this mode, gun control can play tanks), 4-wheel drive trolley (apm can be installed)
l Two-way independent: it is equivalent to two independent ESCs (if you want to simulate a real tank, the white three wires on the input end are connected to the receiver throttle (3 channels), and the yellow single wire is connected to the receiver 2 channels)
l Two-way synchronization: In mixed control mode, do not connect a single yellow wire, so that the two-way motor output is consistent
Package:

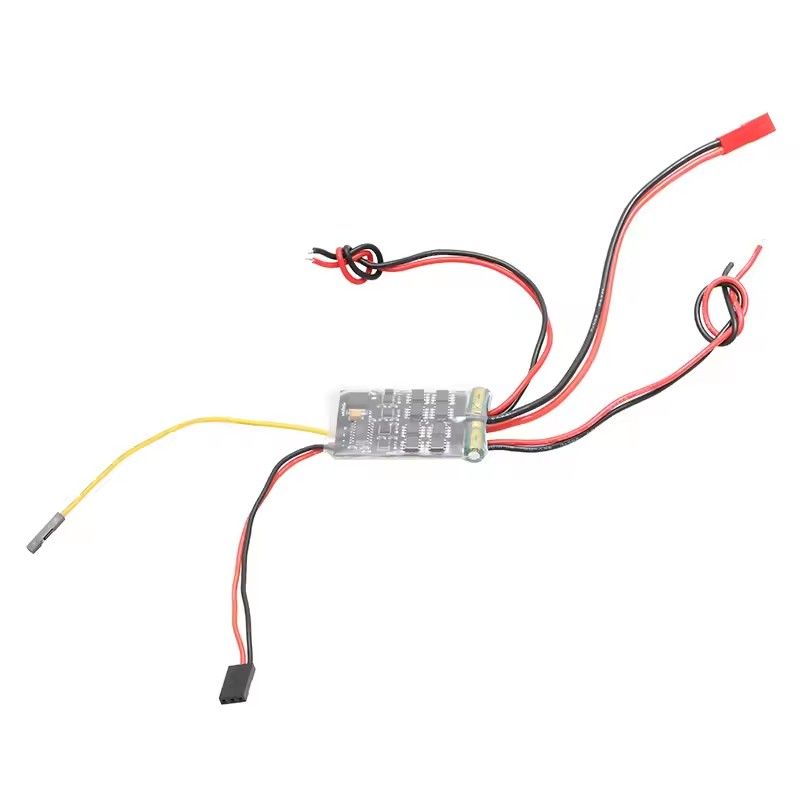

1x Dual Way Bidirectional Brushed ESC 10A x 2 Mixed Control Electric Speed Controller
Dual Way Bidirectional Brushed ESC 10A x 2 Mixed Control Overview
The Dual Way Bidirectional Brushed ESC 10A x 2 Mixed Control is a compact speed controller designed to drive two brushed DC motors with independent forward and reverse control. Operating from 6 V to 14 V, it delivers up to 10 A per channel and is ideal for small robots, RC boats or any application requiring bidirectional brushed motor control.
Key Features of Dual Way Bidirectional Brushed ESC 10A x 2 Mixed Control
- Dual-channel outputs: 10 A continuous current per channel (20 A total)
- Bidirectional control: PWM midpoint at 1500 µs, forward at 1900–2100 µs, reverse at 900–1100 µs
- Built-in safety: automatic shutdown on lost signal with unlock at centre throttle
- Low-voltage protection: resets ESC if supply falls below 4 V to prevent battery damage
- Compact and lightweight: board measures 40 × 31 mm (46 × 31 mm with capacitor) and weighs ~18 g
- Genuine product with fast shipping across India from Zbotic.in
Applications and Use Cases
- Reversible drive systems on small RC boats and watercraft
- Wheeled or tracked robots requiring forward/reverse motion
- Pan-tilt camera mounts where bidirectional rotation is needed
- Electric skateboard prototypes using brushed hub motors
- Articulated robotic arms with brushed gearmotors
How to Use Dual Way Bidirectional Brushed ESC 10A x 2 Mixed Control
Connect the ESC’s power input to a 6–14 V battery, attach each pair of motor wires, and plug the signal wire into your RC receiver’s throttle channel. Set your transmitter’s neutral throttle to 1500 µs, then power on the ESC—listen for one beep (power on) and two beeps (throttle midpoint). Use throttle below 1100 µs for reverse and above 1900 µs for forward motion. If the signal is lost or voltage drops below 4 V, the ESC will lock and restart once conditions return to normal.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which motor sizes are compatible with this ESC?
This ESC is suitable for small brushed motors in the 130, 180 or 370 size range, providing smooth bidirectional control up to 10 A per channel.
How do I calibrate my transmitter’s PWM range?
Power on the ESC with throttle at neutral (1500 µs). When you hear one beep followed by two beeps, adjust your transmitter end-points so that reverse registers at 900–1100 µs and forward at 1900–2100 µs.
What happens when battery voltage drops too low?
The ESC features low-voltage protection: if supply voltage falls below 4 V, it will automatically shut down the outputs and restart once voltage is back in range, protecting both battery and motor.
