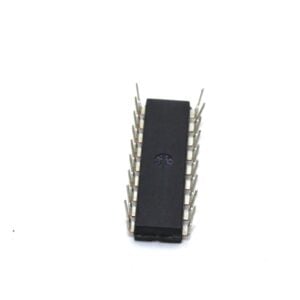

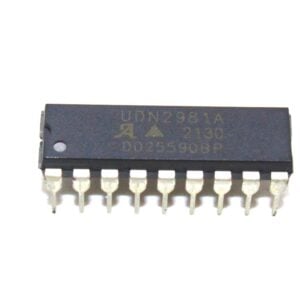

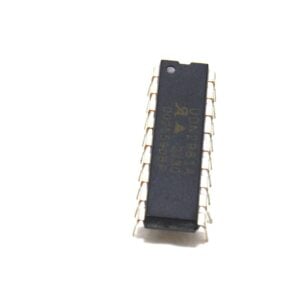

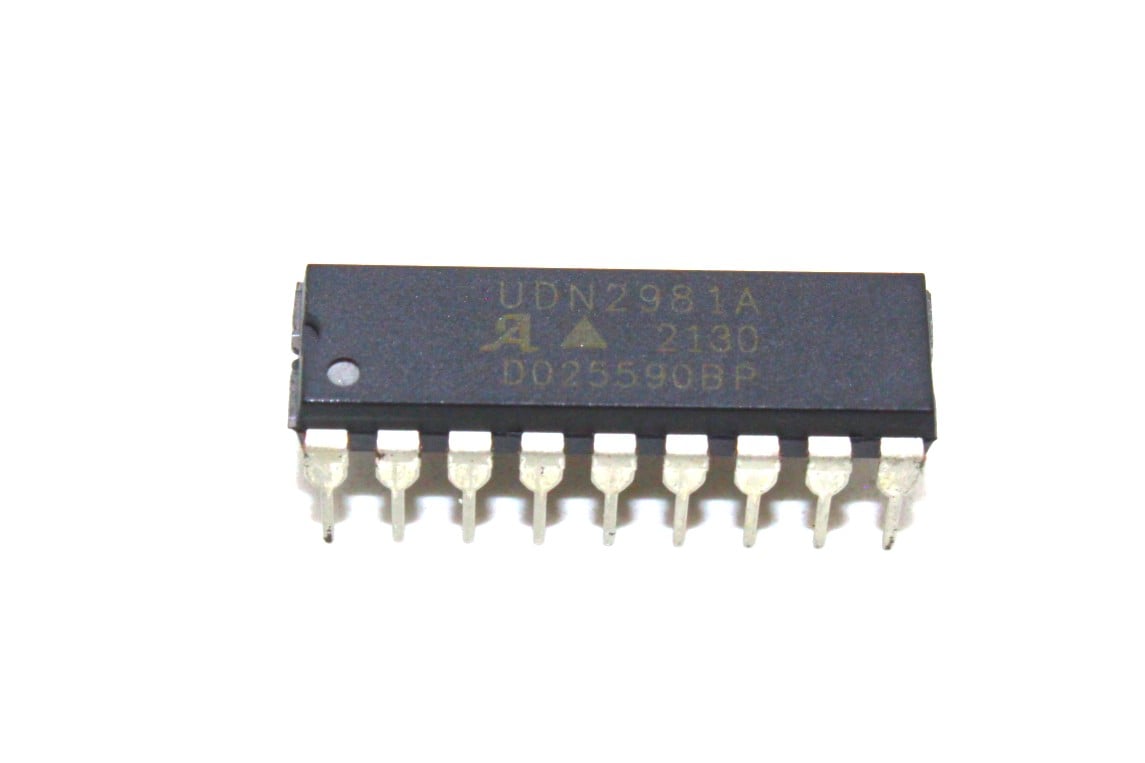

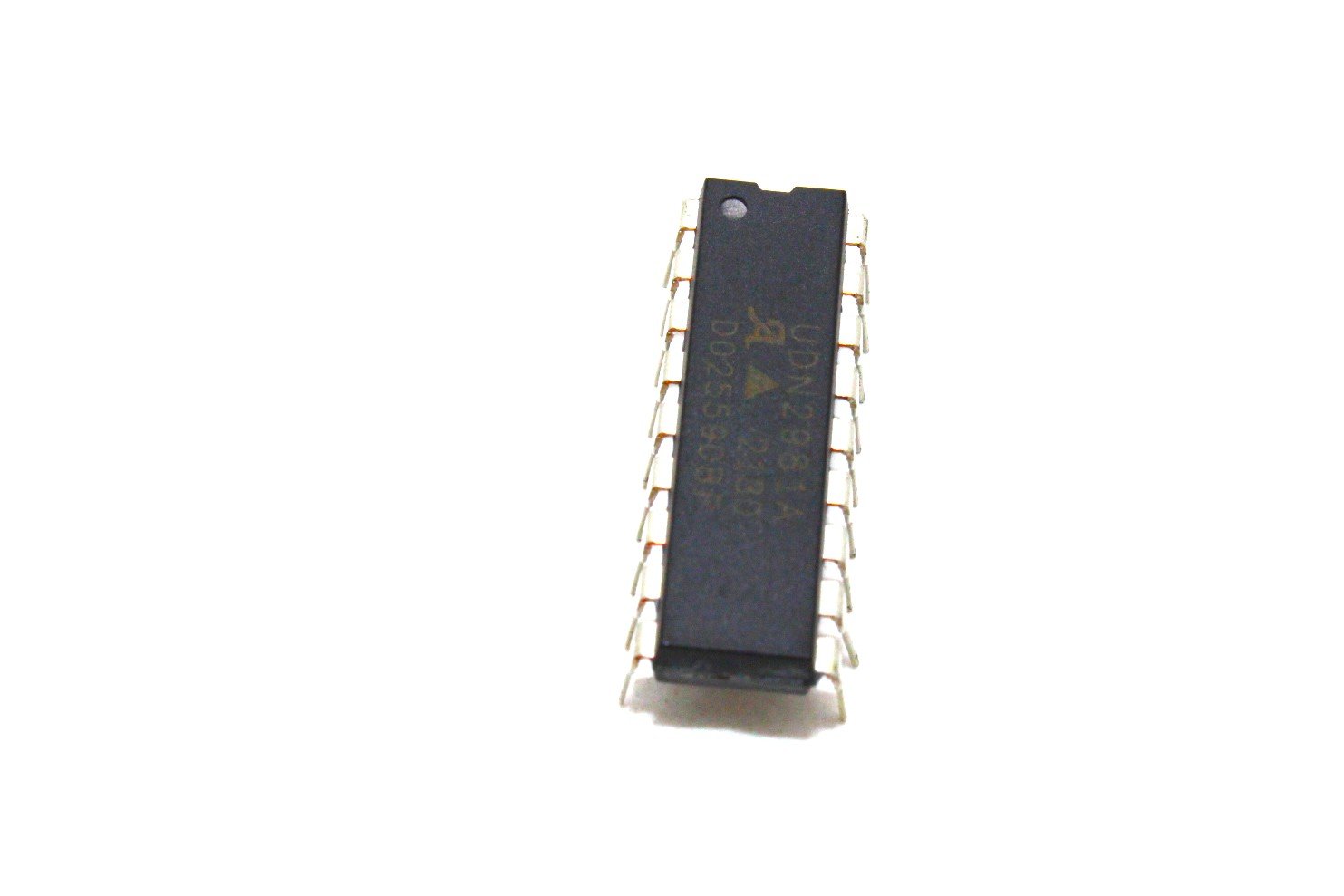

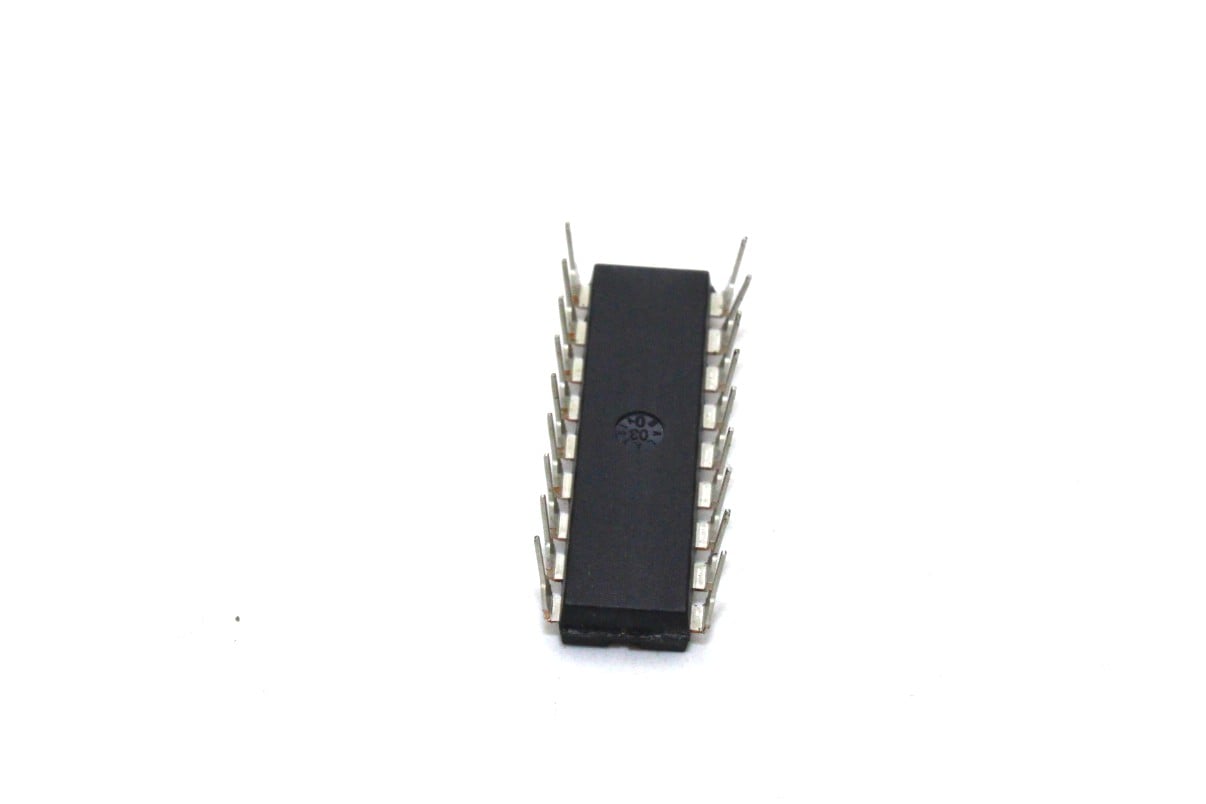

DIP Package UDN2981 IC
These devices are 8-channel source drivers that can switch high-side loads up to 50 V and -500 mA. They are suitable for interfacing low-level logic circuits with high-current loads, such as relays, solenoids, lamps, stepper or servo motors, print hammers, and LEDs.
They are compatible with 5 V logic systems, such as TTL, Schottky TTL, DTL, and 5 V CMOS. The UDN2981A, UDN2982A, and A2982SLW have the same electrical characteristics and can withstand a maximum output voltage of 50 V when off. They can operate with a minimum supply of 5 V. They have input current limiting resistors and output transient suppression diodes. They are activated by active high input signals.
The suffix ‘A’ indicates an 18-lead plastic DIP package with a copper lead frame for better heat dissipation. These devices can handle 120 mA continuously for each output at an ambient temperature of +50°C and a supply of 15 V. The suffix ‘LW’ indicates an 18-lead wide-body SOIC package for surface mounting. The A2982SLW has a 20-lead wide-body SOIC package with enhanced thermal performance. The UDN2982A, UDN2982LW, and A2982SLW are also available for extended temperature range operation down to -40°C. To order, replace the prefix ‘UDN’ with ‘UDQ’ or the suffix ‘SLW’ with ‘ELW’. These packages have Pb-free variants (suffix ‘-T’) with 100% matte-tin plating on the lead frame.
This product is also known as 2981, UDN2981A, UDN2981, UDN2981 LED Driver, UDN2981A LED Driver, UDN2981A RELAY Driver, 2981 ELD Driver, UDN2981A Display Driver, UDN2981 Multi Function Driver, or UDN2981A Multifunction Driver.
Features/Specs:
- Part Number: UDN2981A
- Voltage – Load: 5V ~ 50V
- Current – Output (Max): 500mA
- Input Type: Non-Inverting
- Switch Type: General Purpose
- Number of Outputs: 8
- Ratio – Input: Output: 1:1
- Output Configuration: High Side
- Output Type: Bipolar
- Interface: On/Off
- Operating Temperature: -20°C ~ 85°C
- Mounting Type: Through Hole
- Package: 18-DIP
Package Includes
- 1 x Dip Package UDN2981 IC
DIP Package UDN2981 IC Overview
The DIP Package UDN2981 IC is an 8-channel high-side source driver designed to switch loads from 5 V up to 50 V at currents up to 500 mA per channel. It interfaces directly with 5 V logic systems (TTL, Schottky TTL, DTL, 5 V CMOS) and is ideal for driving relays, lamps, solenoids, motors, LEDs, and print hammers.
Key Features of DIP Package UDN2981 IC
- Eight high-side source outputs, each up to 500 mA at 5 V–50 V
- Non-inverting inputs with built-in current-limiting resistors
- Integrated output transient suppression diodes for inductive loads
- 18-lead plastic DIP package with copper lead frame for heat dissipation
- Direct interface to 5 V logic (TTL, Schottky TTL, DTL, 5 V CMOS)
- Genuine product, fast shipping from Zbotic within 24 hours
Applications and Use Cases
- Driving relay coils and power solenoids in industrial automation
- Controlling LED arrays and display backlighting
- Switching print hammers in dot-matrix printers
- Powering stepper or servo motor windings
- On-board lamp and indicator control in instrumentation
- Actuating small DC valve and actuator circuits
How to Use DIP Package UDN2981 IC
To use the UDN2981, place the 18-pin DIP device on a through-hole PCB, tie VCC to 5 V–50 V as your load supply, and connect each input pin to your 5 V logic controller. Attach your high-side loads between the supply rail and the IC outputs. Add a decoupling capacitor close to VCC and ensure proper PCB copper around the package for heat dissipation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which logic families are compatible with UDN2981?
The UDN2981 accepts active-high inputs from 5 V logic families, including TTL, Schottky TTL, DTL, and 5 V CMOS, without additional level shifting.
Does the UDN2981 protect against inductive load voltage spikes?
Yes. Each output includes an integrated transient-suppression diode, making it suitable for driving relays, motors, and other inductive devices without external clamp diodes.
How should I handle thermal and mounting considerations?
Mount the 18-lead DIP on a through-hole PCB with ample copper area for heat spread. Use a decoupling capacitor on VCC, and maintain airflow or heatsinking if driving multiple channels near 500 mA.
Technical Specifications
| SKU | AI0748 |
|---|---|
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The DIP Package UDN2981 IC is a versatile encoder ics used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
