This is the 24V variant of the DC24V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable Size:35*35*10MM in Cooling Fans. Available at ₹71.98 (₹61.00 + GST) with free shipping across India.
Looking for Dc24v Cable 30cm? DC24V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable Size:35*35*10MM is available at Zbotic with fast shipping across India.

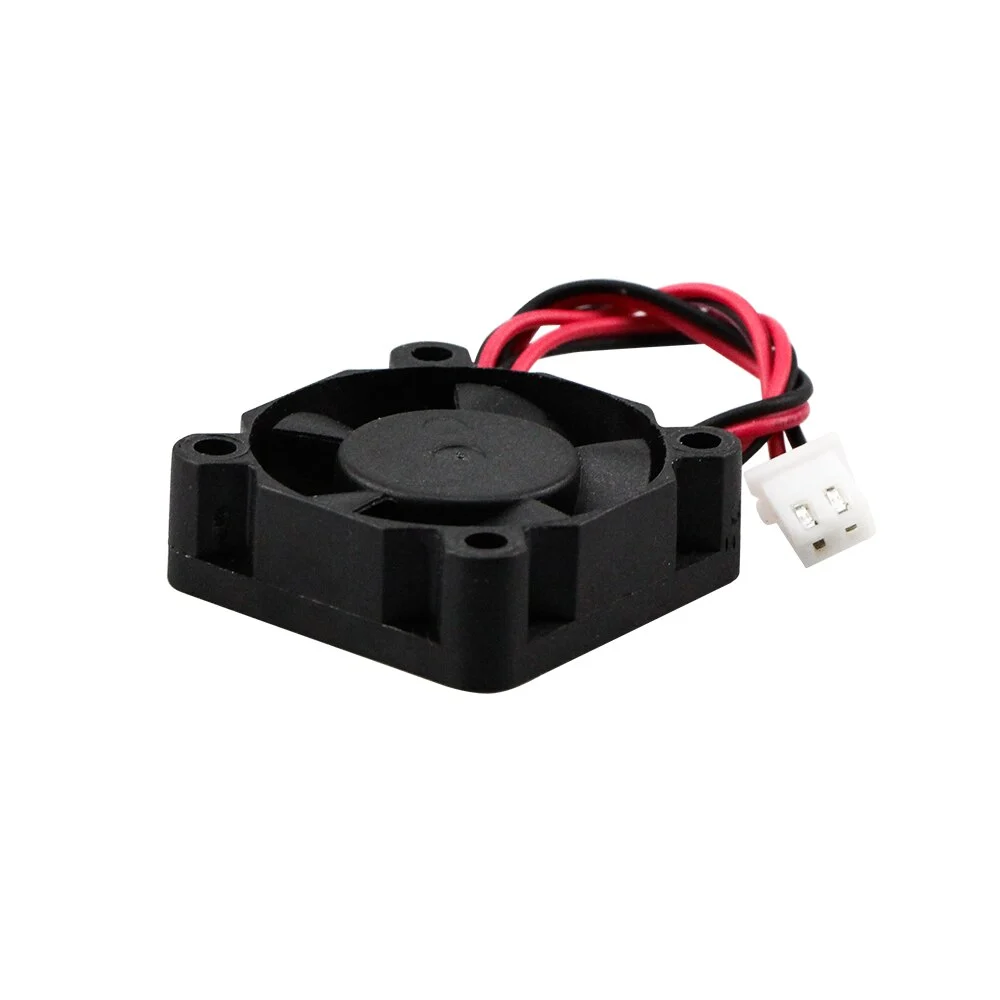

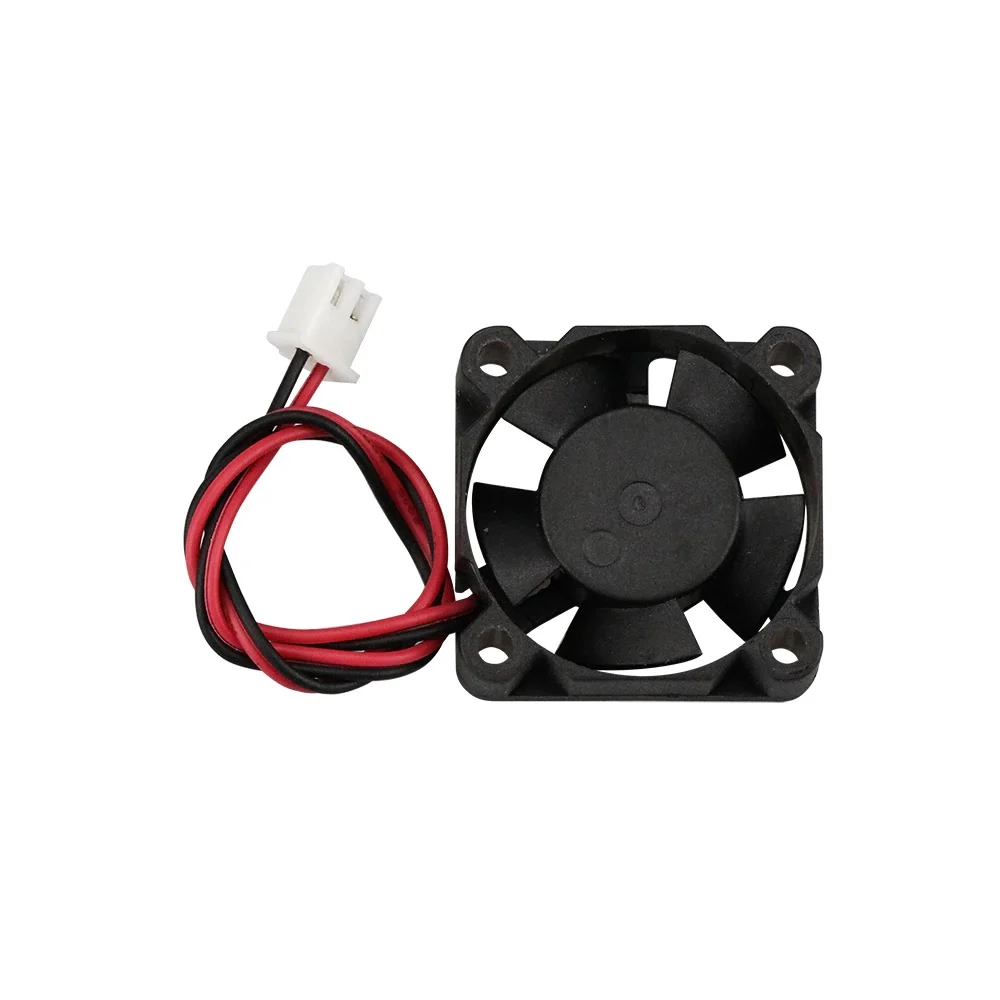

DC24V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable Size:35*35*10MM
The 3D Printer Hydraulic Cooling Fan is a small but powerful brushless fan that operates at 24V and consumes very little power. It has a two-pin connector that plugs into the printer controller and runs automatically as needed. It can be mounted on extruders to regulate their temperature and ensure smooth printing.
Note: The image shown may differ from the actual product in terms of the brand name, Voltage/current rating shown.
Features:
- Perfectly fit on the extruder
- Noiseless Performance
- Very low Current consumption
- Easy to install and connect.
- Long Connecting Wire
- Brushless Motor and silent operation
Specification:
- Dimensions:35mmx35mmx10mm
- Rated Voltage(VDC):12
- Operating Voltage Range(VDC):6.0 to 13.5
- Rated Input Current(Amp):0.06
- Rated Input Power(Watt):0.72
- Speed(RPM):7500
- Air Flow(CFM):1.84
- Static Pressure(Inch.H2O):0.335
- Noise(dBA):29
- Weight(g):11
| Rated Voltage(V) | 12 DC |
|---|---|
| Operating Voltage (VDC) | 6.0 to 13.5 |
| Input Current(A) | 0.06 |
| Maximum input power(W) | 0.72 |
| Speed (RPM) | 7500 |
| Airflow(CFM) | 1.84 |
| Noise Level | 29dBA |
| Weight (g): | 11 |
| Dimensions(mm) | 35mmx35mmx10mm |
| Shipping Weight | 0.011 kg |
| Shipping Dimensions | 9 × 7 × 2 cm |
Package Includes:
1 x 24V 0.06A 3510 Cooling Fan
DC24V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable Overview
The DC24V 3510 Hydraulic Cooling Fan is a compact, brushless fan designed for 3D printer extruder cooling and other electronics requiring directed airflow. With a 35×35×10 mm frame and a 30 cm XH2.54-2P cable, this fan delivers quiet, reliable performance at 24 V for stable temperature control and smooth operation.
Key Features of DC24V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable
- 24 V Operation: Optimized for 24 V systems in 3D printers and industrial electronics.
- Hydraulic Bearing: Ensures low noise and long service life under continuous use.
- Compact Size: 35×35×10 mm profile fits directly onto most extruder assemblies.

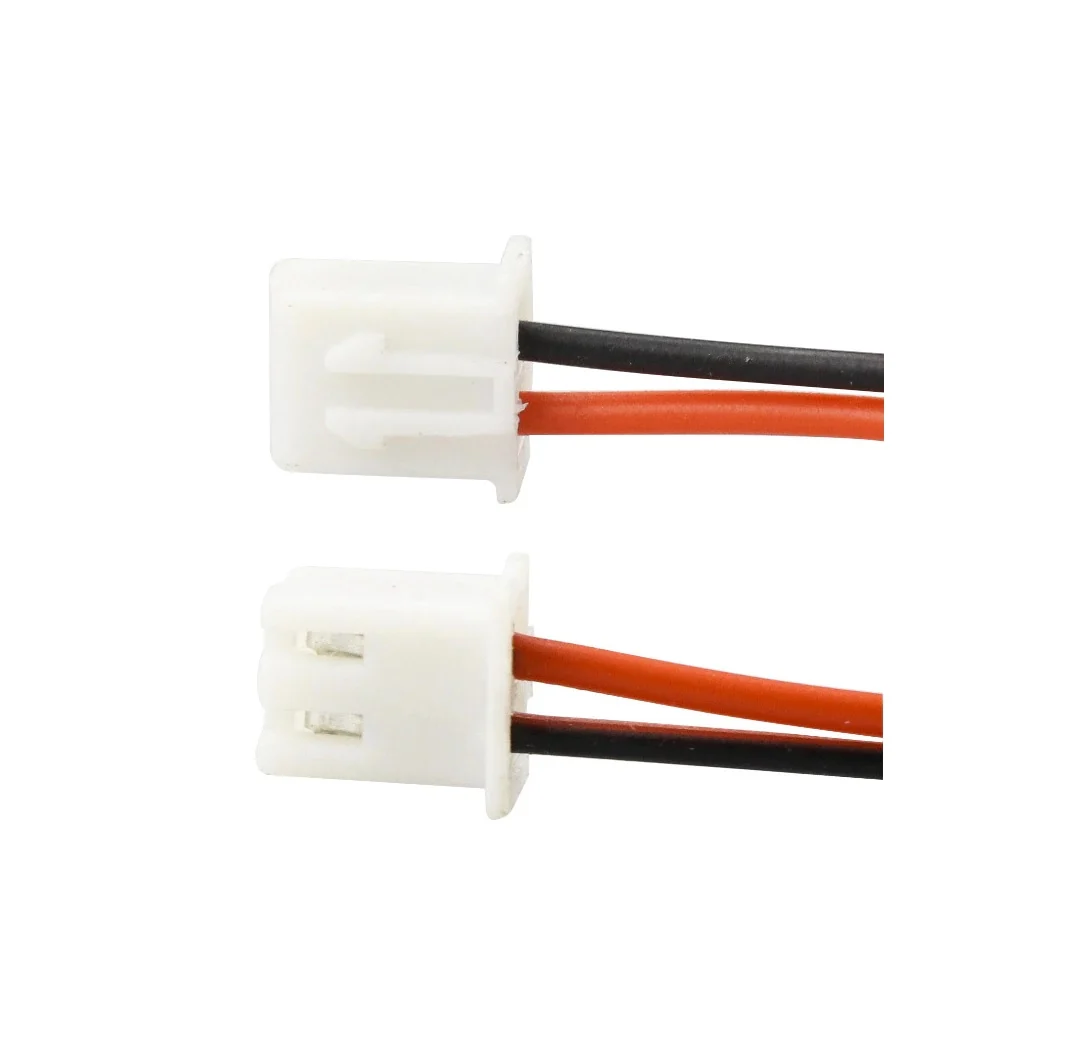

- 30 cm XH2.54-2P Cable: Two-pin connector for easy plug-and-play with printer controller boards.
- Very Low Power Draw: Consumes minimal current to reduce load on your power supply.
- Fast Shipping from Zbotic: Genuine fans shipped across India within 24 hours.
Applications and Use Cases
- Extruder and hotend cooling on FDM 3D printers.
- Heat-break temperature regulation for improved filament flow.
- Directed airflow for small CNC controller boards.
- Cooling power driver modules and stepper motor drivers.
- Compact ventilation in custom electronics enclosures.
How to Use DC24V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable
Mount the fan onto your extruder heatsink or designated bracket using M3 screws aligned with the 35×35 mm mounting holes. Plug the two-pin XH2.54 connector into the 24 V fan header on your printer controller or power supply, ensuring correct polarity. The fan will start automatically when the controller provides 24 V and adjust speed as firmware dictates for optimal cooling.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is this fan compatible with standard 3D printer controllers?
Yes. The DC24V 3510 fan uses a two-pin XH2.54 connector that matches most 24 V fan headers on popular 3D printer control boards like Creality, BigTreeTech and Duet.
Can I use this fan on a 12 V system?
No. This model is designed for 24 V operation. Running it at 12 V will result in significantly reduced airflow and may prevent proper extruder cooling.
How do I secure the fan to my extruder?
The fan has a 35×35 mm mounting hole pattern compatible with M3 screws. Align the holes on your heatsink or bracket and fasten the fan with appropriate-length M3 screws for a snug fit.
Technical Specifications
| Model | DC24V |
|---|---|
| Operating Voltage | 24V |
| Size | 10mm |
| Interface / Protocol | BLE |
| SKU | AI3204 |
| Weight | 0.01365 kg |
| Availability | In Stock |
Applications & Use Cases
The DC24V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable Size:35*35*10MM is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
