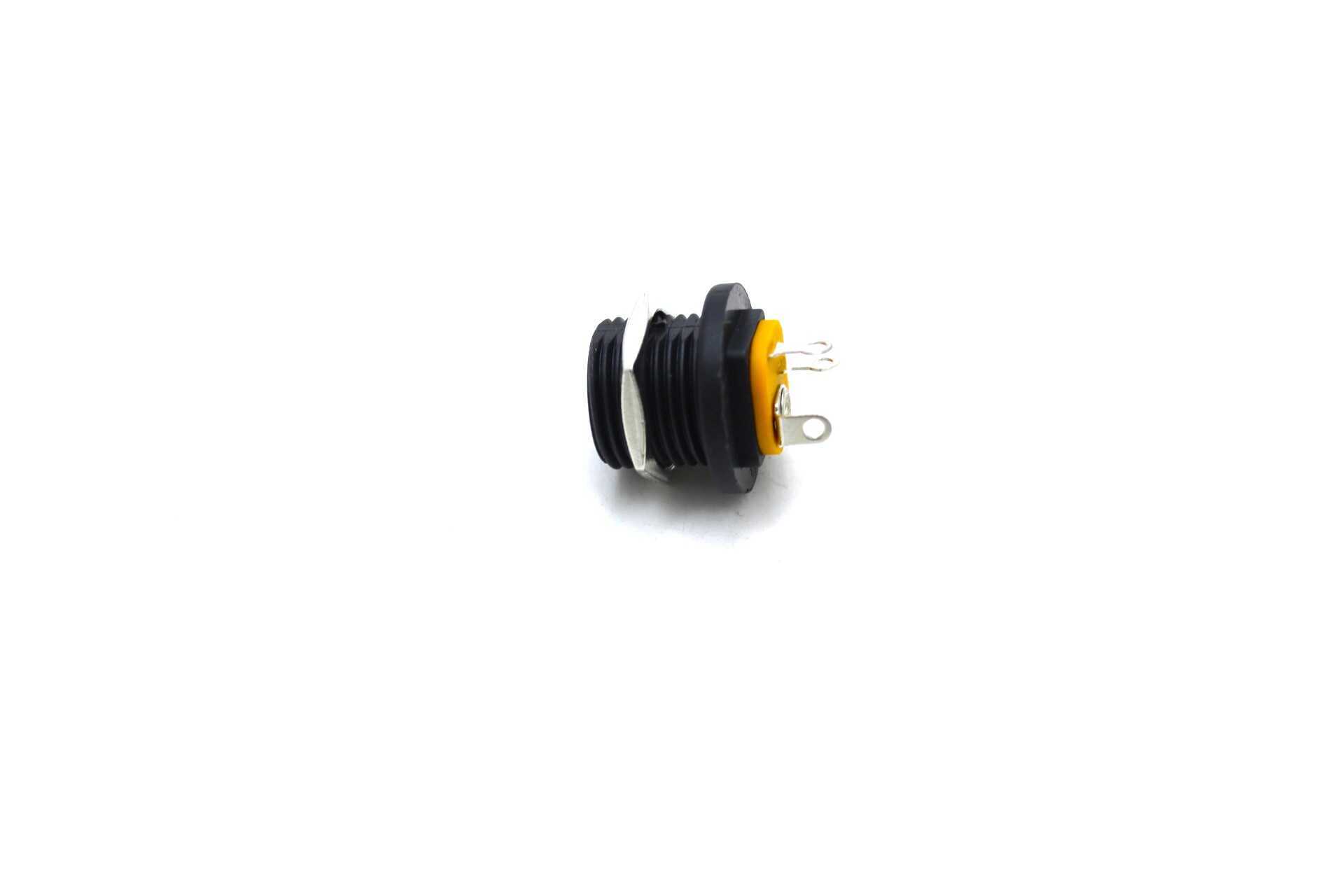

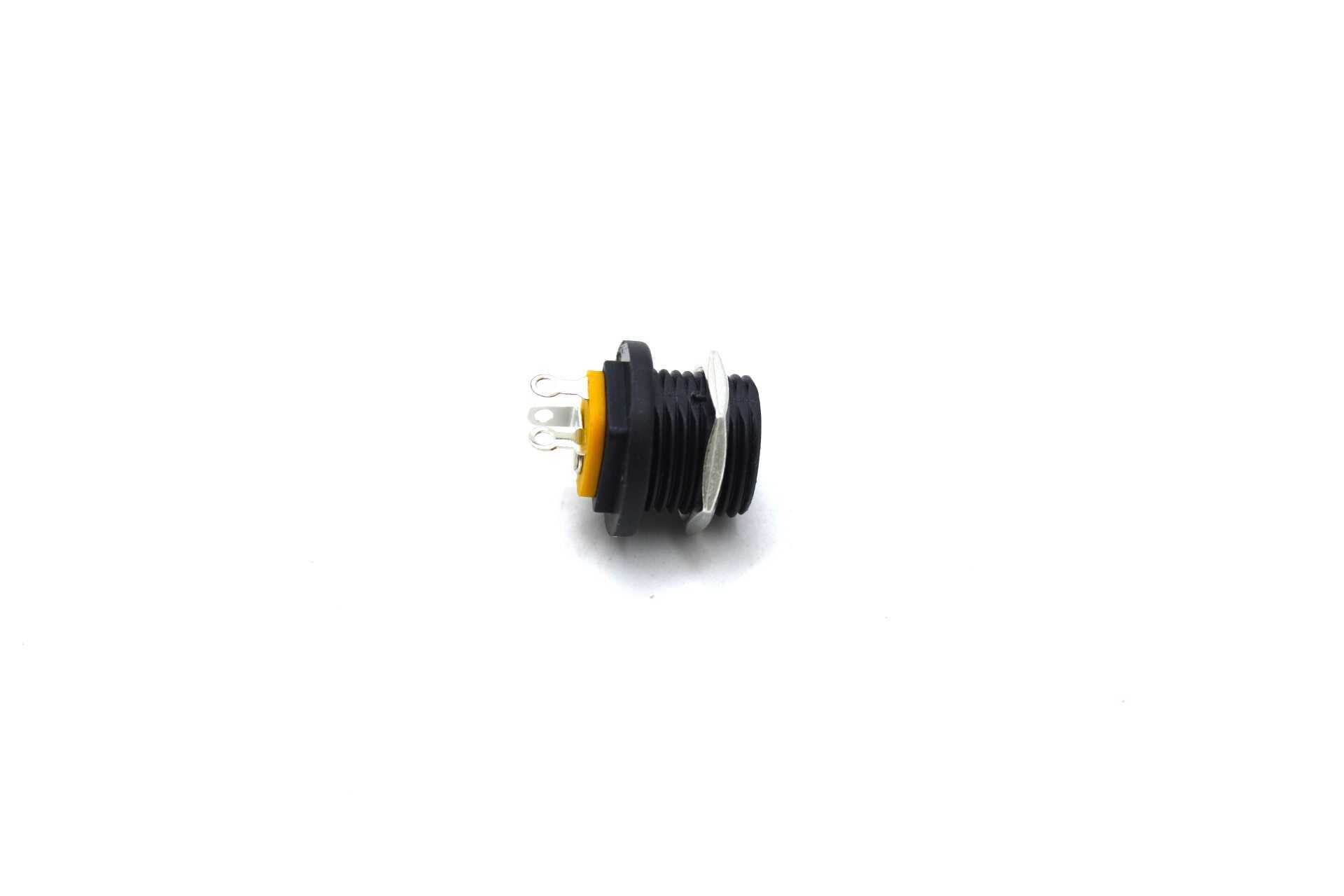

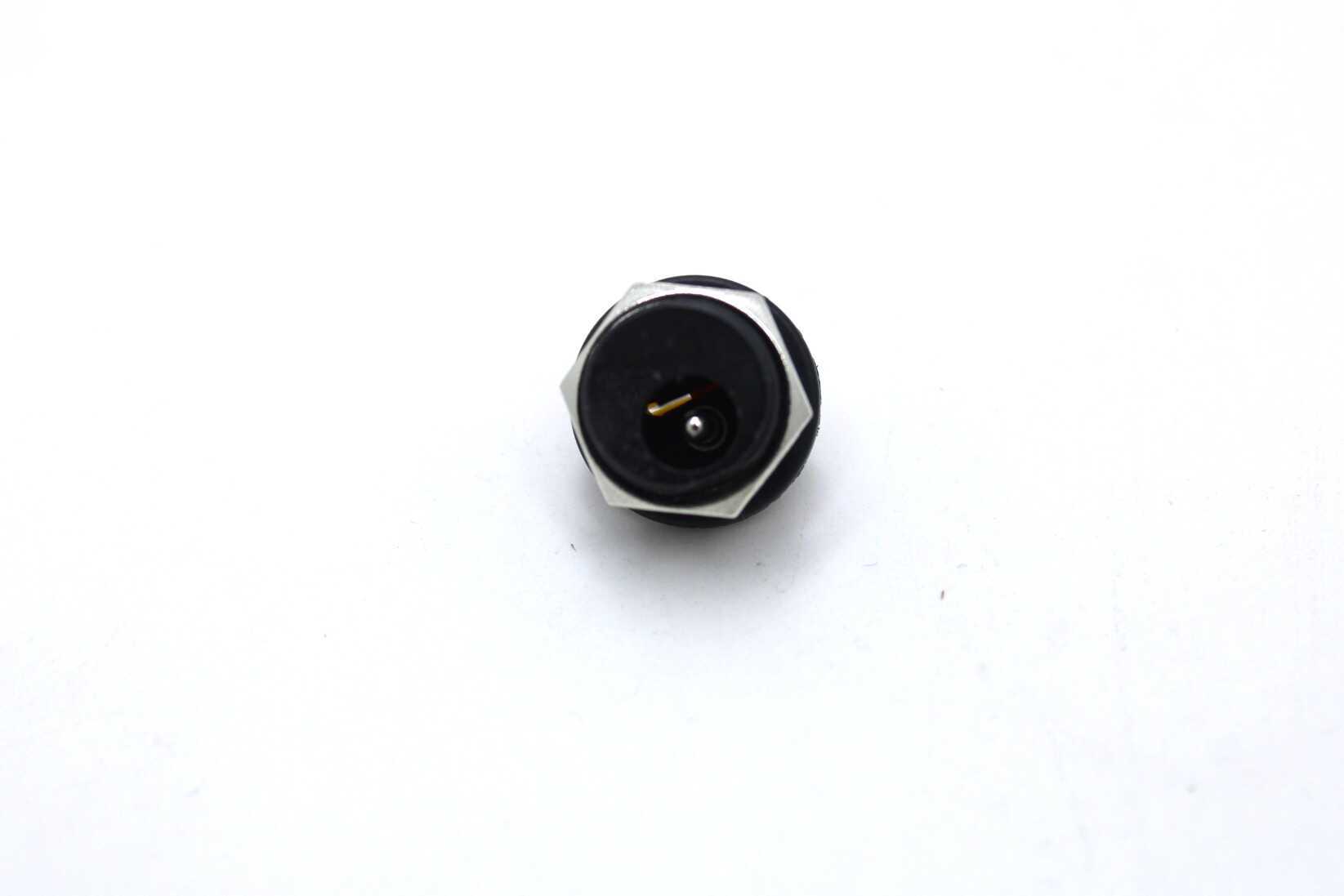

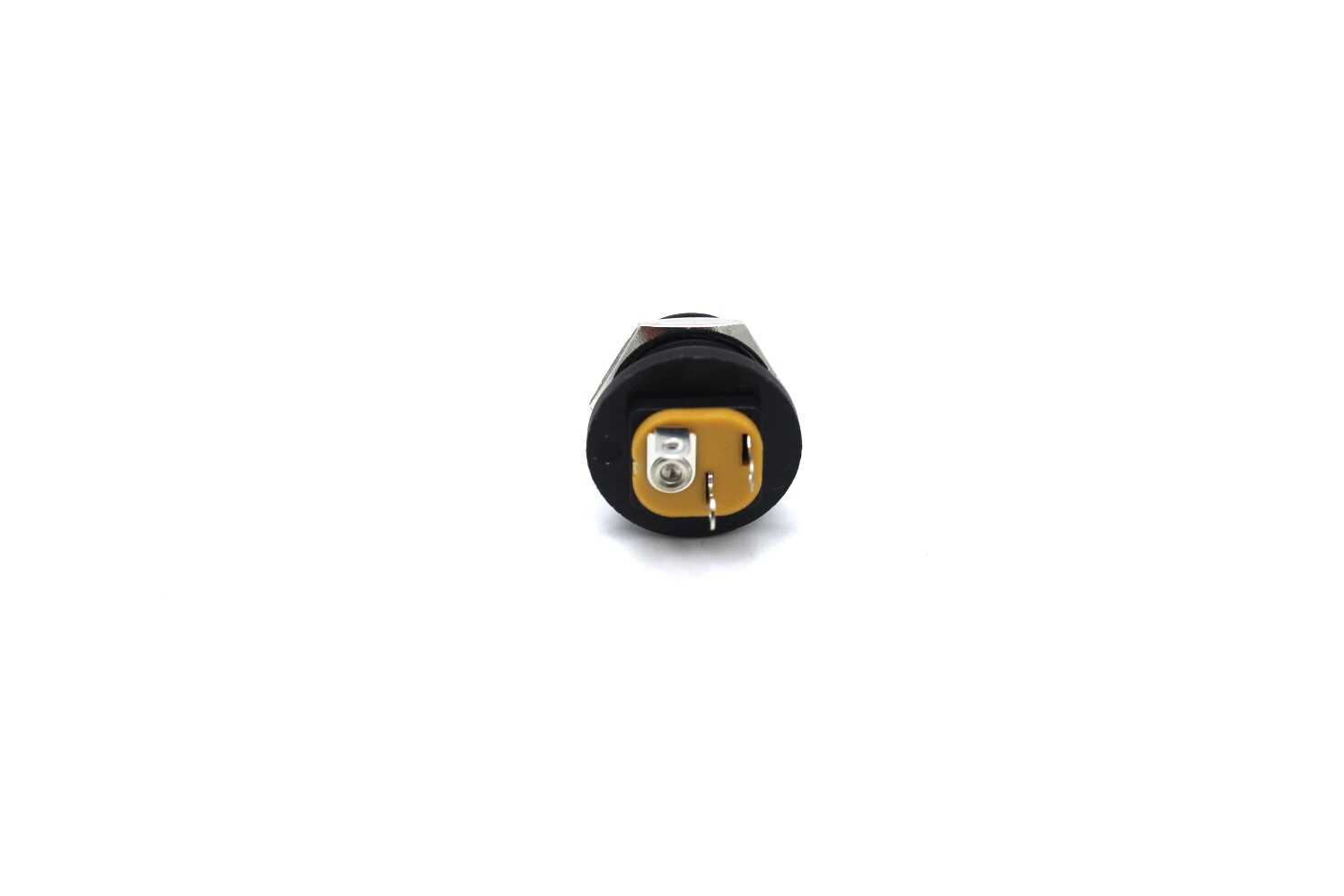

The DC Jack-JDH-29 (MPN: JDH-29) is a robust power connector designed for a wide range of applications. It operates efficiently within a temperature range of -40°C to 70°C, ensuring consistent performance. With a rating of 50VDC and 0.2A, it provides reliable power transfer. The connector features low contact resistance (≤0.03 ohm) and high insulation resistance (≥100MΩ), meeting stringent quality standards. It can withstand an AC voltage of 500V (50Hz) for 1 minute, has an insertion/extraction force between 3 to 20N, and boasts a lifespan of 10,000 cycles, ensuring long-lasting and stable electrical connections.
Features:
- Designed for DC power input connections
- Potential features may include compatibility with various power adapters and ease of installation
- Suitable for a wide range of applications in electronics, such as laptops, routers, and LED lighting
Specification
| Operating Temperature (°C) | -40 to 70 |
|---|---|
| Rated Voltage (V): | 50 DC |
| Rated Current (A) | 0.2 |
| Contact Resistance (ohm) | <=0.03 |
| Insulation Resistance (MOhm) | ≥ 100 |
| Withstand Voltage | AC 500V(50Hz)/min |
| Lifespan | 10000 |
Package Includes:
1 x DC Jack-JDH-29
Technical Specifications
| SKU | AI6355 |
|---|---|
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The DC Jack-JDH-29 is a versatile dc jacks used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
