Looking for Xf5804 Switch? Cyclone XF5804 PRO 5.8G 48CH 25/200/600mw Switchable Transmitter is available at Zbotic with fast shipping across India.
Product Description
- XF5804 5.8G 48CH Long Range Tiny little Noise and Compact FPV Transmitter Support Smart Audio OSD Configuration.PIT/25/200/400mW/600mW Switchable VTX FPV Video Transmitter. Installs In Stack with MMCX Antenna for Micro FPV Racing Drone Quadcopter. Variable transmit power from 25mW to 600 mW. Use for 25mW for a race and then easily switch to 3=300 mW for freestyle.
Features:
- Output power @transmission distance:
- 0.5km@25mW
- 1km@200mW
- 2km@600mW
- Power transmission:25mW/200mW/400mW/600mW.
PIT maintenance station mode is also supported.- Supports the standard 48-channel set;
- Video format: NTSC/PAL
- Suitable for CC3D NAZE32 F3 F4 Flight Controller(Installs In Stack).
- Parameter setting mode: Press / OSD / betaflight

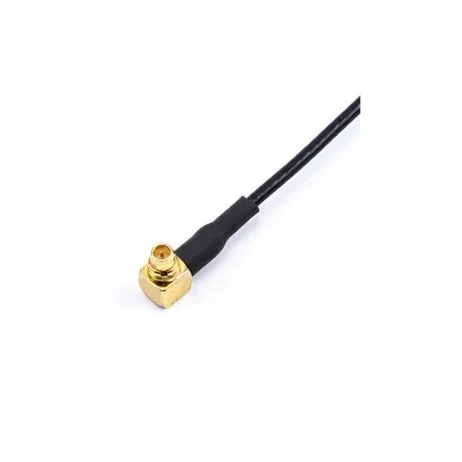

- Antenna Connector: MMCX
- Cable connector: JST.6pin
- Installation hole distance: 30.5mm,
Package Includes :

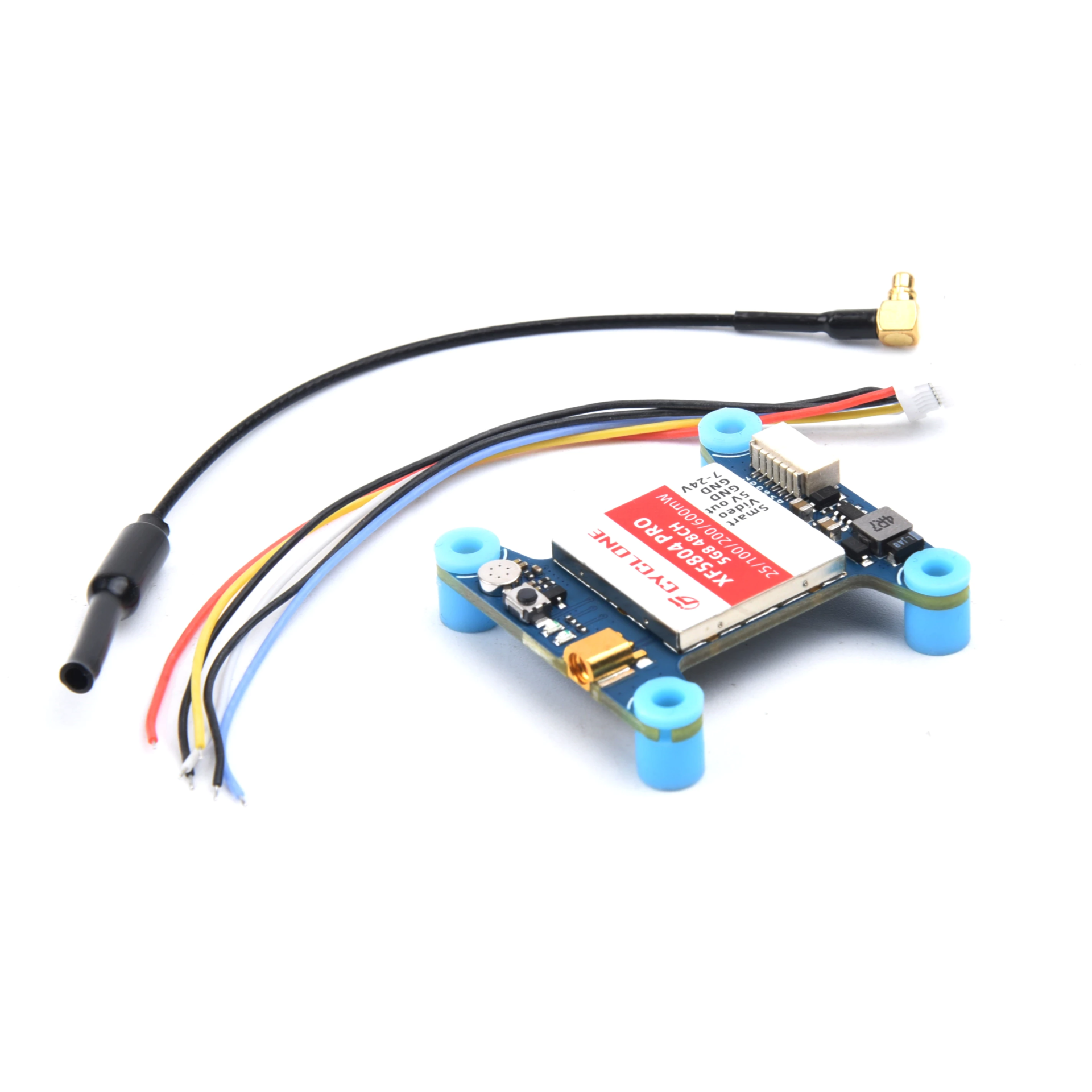

- 1 x Cyclone XF5804 PRO 5.8G 48CH 25/200/600mw Switchable Transmitter
Cyclone XF5804 PRO 5.8G 48CH 25/200/600mw Switchable Overview
The Cyclone XF5804 PRO is a compact 5.8GHz FPV video transmitter module designed for micro racing and freestyle drones. It offers a standard 48-channel set and switchable output power from Pit mode up to 600mW, delivering customizable range for both short-range races and long-range flights.
Key Features of Cyclone XF5804 PRO 5.8G 48CH 25/200/600mw Switchable
- Switchable transmit power: PIT mode, 25mW, 200mW, 400mW and 600mW for flexible range
- 48-channel support with LED combination display for quick channel and power confirmation
- SmartAudio OSD and Betaflight parameter setting for in-flight VTX configuration
- Compact, stack-mountable design with MMCX antenna port for micro FPV drone integration
- Automatic NTSC/PAL video format detection for instant compatibility
- Wide input voltage range: DC 7–24V to support common flight controllers and power modules
- Fast shipping across India from Zbotic
Applications and Use Cases
- Micro FPV racing drones where lightweight and stackable components are essential
- Freestyle and long-range exploration flights using higher power settings
- Cinewhoop builds for capturing smooth, close-quarter footage in varied environments
- Drone testing benches and development rigs leveraging SmartAudio for quick VTX tweaks
- FPV simulators with video splitters to route VTX output to multiple goggles or monitors
How to Use Cyclone XF5804 PRO 5.8G 48CH 25/200/600mw Switchable
Install the XF5804 PRO in your stack above the flight controller, connect its video input to your camera output and power input to a 7–24V source. Screw on an MMCX-type antenna, then use the onboard button or Betaflight OSD via SmartAudio to cycle through Pit/25/200/400/600mW power levels and select your desired channel among the 48 available.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I switch between power levels?
Press the onboard VTX button to cycle through Pit mode, 25mW, 200mW, 400mW and 600mW. The LED display will indicate the selected power output.
Can I adjust channels and settings via Betaflight?
Yes. Connect the SmartAudio pad to your flight controller UART and configure VTX channels, power and band directly from the Betaflight OSD menu.
What video formats are supported?
The Cyclone XF5804 PRO automatically detects and broadcasts in NTSC or PAL format, ensuring compatibility with most FPV goggles and monitors without manual switching.
Drone Racing League: Start Competing in India
Table of Contents Understanding Drone Racing League Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Hover Games and FPV Racing Clubs India: Getting Started
Hover Games and FPV Racing Clubs India: Getting Started India's FPV drone racing scene has exploded over the...
Read More →
How to Build a VTOL Drone: Fixed Wing Meets Multirotor
How to Build a VTOL Drone: Fixed Wing Meets Multirotor VTOL — Vertical Take-Off and Landing — drones...
Read More →Technical Specifications

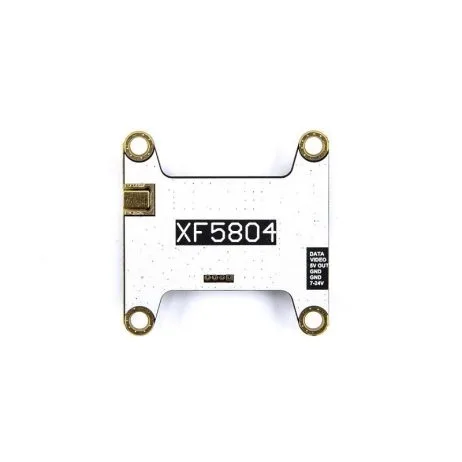

| Model | XF5804 |
|---|---|
