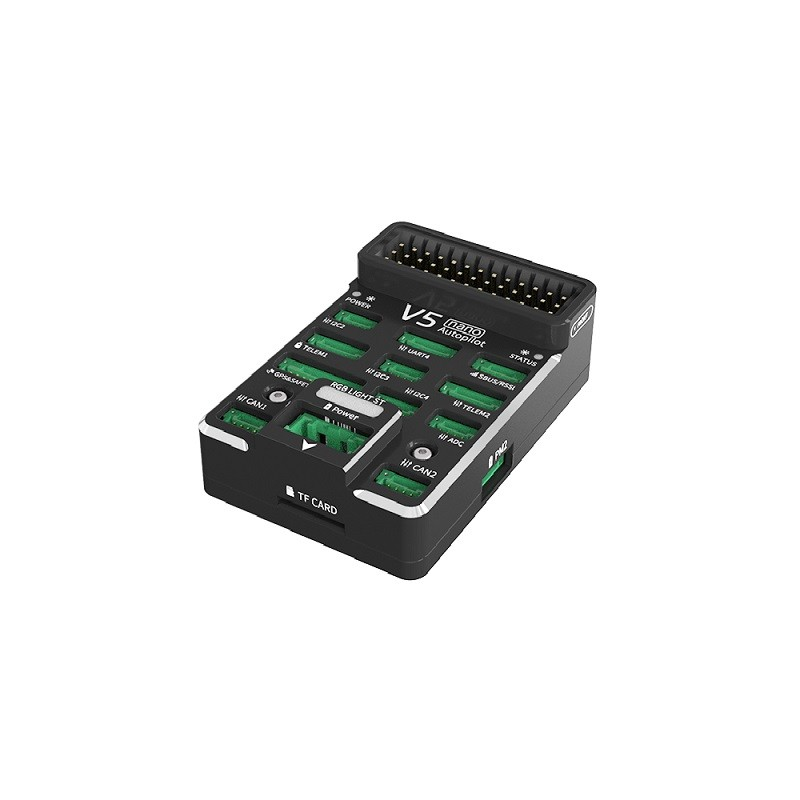

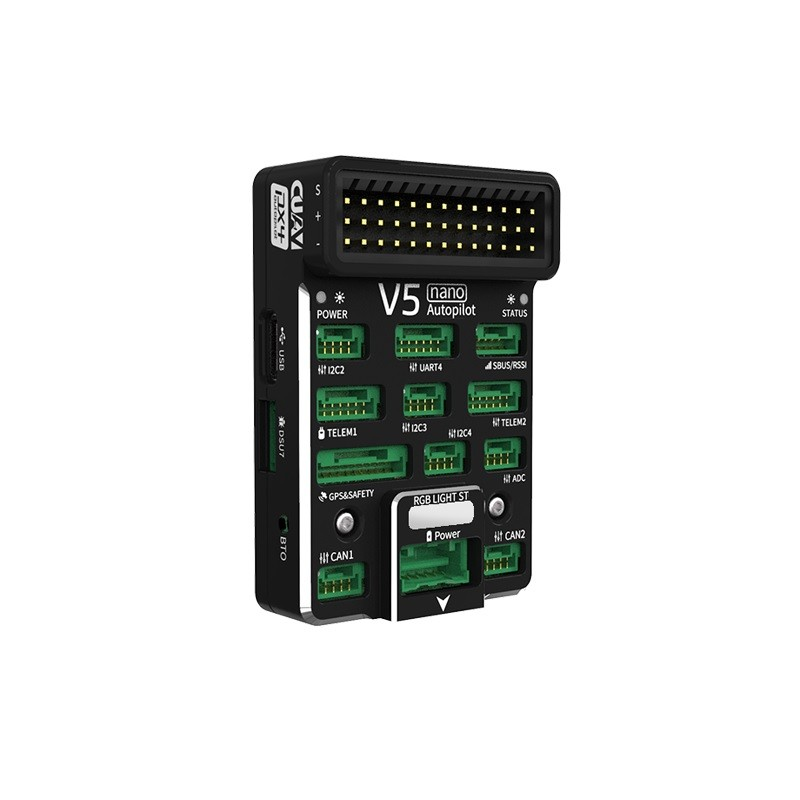

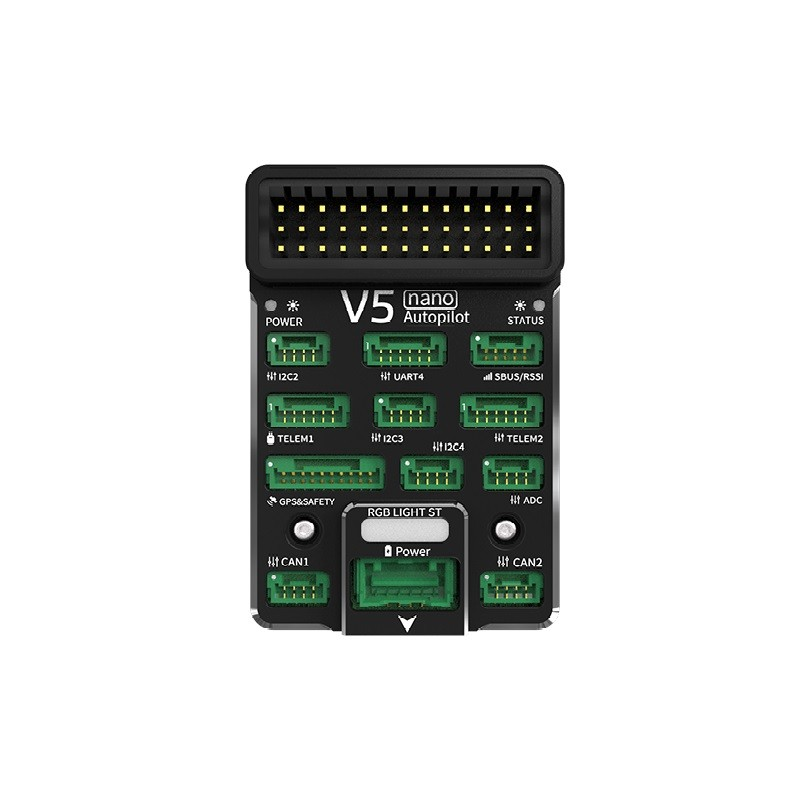

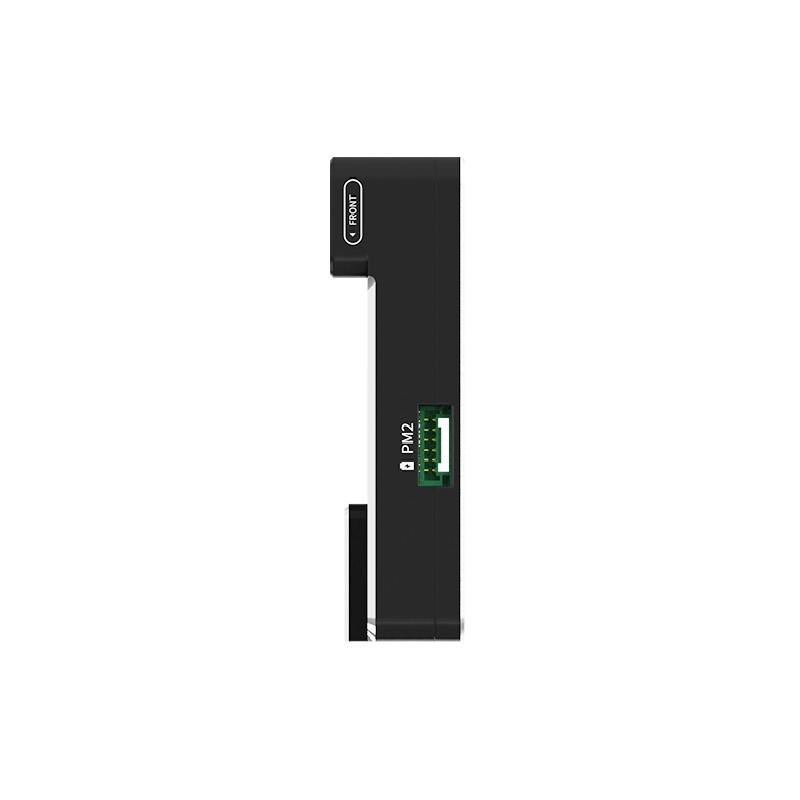

CUAV V5 Nano Autopilot Flight Controller
The V5 nano® autopilot, crafted by the CUAV® and PX4 teams, caters to businesses and enthusiasts who require compactness without compromising on the capabilities of the V5. It adheres to the Pixhawk FMUv5 standard, ensuring full compatibility with both PX4 and ArduPilot firmware.
Features:
- Full compatibility with the Pixhawk project FMUv5 design standard and uses the Pixhawk Connector Standard for all external interfaces.
- More advanced processor, RAM, and flash memory than FMU v3, along with more stable and reliable sensors.
- Firmware-compatible with PX4.
- Generous 2.6mm spacing for I/O pins, making it easier to use all the interfaces.
- Tiny and Powerful.
- It has a Multi-sensor redundancy combination.
Specifications:
| Model | CUAV V5 |
|---|---|
| USB Input voltage(V) | 5.0 +- 0.25 |
| Servo input voltage (V) | 4.8 to 5.4 |
| Operating Temperature (°C) | -20 to 60 |
| Length (mm): | 57 |
| Width (mm): | 34 |
| Height (mm): | 17 |
| Weight (g): | 40 |
| Accelerometer | ICM-20608 |
| Gyro | ICM-20608 |
| Compass | HMC5983 |
| Barometer | MS5611 |
| Mavlink UART | 2 |
| GPS UART | 2 |
| RSSI input | PWM or 3.3 analog voltage |
| I2C | 1 |
| CAN | 1 |
| ADC input | 6.6V X1 |
| PWM output | 6 PWM IO |
| Support model | Copter/Plane/Helicopter/VTOL/unmanned vehicle/Rover, etc |
Package Includes:
1 x CUAV V5 Nano Autopilot Flight Controller
CUAV V5 Nano Autopilot Flight Controller Overview
The CUAV V5 Nano Autopilot Flight Controller is a compact FMUv5-standard flight controller designed for small to medium UAV platforms. It provides full compatibility with both PX4 and ArduPilot firmware, delivering advanced processing power and reliable sensor performance in a 57 × 34 mm form factor.
Key Features of CUAV V5 Nano Autopilot Flight Controller
- Pixhawk FMUv5 design standard with Pixhawk Connector Standard for all external interfaces
- High-performance processor, increased RAM and flash memory compared to FMUv3
- Multi-sensor redundancy combination for enhanced reliability
- Generous 2.6 mm spacing on I/O pins for easier wiring and expansion
- Operating temperature range –20 °C to 60 °C for harsh environment endurance
- Compact dimensions (57 mm × 34 mm) for installation in tight airframes
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Racing and freestyle multirotor drones requiring lightweight, responsive control
- Surveying and mapping UAVs equipped with cameras and LiDAR payloads
- Fixed-wing and VTOL prototypes in research and development projects
- Agricultural drones conducting crop monitoring and precision spraying
- Industrial inspection drones operating in temperature extremes
- Delivery drones needing reliable flight stabilization and telemetry
How to Use CUAV V5 Nano Autopilot Flight Controller
Begin by mounting the CUAV V5 Nano on an anti-vibration plate within your drone frame, then connect power, ESC outputs, RC input and telemetry modules via the Pixhawk Connector Standard. Install PX4 or ArduPilot firmware using QGroundControl, perform sensor calibration (accelerometer, gyroscope, magnetometer), and configure flight modes. Once configured, arm the controller and conduct a hover test before proceeding to full flight operations.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which firmware platforms are supported by the CUAV V5 Nano?
The V5 Nano is firmware-compatible with both PX4 and ArduPilot, allowing you to choose your preferred open-source autopilot stack without hardware modifications.
How does the sensor redundancy work on this flight controller?
The V5 Nano incorporates multiple IMUs and barometers, automatically comparing sensor data streams to detect faults and ensure stable flight even if one sensor network degrades.
What external devices can I connect via the Pixhawk Connector Standard?
You can attach GPS modules, telemetry radios, RC receivers, companion computers, ESCs and more using the standardized FMU connectors, simplifying plug-and-play integration.
