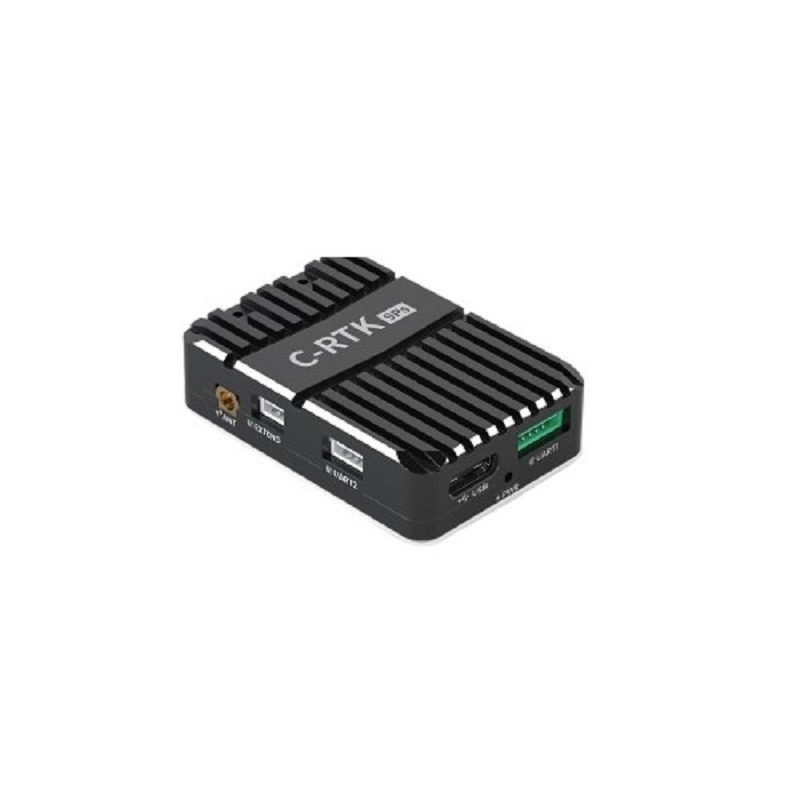

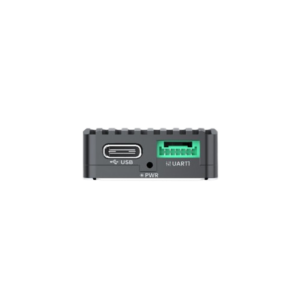

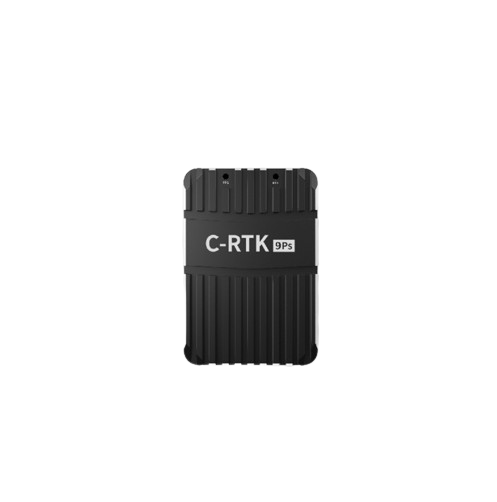

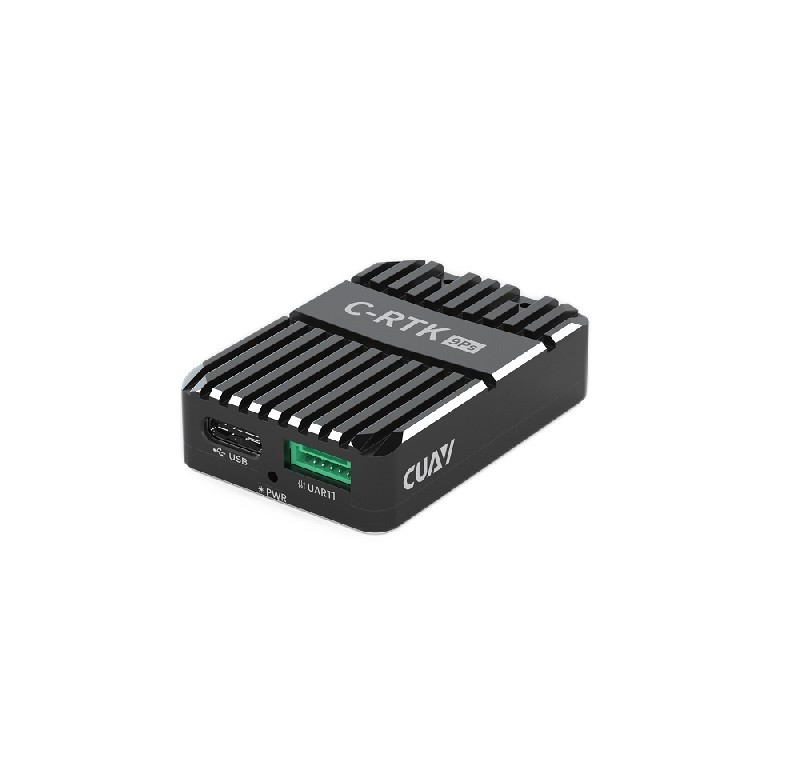

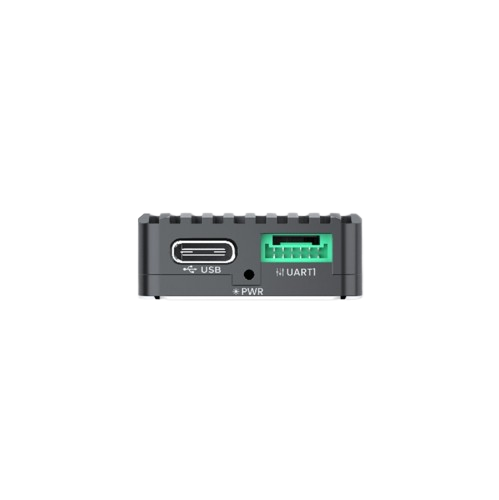

CUAV C-RTK 9Ps Positioning Module | High Precision GPS RTK GNSS PixhawkÂ
The C-RTK 9Ps is a four-star Real Time GNSS system, using two c-RTK 9Ps modules, one for aircraft and the other for base stations. It also supports the dual GPS for yaw, replacing the uav magnetic compass, so that the UAV can adapt to the complex magnetic field environment. Compared with C-RTK 9P, C-RTK 9Ps achieves similar performance at lower price; It is a very cost-effective centimeter-level positioning module. Compatible with PX4/ArduPilot open-source flight controller. It is an ideal choice for uav aerial performance, agricultural application, high-precision takeoff and landing, ship takeoff and landing and other applications requiring real-time high-precision navigation.
Features:
- Multi-star Multi-frequency Receiver
- Centimeter-Level Positioning
- Dual RTK For Yaw
- Dual-end Switchover design reduced costs
SPECIFICATION:
Receiver Type | 184 channel ZED-F9P(ublox) |
---|---|
Operating Voltage (V) | 4.5 to 6 |
Compass | IST8310 |
GNSS | BeiDou, Galileo, GLONASS,GNSS GPS |
Number of concurrent GNSS | 4 |
GNSS Bands | BeiDou â B11, BeiDou â B2I, GALILEO â E1B/C, GALILEO- E5b, GLONASS â L1OF, GLONASS-L2OF, GNSS Bands GPS-L1C/A, GPS â L2C, QZSS â L1C/A, QZSS â L2C |
Nav. update rate | PVT 25Hz, RAW 25Hz, RTK 20Hz |
Acquisition | Cold starts<24s, Hot starts<1s |
Sensitivity (dBm) | Cold starts â148, Hot starts â157, Reacquisition â160 |
Antenna Gain | Baseïĵ5dBi, Roverïĵ2dBi |
Protocols | NMEA, RTCM 3.x, UBX binary |
UART | 2 |
USB | 1 |
Antenna Type | MMCX |
Operating Temperature (°C) | -40 to +85 |
Package Includes:
1 x C-RTK 9Ps
1 x Multi-star multi- frequency mushroom head antenna
1 x Base station feeder (550mm)
1 x Standard Type-C USB cable (1m)
