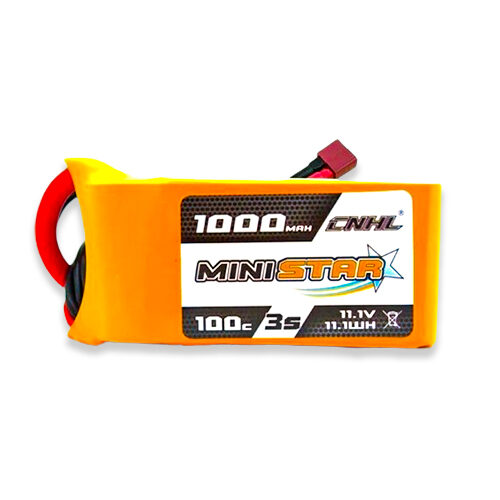

CNHL MiniStar 1000mAh 11.1V 3S 100C Lipo Battery with XT60 Plug

This is the 1V variant of the CNHL MiniStar 1000mAh 11.1V 3S 100C Lipo Battery with XT60 Plug in 3 cell Lipo (11.1V ~ 12.6V), Batteries, Chargers and Accessories, LiPo Battery. Available at ₹1,066.72 (₹904.00 + GST) with free shipping across India.

The CNHL MiniStar 1000mAh 11.1V 3S 100C LiPo battery with XT60 plug is a compact yet high-performance battery designed for RC applications where both power and size are critical. Here’s an overview of its specifications:

• Capacity: 1000mAh (milliampere-hour) indicates the amount of charge the battery can hold. While relatively small in capacity compared to larger batteries, it’s well-suited for compact or lightweight RC models where space is limited, but high power is still required.
• Voltage: 11.1V (volts) refers to the nominal voltage of the battery. This is a 3-cell battery pack, with each cell having a nominal voltage of 3.7V. When connected in series, they sum up to 11.1V.
• Discharge Rate (C-Rating): 100C indicates the discharge rate of the battery. The “C” rating represents the maximum continuous discharge rate relative to the capacity of the battery. In this case, it can provide a continuous discharge rate of up to 100 times its capacity (1000mAh), which is 100A (amps). This high C-rating indicates the battery’s ability to deliver very high bursts of current, making it suitable for demanding maneuvers and applications where instant power delivery is crucial.
• Plug Type: XT60 plug is a common and reliable connector used in RC applications. It’s known for its ability to handle high currents without overheating and is widely compatible with various RC models and accessories.

Overall, the CNHL MiniStar 1000mAh 11.1V 3S 100C LiPo battery with XT60 plug is optimized for high-performance RC models where both compact size and high power output are essential. As with any LiPo battery, it’s important to use it within its specified limits, follow proper charging and storage procedures, and adhere to safety guidelines to ensure optimal performance and longevity while preventing accidents.

Specification

Package included:

1 X CNHL Black Series 100mAh 11.1V 3S 100C Lipo Battery with XT60 Plug

CNHL MiniStar 1000mAh 11.1V 3S 100C Lipo Battery with XT60 Overview

The CNHL MiniStar 1000mAh 11.1V 3S 100C LiPo Battery with XT60 plug is a high-discharge, compact power source tailored for remote-control models and FPV drones. Its lightweight design and robust 100C rating deliver bursts of power in a minimal form factor for racers, micro aircraft, and other tight-space applications.

Key Features of CNHL MiniStar 1000mAh 11.1V 3S 100C Lipo Battery with XT60

• 1000mAh capacity for balanced flight time and agility in compact builds
• 11.1V nominal voltage (3S) delivers consistent power across three cells
• 100C continuous discharge rating supports up to 100A output for high-thrust maneuvers
• Pre-installed XT60 plug ensures secure connection to ESCs and power distribution boards
• Lightweight and slim profile fits small-frame racing drones and micro RC models
• Genuine CNHL product with fast shipping from Zbotic within 24 hours

Applications and Use Cases

• Mini and micro FPV racing drones where weight and power are critical
• Brushless motor prototypes in robotics competitions requiring quick bursts of current
• Compact RC airplanes or gliders with limited battery bay space
• Lightweight RC cars or trucks needing high discharge for acceleration
• Portable power modules for on-field electronics testing or propping camera gimbals

How to Use CNHL MiniStar 1000mAh 11.1V 3S 100C Lipo Battery with XT60

Before first use, charge the battery on a compatible LiPo balance charger set to 3S (11.1V) at up to 1C (1A) charging rate. Securely mount the battery in your RC model’s battery tray, connect the XT60 plug to your ESC or power distribution board, and verify a snug fit to prevent movement during flight. After each session, discharge to storage voltage (around 3.8V per cell) and store in a cool, dry place.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which charger should I use with this 3S LiPo?

Use any LiPo balance charger with a 3-cell (11.1V) LiPo setting and an XT60 output cable. Set charging current to 1C (1A) for safe, efficient charging.

How long does it take to charge the MiniStar 1000mAh battery?

At a 1C rate (1A), the MiniStar 1000mAh battery will fully charge in approximately one hour, plus a few minutes for cell balancing.

What maximum continuous current can this battery safely deliver?

With its 100C rating and 1Ah capacity, the battery can continuously supply up to 100A, making it ideal for high-thrust FPV drones and quick-acceleration RC vehicles.
