Home Drone Parts Drone Frame and Accessories
Return to previous page

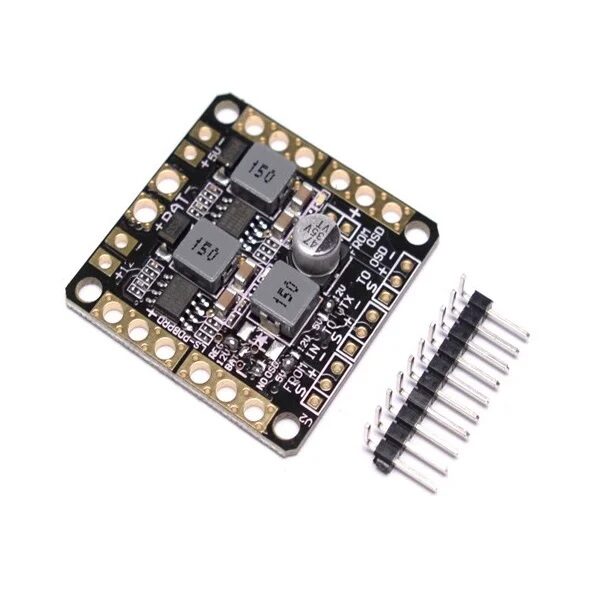

Cc3d Board - CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter & Dual BEC
CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter & Dual BEC....

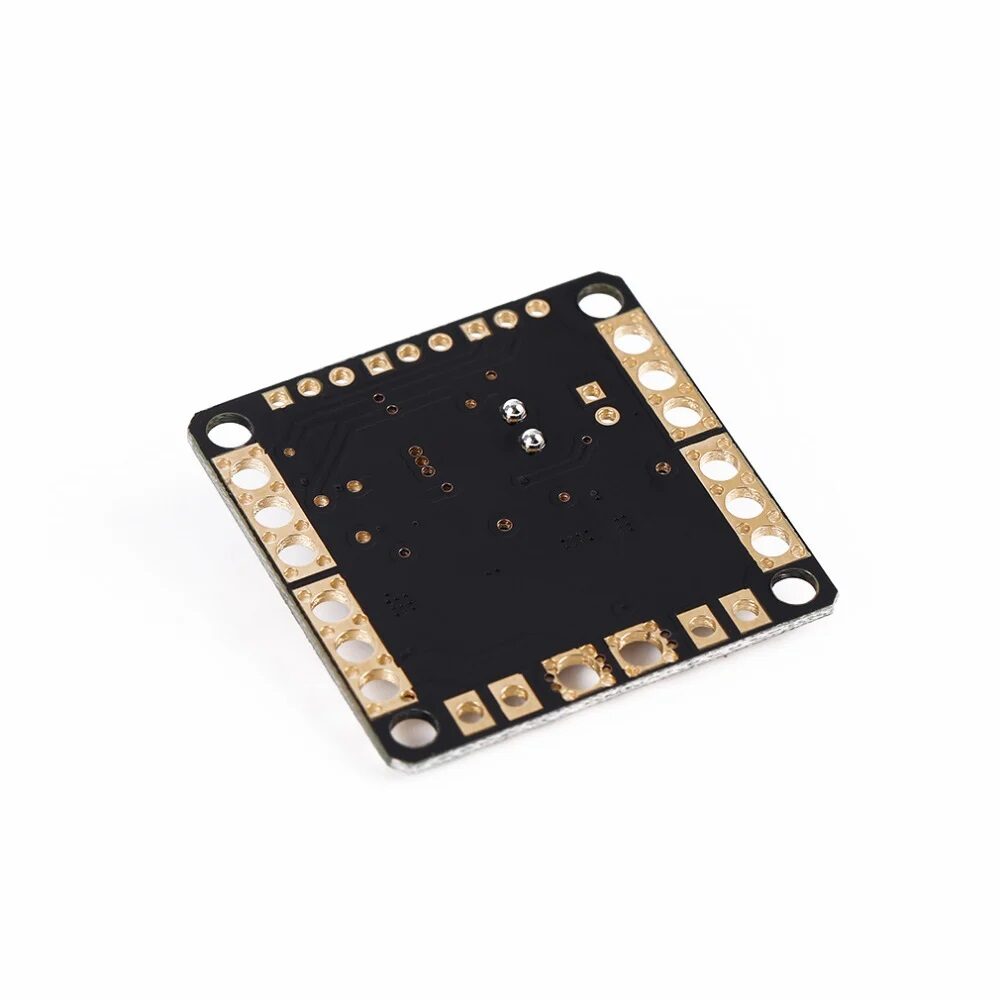

CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter & Dual BEC..

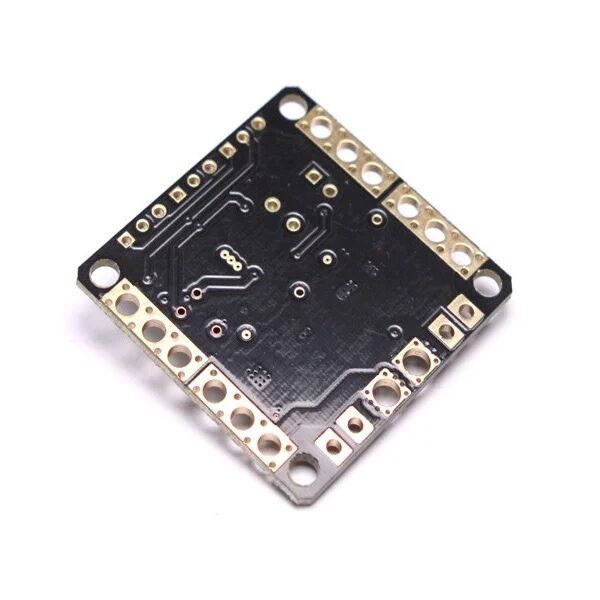

CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter & Dual BEC.
  • Cc3d Board - CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter & Dual BEC
  • CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter & Dual BEC....
  • CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter & Dual BEC..
  • CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter & Dual BEC.

CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter & Dual BEC

Rated 4.70 out of 5 based on 10 customer ratings
(10 customer reviews)
Share: Facebook Twitter Tumblr Linkedin Houzz Vk Pinterest Whatsapp
Add to wishlist
Add to compare



BEC output: 5V12V3A band filter

Input Voltage: 2-6S(MAX: 3A)

Weight: 9 gm(with connector)

Latest UBEC, LC Filter

Integrated filter circuit boards, more stable, make FPV further and clearer

Compatible with CC3D/Naze32/F3 flight controller

Slim design, lightweight, and easy to use

Brand: Generic SKU: AI1143
Category: Drone Frame and Accessories
Tags: Buy Online India, Drone, Drone Frame, Zbotic

₹399.00 (₹338.14 + GST)

Description
Additional information
Warranty
COO

Looking for Cc3d Board? CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter & Dual BEC is available at Zbotic with fast shipping across India.

CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter & Dual BEC

The CC3D NAZE32 F3 Power Distribution Board (PDB) with LC Filter and Dual BEC is among the latest and most popular CC3D PDBs, featuring 5 and 12-volt BECs. Its layout mirrors that of the V1 PDB, but with BECs now integrated into the PCB using surface-mount technology for enhanced reliability.

The 5V BEC is perfect for powering flight controllers or RC receivers, while the 12V output can power FPV gear or lights. Both BECs support 2-6S LiPo batteries and provide up to 3A of continuous output. Additionally, the board offers an unregulated output for LEDs, with a switchable feature to conserve power when the lights are not needed.

With a standard size of 36mm, this PDB can be neatly stacked with CC3D, Naze, and most other flight controllers.

Designed for Naze32, CC3D, SP F3, APM, and similar flight controllers (36 * 36 hole distance), the board includes TX RX Dual way BEC, DC-DC synchronous rectifier 5V voltage regulation (3A), and an LC filter.

Note:

Since this is an Open Source Power Distribution Board, there are many manufacturers who are supplying this product. We have picked up the best quality products from the market and tested them for their functionality. And finally selected best amongst them. Our product works exactly same as we have described above in the description.


Features :

  1. Latest UBEC, LC Filter
  2. Integrated filter circuit boards, more stable, make FPV further and clearer
  3. Compatible with CC3D/Naze32/F3 flight controller
  4. Slim design, lightweight, and easy to use

Specifications:

Model PDB With LC Filter & Dual BEC
BEC output 5V/12V 3A
Input Voltage 2-6S (max. 3A)

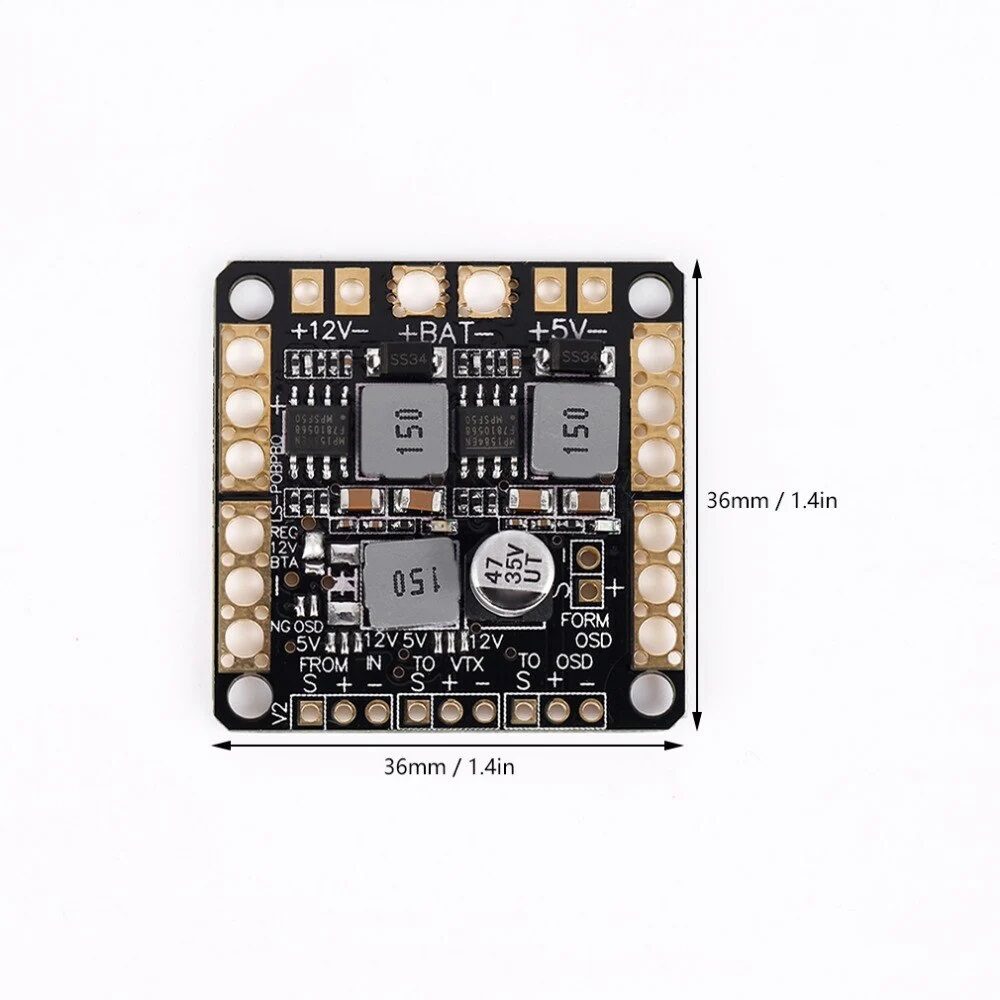

Length (mm): 36
Width (mm): 36
Mounting Distance(mm) 30.5
Weight (g): 9

Package Includes :

1 x CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter & Dual BEC

1 x 9*1 Burg Pin

CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter Overview

The CC3D NAZE32 F3 Power Distribution Board (PDB) With LC Filter & Dual BEC integrates a compact power hub for multi-rotor drones, distributing battery voltage to ESCs, flight controller, FPV gear and LEDs. Featuring onboard 5V and 12V regulators with LC filtering, it ensures clean, stable power for CC3D, Naze32 and F3 flight controllers and FPV cameras.

Key Features of CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter

  • Dual BEC outputs: 5V and 12V at up to 3A continuous each
  • Integrated LC band-pass filter for clearer FPV video transmission
  • Supports 2S–6S LiPo input (max 3A per regulator)
  • Slim, lightweight design (9 g with connectors) for minimal added weight
  • Surface-mount BECs for enhanced reliability over through-hole modules
  • Fast shipping from Zbotic across India

Applications and Use Cases

  • Powering CC3D, Naze32 or F3 flight controllers with regulated 5V
  • Feeding FPV cameras and video transmitters via clean 12V output
  • Supplying unregulated LED strips or auxiliary lighting
  • Compact power distribution in racing and freestyle drone builds
  • Custom multi-rotor prototypes requiring dual-voltage rails
  • Field upgrades for older PDBs lacking integrated filtering

How to Use CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter

Mount the PDB in your drone frame, solder the LiPo battery leads to the VIN pads, and attach ESC power wires to the motor output pads. Connect the 5V BEC output to your flight controller’s power pins and the 12V BEC output to your FPV camera or accessories. Ensure correct polarity and secure wiring, then power up to verify stable voltage readings with the integrated LC filter improving video clarity.

Why Buy from Zbotic?

  • Genuine Products: All items sourced from authorized distributors
  • Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
  • Free Shipping: Free delivery on qualifying orders
  • COD Available: Cash on Delivery, UPI, cards, net banking
  • Technical Support: Expert help for setup and troubleshooting
  • Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Is the CC3D NAZE32 F3 PDB compatible with all flight controllers?

Yes, it’s designed to work with CC3D, Naze32 and F3 flight controllers, matching their mounting holes and providing the necessary 5V power rail.

How do I connect my FPV camera to the 12V output?

Solder your camera’s power lead to the 12V/3A BEC pad and the ground lead to the adjacent GND pad. The built-in LC filter will reduce video noise for clearer FPV feed.

Can I use this PDB with a 6S LiPo battery?

Absolutely. The board supports 2S–6S LiPo input and delivers up to 3A per BEC, making it suitable for high-voltage racing or freestyle drone setups.

Tags: Buy Online India Drone Drone Frame Zbotic
Also in Drone Frame and Accessories:
Skyrath SR616P 6 Axis Agricultural Drone Frame with 16L TankEFT Landing Gear Bar φ20*500/2pcs Compatible with E410P/E610PGEPRC -CL30 Frame Drone Frame and AccessoriesEFT Battery Strap 2*40/8pcs Compatible with all Drone Frames
Related Articles:
FPV Drone Building Guide for Beginners

FPV Drone Building Guide for Beginners

Building your first FPV drone is one of the most thrilling projects in the drone hobby. FPV (First...

Read More →
FPV Goggles Buying Guide India: Analog vs Digital

FPV Goggles Buying Guide India: Analog vs Digital

Table of Contents Understanding FPV Goggles Buying Guide India Key Components and Requirements Step-by-Step Setup Guide Configuration and...

Read More →
Cinewhoop Build: Smooth Indoor Cinema Drone Guide

Cinewhoop Build: Smooth Indoor Cinema Drone Guide

Table of Contents Understanding Cinewhoop Build Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...

Read More →

Technical Specifications

ModelCC3D
Interface / ProtocolLTE
SKUAI1143
Weight0.014 kg
AvailabilityOut of Stock

Applications & Use Cases

The CC3D NAZE32 F3 Power Distribution Board PDB With LC Filter & Dual BEC is a versatile drone frame and accessories used across a wide range of applications including FPV racing builds, freestyle drones, cinematic drones, and agricultural spraying platforms.

Common use cases:

  • Building a new racing quad
  • Replacing a broken frame arm after a crash
  • Mounting a camera gimbal on a custom platform

This product is ideal for FPV builders, drone racing enthusiasts, and commercial drone operators.

Technical Tip: Carbon fiber frames offer the best strength-to-weight ratio. Ensure motor-to-motor distance matches your propeller size.

Shipping & Delivery

  • Free shipping on orders above ₹999 across India
  • Dispatched within 1-3 business days
  • Expected delivery: 3-7 business days depending on location
  • Secure packaging to ensure safe transit of electronic components
Weight 0.014 kg
15 Days Warranty

Please note that this item is only covered by a standard supplier warranty against manufacturing defects for a period of 15days from the time of delivery. It is important to understand that only manufacturing defects are covered under this warranty, and any other issues will not be considered for reimbursement or replacement. We strongly advise inspecting the product upon delivery to ensure it meets your expectations. In case of any manufacturing defects, we guarantee reimbursement or replacement.


What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Tags: Buy Online India Drone Drone Frame Zbotic
Also in Drone Frame and Accessories:
100A Multirotor ESC Power Distribution Battery Board For QuadcopterEFT E610P 6 Axis Agricultural Drone Frame With 10L TankEFT E610P 6 Axis Agricultural Drone Frame Without TankF450 Quadcopter Frame Top Plate Support plate
Related Articles:
Your First Drone Build: Complete Assembly Guide India

Your First Drone Build: Complete Assembly Guide India

Building your first drone from scratch is one of the most rewarding experiences in the maker world. This...

Read More →
Best Drone Flight Controllers Under ₹5000 in India

Best Drone Flight Controllers Under ₹5000 in India

Table of Contents Why the Flight Controller is the Brain of Your Drone Types of Flight Controllers: FPV...

Read More →
Drone Tool Kit: Essential Tools for Building and Repair

Drone Tool Kit: Essential Tools for Building and Repair

Table of Contents Understanding Drone Tool Kit Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...

Read More →
Country Of Origin: China
