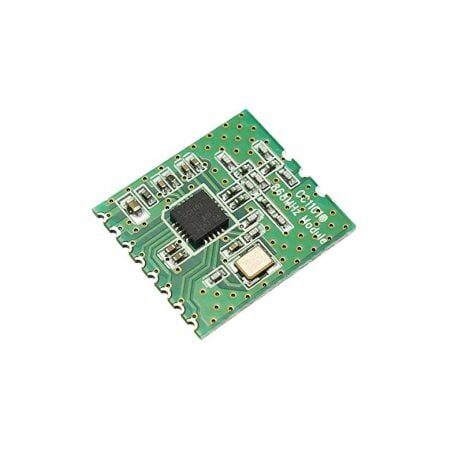

CC1101 is a low-cost 868MHz transceiver designed for very low-power wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 868 MHz, but can easily be programmed for operation at other frequencies in the 779-928 MHz bands.
The RF transceiver is integrated with a highly configurable baseband modem. The modem supports various modulation formats and has a configurable data rate up to 600 kbps. CC1101 provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake-on-radio. The main operating parameters and the 64-byte transmit/receive FIFOs of CC1101 can be controlled via an SPI interface. In a typical system, the CC1101 will be used together with a microcontroller and a few additional passive components.
Connection Diagram:
Features:
- Support FSK, GFSK, ASK / OOK and MSK
- Configurable data rate: 1.2k to 500kps
- Vertical Pin header (1.27mm pitch)
- Low voltage input (1.9~3.6V)
- SPI interface
- Independent 64-byte RX and TX data FIFOsCC1101 Core, 433MHz Wireless function

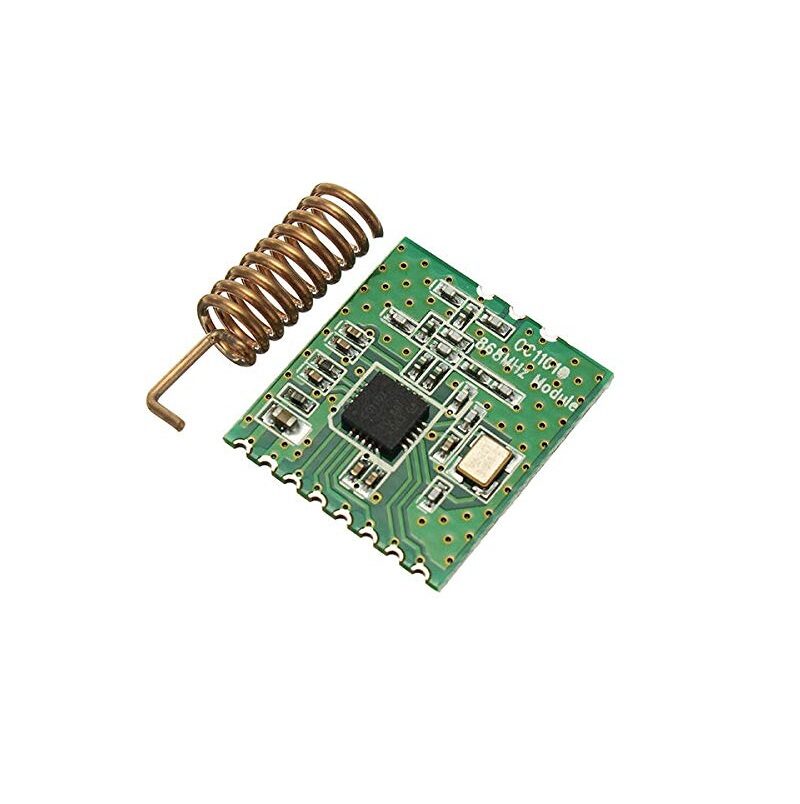

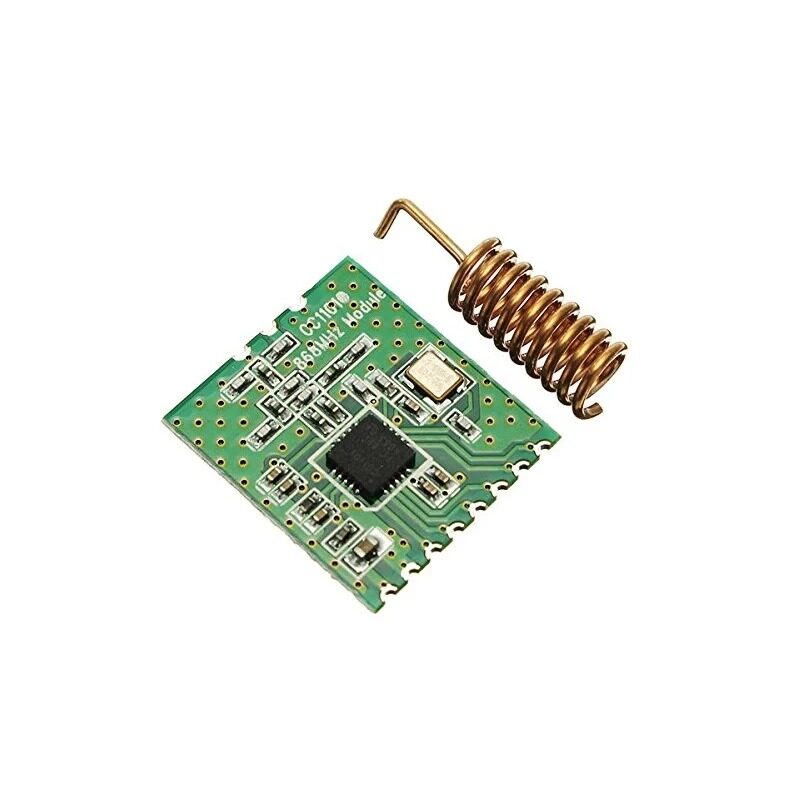

Note : Actual product may be different in terms of metal spring
Package Includes:
1 x CC1101 868MHZ Wireless Transceiver Module
Technical Specifications
| Model | CC1101 |
|---|---|
| Frequency | 868MHZ |
| SKU | AI1519 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The CC1101 868MHZ Wireless Transceiver Module is a versatile ir and rf transmitters and receivers used across a wide range of applications including remote control systems, wireless data links, home automation, security systems, and garage door openers.
Common use cases:
- Building a custom remote control
- Adding wireless triggering to a project
- Creating a simple wireless sensor link
This product is ideal for electronics hobbyists and IoT developers.
Technical Tip: 433MHz modules offer longer range; IR is line-of-sight only. RF modules need matched transmitter/receiver pairs.
