This is the Black variant of the BX100 1-8S Lipo Battery Voltage Tester / Low Voltage Buzzer Alarm / Battery Voltage Checker with Dual Speakers in Lipo Voltage Checker. Available at ₹179.55 (₹171.00 + GST) with free shipping across India.

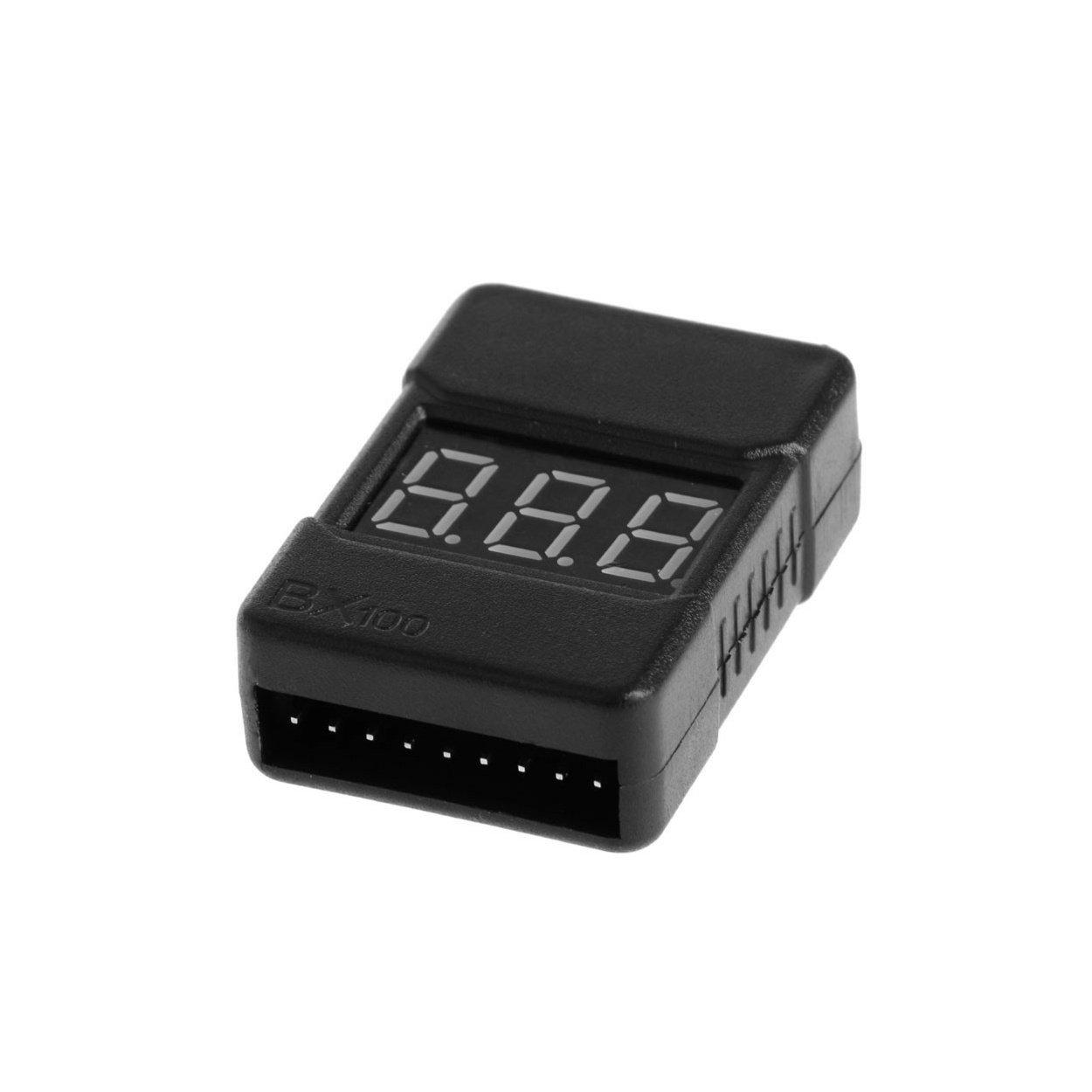

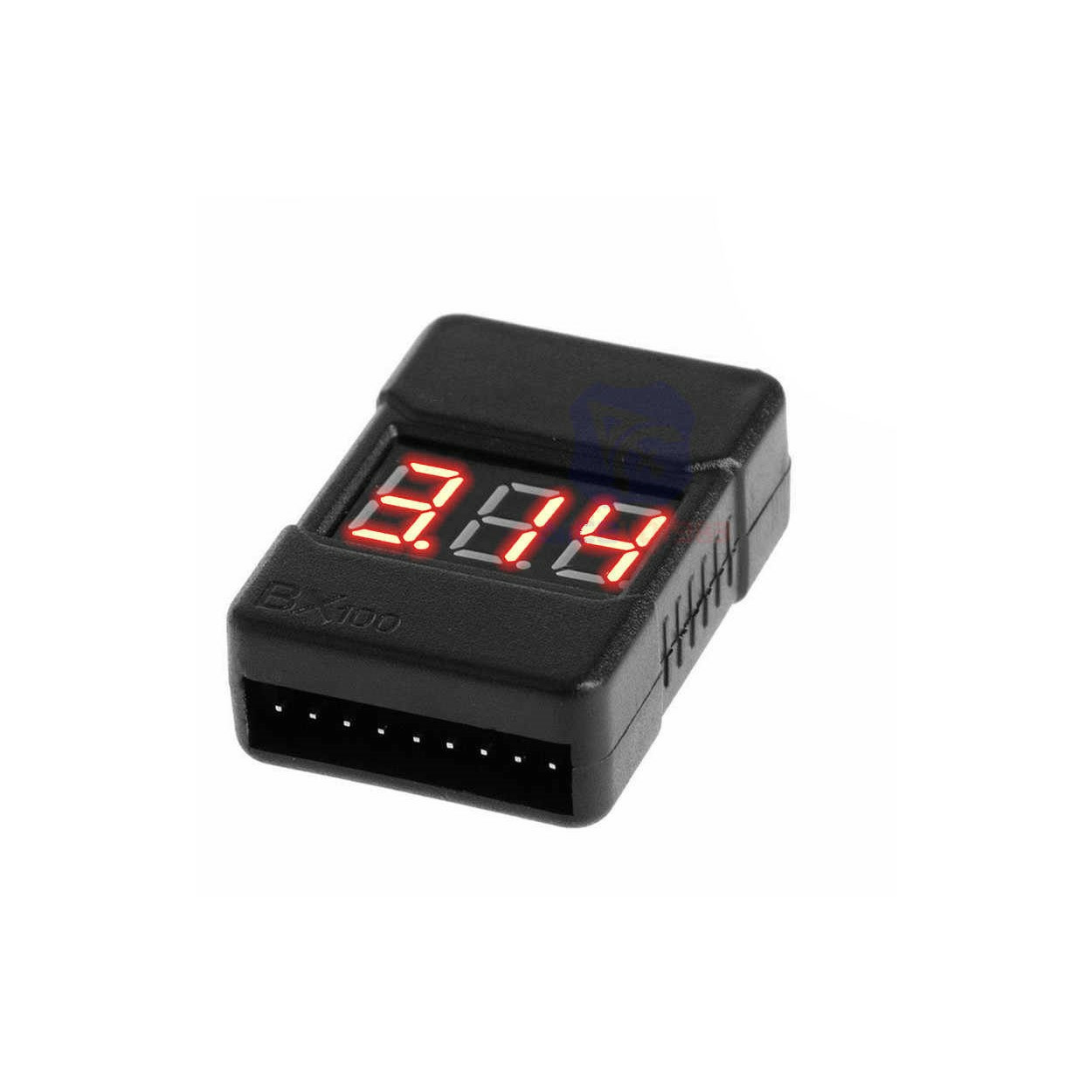

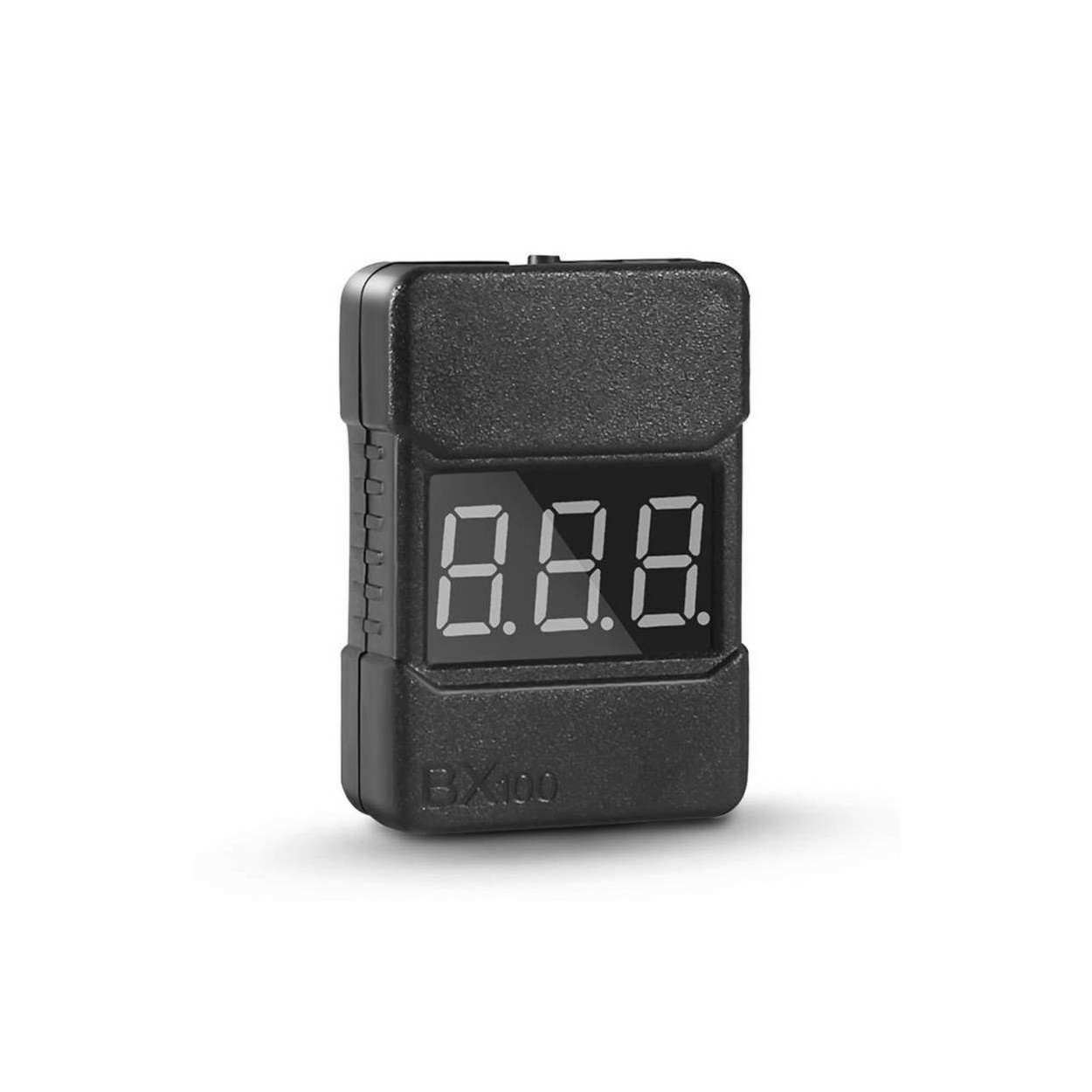

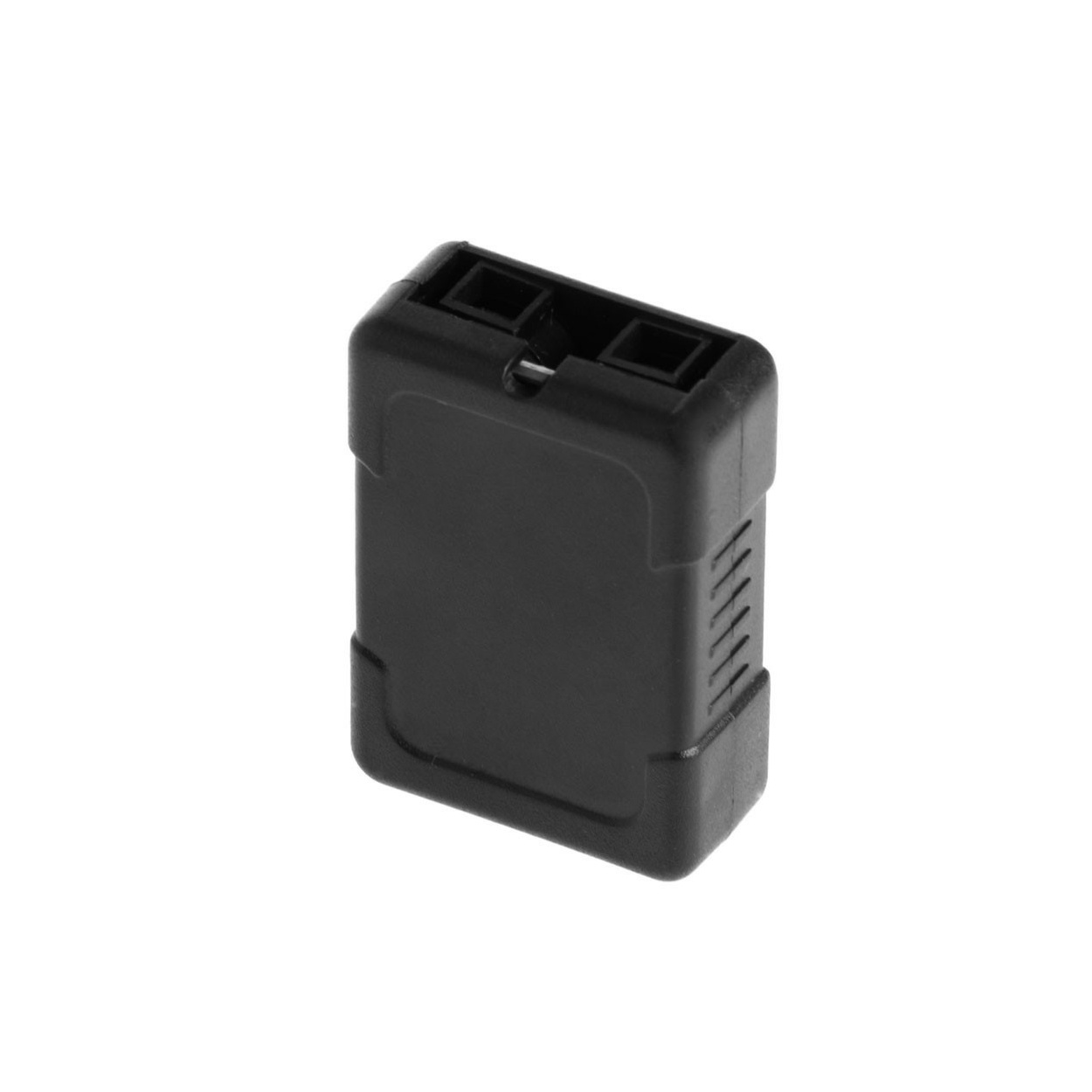

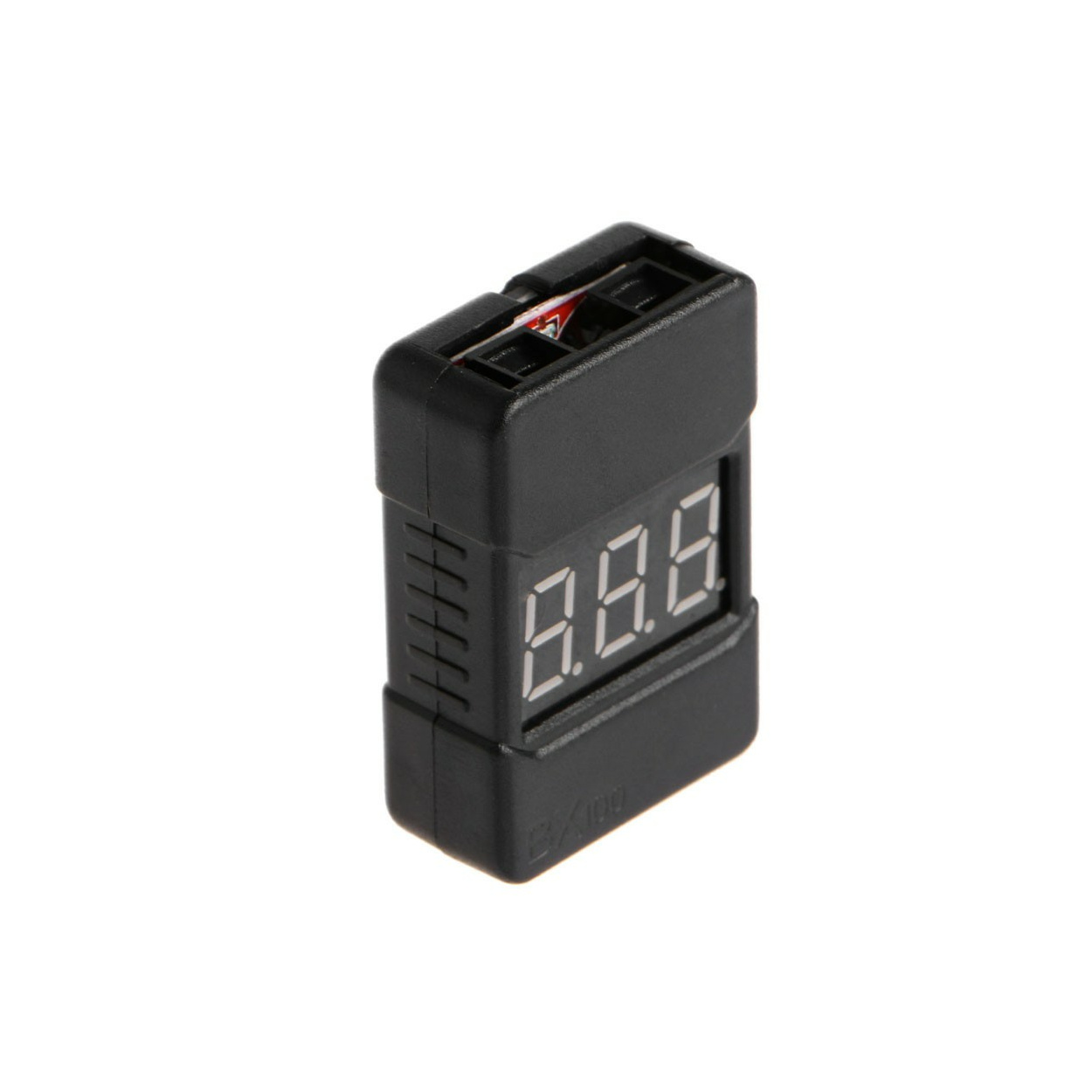

BX100 1-8S Lipo Battery Voltage Tester / Low Voltage Buzzer Alarm / Battery Voltage Checker with Dual Speakers
This Cell Checker with Low Voltage Alarm (1S-8S) with case features loud twin Piezo alarms to notify you once your cells reach a user-defined voltage. You can customize the alarm to sound at a voltage between 2.7v~3.8v Per cell in 0.10v increments by pressing the setting mode button.
This unit also features a handy built-in LED display that will show the voltage of each cell followed by the overall voltage of the pack.
Simply connect the battery balance plug to the leads of this voltage checker, it will show the instant voltage of each cell one by one ending with displaying the voltage of the total pack. The LIPO Voltage Checker 1S-8S with Buzzer alarm is equipped with loud twin piezo alarms which will notify you once your cells reach a low voltage or user-defined voltage.
Features:
- Input: 1S-8S Battery
- Battery Type: Lipo/LiFe/Li-ion/LiMn
- It has a Buzzer Alarm for low voltage indication.
- Useful for measuring each cell voltage.
- It has a mode button at the top for setting the desired voltage value
Specification:
| Alarm set range (V) | 2.7-3.8 |
|---|---|
| Battery Input | 1S-8S Battery |
| Battery Type | LiPO/LiFe/Li-Ion/LiMn |
| Cell Voltage Display Range (V) | 0.5-4.5 |
| Pack voltage display range(V) | 3.7-36 |
| Length (mm): | 25 |
| Width (mm): | 40 |
| Height (mm): | 13 |
| Weight (g): | 14 |
Package Includes:
1 x Cell Checker with Low Voltage Alarm
UPS for Raspberry Pi: 18650 or LiPo HAT Comparison
UPS for Raspberry Pi: 18650 or LiPo HAT Comparison Power outages are a real challenge in India, making...
Read More →
Power Bank Build: Custom Capacity 18650 Power Pack
Table of ContentsDesigning Your Power Bank Components List Circuit Assembly Charging Circuit with TP4056 Boost Converter for 5V...
Read More →
How to Build a Custom Battery Pack (18650 & LiPo)
Building a DIY battery pack from 18650 cells or LiPo pouches is one of the most rewarding projects...
Read More →Technical Specifications
| Model | BX100 |
|---|---|
| Cell Configuration | 8S |
| Package Quantity | 100 pcs |
| SKU | AI4563 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The BX100 1-8S Lipo Battery Voltage Tester / Low Voltage Buzzer Alarm / Battery Voltage Checker with Dual Speakers is a versatile lipo voltage checker used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
