Product Description

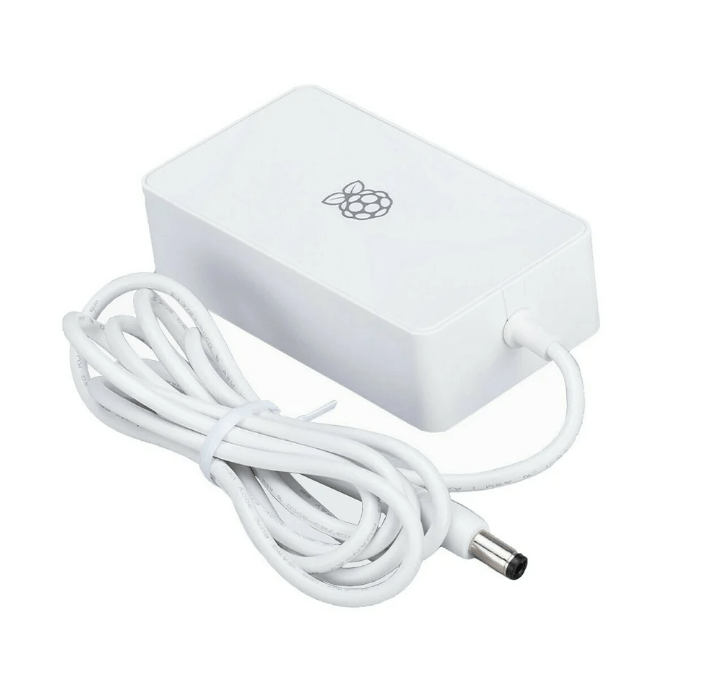

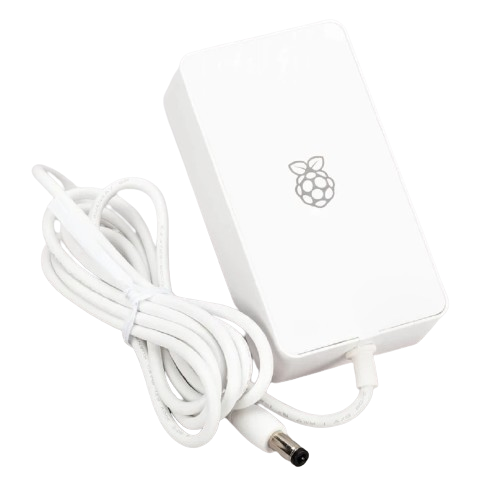

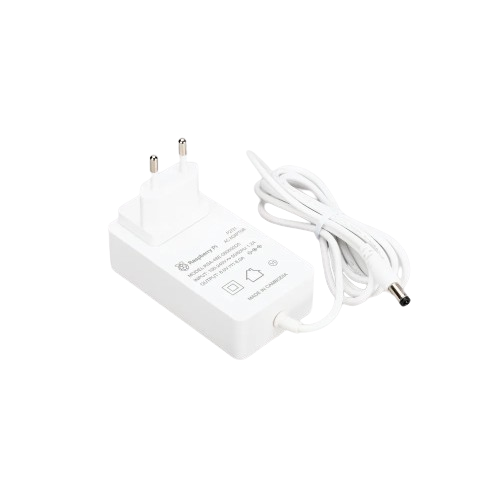

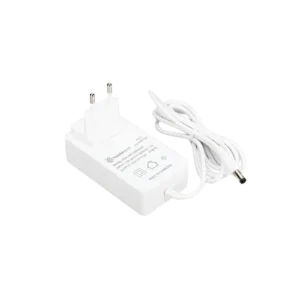

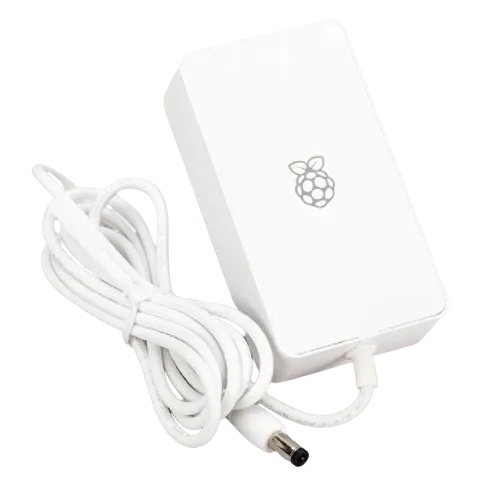

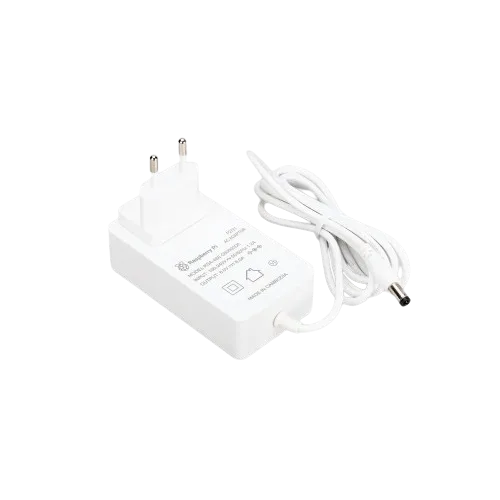

The Raspberry Pi Build HAT Power Supply is a 48W (8V DC, 6A) power supply that is officially released by Raspberry Pi. It is designed to power the Raspberry Pi Build HAT and the Raspberry Pi computer, as well as the LEGO Technic motors and sensors that are compatible with the Build HAT. The Build HAT enables you to use Raspberry Pi computing with LEGO Education SPIKETM Portfolio to create innovative and sturdy projects. You can connect the power supply to the Build HAT or the Raspberry Pi directly.
Features
- Input: 110-240V AC
- Output: 8V DC, 6A
- Cable: 1.5M, 16 awg (Premium Quality)
Technical Specifications:
Output
- Output voltage: +8.0V DC.
- Minimum load current: 0.01A
- Nominal load current: 6.0A
- Maximum power: 48.0W
- Load regulation: ±5%
- Line regulation: ±5%
- Ripple & noise: 200mVp-p.
- Rise time: 100ms maximum to regulation limits for DC outputs
- Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
- Protection: Short circuit protection, Overcurrent protection, Overvoltage protection
- Efficiency: 87.77% minimum (output current from 100%, 75%, 50%, 25%)
- Output cable: 1.5m 16AWG.
- Output connector: Barrel connector 5.5mm × 2.1mm × 11mm Centre positive.
Input
- Voltage range: 100-240Vac (rated) 96-264Vac (operating)
- Frequency: 50/60Hz ±3Hz
- Current: 1.2A maximum
- Power consumption (no load): 0.1W maximum
- Inrush current: No damage shall occur, and the input fuse shall not blow.
Package Includes
- 1 x Raspberry Pi Build Hat Power Supply
