This is the Blue variant of the Blue Electronic Building Blocks Big Key Button Module High Level Output in Electronic Switches/Keypads Modules. Available at ₹17.35 (₹14.70 + GST) with free shipping across India.
Looking for Blue Electronic Building Module? Blue Electronic Building Blocks Big Key Button Module High Level Output is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION

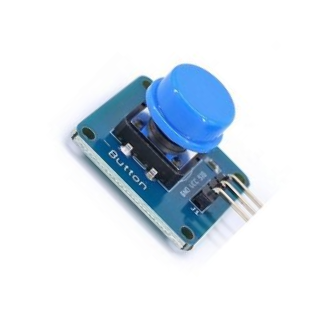

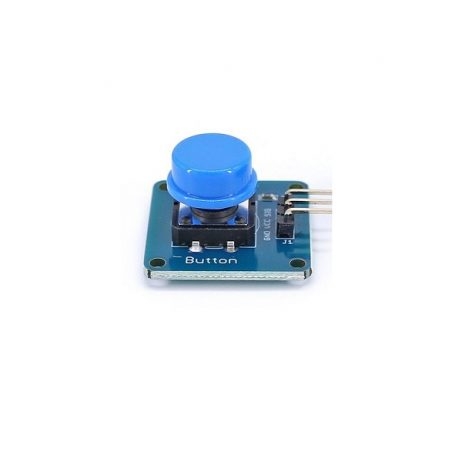

This module is a big key button for blue electronic building blocks. You can use an analog port to read the key states with a sensor expansion board and create multiple buttons. The button is high-quality and compatible with the sensor expansion board port. It outputs a low level when pressed and a high level when released.
Features:
- This button module kit includes 1PCS of button modules with a Blue cap.
- When you press the button, it will output a high level and it will turn to be LOW when you release it.
- Great for Children and Visual programming aids DIY projects
Specification:
| Interface | Standard electronic block (GND, VCC, SIG) |
|---|---|
| Working voltage | 2-5.5VDC |
| Working Current | 0.55mA(MAX) |
| Output | Digital level (press high, release low) |
| Length (mm): | 20 |
| Width (mm) | 15 |
| Height (mm) | 14 |
| Weight (gm) | 2 |
| Shipping Weight | 0.003 kg |
| Shipping Dimensions | 10 × 7 × 2 cm |
Package Includes:
1 x Blue Key Button Module High-Level Output
Blue Electronic Building Blocks Big Key Button Module High Overview
The Blue Electronic Building Blocks Big Key Button Module High Level Output is a robust push-button interface designed for electronic building block systems. Featuring a large blue cap, it provides clear digital signals for DIY electronics, educational kits, and prototyping applications.
Key Features of Blue Electronic Building Blocks Big Key Button Module High
- Standard electronic block interface with GND, VCC, and SIG pins
- Operates on 2–5.5 V DC with low current draw (0.55 mA max)
- Digital output: HIGH when pressed, LOW when released
- Large blue key cap for easy actuation, ideal for children’s projects
- Compatible with sensor expansion boards to create multiple-button inputs
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- DIY electronics and prototyping on breadboards or building-block kits
- Educational STEM experiments for schools and hobbyists
- Interactive control panels in robotics and automation projects
- Game controller interfaces or custom arcade setups
- Visual programming platforms for beginners and children
- Multi-button input systems using sensor expansion boards
How to Use Blue Electronic Building Blocks Big Key Button Module High
Connect the module’s GND pin to your system ground, VCC to a 2–5.5 V supply, and SIG to a digital or analog input on your sensor expansion board or microcontroller. When the blue key is pressed, the SIG line reads HIGH; releasing it returns the signal to LOW. Program your controller to detect these state changes for button-triggered actions.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use this module with Arduino or Raspberry Pi?
Yes. Wire VCC (2–5.5 V) and GND to the board’s power pins and connect SIG to a digital input. Use a pull-down or pull-up setting in your code to read button presses accurately.
How many buttons can I connect to one analog port?
By stacking multiple modules on a sensor expansion board, you can assign each button to a separate port or use resistor networks for voltage-division schemes if your board supports multiple readings on a single analog input.
What maintenance does the button require?
Minimal maintenance is needed. Keep the surface clean and free of debris. Avoid exposing the module to moisture or excessive force to ensure reliable performance.
Technical Specifications
| Color | Blue |
|---|---|
| SKU | AI2934 |
| Weight | 0.0039 kg |
| Availability | In Stock |
Applications & Use Cases
The Blue Electronic Building Blocks Big Key Button Module High Level Output is a versatile electronic switches/keypads modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
