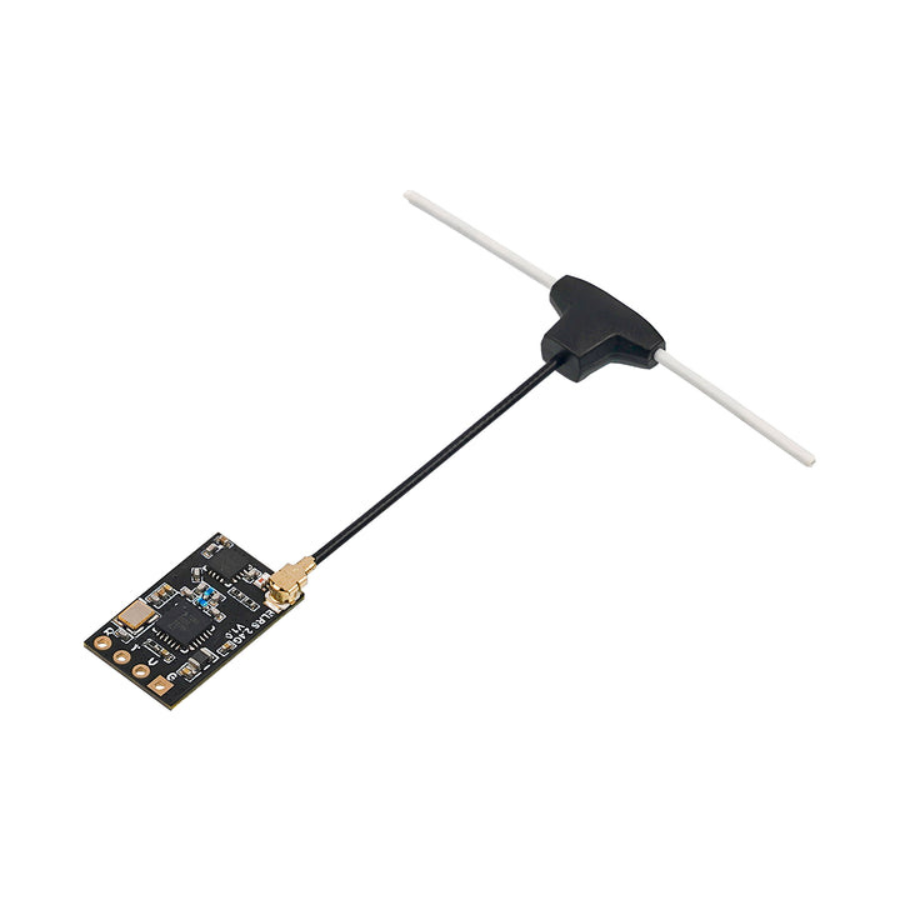

BETAFPV ELRS Nano Receiver
Description:
BETAFPV Nano receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.
Specifications
- Weight: 0.7g (receiver only)
- Size: 12mm*19mm
- Telemetry power: 20dbm (100mW, 2.4G Version)
- Frequency bands (2.4G version): 2.4GHz ISM
- Frequency bands (915MHz/868MHz version): 915MHz FCC/868MHz EU
- Input voltage: 5V
- Antenna connector: U.FL MHF
BETAFPV ExpressLRS Receivers
Choosing a suitable receiver to fly quadcopter or other RC models is very important. BETAFPV ExpressLRS Receivers including ELRS Lite, Nano, Micro, and the newest SuperD, greatly fulfill pilots’ requirements for FPV flying.
| Super D RX | Micro RX | Nano RX | Lite RX | |
| Weight | 1.1g (RX only) | 3.5g (RX only) | 0.7g (RX only) | 0.46g (Flat V1.2) |
| Antenna | U.FL + T antenna | U.FL + T antenna | U.FL + T antenna | SMD ceramic antenna |
| MCU | ESP32-PICO-D4, dual SX1280 | ESP8285 | ESP8285 | ESP8285 |
| RF Chip | Dual SX1280 + Dual PA | SX128X | SX1280 + PA, SX1276 + PA | SX128X |
| Frequency | 2.4GHz ISM | 2.4GHz ISM | 2.4GHz ISM, 915MHz (FCC), 868MHz (EU) | 2.4GHz ISM |
| Telemetry Power | 100mW | 17mW | 100mW | 17mW |
| Serial Output Protocol | CRSF | PWM or CRSF | CRSF | CRSF |
| Model Type | FPV Drone, Fixed-wing aircraft | Fixed-wing aircraft, Helicopter, RC Cars, RC Boats | FPV Drone | Whoop Drone |
Diagram

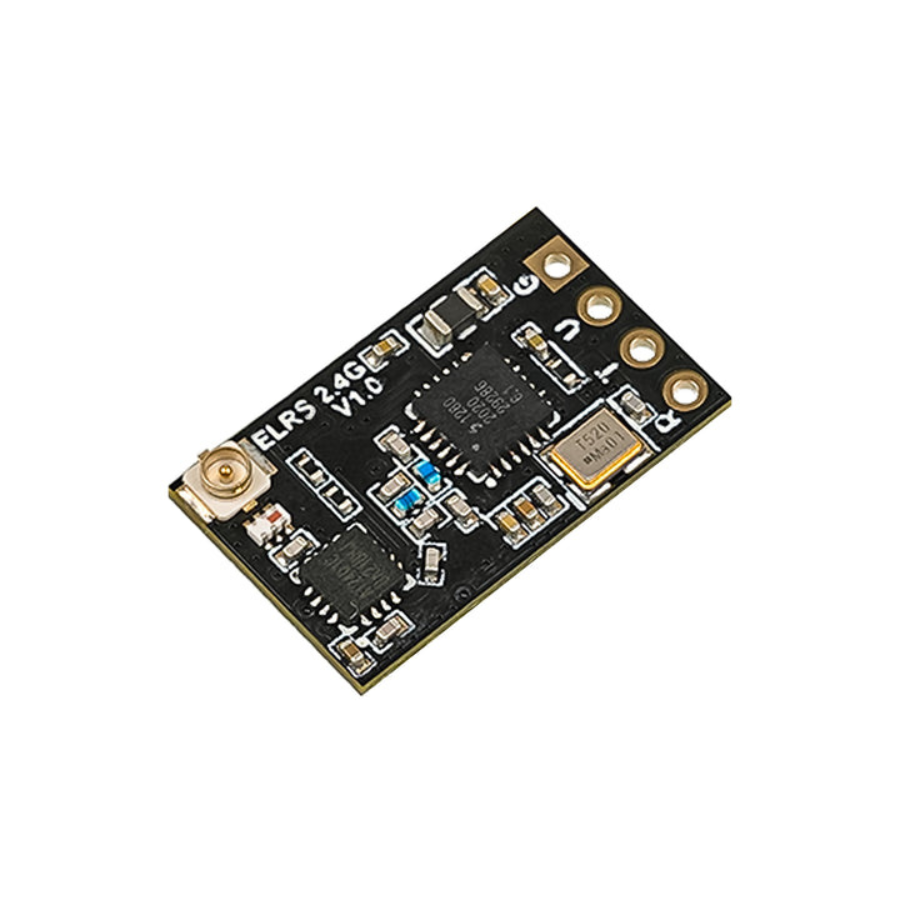

Nano receiver 2.4G version:

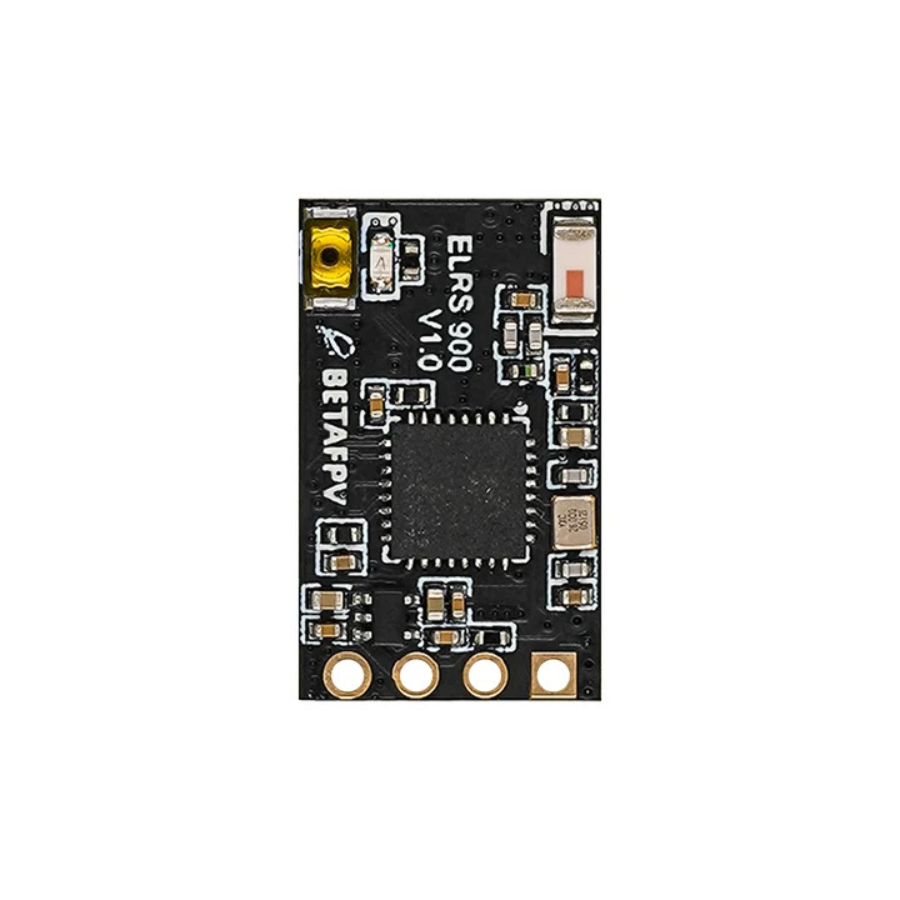

Nano receiver 868MHz/915MHz version:
Configuration & Bind
ExpressLRS uses the Crossfire serial protocol (AKA CRSF protocol) to communicate between the receiver and the flight controller board. So make sure your flight controller board supports the CRSF serial protocol. Next, we use the flight controller with Betaflight firmware to show how to set up the CRSF protocol.
The connection between the ELRS Nano receiver and the FC board is shown below.
Package Includes:
- 1 * BETAFPV ELRS Nano receiver
- 1 * BETAFPV T antenna
- 2 * Spare shrink tube
- 4 * 30awg silicon connection wires (1 black, 1 red, 1 white, 1 yellow)
- 1 * pin header 1×4
- 1 * Nano receiver user manual
Complete FPV Drone Build Under ₹5,000: Budget Build Guide India
Budget FPV drone India builds have become surprisingly achievable thanks to the availability of affordable components from Chinese...
Read More →
X-Class Drone Build: Giant Racing Quad Guide
Table of Contents Understanding X-Class Drone Build Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Drone LiDAR Sensor Guide: Obstacle Avoidance & Mapping
Drone LiDAR Sensor Guide: Obstacle Avoidance and Precision Mapping LiDAR — Light Detection and Ranging — is one...
Read More →Technical Specifications
| Brand | BETAFPV |
|---|---|
| Interface / Protocol | ELRS |
| SKU | AI5135 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The BETAFPV ELRS Nano Receiver is a versatile drone transmitter and receiver used across a wide range of applications including FPV drone control, RC aircraft, ground vehicles, and long-range drone operations.
Common use cases:
- Setting up a new FPV quad with digital link
- Replacing a receiver after a crash
- Building a long-range fixed-wing aircraft
This product is ideal for FPV pilots, RC hobbyists, and drone builders.
Technical Tip: ELRS (ExpressLRS) offers excellent range and low latency at 2.4GHz. Ensure your transmitter and receiver use the same protocol.
