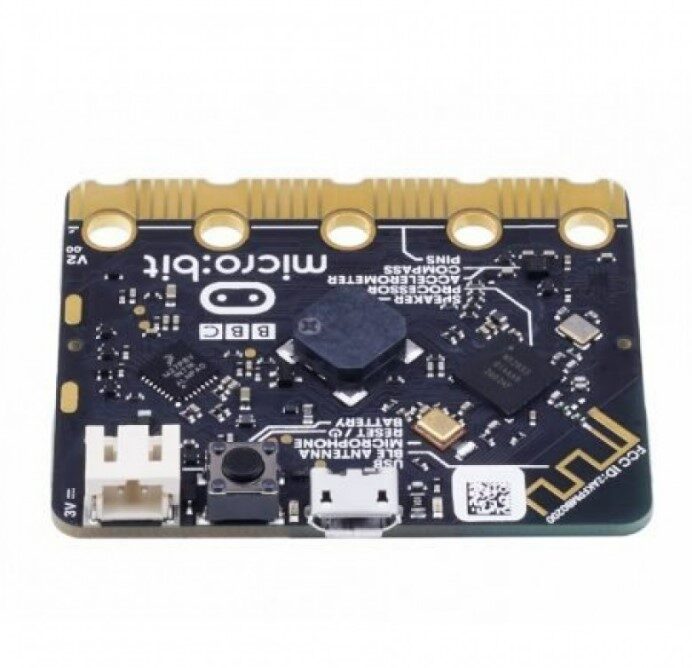

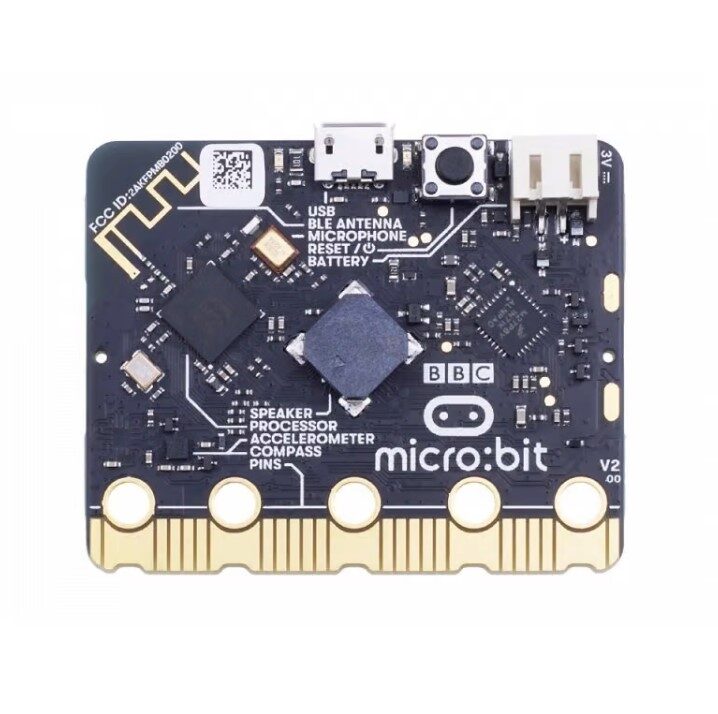

BBC Micro : Bit V2 Go Kit

BBC Micro : Bit V2 Go Kit

The all-new micro:bit V2 continues to support all of the same features that teachers and students have come to love, and all the existing lessons and code for the original micro:bit will be compatible with the new device.

Designed specifically for kids and beginners, the micro:bit is a pocket-sized computer that you can code, customize and control to bring your digital ideas, games, and apps to life. It’s a small, code-able device that is a non-intimidating introduction to programming and making – switch on, program it to do something fun – wear it, customize it, develop new ideas.

The microcontroller on the micro:bit V2 has been upgraded to nRF52833 with double the memory size to 512KB Flash, and an 8 times larger size of RAM to 128KB.  With the upgrades of the main controller, micro:bit V2 is now Bluetooth 5.1 and also BLE (Bluetooth Low Energy).

Besides the MCU, the co-microcontroller that handles USB connection, KL26Z with 16KB RAM is being upgraded to KL27Z with 32KB of RAM too. micro:bit V2 still comes with an accelerometer, compass, and Bluetooth Smart antenna, as well as a micro USB and two-pin JST connector for different power options.

Features

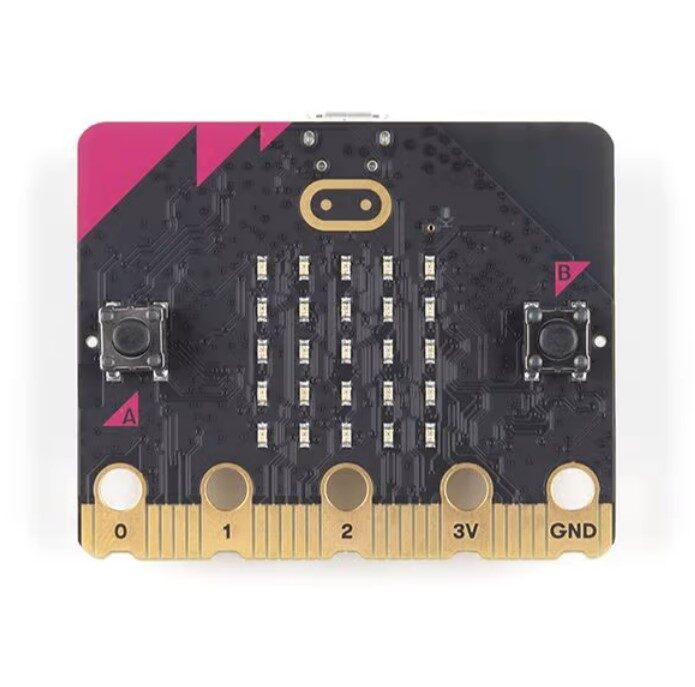

1. 5×5 LED Matrix Display (Red LEDs)
2. Two Programmable Buttons
3. Touch Sensitive micro:bit logo
4. Additional Power Indicator LED and Mic input indicator LED
5. Built-in MEMS microphone input
6. Onboard Accelerometer, Compass, Light and Temperature Sensors
7. Wireless Communication, via Bluetooth 5.1 and BLE and 2.4GHz Radio
8. Edge Connectors:
   1. Total 25 pins: 20 smaller pitch to pitch pins, 5 RINGS Notched Edge pins
   2. 4 Dedicated GPIO, PWM, I2C, SPI, Power and etc.
   3. 5 Ring pins for connecting crocodile clips or banana plugs
9. 20-pin Edge Connectors, 5 notched edge Connectors
10. Dedicated I2C bus for peripherals
11. Power Button to power off the MCU
12. Micro USB Type-B Connector
13. JST-PH Battery Connector (Not JST-XH)
14. Reset Button with Status LED
15. Available current for external devices: 200mA
16. Programming Platform: C++, Make code, Python, Scratch

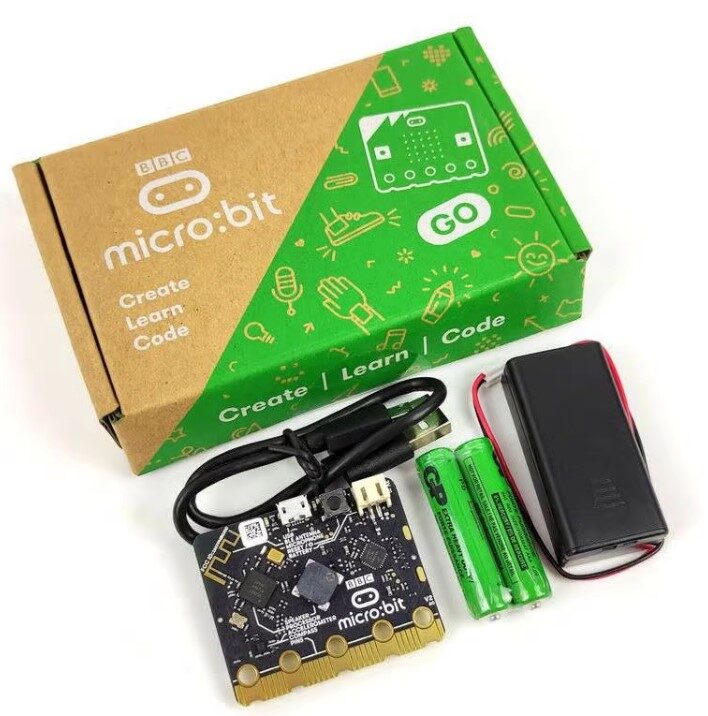

Package Includes

1 x BBC Micro:bit Go V2
1 x USB Cable
1 x Battery Holder
1 x User Guide
2 x AAA Batteries

BBC Micro : Bit V2 Go Kit Overview

The BBC Micro : Bit V2 Go Kit is a pocket-sized programmable microcontroller board designed for kids and beginners to learn coding, electronics, and creative making. Featuring a powerful 32-bit ARM Cortex-M4 CPU and on-board sensors, it lets you develop interactive games, apps, and wearable projects with ease.

Key Features of BBC Micro : Bit V2 Go Kit

• nRF52833 main microcontroller with 512 KB Flash and 128 KB RAM for more complex programs
• 64 MHz ARM Cortex-M4 CPU delivering responsive performance for real-time interactions
• Built-in MEMS microphone input and touch-sensitive micro:bit logo for audio and touch-based projects
• USB interface via NXP KL27Z module (with 32 KB RAM) for simple drag-and-drop programming
• Edge connector for expansion with breakout boards, sensors, LEDs, and more
• Genuine product with fast shipping from Zbotic—get your kit in 1–2 business days*

Applications and Use Cases

• Design a wearable step counter or posture monitor using the micro:bit’s motion capabilities
• Create sound-reactive projects like clap-activated lights or noise level meters with the built-in microphone
• Build simple games—rock-paper-scissors, reaction timers, or maze navigation—using the LEDs and buttons
• Develop interactive badges or name tags that respond to taps on the touch-sensitive logo
• Prototype robotics controllers by connecting motors and sensors via the edge connector
• Teach basic coding concepts in the classroom or at home with Microsoft MakeCode or MicroPython

How to Use BBC Micro : Bit V2 Go Kit

Getting started is easy: connect the micro:bit V2 board to your computer using the included USB cable. The board appears as a USB drive—simply drag and drop your compiled .hex file from the MakeCode or MicroPython editor onto the drive. Once programmed, detach, power via a battery pack, and watch your code come to life through the LEDs, sensors, and touch logo.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Is the micro:bit V2 Go Kit compatible with original micro:bit V1 projects?

Yes. The micro:bit V2 retains full backward compatibility with all V1 lessons and code—just upload your existing .hex files via USB and they’ll run exactly as before.

How do I program the micro:bit V2 board?

Plug the board into your PC or Mac via USB. It mounts as a mass-storage device. Use Microsoft MakeCode or the MicroPython editor to create your program, download the .hex file, and drag it into the board’s drive.

How can I utilize the built-in microphone and touch-sensitive logo?

In MakeCode, find “sound level” blocks under Input to read microphone data, and “on logo pressed” blocks to detect touches. In Python, use the microphone and logo modules to capture audio levels or touch events in code.
