Looking for Cr1220 Battery? Battery Holder CR1220-02 – BP -2377-D is available at Zbotic with fast shipping across India.
Battery Holder CR1220-02 – BP -2377-D

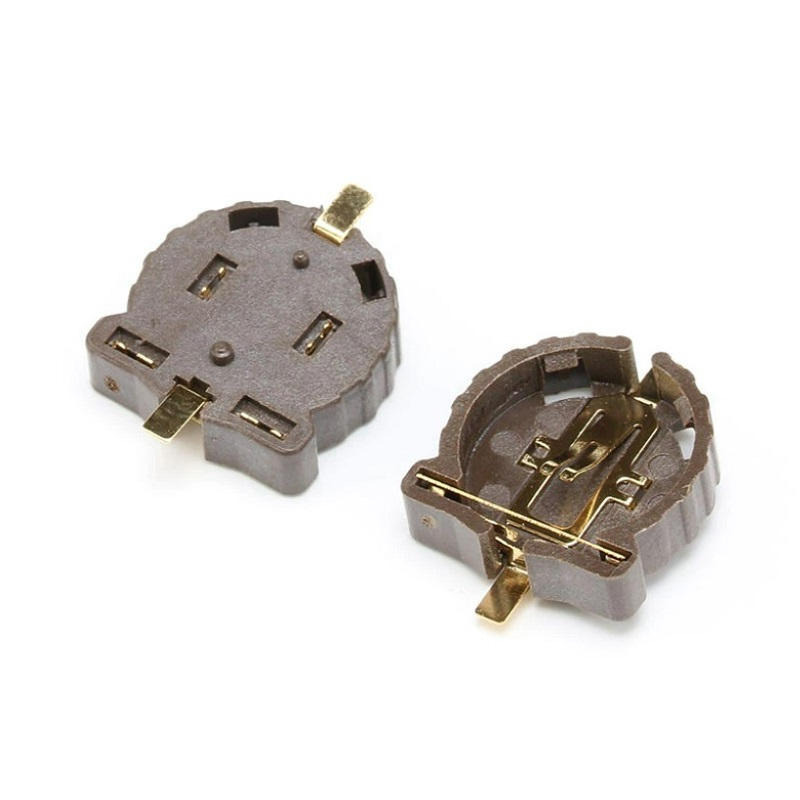

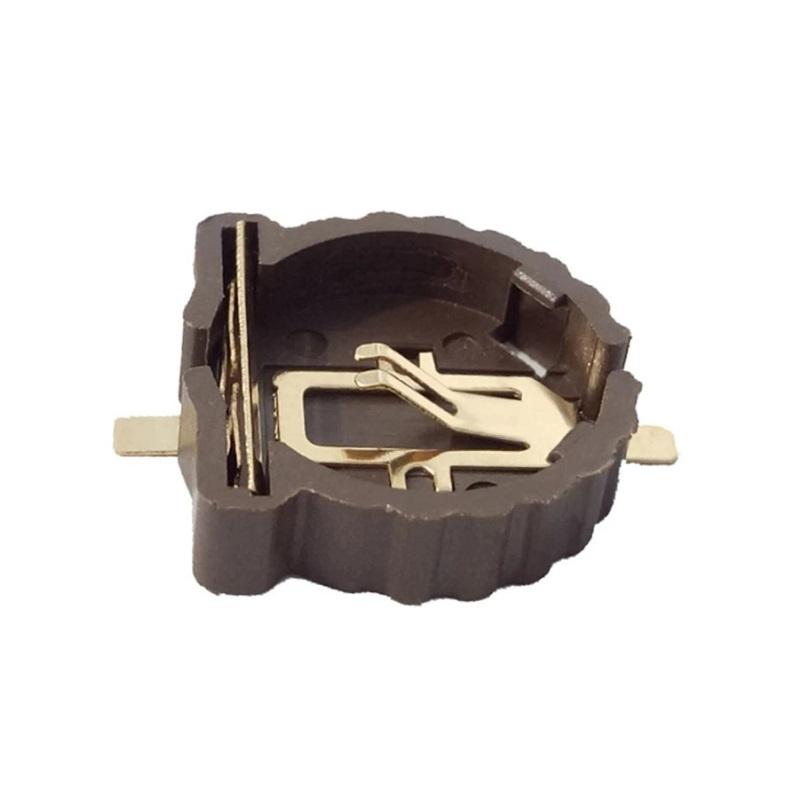

This is a PCB Mount CR1220 SMD coin cell battery holder that can hold coin-style button cell batteries securely and elegantly. It has pin terminals for easy PCB mounting. It is compatible with CR1220 batteries, which typically have 3 Volts and 36 mAh capacity. This is an SMD (Surface Mount Device) holder.
- Housing: PPS
- Contacts: Phosphor Bronze Gold-plated 1 u”
- Insulator Resistance: 1000M Ohm min.
- Contact Resistance: 30m Ohm max.
- Dielectnic voltage: 500V AC
- Operating Temperature: -25ºC~+85ºC
Package Includes:
- 1 x CR1220 Coin Cell SMD Battery Holder
Battery Holder CR1220-02 – BP -2377-D Overview
The Battery Holder CR1220-02 – BP -2377-D is a surface-mount PCB holder designed specifically for CR1220 coin cell batteries. Its PPS housing and gold-plated phosphor bronze contacts ensure reliable mechanical retention and electrical connectivity for 3 V, 36 mAh button cells.
Key Features of Battery Holder CR1220-02 – BP -2377-D
- PPS (Polyphenylene Sulfide) housing for high thermal and chemical resistance
- Gold-plated phosphor bronze contacts with ≤30 mΩ contact resistance
- SMD pin terminals for straightforward PCB mounting and automated assembly
- Insulator resistance ≥1000 MΩ and dielectric strength up to 500 VAC
- Compatible with standard CR1220 3 V coin cells (36 mAh)
- Fast shipping across India from Zbotic’s warehouse
Applications and Use Cases
- Real-time clock backup in microcontroller-based devices
- Memory retention modules for data loggers and security systems
- Portable medical equipment requiring small coin-cell power sources
- Wireless sensor nodes and low-power IoT peripherals
- Wearable electronics and fitness trackers with PCB-mounted batteries
How to Use Battery Holder CR1220-02 – BP -2377-D
Apply solder paste to the PCB pads, place the CR1220-02 holder using a pick-and-place tool or manual tweezer, then run a low‐temperature reflow profile compatible with PPS. Once mounted, gently press a CR1220 coin cell into the holder until it snaps securely into place, ensuring correct polarity alignment.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which battery size fits the CR1220-02 holder?
This holder is designed exclusively for CR1220 coin cells (3 V, up to 36 mAh), ensuring a snug fit and reliable contact.
How do I solder the CR1220-02 battery holder?
Use solder paste on the PCB pads, align the SMD pins of the holder, and follow a standard reflow profile that does not exceed the thermal limits of PPS.
What are the electrical specifications of the CR1220-02 holder?
It offers an insulator resistance ≥1000 MΩ, a maximum contact resistance of 30 mΩ, and can withstand up to 500 VAC dielectric voltage.
