Axisflying NAJA FPV Camera
Description:
Axisflying focuses on user experience and carefully studies user pain points. In FPV imaging systems, we keep absorbing user feedback and optimizing product performance. The Axisflying NAJA Camera adopts professional low-light black-light technology, Super WDR, and wide-angle design to provide pilots with clear, stable, and high-quality analog FPV vision in both bright and dark environments.
Feature:
- High-definition Imaging
Equipped with a 1/3″ CMOS sensor and 1500TVL horizontal resolution, delivering true-to-life and natural image performance.
- Excellent Night Vision
F1.8 aperture with ultra-low minimum illumination of 0.01Lux, ensuring clear footage even in dim environments.
- Ultra-low Latency
Only 30ms transmission latency, bringing responsive control experience for freestyle and racing flight.

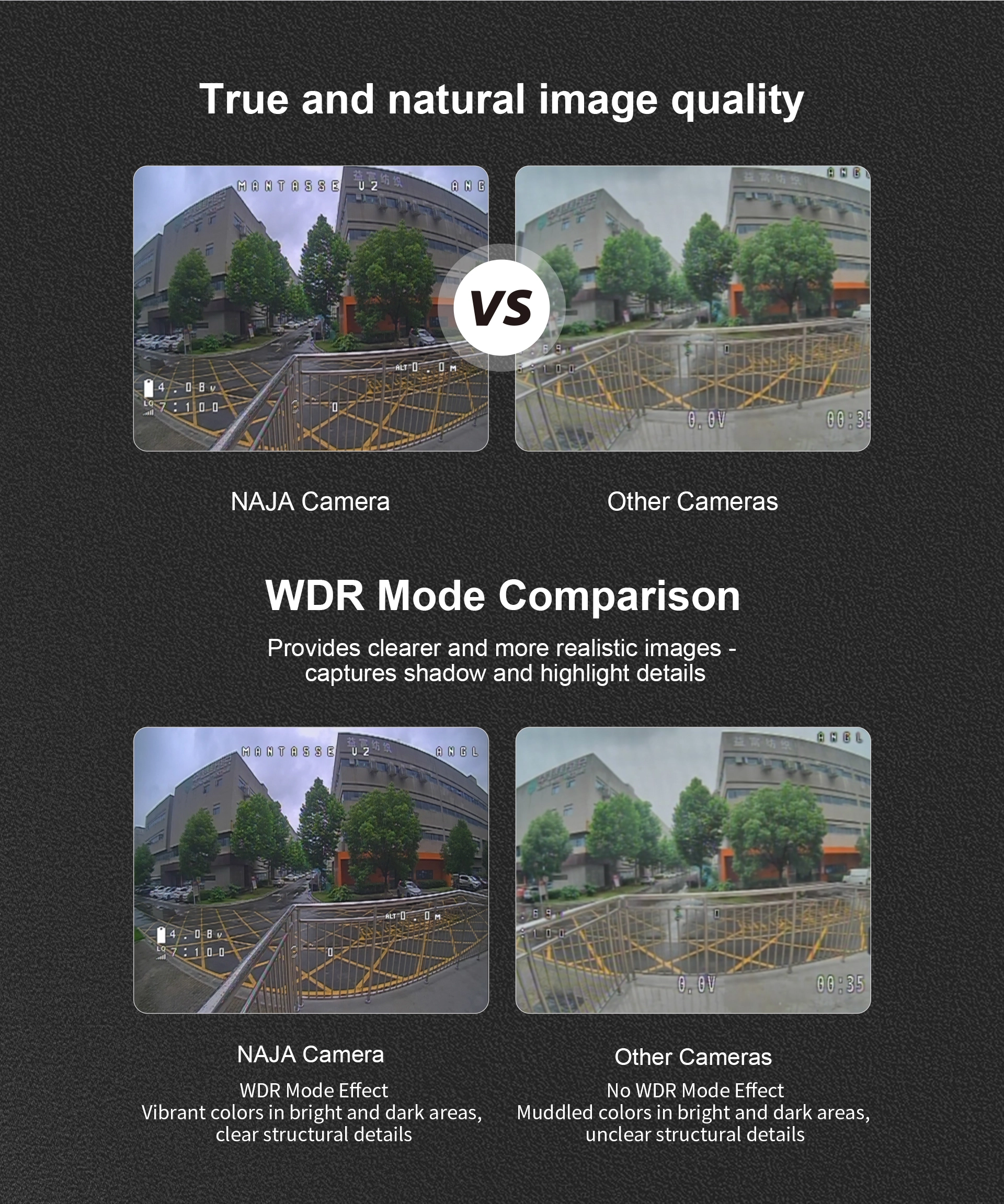

- Super WDR (HDR)
Effectively optimizes backlight scenes, retaining details in both bright highlights and dark shadow areas without overexposure or blurriness.
- Wide Voltage Compatibility
Supports 5V-28V DC wide input voltage, compatible with most mainstream flight controllers and power systems for strong versatility.
- Compact & Lightweight
Ultra-small body sized 19mm*19mm and weighs merely 6.7g, adding almost no extra load to the drone frame.
- Stable & Durable
Low power consumption with no overheating issue. Built-in 3D noise reduction for pure and clean images. It works stably in the temperature range of -20℃ to 70℃.

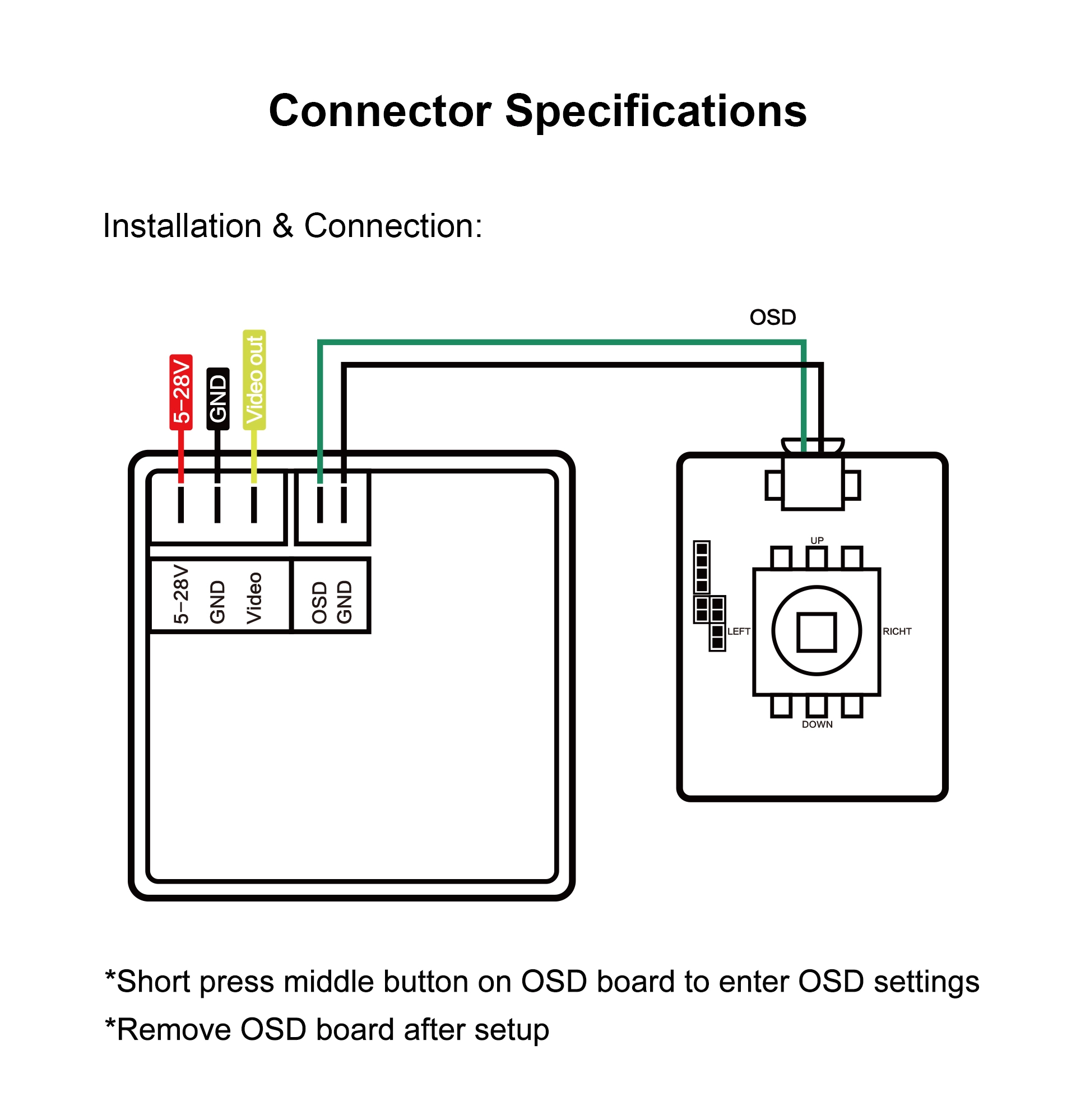

- Rich Adjustable Functions
Built-in OSD menu with multi-language support. Users can freely switch aspect ratio (16:9/4:3) and video format (PAL/NTSC) as needed.

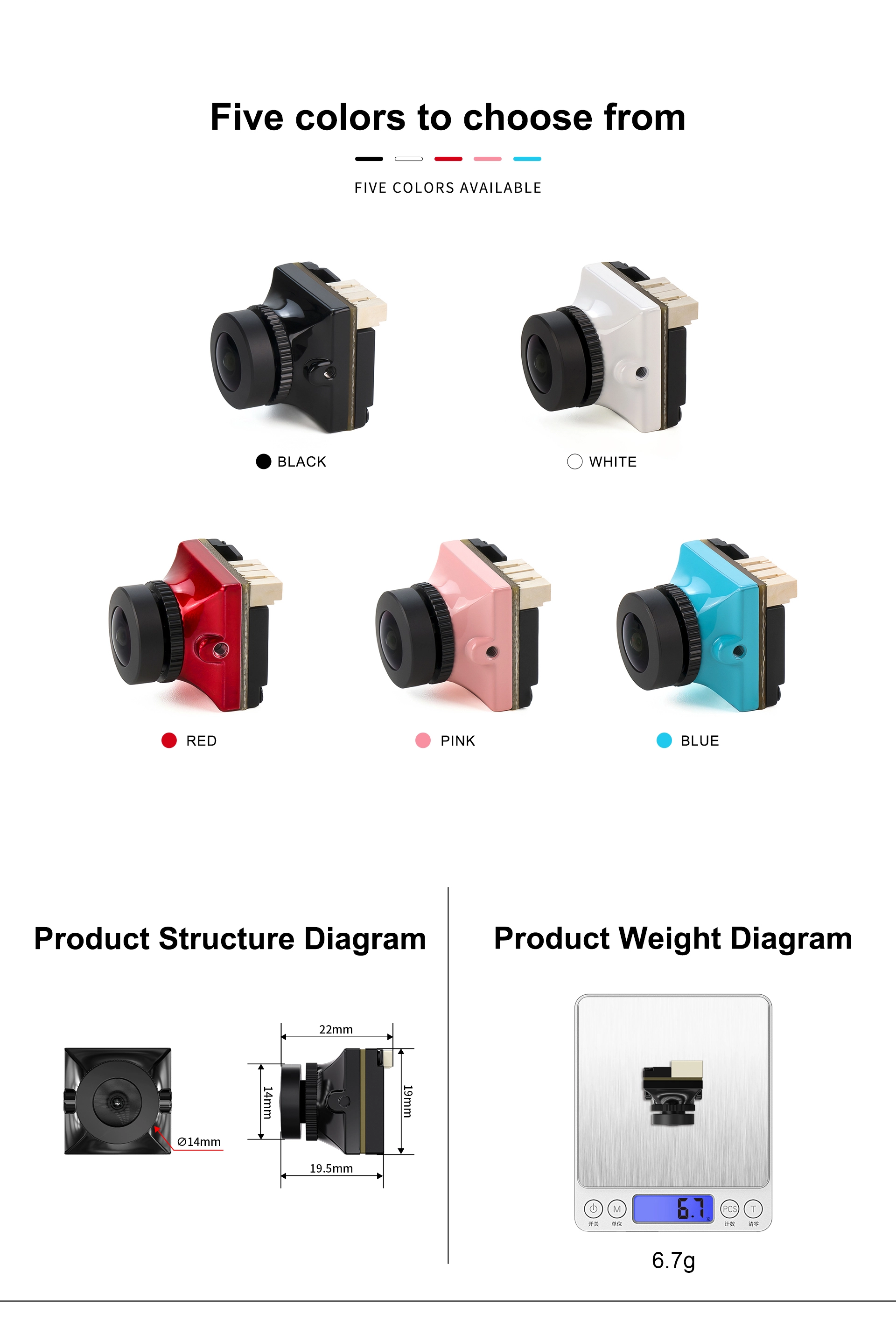

- Multiple Color Options
Available in 5 colors: Black, White, Red, Pink and Blue for personalized matching.
- Global Compliance & Fast Delivery
Certified by FCC, CE and RoHS for worldwide export. Sufficient stock and DHL shipping takes 3-7 working days (drone assembly time excluded).

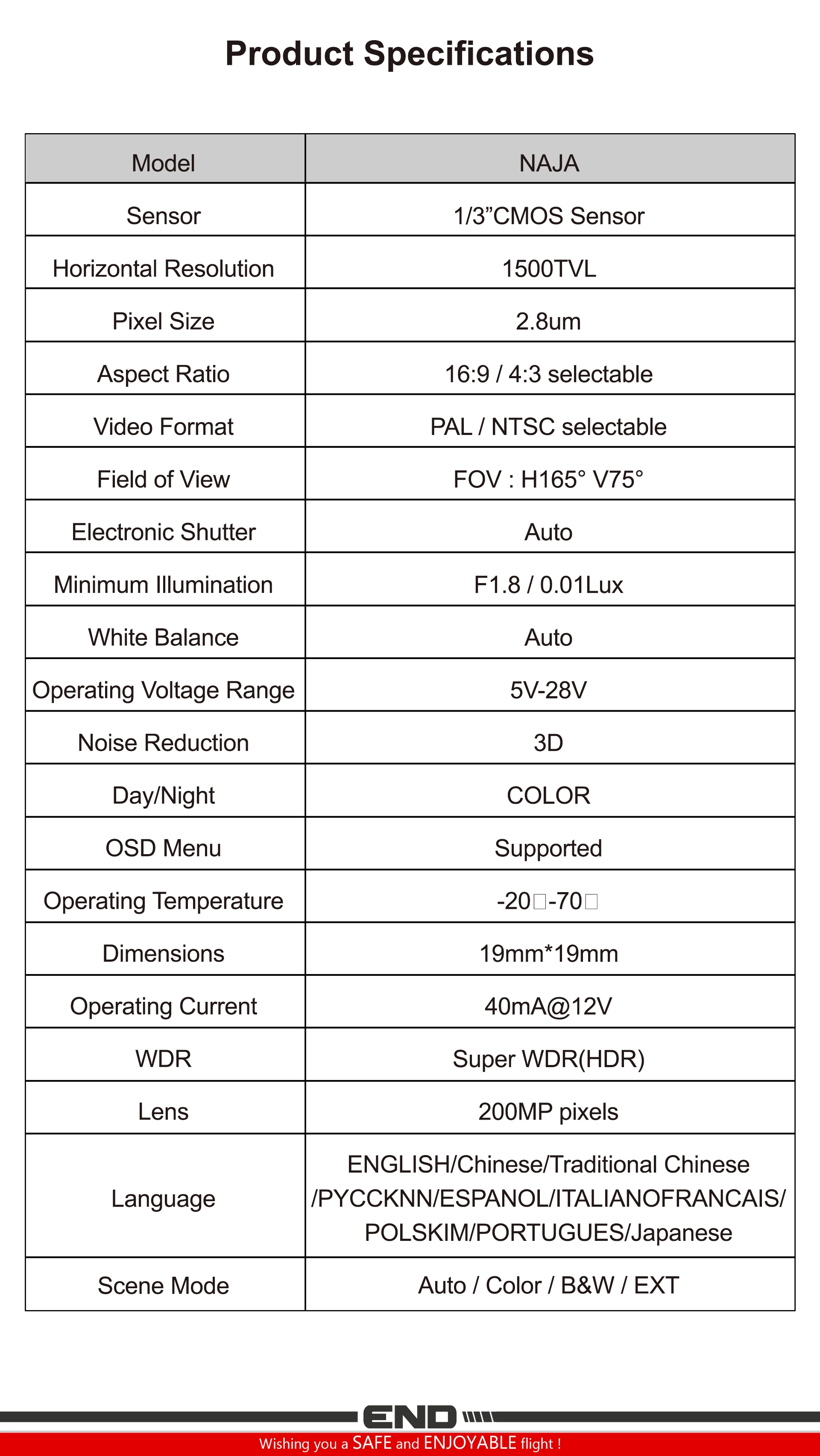

| Item | Parameters |
|---|---|
| Model | NAJA Camera |
| Image Sensor | 1/3″ CMOS Sensor |
| Horizontal Resolution | 1500TVL |
| Pixel Size | 2.8μm |
| Aspect Ratio | 16:9 / 4:3 (Selectable) |
| Video Format | PAL / NTSC (Selectable) |
| Field of View (FOV) | H165° / V75° |
| Electronic Shutter | Auto |
| Minimum Illumination | F1.8 / 0.01Lux |
| White Balance | Auto |
| Operating Voltage | 5V – 28V DC |
| Operating Current | 40mA @12V |
| Noise Reduction | 3D DNR |
| Day/Night Mode | Color Mode |
| Wide Dynamic Range | Super WDR (HDR) |
| Latency | 30ms Ultra-low Latency |
| Lens | 200MP Pixels |
| Dimensions | 19mm * 19mm |
| Net Weight | 6.7g |
| Operating Temperature | -20℃ ~ 70℃ |
| OSD Menu | Supported |
| Available Languages | English, Chinese, Traditional Chinese, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese |
| Scene Mode | Auto / Color / B&W / EXT |
| Optional Colors | Black, White, Red, Pink, Blue |
| Certifications | FCC, CE, RoHS |
Package Includes:
1xAxisflying NAJA FPV Camera
