Axisflying NAJA PRO FPV Camera Module
Description:
Axisflying focuses on user experience and carefully studies user sore points. In FPV imaging systems, we keep absorbing user feedback and optimizing product performance. Axisflying NAJA Camera adopts professional low-light black-light technology, super WDR, and wide-angle design to provide pilots with clear, stable, and high-quality analog FPV vision in bright and dark environments.
Feature:
- NAJA PRO Camera is a high-performance 1500TVL analog FPV camera, specially designed for DIY FPV drones and freestyle flight.
- Built-in 1/1.8″ high-sensitivity sensor, with 0.00001 Lux ultra-low light capability, clear imaging day and night.

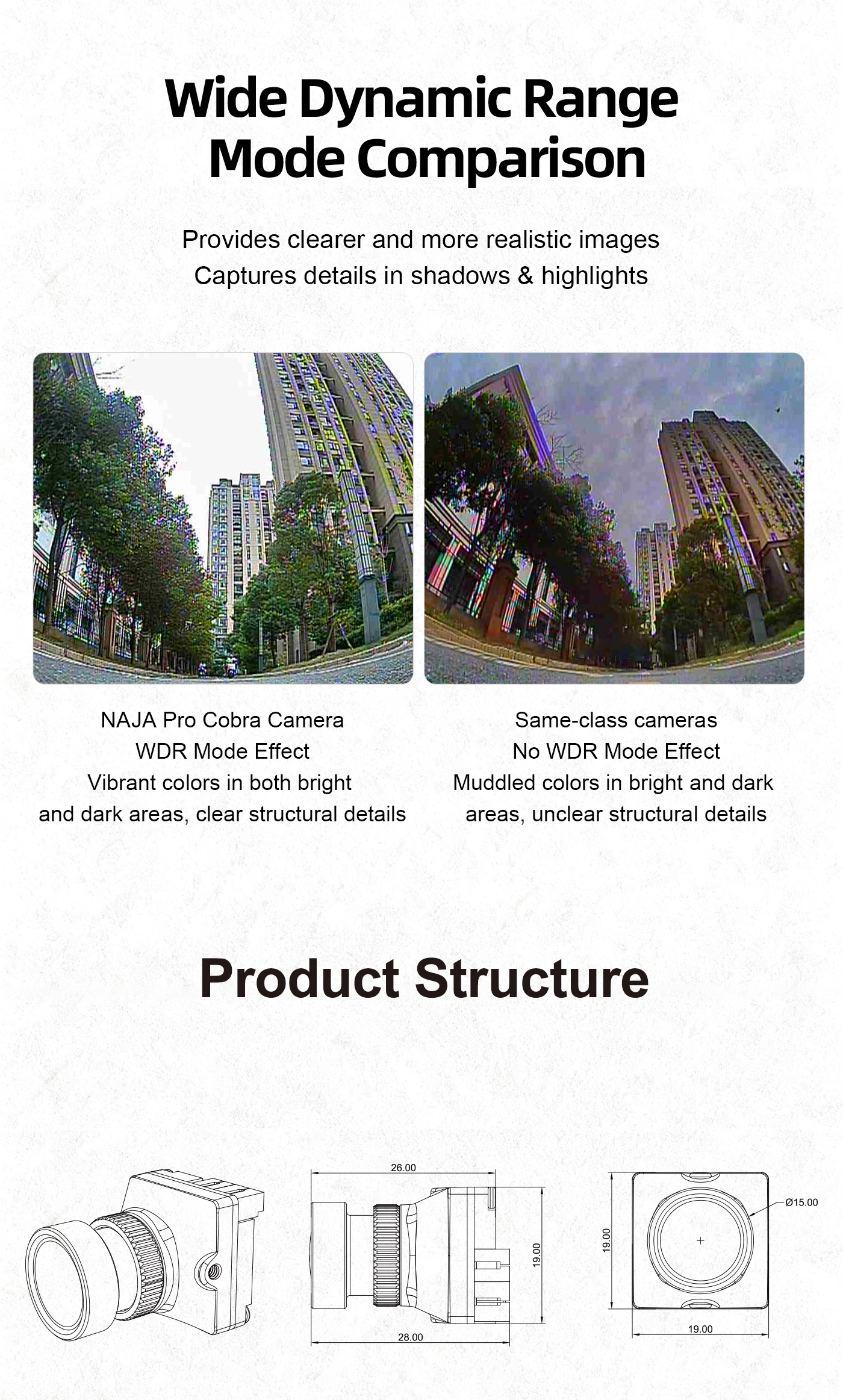

- Equipped with Super WDR (HDR) wide dynamic range, effectively suppresses glare and backlight, restores shadow and highlight details.
- 1500TVL high resolution with 125° super wide field of view, large view and stable picture for FPV control.
- Wide voltage input DC 5V–28V, compatible with 2S–6S battery systems, strong adaptability.
- Supports NTSC / PAL dual system, auto day/night mode, color/black-and-white switching.
- Built-in 3D-DNR digital noise reduction, effectively reduces image noise and improves picture clarity.

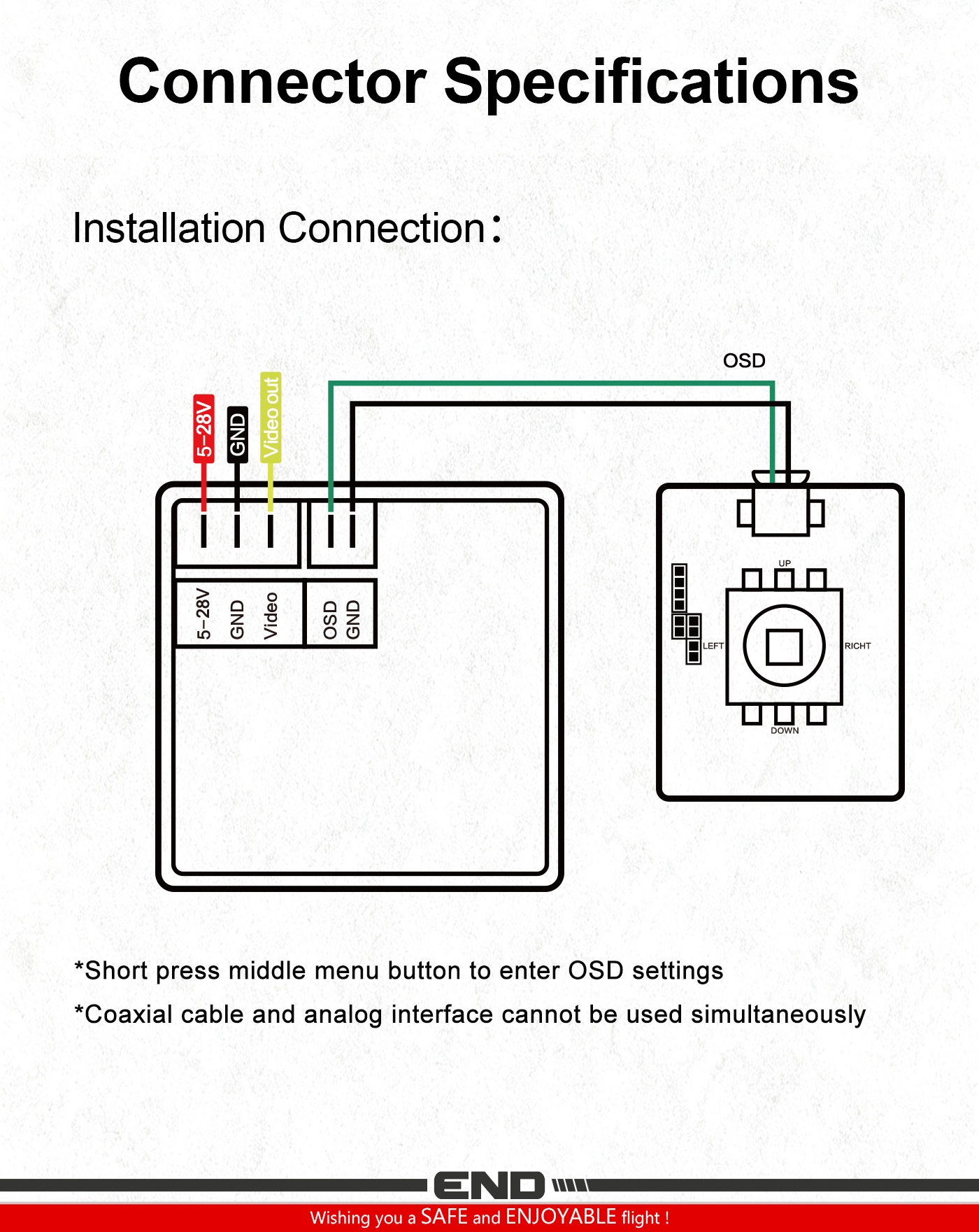

- Full-function OSD menu control, adjustable brightness, contrast, sharpness, saturation, white balance, etc.
- Compact size 19×19mm (M2), standard installation, compatible with most FPV frames.
- Light weight only 6.0g, suitable for small FPV drones and DIY builds.
Recommended configuration:
- Model: NAJA PRO 1500TVL FPV Camera
- Sensor: 1/1.8″
- Resolution: 1500TVL
- Minimum illumination: 0.00001 Lux
- FOV: 125°
- Lens: 2.8mm
- Video output: CVBS
- Video mode: NTSC & PAL
- WDR: Super WDR (HDR)
- DNR: 3D-DNR
- Power supply: DC 5V–28V
- Weight: 6.0g
- Dimensions: 19×19mm (M2)
- Operating temperature: -20°C ~ +70°C

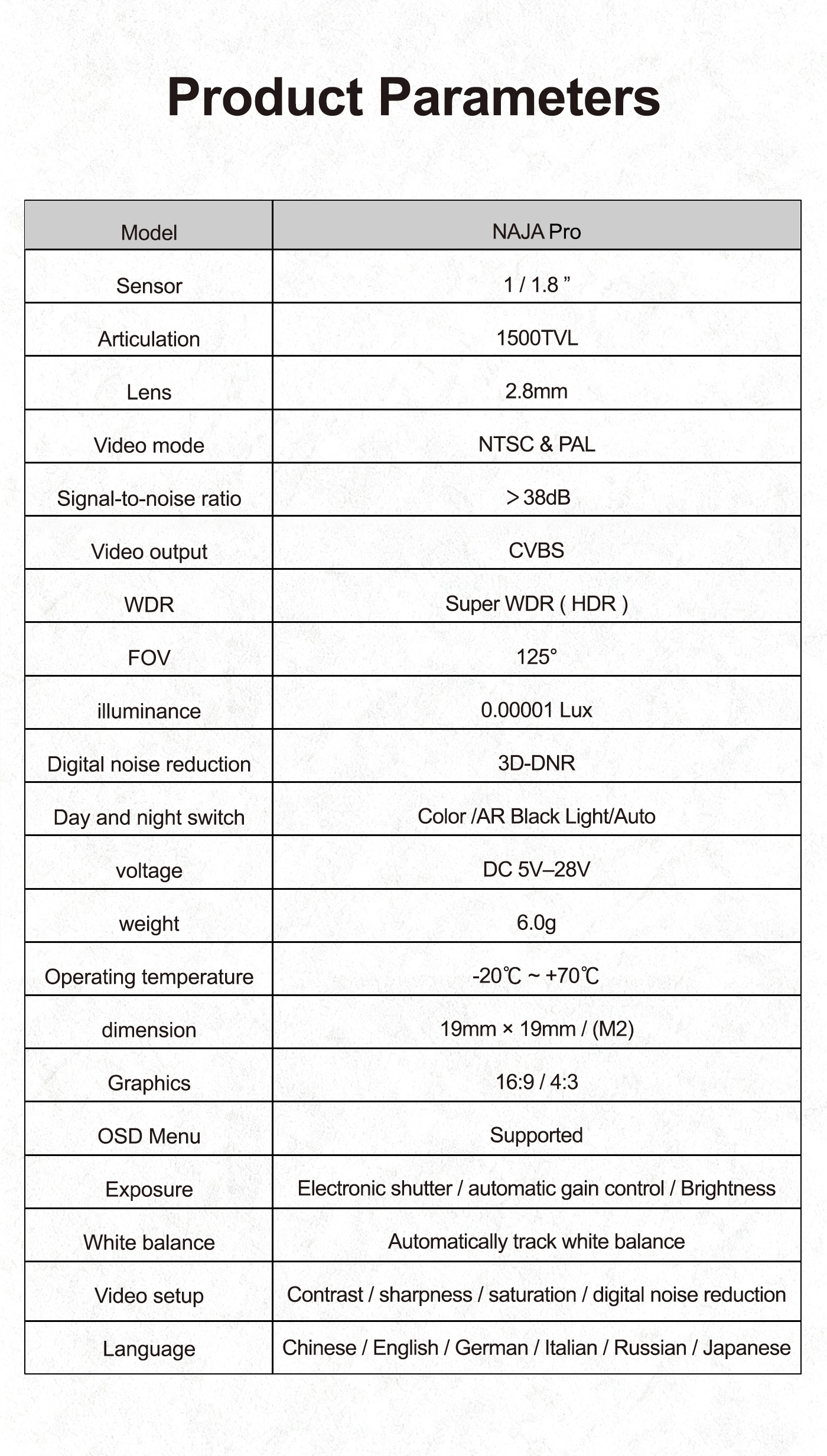

Specifications:
- Name: Axisflying 1500TVL FOV125° NAJA Camera
- Sensor: 1/1.8″
- Resolution: 1500TVL
- Signal-to-noise ratio: >38dB
- Video output: CVBS
- Video system: NTSC & PAL
- Lens: 2.8mm
- FOV: 125°
- Minimum illumination: 0.00001 Lux
- WDR: Super WDR (HDR)
- Digital noise reduction: 3D-DNR
- Day/night mode: Color / AR Black Light / Auto
- Image Aspect Ratio: 16:9 / 4:3 Switchable
- OSD menu: Supported
- Exposure: Electronic shutter / AGC / Brightness
- White balance: Auto tracking
- Language: CN, EN, DE, IT, RU, JP
- Power supply: DC 5V–28V
- Weight: 6.0g
- Dimensions: 19×19mm (M2)
- Operating temperature: -20°C ~ +70°C
Package Includes:
1xAxisflying NAJA PRO FPV Camera Module
