Arducam Pivariety 16MP IMX298 Color Motorized Focus Camera Module

Arducam Pivariety 16MP IMX298 Color Motorized Focus Camera Module

Description:

Looking for Imx298 Module? Arducam Pivariety 16MP IMX298 Color Motorized Focus Camera Module is available at Zbotic with fast shipping across India.

Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. Using Arducam Pivariety camera modules, users can get better performance and a wider variety of camera, and lens options. For a long time, Raspberry Pi users are limited to using the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide a well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Lens Shading Correction, etc.

Download Link:

1. First you need to do Hardware setup. You need to make the connections as shown in the link .
2. After hardware setup, it is time for Software setup. you need to install the kernel driver.  You need to follow the commands given in this link .
3. After installation of kernel driver, you need access  and program the pivariety  camera.  You need to follow the commands given in this link .

Applications:

1. UAV/Drones/FPV camera
2. Machine Vision
3. Robotics
4. IoT
5. Face Recognition
6. Defect Detection

Note: Raspberry pi is not included in this kit you have to buy it separately.

Features:

1. 16MP Sony IMX298 Exmor RS color sensor, up to 4640×[email protected] fps.
2. Auto Exposure, Auto White Balance.
3. Programmable focus control.
4. Gstreamer support.
5. Upcoming V4L2 support(Although the V4L2 interface is supported, only RAW format images can be obtained, without ISP support).
6. Compatible with all libcamera-based apps maintained by the RPi foundation.

Specifications:

• Sensor Type: 16MP IMX298
• Pixel Size: 1.12um x 1.12um
• Optical Size: 1/2.8”
• Active Pixels: 4656 H × 3496 V
• Lens Spec: Focal length: 4.04mm, F.NO: 2.0±5%, FOV: horizontal 62deg
• IR Sensitivity: Integral IR filter, visible light only
• Focus Type: Motorized focus, programmable focus control

Package Includes:

1 x Arducam 16MP IMX298 ISP Camera Module

1 x 150mm 22pin 1.0mm FPC cable

1 x 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable

1 x acrylic case kit with assembly accessories

About Imx298 Module

Arducam Pivariety 16MP IMX298 Color Motorized Focus Camera Module is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Arducam, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: Arducam
• SKU: AI1908
• Category: Arducam Cameras and Accessories

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Imx298 Module and other products.

Applications

Imx298 Module can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Imx298 Module today and start building.

Arducam Pivariety 16MP IMX298 Color Motorized Focus Camera Overview

The Arducam Pivariety 16MP IMX298 Color Motorized Focus Camera Module is a high-resolution camera solution designed for Raspberry Pi platforms. Featuring a Sony IMX298 sensor and programmable motorized focus, it delivers crisp color images and flexible focus control for diverse imaging projects.

Key Features of Arducam Pivariety 16MP IMX298 Color Motorized Focus Camera

• 16MP Sony IMX298 sensor with 4656 × 3496 active pixels for detailed imaging
• 1.12 µm pixel size and 1/2.8″ optical format for balanced sensitivity
• 4.04 mm focal length, F/2.0±5% aperture, and 62° horizontal field of view
• Integrated IR cut filter ensures accurate visible-light color reproduction
• Motorized focus mechanism with programmable control via I²C
• Optimized for Raspberry Pi using Pivariety ISP driver with AE, AWB, and lens shading correction
• Genuine product, fast shipping across India from Zbotic

Applications and Use Cases

• High-resolution photography and video capture on Raspberry Pi-based systems
• Machine vision and inspection in manufacturing lines
• Surveillance or security monitoring with adjustable focus
• Scientific imaging, microscopy, and wildlife observation
• Robotics vision for navigation and object detection
• Embedded projects such as smart doorbells or interactive kiosks

How to Use Arducam Pivariety 16MP IMX298 Color Motorized Focus Camera

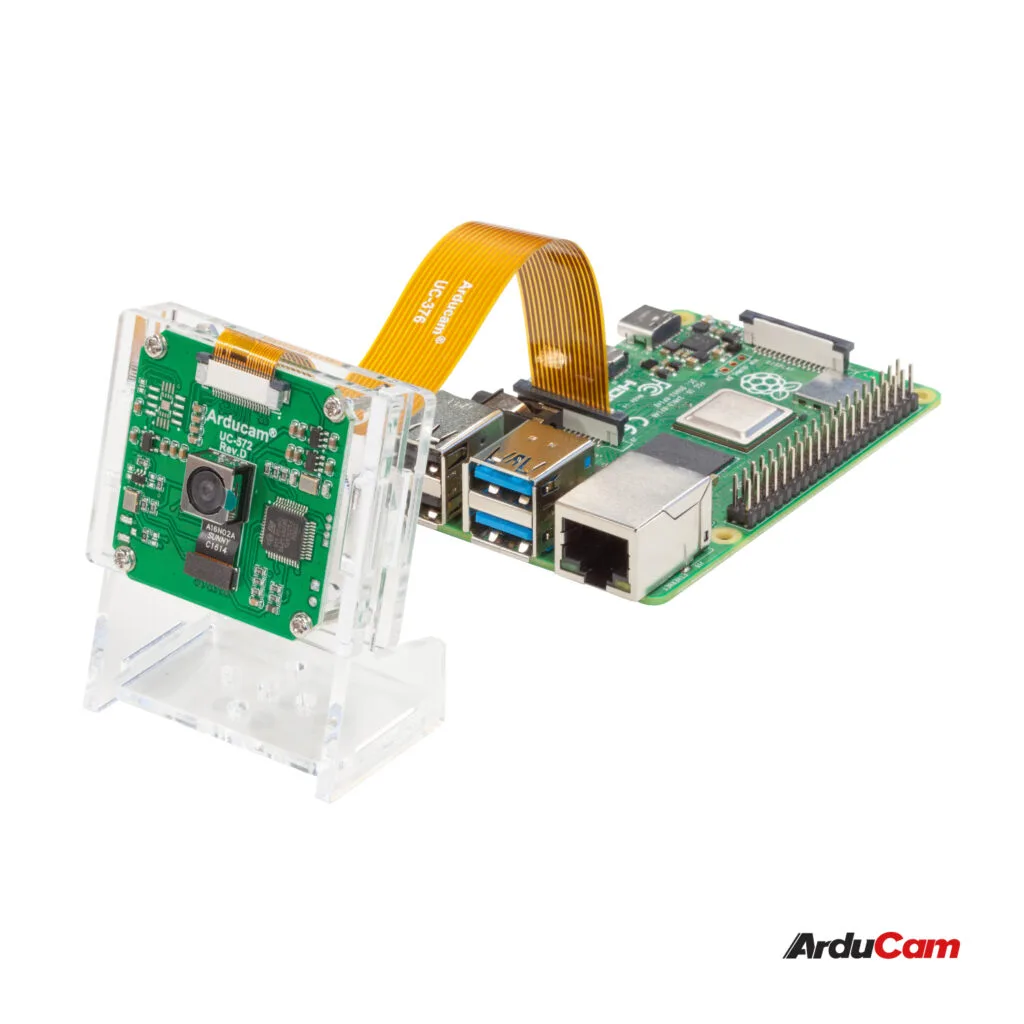

Connect the camera module to your Raspberry Pi’s CSI-2 port following Arducam’s hardware wiring guide, install the Pivariety driver from the Arducam GitHub repository, and enable the camera interface. Use the provided I²C commands or example scripts to adjust motorized focus, then capture images or video through standard Pi camera applications.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Is this camera compatible with all Raspberry Pi models?

Yes, the Pivariety IMX298 module works with Raspberry Pi 4, 3, 2, and Compute Module series via the CSI port. Ensure you enable the camera interface in raspi-config and install the Pivariety driver.

How do I control the motorized focus?

You can adjust focus using I²C commands provided in the Arducam Pivariety sample scripts. Install the I²C tools on your Pi, then send focus position values to the module’s I²C address to move the lens.

Can this camera capture infrared images?

No, the module includes an integral IR cut filter that blocks infrared light, making it suitable only for visible-light color imaging.
