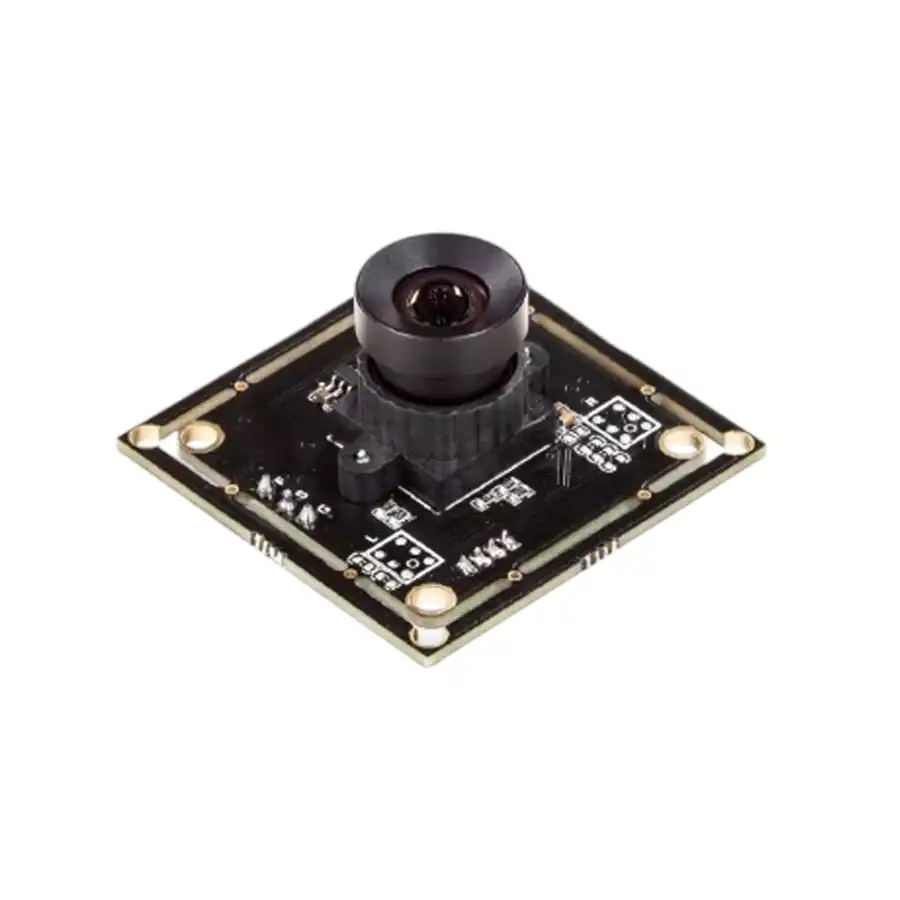

Arducam 120fps Global Shutter Color USB Camera Board, 1MP OV9782 UVC Webcam Module with Low Distortion M12 Lens Without Microphones

Looking for Ov9782 Module? Arducam 120fps Global Shutter Color USB Camera Board, 1MP OV9782 UVC Webcam Module with Low Distortion M12 Lens Without Microphones is available at Zbotic with fast shipping across India.

Arducam B0385 is a new member of Arducam’s USB camera family. It’s a 1MP, based on the 1/4″ color global shutter OV9782 image sensor, UVC compliant, low distortion USB 2.0 camera.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

The global shutter sensor’s excellent low-light sensitivity makes it shoot crisp sharp and accurate complete color images even for high-speed moving objects.

Applications:

1. Iris and face recognition
2. Astrophotography
3. Gesture and eye tracking
4. The depth and motion detection
5. Home video surveillance system

Features:

1. Based on 1MP color global shutter sensor OV9782, assembled with a 70°(H) low distortion M12 lens without IR pass filter, sensitive to IR.
2. Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras. Reserved external trigger ports, and support trigger via external signal.
3. Resolution: 1MP 1280H x 800V; Frame Rates: MJPG 120fps@1280 x 800/720P/800 x 600/640 x 480/320 x 240, 100fps@1280 x 800/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720.
4. Plug&Play: UVC-compliant, just connect the camera to a PC computer, laptop, Android device, or Raspberry Pi with the USB cable without extra drivers to be installed.

Specifications:

Camera:

1. Sensor: 1/4” OV9782
2. Resolution: 1MP 1280 x 800
3. Data Format: MJPG/YUY2
4. Frame Rate: MJPG 120fps@1280 x 800/720P/800 x 600/640 x 480/320 x 240, 100fps@1280 x 800/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720.

Lens:

1. Field of View (FOV): 70 degrees (H)
2. Lens Mount: M12
3. IR Sensitivity: IR filter, sensitive to Visible Light
4. Focusing Range: 3.3ft (1M) to infinity

Functionality and Compatibility:

1. Adjustable parameter: Exposure/ White Balance
2. System Compatibility: Win7/8/10, Linux, Mac, and OS with UVC driver

Power:

1. Power Supply: USB-powered 5V
2. Working Current: MAX 200mA

Physical:

1. Operating Temp.: -4°F~158°F (-20°C~+70°C).
2. Dimension: 38mmx38mm (Hole pitch compatible with 34mmx34mm, 28x28mm)
3. Cable Length: 3.3ft (1M)

Attachments:

Datasheet
Manual

Package Includes:

1 x 1MP OV9782 USB 2.0 camera board

1 x 3.3ft (1M) USB 2.0 cable

About Ov9782 Module

Arducam 120fps Global Shutter Color USB Camera Board, 1MP OV9782 UVC Webcam Module with Low Distortion M12 Lens Without Microphones is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Arducam, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: Arducam
• SKU: AI1868
• Category: Arducam Cameras and Accessories

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Ov9782 Module and other products.

Applications

Ov9782 Module can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Ov9782 Module today and start building.

About Ov9782 Module

Arducam 120fps Global Shutter Color USB Camera Board, 1MP OV9782 UVC Webcam Module with Low Distortion M12 Lens Without Microphones is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Arducam, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: Arducam
• SKU: AI1868
• Category: HMI LCD Display

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Ov9782 Module and other products.

Applications

Ov9782 Module can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Ov9782 Module today and start building.

Arducam 120fps Global Shutter Color USB Camera Board, 1MP Overview

The Arducam 120fps Global Shutter Color USB Camera Board is a UVC-compliant 1MP webcam module based on the 1/4″ OV9782 sensor. It delivers distortion-free, full-color imaging at high frame rates for applications requiring precise capture of fast-moving scenes.

Key Features of Arducam 120fps Global Shutter Color USB Camera Board, 1MP

• 1MP resolution (1280 × 800) with OV9782 global shutter for motion-free imaging
• High-speed MJPG output up to 120fps and YUY2 up to 10fps at full resolution
• Low-distortion M12 lens mount for sharp field-of-view and easy focus adjustment
• Native UVC support on Windows, Linux, and Mac—no driver installation required
• USB 2.0 interface for plug-and-play connectivity and power
• Fast shipping from Zbotic across India with genuine Arducam products

Applications and Use Cases

• Iris and face recognition systems needing accurate motion capture
• Industrial inspection of fast-moving production lines
• Robotics vision for high-speed navigation and object tracking
• Scientific experiments requiring global shutter imaging
• Sports analysis where detailed frame-by-frame playback is critical

How to Use Arducam 120fps Global Shutter Color USB Camera Board, 1MP

Simply mount the M12 lens, connect the camera board to a USB 2.0 port on a UVC-compatible host, and select the desired MJPG or YUY2 format in your application. Adjust the lens focus by rotating the M12 thread, then configure resolution and frame rate in your software to begin capture.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Do I need to install custom drivers for this camera?

No. The Arducam OV9782 module is UVC-compliant and uses native drivers on Windows, Linux, and Mac, so no additional driver installation is necessary.

What video formats and frame rates does this camera support?

This camera outputs MJPG at up to 120fps for resolutions from 320×240 up to 1280×800, and YUY2 at up to 10fps at full resolution or 720p.

Can I capture high-speed objects in low-light conditions?

Yes. The global shutter design and high sensitivity of the OV9782 sensor provide crisp, color-accurate images even under challenging lighting when tracking fast-moving subjects.
