PRODUCT DESCRIPTION

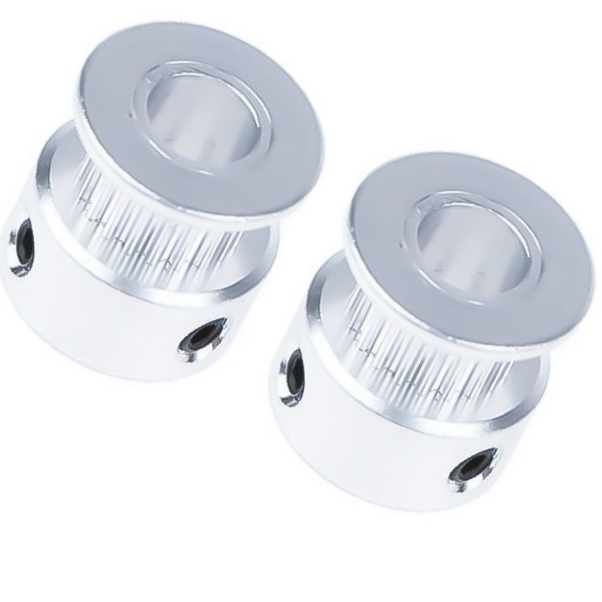

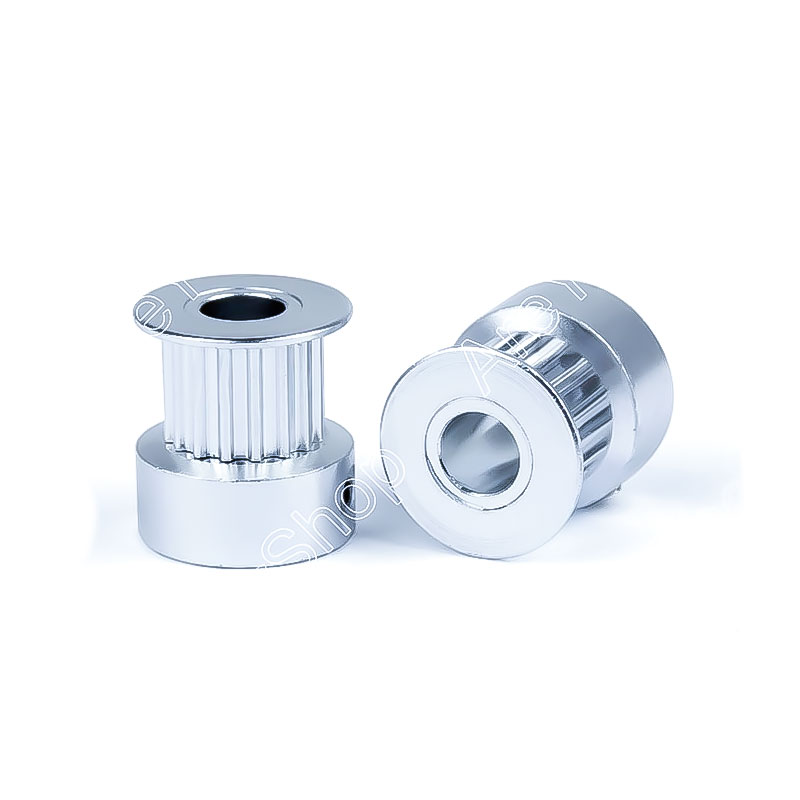

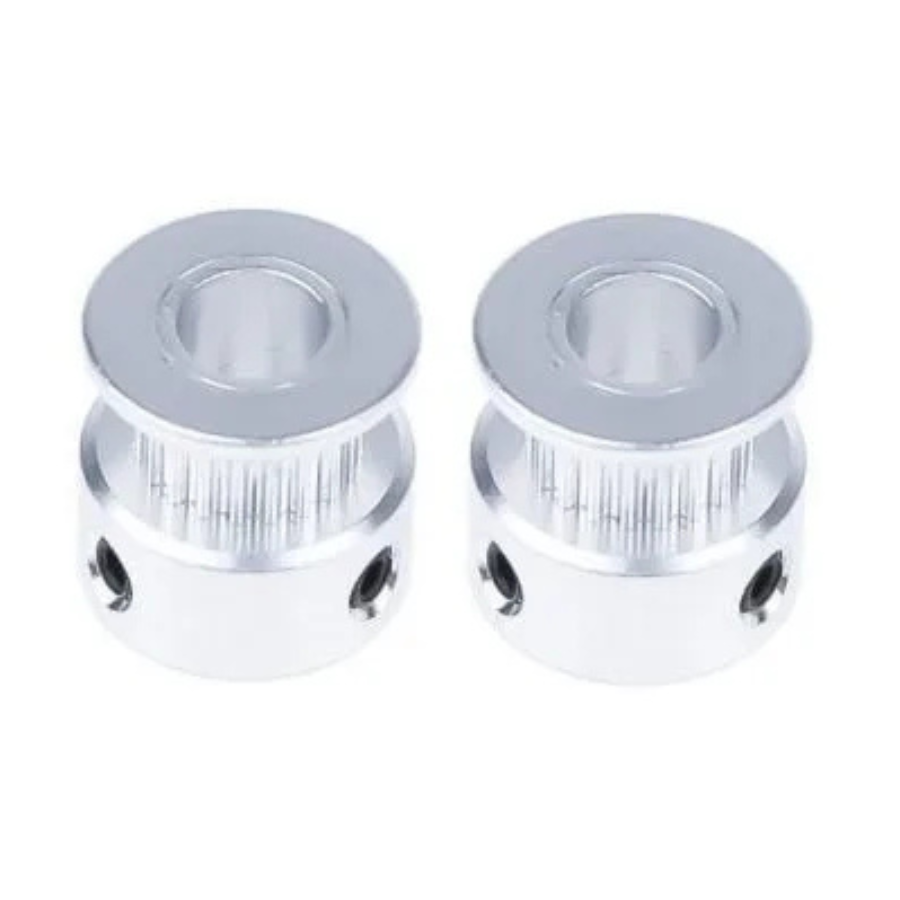

This is Aluminum GT2 Timing Pulley 16 Tooth 5mm Bore For 6mm Belt. For precise motion control, GT2 belts and pulleys offer excellent precision at a great price. This pulley is meant for use with GT2 6mm wide belts only – MXL belts will slip due to the different tooth profiles.
This pulley has 16 teeth and a 5mm inner bore. Two set screws can be used to attach it firmly to any 5mm diameter shaft. Full aluminum construction means these are very light and very durable.
Note: As this Pulley has two grub fitting, it comes with 0.4 to 0.7 mm tolerance for the differential motor shaft. It will loose fit the 5 mm shaft without grub fitting. Please note before buy.
Specification:
| Material | Aluminium |
|---|---|
| Inner Diameter (ID) (mm) | 5 |
| Outer Diameter (OD)(mm) | 13 |
| Compatible With | M4x4 |
| No. of teeth | 16 |
| Width (mm) | 14 |
| Weight (gm) | 6 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 4 × 1 cm |
Package Includes :
2 x Aluminum GT2 Timing Pulley 16 Tooth 5mm Bore For 6mm Belt
4 x (M4x4mm)grub screws (fitted inside timing pulley)
