AI VisionCube Max Plus FPV Drone Target Tracking & Lock Guidance Module – (Max +single Visible Light +Single Thermal imaging)
Description:
The AI VisionCube Max Plus is a next-generation FPV drone target tracking and lock guidance module featuring an advanced Max +single Visible Light +Single Thermal imaging Designed for professional UAV applications, it combines high-definition visible-spectrum imaging with powerful thermal sensing technology to deliver exceptional target detection, identification, and tracking performance in all lighting and environmental conditions.
Its compact and lightweight design allows seamless integration with FPV drones, surveillance UAVs, and custom aerial platforms. The system is optimized for intelligence, surveillance, reconnaissance (ISR), search and rescue, security monitoring, industrial inspection, and mission-critical operations requiring precise target acquisition and guidance support.
Specifications:
| Specification | AI VisionCube ST |
|---|---|
| Recognition Mode | Air-to-Ground Recognition |
| Default AI Targets | Human, Vehicle |
| Minimum Target Size | 16 × 16 pixels |
| Maximum Tracking Speed | 80 km/h |
| Maximum Simultaneous Targets | 50 |
| Trajectory Prediction | Supported |
| Feature Memory Tracking | Supported |
| Crosshair Fuzzy Locking | Supported (close-range adhesive tracking) |
| Video Transmission (VTX) | Analog |
| Communication Interface | Analog |
| Recommended FPV Drone Size | 7 inches or larger |
| Recognition Distance (Vehicle) | 450 m |
| Recognition Distance (Human) | 170 m |
| AI Image Processing Board | Included |
| Visible Camera | Long Focus |
| Thermal Camera | Optional (depending on configuration) |
AI Image Processing Board:
| Parameter | Specification |
|---|---|
| AI Computing Power | 1 TOPS |
| Communication Protocol | CRSF |
| Flight Controller Compatibility | BetaFlight |
| Operating Voltage | 9–16 V DC |
| Mounting Hole Pattern | 25.5 × 25.5 mm |
| Module Dimensions (L × W × H) | 38 × 38 × 29 mm |
| Weight | 43.8 g |
Thermal Camera:
| Parameter | Specification |
|---|---|
| Thermal Image Resolution / Frame Rate | 384 × 288 @ 25 Hz |
| Pixel Pitch | 12 μm |
| Lens Focal Length | 9.1 mm |
| Field of View (FOV) | 20.3° (H) × 15.2° (V) |
| Spectral Range | 8–14 μm (LWIR) |
| Module Dimensions (L × W × H) | 26 × 26 × 32.85 mm |
| Weight | 32.4 g |
| Interface | USB |
Features:
- Advanced AI-powered target identification and classification
- Ultra Dual Visible-Light imaging system for enhanced situational awareness
- High-performance thermal sensor for day/night operations
- Automatic target acquisition, lock, and tracking
- Multi-spectrum image fusion technology
- Low-latency real-time processing architecture
- Stable target tracking during rapid FPV maneuvers
- Supports long-range surveillance and reconnaissance missions
- Optimized for security, defense, industrial inspection, and emergency response applications
- High reliability and mission-ready performance for professional UAV platform

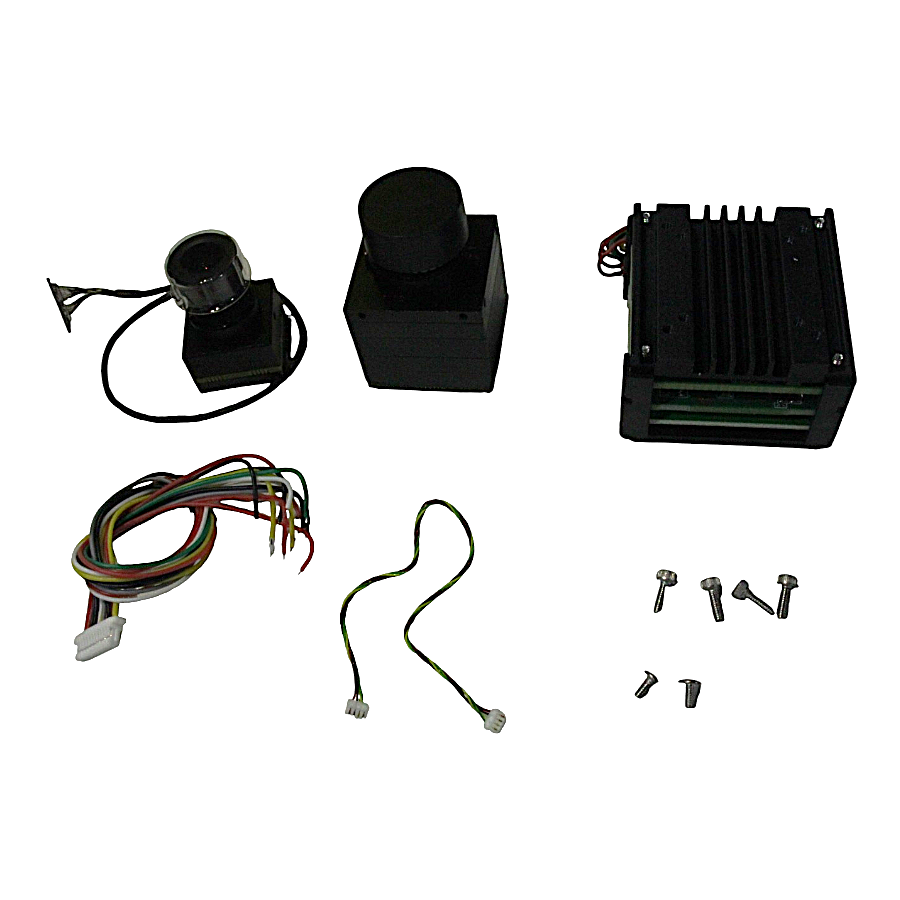

Package Includes:
Package Includes:
1xAI VisionCube Max Plus FPV Drone Target Tracking & Lock Guidance Module – (Max +single Visible Light +Single Thermal imaging)
Technical Specifications
| Interface / Protocol | BLE |
|---|---|
| SKU | AI8270 |
| Availability | In Stock |
Applications & Use Cases
The AI VisionCube Max Plus FPV Drone Target Tracking & Lock Guidance Module – (Max +single Visible Light +Single Thermal imaging) is a versatile fpv cameras used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
