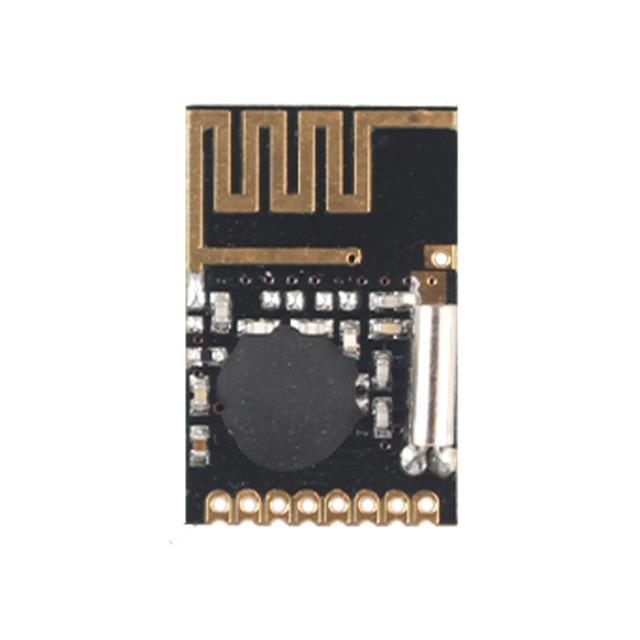

Ai Thinker NF-04 Wireless Transceiver Module

Looking for Nf-04 Module? Ai Thinker NF-04 Wireless Transceiver Module is available at Zbotic with fast shipping across India.

The NF-04-MI is a 2.5 mW power wireless transceiver with an integrated 2.4G module and an embedded BK2425 RF chip. It comes in DIP-8 packages for quick docking with existing products, offers a medium altitude rate of up to 2 Mbps, and utilizes an SPI interface. With high stability and an excellent performance-price ratio, the NF-04-MI is ideal for various Internet of Things applications. It is commonly used in wireless mice, remote controls, somatosensory devices, active RFID, NFC, and low-power ad hoc wireless sensor nodes.

Specification-

– RF Chip: BK2425
– Module Size: 18.0*12.0 mm (±0.2 mm)
– Modulation Mode: GFSK (Gaussian Frequency Shift Keying)
– Package: SMD-8
– Interface: Four-wire SPI, maximum rate ≤ 10 Mbps
– Transmission Power: Max 4 dBm (refer to datasheet for more)
– RSSI Support: Not supported, simple packet loss count available
– Operating Frequency: 2.4GHz ~ 2.525GHz, adjustable by 1MHz
– Voltage Range: 1.9 ~ 3.6V (typical 3.3V; excessive voltage can damage the module)
– Data Rate Support: 2Mbps/1Mbps/250Kbps (refer to datasheet for more)
– Channels: 128 RF channels, 1MHz separation
– Test Range: 120m in clear conditions, with maximum transmit power
– Receiving Sensitivity: -96dBm at 250Kbps (refer to datasheet for more)
– Antenna Interface: On-board PCB antenna, 50Ω characteristic impedance
– Emission Length: Single packet 1~32 bytes, 3-class FIFO
– Reception Length: Single packet 1~32 bytes, 3-class FIFO

Package Include –

1 X Ai Thinker NF-04 Wireless Transceiver Module

Ai Thinker NF-04 Wireless Transceiver Module Overview

The Ai Thinker NF-04 Wireless Transceiver Module is a compact 2.4 GHz GFSK radio unit based on the BK2425 chip, designed for bidirectional low-power data links. With an SMD-8 footprint and SPI interface, it integrates easily into embedded systems requiring reliable short-range wireless communication.

Key Features of Ai Thinker NF-04 Wireless Transceiver Module

• Embedded BK2425 RF chip for stable 2.4 GHz transmission
• Gaussian Frequency Shift Keying (GFSK) modulation for noise-resilient links
• Four-wire SPI interface (≤10 Mbps) for fast host communication
• Adjustable frequency range from 2.400 GHz to 2.525 GHz in 1 MHz steps
• Up to +4 dBm output power for extended range in compact form
• Simple packet-loss count monitoring (RSSI not supported)
• Compact 18 × 12 mm SMD-8 package for tight PCB layouts
• Genuine product with fast shipping from Zbotic across India

Applications and Use Cases

• Wireless mice and remote-control peripherals
• DIY remote keyless entry systems for hobby electronics
• Active RFID and NFC extension modules
• Short-range wireless sensor nodes in automation projects
• Somatosensory controller links in interactive devices
• Custom data-logger telemetry for robotics and drones

How to Use Ai Thinker NF-04 Wireless Transceiver Module

To deploy the NF-04, solder it onto your PCB or mount it on a compatible breakout board, then wire VCC, GND and the SPI lines (MOSI, MISO, SCK, CSN/CE) to your microcontroller. Configure the BK2425 registers via SPI to select your desired channel (2.4–2.525 GHz), data rate (up to 2 Mbps RF, 10 Mbps SPI) and transmission power. Implement simple packet framing routines in firmware to send and receive data, and monitor packet loss counters for link quality.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What wireless data rate does the NF-04 support?

The module achieves up to 2 Mbps RF throughput using GFSK modulation, while its SPI host interface can handle up to 10 Mbps for register access and data transfer.

Can I read signal strength (RSSI) on this module?

No, the NF-04 does not support RSSI measurement. It provides a simple packet-loss counter to help you gauge link reliability.

How do I set the operating frequency?

You program the operating channel in 1 MHz increments between 2.400 GHz and 2.525 GHz via SPI register writes. Refer to the BK2425 register map in the datasheet for exact commands.
