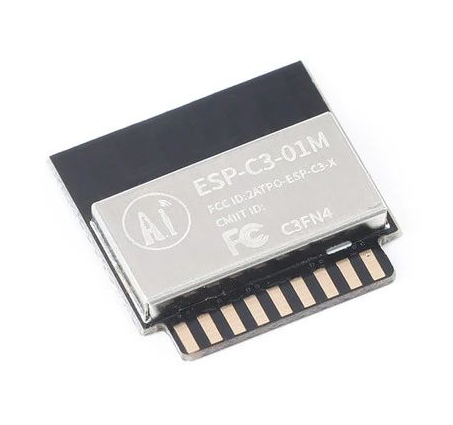

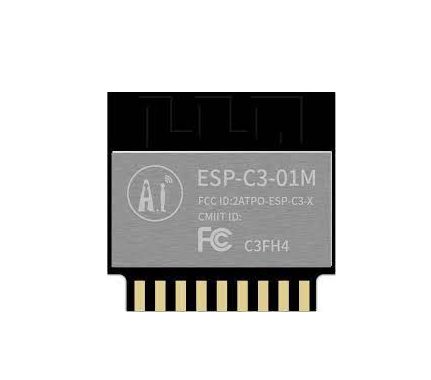

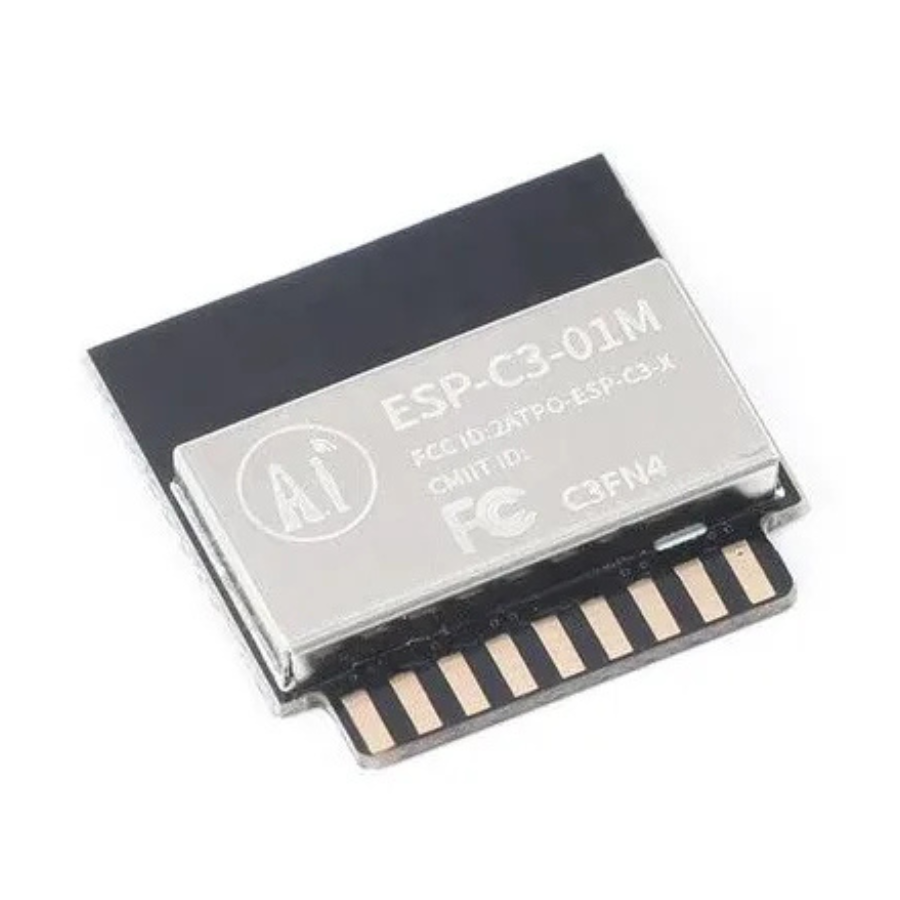

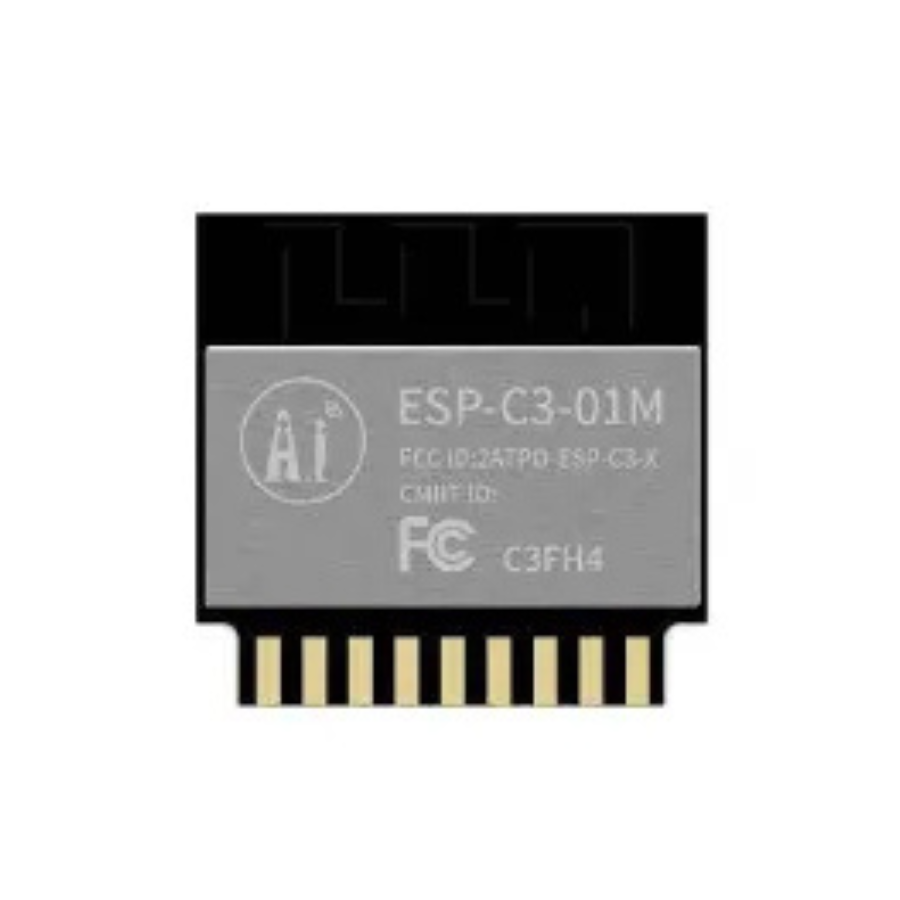

Ai Thinker ESP32-C3-01M Wi-Fi + BLE Module

Introducing the Ai Thinker ESP32-C3-01M Wi-Fi + BLE Module, a cutting-edge solution designed to revolutionize connectivity in IoT applications. This module, part of the ESP32-C3-01M series, boasts a powerful 32-bit RISC-V single-core processor running at up to 160 MHz. With its integrated Wi-Fi and Bluetooth capabilities, it serves as a versatile system-on-chip (SoC) suitable for a wide range of applications, including IoT devices, mobile gadgets, wearables, and smart home appliances.

Featuring support for Wi-Fi IEEE 802.11b/g/n protocol and BLE 5.0 protocol stack, this module operates exclusively on the 2.4 GHz frequency band, ensuring reliable wireless communication. It comes equipped with 400 KB SRAM, 384 KB ROM, and 8 KB RTC SRAM, along with a built-in 4 MB Flash memory, with additional support for external Flash storage. This ample memory and storage capacity, combined with various low-power working states, enable efficient operation tailored to diverse application scenarios.

The ESP32-C3-01M module incorporates advanced features such as fine clock gating, dynamic voltage clock frequency adjustment, and adjustable RF output power, allowing for optimized communication range, speed, and power consumption. Its rich array of peripheral interfaces—including UART, PWM, SPI, I2S, I2C, and ADC—ensures seamless integration with a wide range of sensors and devices.

Furthermore, this module supports low-power Bluetooth features such as Bluetooth 5, Bluetooth mesh, and multiple data rates (125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps), providing flexibility and efficiency in wireless communication. With additional support for broadcast extension, multi-broadcasting, and channel selection, it offers enhanced functionality and performance in Bluetooth-enabled applications.

Experience the future of connectivity with the Ai Thinker ESP32-C3-01M Wi-Fi + BLE Module, and unlock endless possibilities for innovation in IoT and beyond.

Features:

1. Complete Wi-Fi 802.11b/g/n，1T1R mode data rate up to 150Mbps
2. Support BLE5.0 and rate support：125Kbps，500Kbps，1Mbps,2Mbps
3. 32-bit RISC-V single-core processor, supports a clock frequency of up to 160 MHz, with 400 KB SRAM，384 KB
4. ROM，8KB RTC SRAM
5. Support UART/PWM/GPIO/ADC/I2C/I2S interface, temperature sensor, pulse counter
6. SMD-22 package
7. Support multiple sleep modes, deep sleep electric current is less than 5uA
8. UART rate up to 5Mbps
9. Support STA/AP/STA+AP mode and mix mode
10. Support Smart Config (APP)/AirKiss (WeChat) of Android and IOS One-click network
11. configuration
12. Support UART port local upgrade and remote firmware upgrade (FOTA)
13. General AT commands can be better understand
14. Support secondary development, integrated Linux development environment
15. About Flash configuration
16. Acquiesce in using the built-in 4MByte Flash.

Specifications:

Datasheet:

Package Includes:

1 x Ai Thinker ESP32-C3-01M Wi-Fi + BLE Module

Ai Thinker ESP32-C3-01M Wi-Fi + BLE Module Overview

The Ai Thinker ESP32-C3-01M is a compact DIP-18 system-on-chip module combining IEEE 802.11b/g/n Wi-Fi and Bluetooth 5.0 Low Energy. Powered by a 32-bit RISC-V core at up to 160 MHz, it delivers robust wireless connectivity and versatile I/O for IoT devices, wearables, and smart home applications.

Key Features of Ai Thinker ESP32-C3-01M Wi-Fi + BLE Module

• On-board PCB antenna for reliable 2.4 GHz Wi-Fi (2400–2483.5 MHz) and BLE 5.0 links
• 32-bit RISC-V single-core CPU running at up to 160 MHz
• DIP-18 package (18 × 18 × 2.8 mm) for easy breadboard prototyping
• Rich interfaces: UART, GPIO, ADC, PWM, I2C and I2S
• 4 MByte SPI flash pre-installed for firmware and data storage
• Embedded security with WEP, WPA-PSK and WPA2-PSK support
• Wide operating range (–40 °C to 85 °C) and 3.0–3.6 V power supply
• Fast shipping across India from Zbotic

Applications and Use Cases

• IoT sensor nodes with remote data collection over Wi-Fi
• Bluetooth Low Energy beacons and proximity trackers
• Smart home controllers for lighting, HVAC and security systems
• Wearable health monitors with BLE connectivity to smartphones
• Industrial automation modules requiring robust wireless links
• Quick prototyping on breadboards or custom PCBs using DIP-18 format

How to Use Ai Thinker ESP32-C3-01M Wi-Fi + BLE Module

Begin by soldering or placing the DIP-18 module onto a compatible breakout or breadboard. Provide a regulated 3.3 V supply capable of at least 500 mA. Connect the UART TX/RX pins to your USB-to-serial adapter and use the ESP-IDF or Arduino IDE to flash firmware. Leverage the GPIO, ADC, PWM and I2C/I2S interfaces in your code to integrate sensors, actuators and wireless functions.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which protocols are supported by the ESP32-C3-01M?

The module supports IEEE 802.11b/g/n Wi-Fi in the 2.4 GHz band and Bluetooth 5.0 Low Energy for BLE communication.

How do I program the ESP32-C3-01M module?

You can program it via its UART interface using the Espressif ESP-IDF framework or the Arduino core for ESP32. Connect TX/RX lines to a USB-to-serial adapter, put the module in bootloader mode, and upload your firmware.

What voltage and temperature ranges does it handle?

The module operates from 3.0 V to 3.6 V DC and is rated for –40 °C to 85 °C ambient temperature, making it suitable for indoor and industrial environments.
