Ai-Thinker Ai-WB2-13 Kit

Ai Thinker Kit – Description:

Ai WB2 13 Kit is a development board designed for Ai WB2 13 modules. Ai WB2 13 is a Wi Fi & Bluetooth module developed by Shenzhen Ai Thinker Technology Co., Ltd. The module is equipped with BL602 chip as the core processor and supports Wi Fi 802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip has a built in 32 bit RISC CPU with low power consumption, 276KB RAM, and a wide range of peripheral interfaces, including SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR, and GPIO. It can be widely used in Internet of Things (IoT), mobile devices, wearable electronic devices, smart home and other fields

Features:

1. DIP 30 package
2. Supports IEEE 802.11 B/g/n protocol
3. Wi Fi security supports WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
4. Supports 20MHz bandwidth with a maximum speed of 72.2 Mbps
5. Bluetooth BLE 5.0, Bluetooth Mesh
6. Supports Station + BLE mode, Station + SoftAP + BLE mode
7. Supports 32 bit RISC CPU and 276KB RAM.
8. Secure Startup. Images with ECC 256 signatures are supported.
9. Supports real time AES decryption (OTFAD) in QSPI and SPI Flash, and supports AES 128 CTR mode
10. Supports AES 128, 192, and 256 bit encryption engines
11. Supports SHA 1/224/256
12. Real random number generator (TRNG)
13. The public key accelerator (PKA) supports large numbers of basic operations. The software provides application interfaces such as signature and verification
14. Supports SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR, and GPIO
15. Integrated Wi Fi MAC/BB/RF/PA/LNA/Bluetooth
16. Supports multiple sleep modes with a deep sleep current of 12μA
17. Quick Start of universal AT commands
18. Supports secondary development and integrates Windows and Linux development environments

Specifications:

1. Model: Ai WB2 13Kit
2. Package: DIP 30

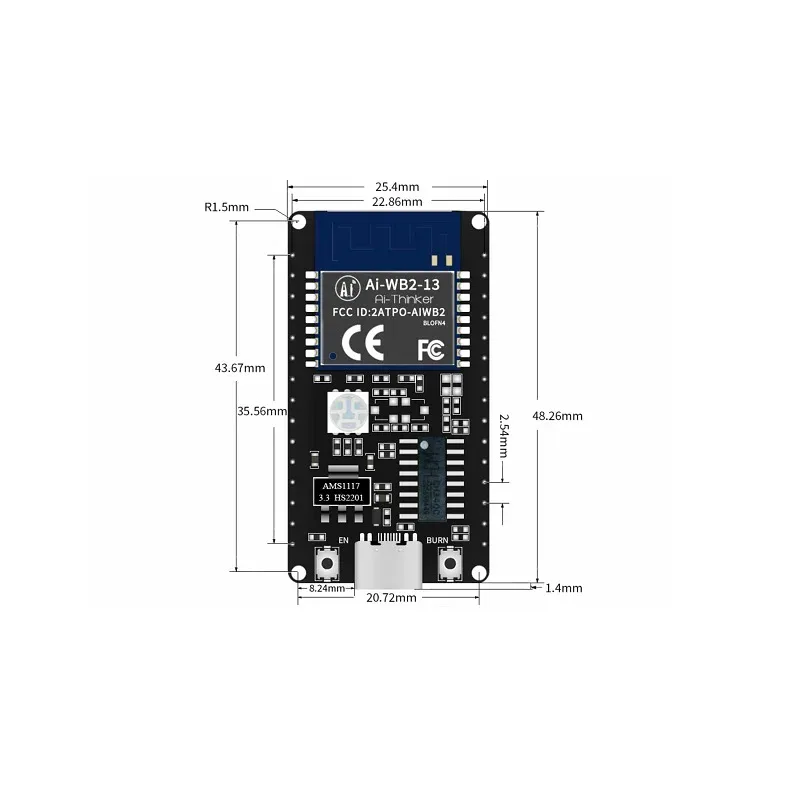

3. Size: 49.66*25.40(±0.2)mm
4. Antenna On Board: PCB antenna
5. Frequency: 2400 ~ 2483.5MHz
6. Operation temperature: 40℃ ~ 85℃
7. Storage environment: 40℃ ~ 125℃, < 90%RH
8. Power supply Support voltage: 3.3V or 5V
9. Power supply current: ≥500mA
10. Interfaces: UART/GPIO/ADC/PWM/I2C/SPI
11. I/O: 11
12. UART rate: Default value: 115200 bps
13. Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
14. Flash: Default: 4MByte

Datasheet:

Package Includes:

1 x Ai-Thinker Ai-WB2-13 Kit

Ai-Thinker Ai-WB2-13 Kit Overview

The Ai-Thinker Ai-WB2-13 Kit is a compact development board built around the Ai WB2-13 Wi-Fi & Bluetooth module. It combines the BL602 32-bit RISC CPU with onboard PCB antenna and multiple peripheral interfaces, making it ideal for rapid prototyping of wireless IoT and smart home applications.

Key Features of Ai-Thinker Ai-WB2-13 Kit

• Integrated BL602 chip with 32-bit RISC core and 276 KB RAM for efficient processing
• Supports Wi-Fi 802.11b/g/n (2.4 GHz) and Bluetooth Low Energy 5.0
• Rich peripheral set: SDIO, SPI, UART, PWM, ADC, DAC, GPIO, IR remote and PIR
• Compact DIP-30 form factor (49.66 × 25.40 mm) with onboard PCB antenna
• Low-power operation suitable for battery-powered designs
• Genuine product and fast shipping from Zbotic across India

Applications and Use Cases

• Smart lighting controllers with Wi-Fi and BLE connectivity
• Environmental monitoring stations using onboard ADC and PIR sensors
• Wearable health trackers combining low power and Bluetooth communication
• Home security devices with IR remote and wireless alerts
• Custom wireless sensor nodes for industrial IoT networks
• Prototype gateways for connecting legacy sensors to cloud services

How to Use Ai-Thinker Ai-WB2-13 Kit

Begin by mounting the Ai-WB2-13 module onto the DIP-30 sockets, then connect the board’s UART pins to a USB-to-serial adapter for programming. Install the BL602 SDK on your development PC, write or import sample code, and flash firmware via the serial interface. Configure Wi-Fi credentials and BLE parameters in your application, then integrate external sensors or actuators through the available GPIO, ADC, SPI or I²C pins.
