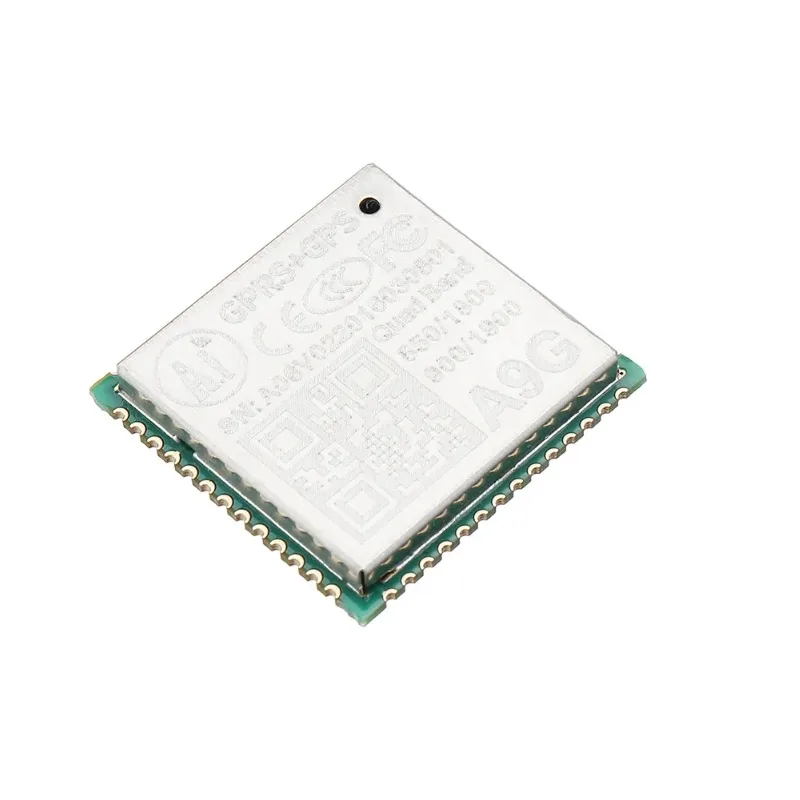

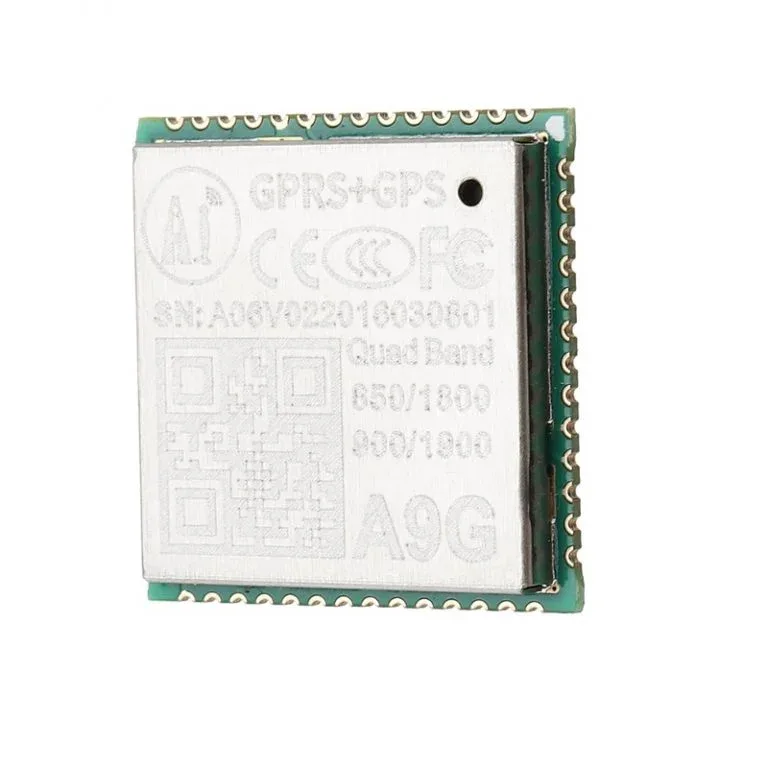

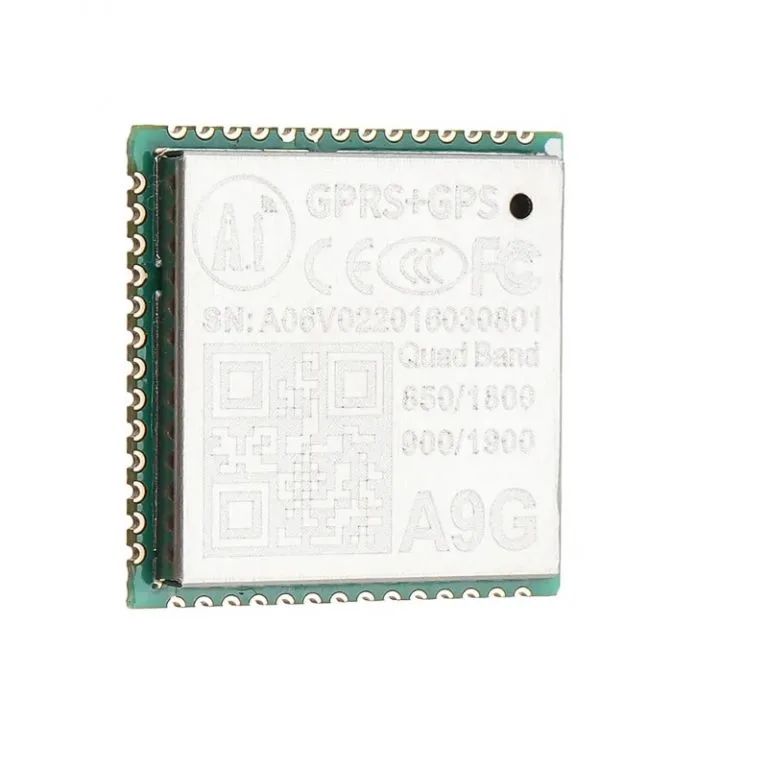

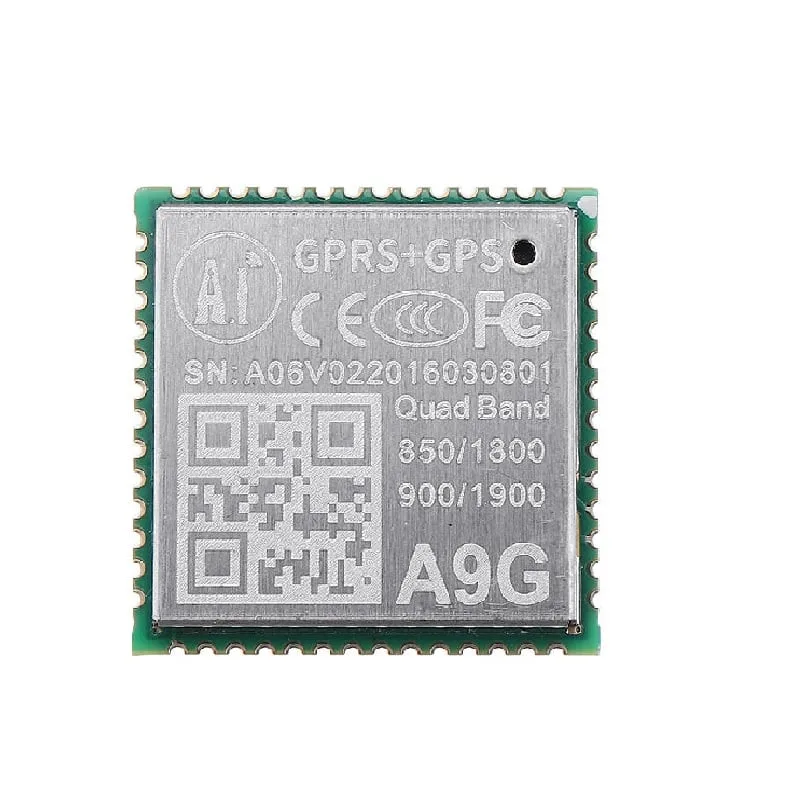

The Ai Thinker A9G GPRS Series Module is a compact SMD package that combines a quad-band GSM/GPRS module with GPRS and GPS/AGPS technologies. It is suitable for various IoT applications, such as home automation, industrial wireless control, wearable electronics, wireless location-aware devices, wireless positioning system signals, and other IoT applications. It offers an ideal solution for IoT applications.
The A9G uses an SMD package that can be quickly produced by standard SMT equipment. It is designed for modern, large-scale, low-cost production methods and is convenient for different IoT hardware terminal applications. Compared to the previous generation A6/A7, the A9/A9G has higher integration and lower core chip cost, which makes the whole solution more cost-effective.
- Complete quad-band GSM / GPRS module, 850/900/1800 / 1900MHz
- SMD package for easy MP & testing
- Working temperature -30 ° C 80 ° C;
- GPRS Class 10
- Sensitivity <-105
- GPIO level is 2.8V
- Low power mode, average current 2mA or less
- support GPS, BD.
- Supports digital audio and analog audio, supports HR, FR, EFR, AMR voice coding
- Support voice calls and SMS messages
- Embedded network service protocol stack
- Support standard GSM07.07,07.05AT command and Anxin expandable command set
- Support PBCCH
- Supports firmware upgrade via serial port
Specification:
| Model Name | A9G |
|---|---|
| Package | SMD54 |
| Frequency | 850/900/1800/1900MHz |
| GPRS Multi-slot | Class 12 |
| GPRS Mobile Station | Class B |
| Power supply | 3.5~4.2V typical value 4.0V |
| Current | 1.14mA@DRX=5 1.03mA@DRX=9 |
| AT command | 3GPP TS 27.007, 27.005 |
| Coding scheme | CS 1,2, 3, 4 |
| PBCCH | Support |
| Audio processing mechanism | Echo Cancellation, Echo suppression, Noise suppression |
| SIM Card | 1.8V/3V |
| UART | 3 pcs ( including firmware upgrade serial port ), baud rate support 2400~1843200bps, default 115200bps |
| Antenna | Pad (include GSM, GPS) |
| Communication Interface | I2C,USB,UART,SDMMC,GPIO,ADC |
| GPS boot time | Cold start < 27.5s Hot start < 1s Recapture < 1s |
| GPS Sensitivity | Cold start: -148 dBm Hot start: -162 dBm Recapture: -164dBm Tracking: -166 dBm |
| GPS accuracy | Horizontal positioning accuracy:2.5m High positioning accuracy:3.5m |
| Working temperature | -20°C ~ +75°C |
| Length (mm) | 19.2 |
| Width (mm) | 18.8 |
| Height (mm) | 2.5 |
| Weight (gm) | 3 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 8 × 5 × 1 cm |
Package includes:
1 x Ai Thinker A9G GPRS Series Module
