ADTi 61MP 61PRO Surveyor Drone Mapping Cameras

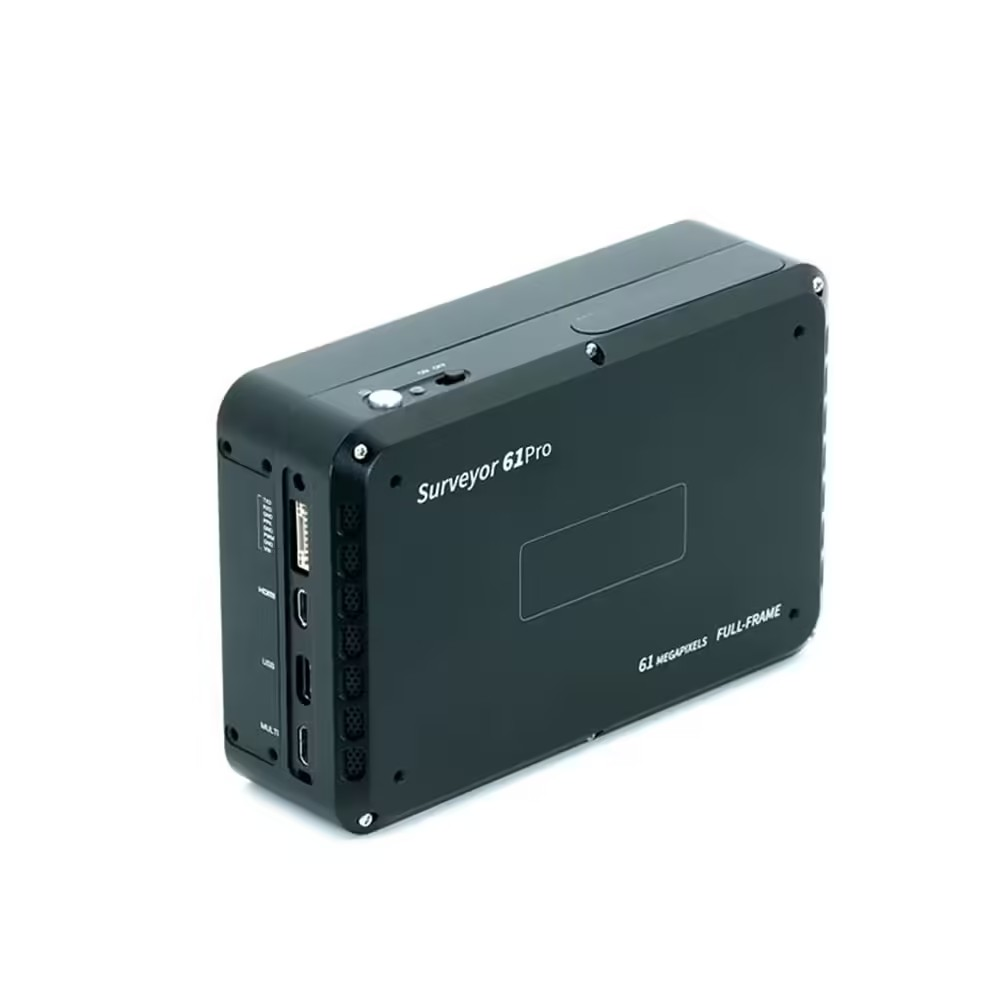

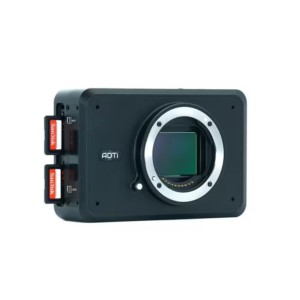

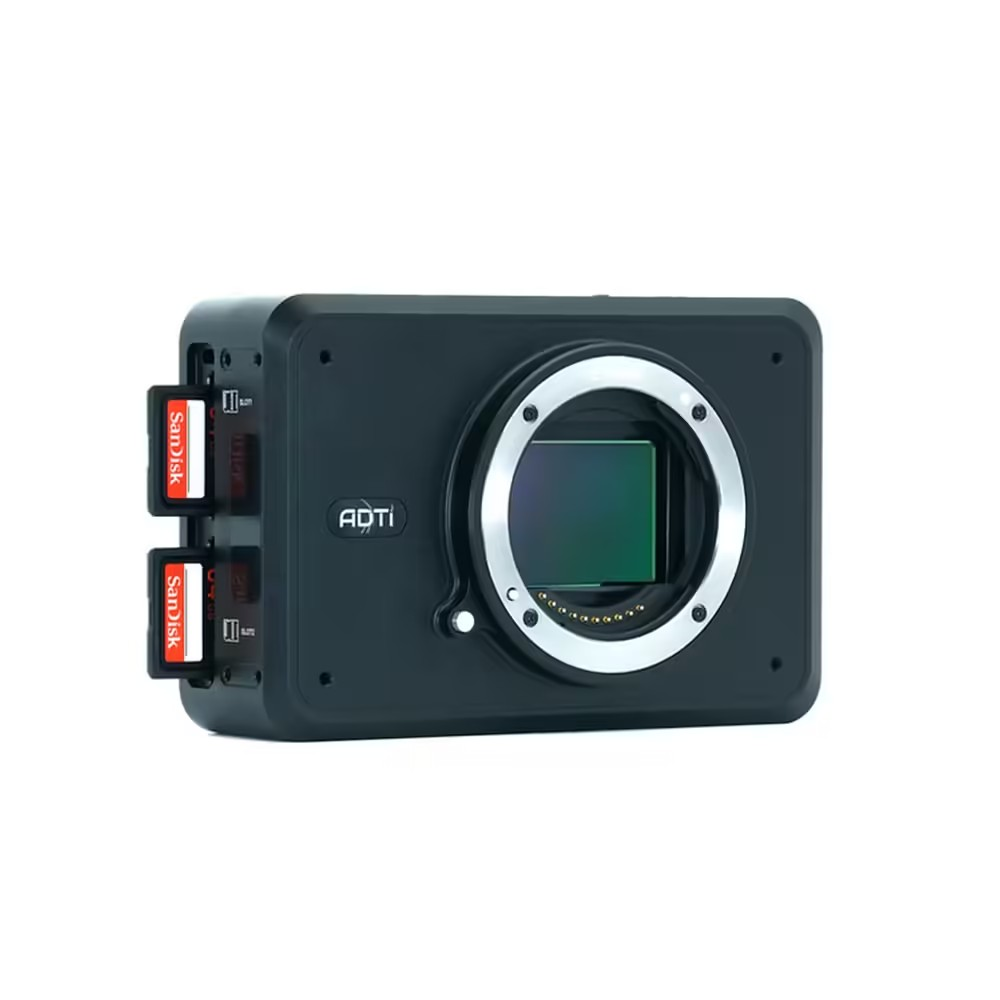

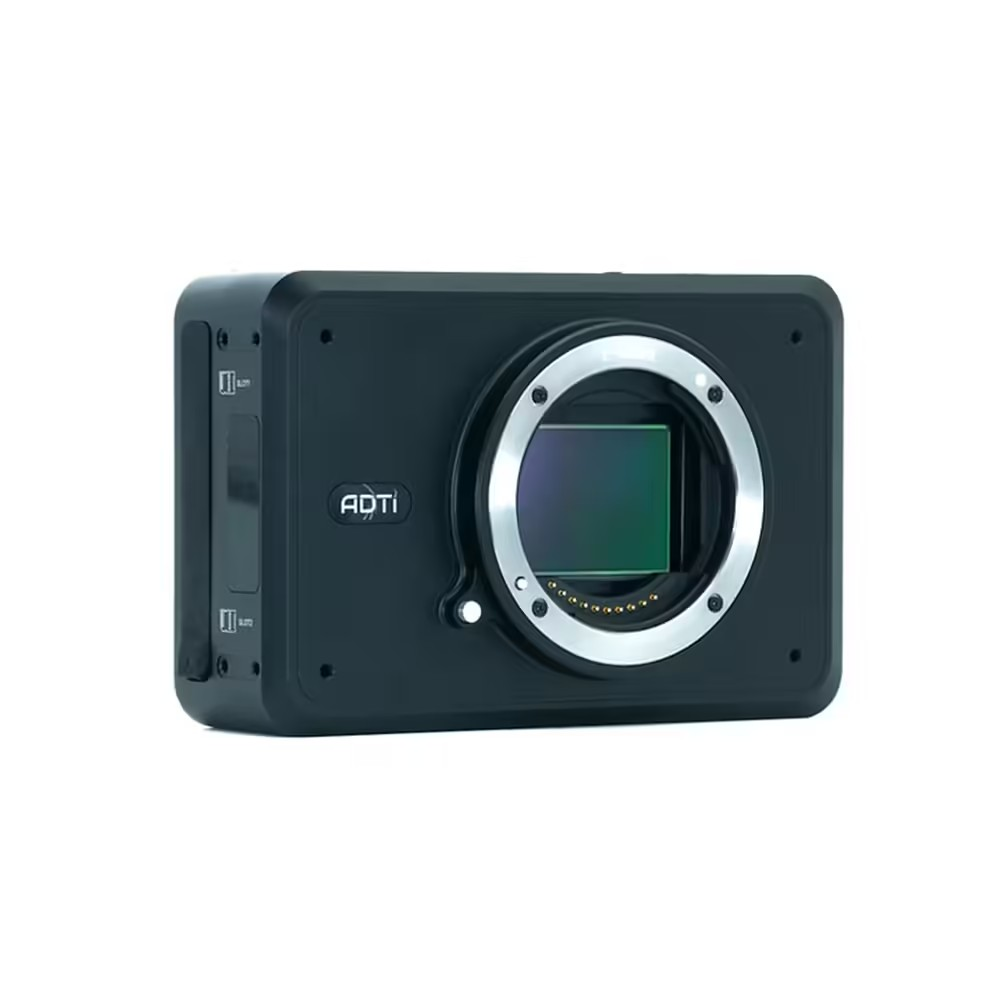

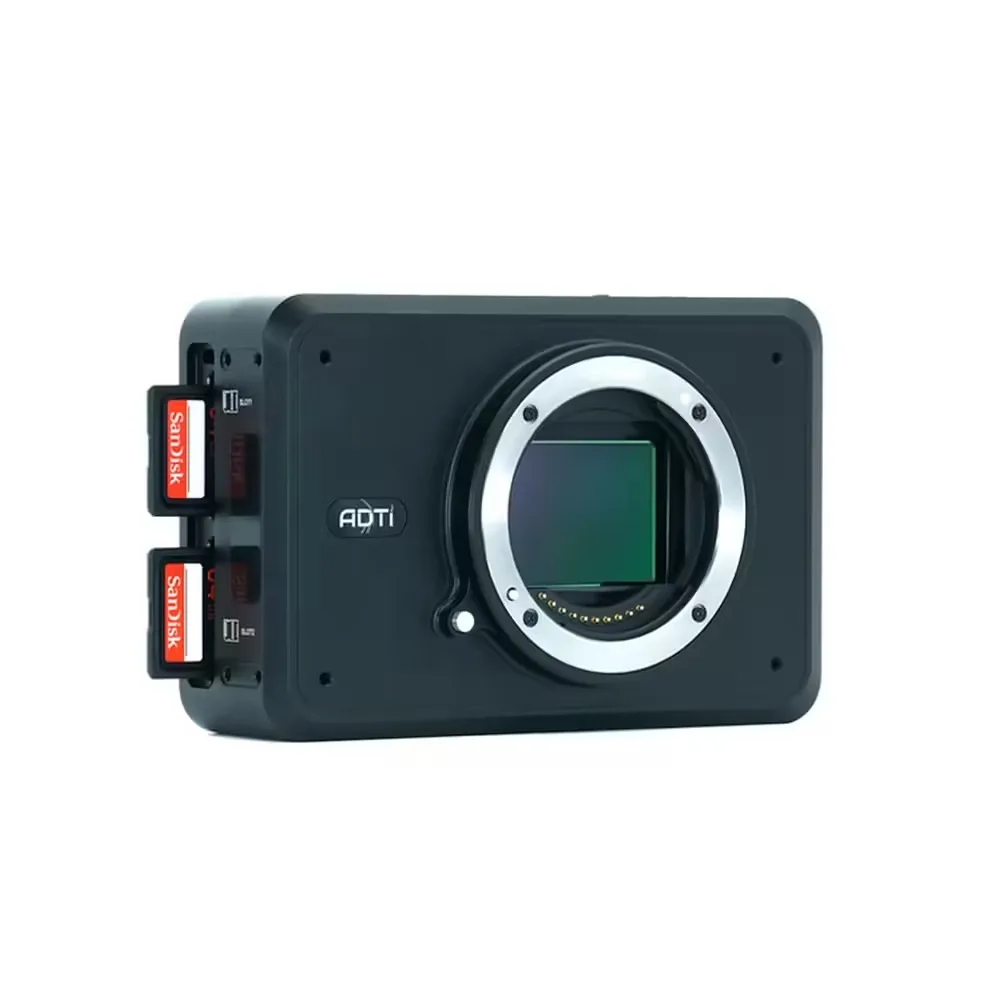

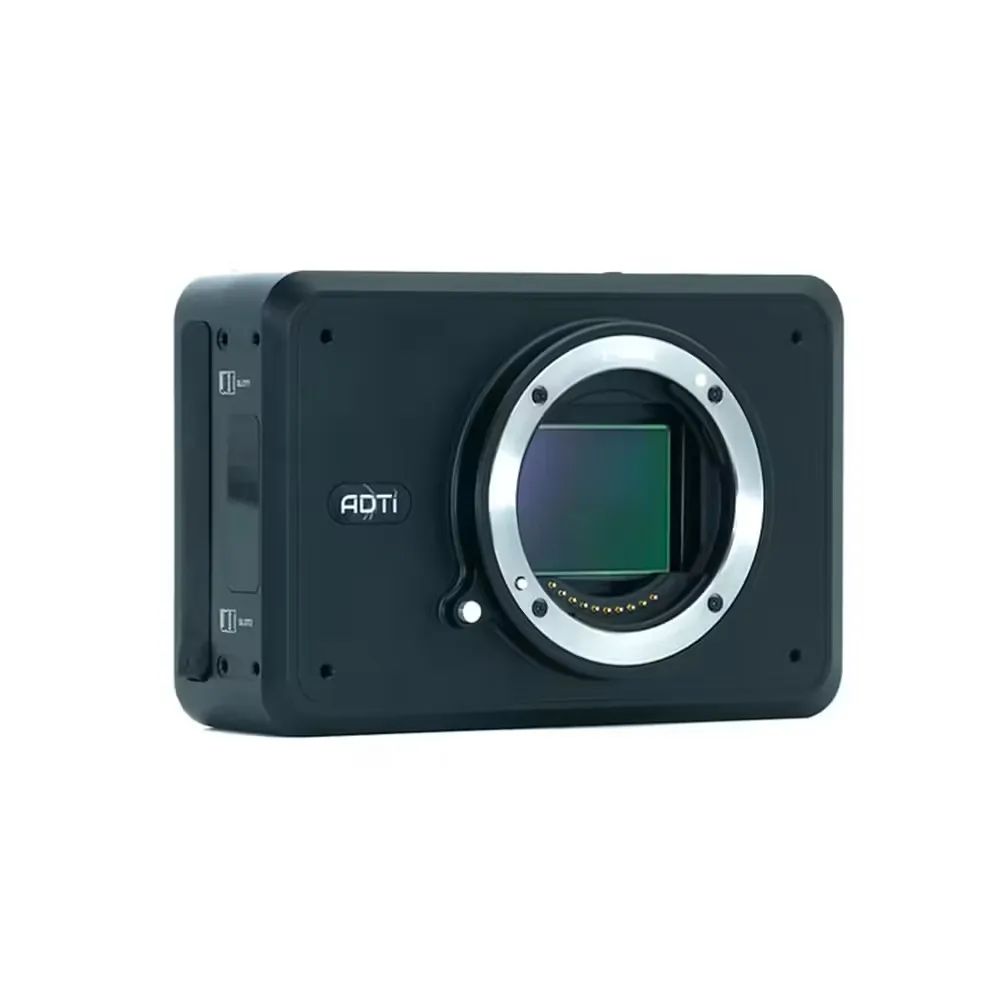

ADTi 61MP 61PRO Surveyor Drone Mapping Camera

The ADTi 61MP 61PRO Surveyor Drone Mapping Camera represents the zenith of high-definition imaging and utility inspection. This state-of-the-art camera offers unparalleled image quality and precision, ideal for professional surveying and mapping tasks.

Whether you’re conducting detailed land surveys or complex utility inspections, the ADTi 61PRO is the optimal choice. Its superior performance and clarity, coupled with advanced technology, guarantee that every nuance is recorded with extraordinary precision, rendering it an essential instrument for geospatial experts and drone pilots alike.

ADTi 61MP 61PRO Surveyor Drone Mapping Camera: Key Features

High-Resolution Imaging: Equipped with a 61-megapixel full-frame Sony CMOS sensor, the ADTi 61PRO captures highly detailed images. Its large 35.7×23.8 mm sensor size and a pixel pitch of 3.76 microns ensure superior clarity, making it perfect for detailed mapping and inspection tasks.

Versatile Lens Compatibility: The camera supports all E-mount full-frame lenses, including ADTi’s lightweight FF lenses such as 18mm FF, 50mm FF, and 56mm FF, as well as a variety of other E-mount full-frame lenses, providing flexibility to meet diverse imaging requirements.

Powerful Image Processing: With the BIONZ X image processor, the camera offers high dynamic range and low noise levels, ensuring sharp and accurate images even in challenging lighting conditions, making it dependable for capturing high-quality images across different settings.

Rapid Frame Capture: Capable of capturing up to 10 frames per second, the camera ensures high-speed image capture without missing any critical details, ideal for photographing fast-moving subjects or dynamic scenes with precision.

4K Video Recording: Supporting 4K video resolution, the camera provides high-definition video footage with remarkable clarity, suitable for detailed video documentation of survey areas, thereby enhancing the quality of visual inspections and reports.

Lightweight Design: Weighing just 276 grams, the 61PRO’s lightweight and compact design minimizes impact on drone flight dynamics while maintaining robust imaging capabilities.

PPK Integration: Featuring a built-in multi-interface hot shoe output, the camera supports PPK (Post-Processed Kinematic) for improved geospatial accuracy, essential for precise positioning.

ADTi 61MP 61PRO Surveyor Drone Mapping Camera: Image Sensor Specifications

• Sensor Type: CMOS
• Sensor Manufacturer: Sony
• Effective Megapixels: 61
• Sensor Format: Full-frame
• Sensor Size: 849.6 mm² (35.7×23.8 mm)
• Pixel Pitch: 3.76 microns
• Aspect Ratio: 3:2
• Color Filter Type: RGBG
• Anti-Aliasing Filter: None
• Color Depth: 26 bits
• Maximum ISO: 3,344

ADTi 61MP 61PRO Surveyor Drone Mapping Camera: Image Capturing

• Resolution Options:

• • 9504 x 6336 (60.2 MP, 3:2)
  • 6240 x 4160 (26.0 MP, 3:2)
  • 4752 x 3168 (15.1 MP, 3:2)
  • 8448 x 6336 (53.5 MP, 4:3)
  • 5552 x 4160 (23.1 MP, 4:3)
  • 4224 x 3168 (13.4 MP, 4:3)
  • 9504 x 5344 (50.8 MP, 16:9)
  • 6240 x 3512 (21.9 MP, 16:9)
  • 4752 x 2672 (12.7 MP, 16:9)
  • 6336 x 6336 (40.1 MP, 1:1)
  • 4160 x 4160 (17.3 MP, 1:1)
  • 3168 x 3168 (10.0 MP, 1:1)
• Image File Format: JPEG, RAW (14-bit ARW 2.3), RAW+JPEG
• Continuous Shooting Speed: 10 frames per second

Video Capture:

• Resolution Options:

• • 3840 x 2160 (30p/25p/24p)
  • 1920 x 1080 (120p/100p/60p/60i/50p/50i/30p/25p/24p)
• Video File Format: XAVC S, AVCHD 2.0, or MP4
• Audio: LPCM, Dolby Digital (AC-3) or MPEG-4 AAC-LC, stereo
• HD Video Output: Yes
• HD Video Connection: HDMI

Lens & Optics:

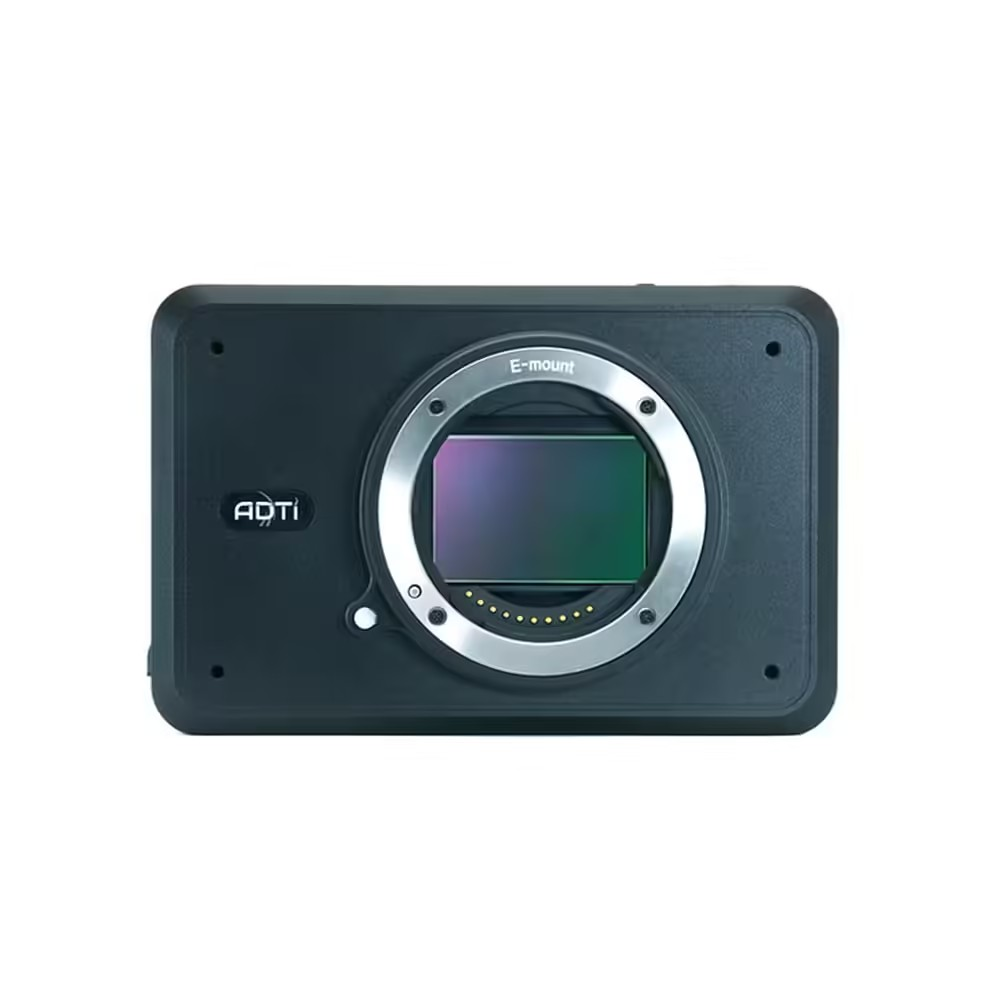

• Lens Mount: Sony E
• Auto Focus: Yes
• Manual Focus: Yes
• Shutter Type: Mechanical
• Shutter Speed: 1/8000 to 30 seconds

Physical Specifications:

• Camera Dimensions: 12 x 8 x 4.2 cm
• Camera Weight: 276 g
• Package Size: 50 x 50 x 25 cm
• Package Weight: 800 g
• Power Requirements: 12-28V DC Lipo or Li-ion
• Operating Temperature: -10 to 40 °C

ADTi 61MP 61PRO Surveyor Drone Mapping Camera: Enhanced Imaging Capabilities

The ADTi 61MP 61PRO shines in capturing both images and videos, offering a variety of resolution settings to meet different needs. Its image resolution options span from 9504 x 6336 pixels at 60.2 MP to 3168 x 3168 pixels at 10.0 MP, with video resolutions reaching up to 3840 x 2160 pixels. This camera delivers comprehensive solutions for detailed imaging and video recording.

The camera supports multiple image file formats, including JPEG, RAW (14-bit ARW 2.3), and RAW+JPEG, providing versatility in image capture and processing. With a high continuous shooting speed of 10 frames per second, it enables quick capture of images, essential for photographing fast-moving subjects or conducting extensive surveys efficiently.

ADTi 61MP 61PRO Surveyor Drone Mapping Camera: Advanced Features For Professional Use

The ADTi 61MP 61PRO Surveyor Drone Mapping Camera is designed to meet the stringent requirements of professional surveying and mapping tasks. It features a mechanical shutter with a broad spectrum of speeds ranging from 1/8000 to 30 seconds, enabling meticulous control over exposure and motion blur. The camera boasts a 26-bit color depth and a sophisticated RGBG color filter for vivid color rendition, complemented by a maximum ISO of 3,344 to boost performance in low-light conditions.

ADTi 61MP 61PRO Surveyor Drone Mapping Camera: Durability And Power Efficiency

Measuring 12 x 8 x 4.2 cm and weighing 276 grams, the ADTi 61PRO is both compact and sturdy. It runs on a 12-28V DC Lipo or Li-ion power supply and operates effectively within a temperature range of -10 to 40 °C. Its durability guarantees consistent performance across diverse environmental conditions, making it an adaptable option for numerous surveying and inspection activities.

ADTi 61MP 61PRO Surveyor Drone Mapping Camera

The ADTi 61MP 61PRO Surveyor Drone Mapping Camera represents an advanced imaging solution, combining high resolution, versatility, and robust processing capabilities. Ideal for detailed mapping, utility inspections, or high-definition video recording, this camera ensures exceptional performance and precision, making it an indispensable tool for field professionals.

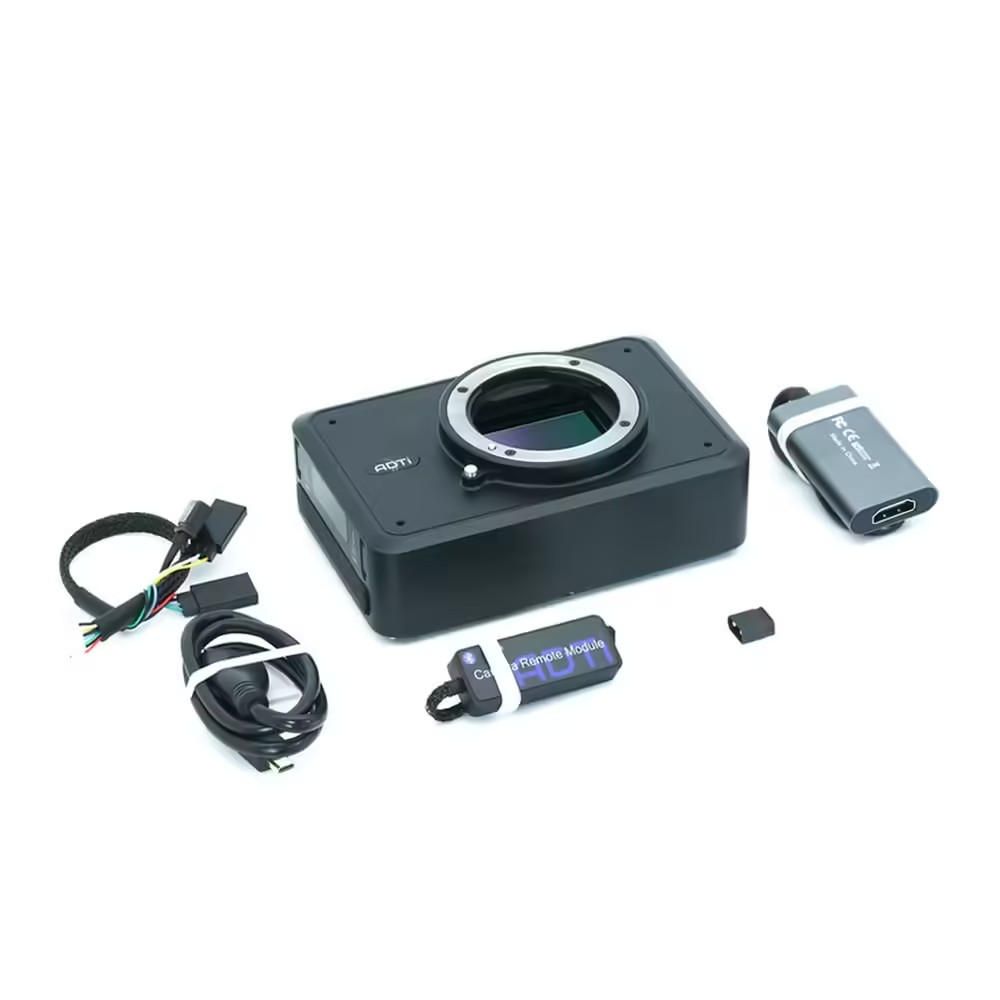

Package Include.

1 X ADTi 61MP 61PRO Surveyor Drone Mapping Cameras

ADTi 61MP 61PRO Surveyor Drone Mapping Cameras Overview

The ADTi 61MP 61PRO is a professional-grade drone mapping camera equipped with a full-frame 61-megapixel Sony CMOS sensor. Designed for aerial surveying and precision geospatial data capture, it delivers ultra-high-definition imagery ideal for land surveys, utility inspections, and mapping applications.

Key Features of ADTi 61MP 61PRO Surveyor Drone Mapping Cameras

• 61 Megapixel Full-Frame Sensor: Sony-manufactured CMOS module with 849.6 mm² sensor area for maximum detail.
• High Pixel Density: 3.76 µm pixel pitch ensures sharp, low-noise imagery even in variable lighting.
• Full-Frame Format (35.7 × 23.8 mm) for wide dynamic range and precise color reproduction.
• Compact form factor for seamless integration on professional drone gimbals.
• Optimized for geospatial accuracy, capturing every terrain feature with clarity.
• Fast shipping from Zbotic: dispatch within 24 hours on in-stock items.

Applications and Use Cases

• Topographic and cadastral land surveys for mapping property boundaries.
• Infrastructure and utility corridor inspections (power lines, pipelines).
• Agricultural field mapping to monitor crop health and yield estimation.
• Urban planning and 3D city modeling projects.
• Environmental monitoring and forestry resource management.

How to Use ADTi 61MP 61PRO Surveyor Drone Mapping Cameras

Mount the ADTi 61PRO onto a compatible drone gimbal using the supplied adapter plate, then connect power and data cables as per the drone’s manual. Calibrate the camera’s orientation and set imaging parameters (exposure, frame rate) in your flight software. Plan your flight lines for even coverage, execute the mission, and download the high-resolution images post-flight for processing in photogrammetry or GIS applications.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which drones support the ADTi 61PRO camera?

The ADTi 61PRO mounts via a standard 4-axis gimbal interface and is compatible with most professional survey drones offering a 1 kg+ payload capacity. Always verify your platform’s mounting specifications before installation.

What is the maximum image resolution produced?

Leveraging its 61 MP full-frame sensor with 3.76 µm pixels, the camera captures images up to approximately 9504 × 6336 pixels, yielding ultra-high-definition detail for mapping and analysis.

How should I maintain the Sony CMOS sensor?

Keep the sensor clean by using a blower brush and approved lens-cleaning solution on a microfiber cloth. Store the camera in a dry, dust-free case and perform routine calibration checks per the manufacturer’s guidelines.
