ADTi 45MP 45PRO Surveyor Drone Mapping Cameras: The Latest Innovation For Drones

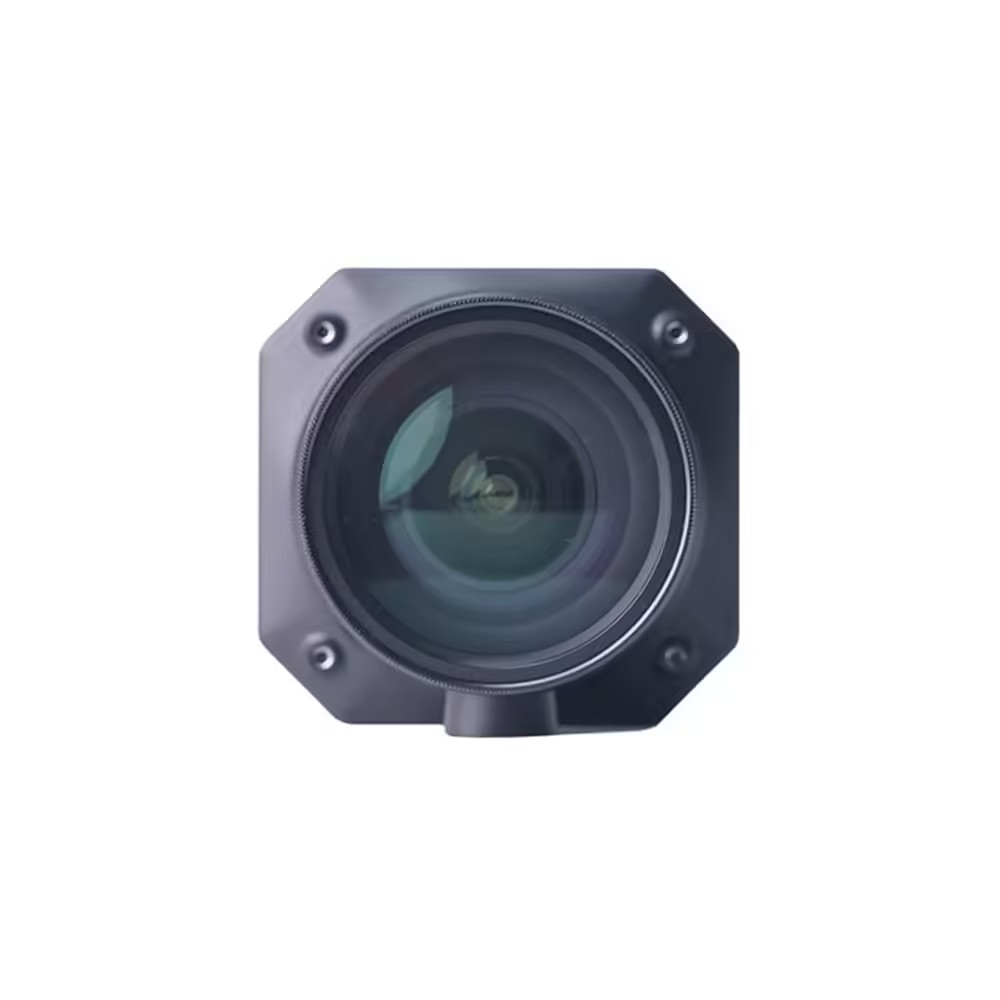

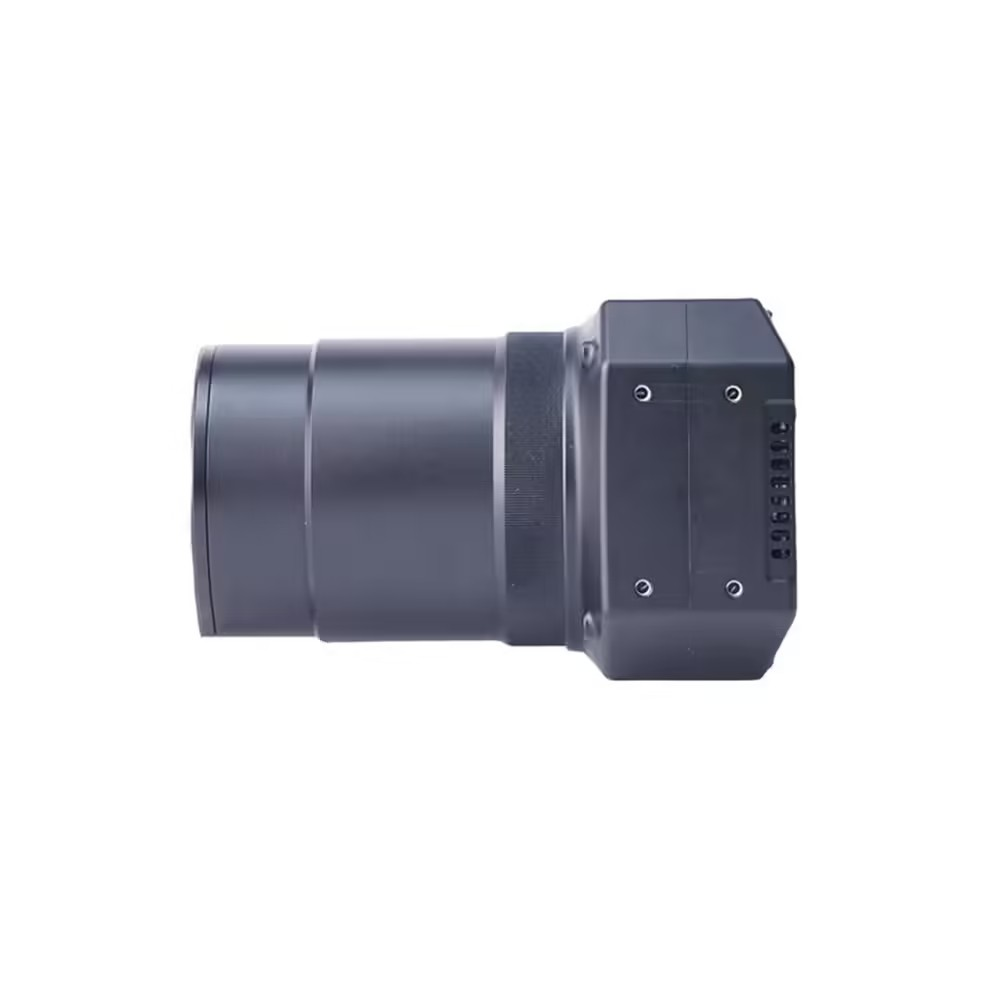

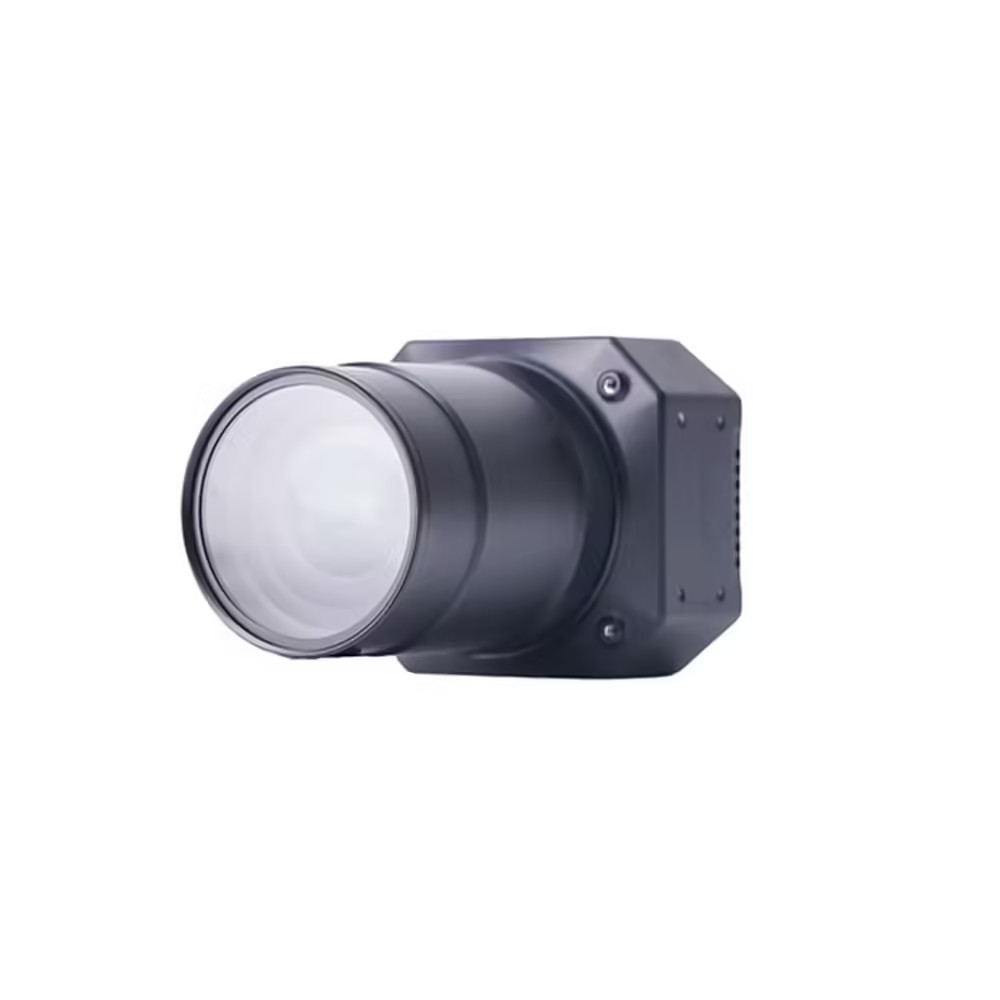

Presenting the ADTi 45MP 45PRO Surveyor Drone Mapping Camera System, designed for professional aerial mapping and surveying. The ADTi 45MP 45PRO offers precision and state-of-the-art technology, making it an ideal choice for surveyors in need of high-resolution, dependable, and efficient aerial mapping solutions.
ADTi 45MP 45PRO Surveyor Drone Mapping Cameras: Key Features
The ADTi 45PRO is equipped with an in-house designed 45 MP full-frame camera module, featuring the Sony IMX 366 back-illuminated sensor, which guarantees exceptional image clarity and detail. The camera system of the ADTi 45MP 45PRO Surveyor Mapping Drone is capable of capturing high-resolution images at 8192 x 5460 (45 MP, 3:2). Additionally, the Socionext Imaging processor, Milbeaut®, enhances the image quality while ensuring low heat generation.
ADTi 45MP 45PRO Surveyor Drone Mapping Cameras: Advanced Camera Specifications
- Full-frame Sony CMOS Sensor: 44.7 effective megapixels.
- Mechanical Shutter: Lightweight inter-mirror design with speeds ranging from 1/100 to 1/10000 seconds.
- Continuous Shooting: Capable of up to 2.0 frames per second with a minimum exposure interval of 0.5 seconds.
- Video Capture: Offers Full HD 1920×1080 resolution at 60p and 640×480 at 30p, outputting in MP4 format with an HDMI connection for live video streaming.
- Customizable Optics: ADTi provides a selection of fixed-focus lenses tailored for various mapping requirements:
21mm Fixed Lens: 92° diagonal field of view (FOV), distortion less than 0.3%, focus range from 50 meters to infinity.
40mm Fixed Lens: 57° diagonal FOV, distortion less than 0.037%, focus range from 50 meters to infinity.
56mm Fixed Lens: 42.2° diagonal FOV, distortion less than 0.3%, focus range from 50 meters to infinity. All lenses have a fixed aperture of F5.6, ensuring consistent performance across different mapping scenarios.
ADTi 45MP 45PRO Surveyor Drone Mapping Cameras: Integrated Functionality
- Geo-Tagging and PPK Compatibility: Features a built-in multi-interface hot shoe for precise PPK (Post-Processing Kinematic) compatibility, as well as geo-tagging capabilities with Pixhawk flight controllers (requires ADTi POS&CTRL unit).
- Durable Design: The full aluminum construction ensures robustness and longevity.

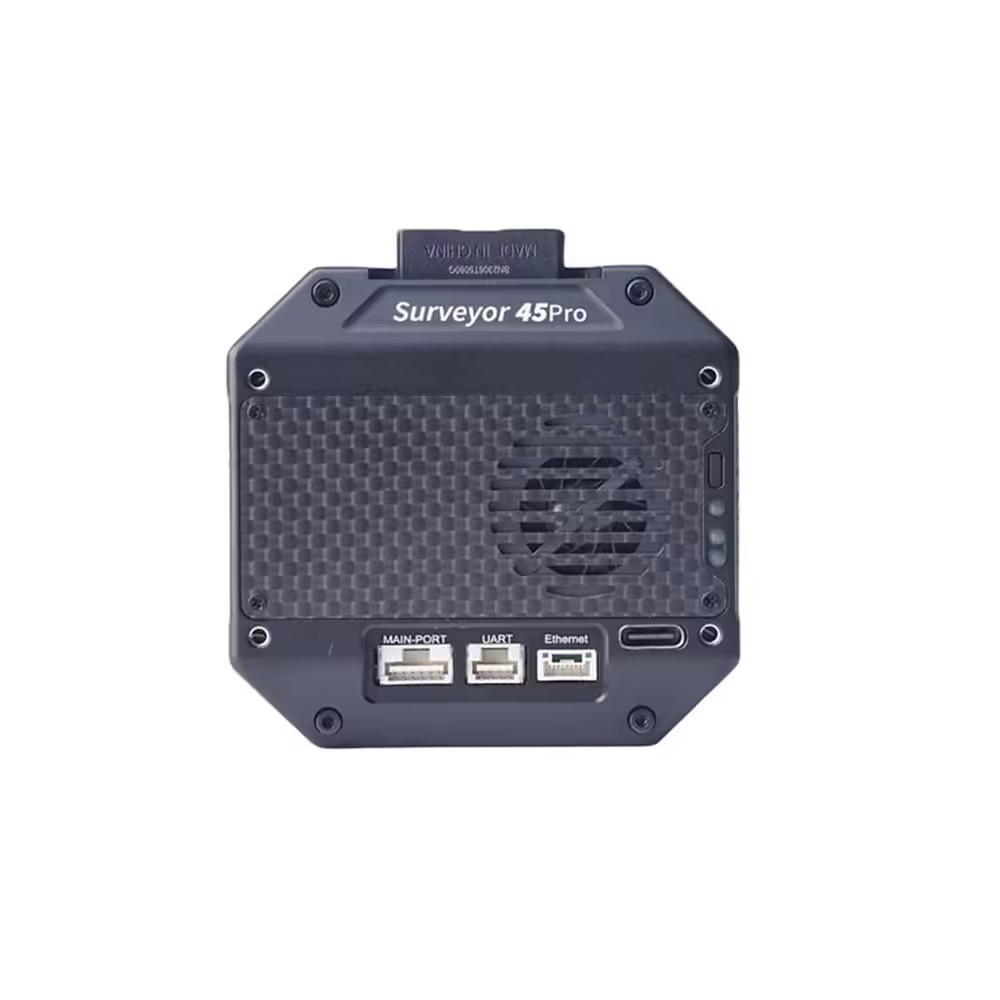

- Connectivity: Includes an Ethernet port to facilitate real-time video streaming.
ADTi 45MP 45PRO Surveyor Drone Mapping Cameras: Efficient Power And Compact Design
- Power: Functions with 12-28V DC supplied by Lipo or Li-ion batteries.
- Compact and Lightweight: The camera has dimensions of 7.2 x 6.8 x 10.6 cm and a weight of 270 g when equipped with the 21mm lens, and 180 g with either the 40mm or 56mm lenses. The total weight of the package, including accessories, is 800 g.
ADTi 45MP 45PRO Surveyor Drone Mapping Cameras: Specifications And Overview
Image Sensor
- Type: CMOS, Sony IMX 366 back-illuminated
- Size: 876mm² (36.5 x 24mm)
- Pixel Size: 4.4 μm x 4.4 μm
- Aspect Ratio: 3:2
Image Capture
- Resolution: 8192 x 5460 (45 MP)
- File Format: JPEG
Shutter
- Type: Mechanical, replaceable
- Speed: 1/100 to 1/10000 seconds
- Continuous Mode: 2.0 frames/second
- Exposure Interval: ≥0.5s
Video Capture
- Resolution: 1920×1080 (60p), 640×480 (30p)
- File Format: MP4
- HD Output: HDMI
Lens Options
- 21mm: Manual fixed focus, FOV 92°, aperture F5.6
- 40mm: Manual fixed focus, FOV 57°, aperture F5.6
- 56mm: Manual fixed focus, FOV 42.2°, aperture F5.6
Camera Dimensions and Weight
- Size: 7.2 x 6.8 x 10.6 cm
- Weight: 270g (21mm lens), 180g (40mm or 56mm lens)
- Package Size: 14.5 x 10 x 6 cm
- Package Weight: 800g
- Operating Temperature: -10 to 40 °C
ADTi 45MP 45PRO Surveyor Drone Mapping Cameras: Unmatched Utility And Versatility
The ADTi 45MP 45PRO Drone Mapping Camera System transcends a mere camera; it is a complete solution tailored for the ADTi 45MP 45PRO Surveyor Mapping Drones. It serves a multitude of professional needs, ranging from land surveying and geospatial mapping to infrastructure inspection and environmental monitoring. The ADTi 45MP 45PRO Surveyor Aerial Mapping Cameras are versatile, catering to various requirements with ease. Equipped with high-resolution capabilities, they enable precise and detailed data collection, proving to be an essential tool for surveyors and mapping professionals.
ADTi 45MP 45PRO Surveyor Drone Mapping Cameras: Enhanced Surveying Efficiency
The 45MP Drone Camera for Mapping features advanced geo-tagging and PPK capabilities. The ADTi 45MP 45PRO significantly cuts down the time and effort needed for post-processing, allowing for the swift and efficient delivery of precise, geo-referenced data. Its compatibility with Pixhawk flight controllers ensures seamless and trouble-free integration into existing drone systems, further improving operational efficiency.
ADTi 45MP 45PRO Surveyor Drone Mapping Cameras: Built For Durability And Performance
The 45MP Drone Camera for Mapping is built to endure the demands of fieldwork, featuring a durable full aluminum structure. Its robust construction guarantees reliability in even the most challenging conditions, while its lightweight design ensures minimal impact on drone flight performance. Additionally, the camera is equipped with an Ethernet port, enhancing its functionality by enabling live video streaming for simplified real-time monitoring and adjustments during flight operations.
ADTi 45MP 45PRO Surveyor Drone Mapping Cameras: Commercial Viability
Ideal for businesses and professionals in the surveying and mapping sectors, this Aerial Mapping Drone Camera provides a substantial return on investment. Equipped with high-resolution imaging and enhanced by features such as direct geo-tagging and PPK compatibility, it enables quicker completion of projects with greater precision. This efficiency not only lowers operational expenses but also improves the quality of service offered to clients.
ADTi 45MP 45PRO Surveyor Drone Mapping Cameras
The ADTi 45MP 45PRO Surveyor Drone Mapping Camera System is an essential tool for surveyors and mapping professionals, combining advanced imaging technology with customizable optics and a robust design. It delivers unparalleled performance in aerial mapping and surveying tasks. Known for its exceptional image quality, integrated functionality, and durable construction, the ADTi 45MP 45PRO Surveyor Drone Mapping Camera is the preferred choice for precision in aerial mapping projects. Step into the future of surveying with the ADTi 45MP 45PRO and take your projects to the next level.

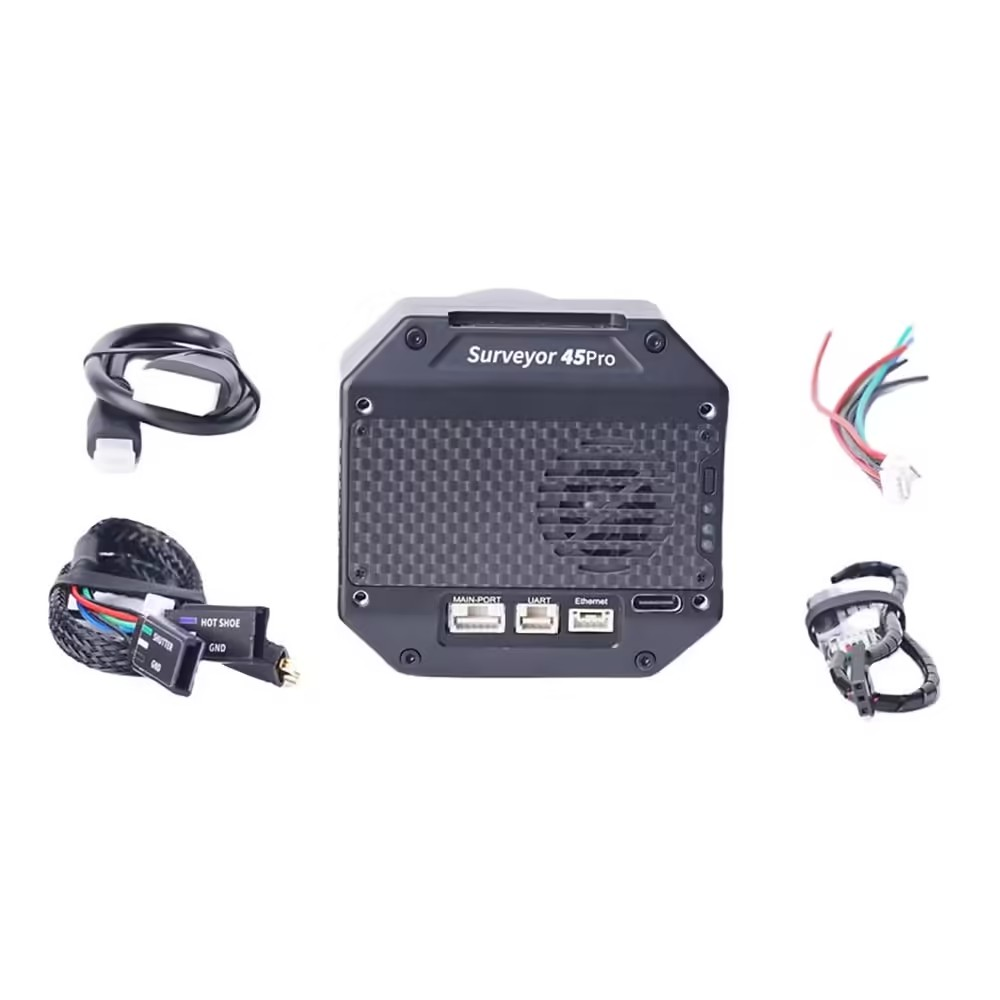

Package Include.
1 X ADTi 45MP 45PRO Surveyor Drone Mapping Cameras.
