ADTi 42MP 42S V1 Surveyor Drone Mapping Cameras

ADTi 42MP FULL FRAME Mapping Camera Surveyor 42S V1

The ADTi 42MP FULL FRAME Mapping Camera Surveyor 42S V1 represents the cutting-edge in full-frame cameras. Designed specifically for advanced drone applications, this ADTi 42MP Drone Camera is constructed entirely from aluminum to ensure durability. Ideal for drone 3-axis gimbal inspections, the ADTi 42S V1 Survey Camera also excels in LiDAR integrations.

Distinctive Features of the ADTi 42MP FULL FRAME Mapping Camera Surveyor 42S V1:

Exceptional Image Quality: The Surveyor 42S V1 boasts a 42-megapixel full-frame Sony CMOS sensor, ensuring stunning image quality and clarity. It can be paired with the powerful Bionz X image processor, offering superior dynamic range and low noise levels. This makes the camera ideal for precision mapping and surveying tasks.

Versatile Lens Compatibility: Compatible with E-mount full-frame lenses, the ADTi Surveyor Camera offers versatility for various applications. It integrates seamlessly with ADTi’s lightweight FF lenses, including 18mm FF, 50mm FF, and 56mm FF, as well as other E-mount FF lenses, allowing users to choose the best lens for their needs.

Advanced Features and Design: The ADTi 42MP FULL FRAME Mapping Camera Surveyor 42S V1 incorporates a multi-interface hot shoe for PPK (Post Processed Kinematics), enhancing its high-precision geospatial data collection capabilities. Its industrial-grade full aluminum design ensures durability, and the built-in HDMI to RTSP/IP video streaming module enables real-time data transmission. Despite its sturdy construction, the camera weighs only 274 grams, minimizing the impact on drone flight performance.

Compatibility and Integration: Designed for flexibility, the ADTi 42MP FULL FRAME Mapping Camera Surveyor 42S V1 is compatible with the Gremsy Pixy S 3-axis camera gimbal and the ADTi 2-Axis Nadir fixed wing gimbal. However, it is not compatible with the Airpixel R3; the 42L model is recommended for those requiring Airpixel R3 compatibility.

Utility Across Various Applications: The ADTi 42MP 42S V1 Camera is adept in a multitude of applications, from topographic mapping to detailed

ADTi 42MP FULL FRAME Mapping Camera Surveyor 42S V1: Comprehensive Specifications

Image Sensor

• Sensor Type: CMOS
• Sensor Manufacturer: Sony
• Effective Megapixels: 42.4
• Sensor Format: Full Frame
• Sensor Size: 861.6mm² (35.90mm x 24.00mm)
• Approximate Pixel Pitch: 4.51 microns
• Focal Length Multiplier: 1.0x
• Aspect Ratio: 3:2
• Color Filter Type: RGBG
• Anti-Aliasing Filter: None
• Color Depth (bits): 26
• Maximum Effective ISO: 3,434

Image Capture

• Image Resolution: Various resolutions up to 7952 x 5304 (42.2 MP, 3:2)
• Image File Format: JPEG, RAW (14-bit ARW 2.3), RAW+JPEG
• Continuous-mode frames/second: 5.0

Video Capture

• Video Resolution: Up to 3840×2160 (30p/25p/24p)
• Video File Format: XAVC S, AVCHD 2.0, or MP4
• Audio: LPCM, Dolby Digital (AC-3) or MPEG-4 AAC-LC, stereo
• HD Video Out: Yes
• HD Video Connection: HDMI

Lens & Optics

• Lens Mount: Sony E
• Auto Focus: Yes
• Manual Focus: Yes

Shutter Type

• Speed: 1/8000-30sec

Camera Dimensions and Weight

• Camera Size: 10.37.94.2 cm
• Camera Weight (body): 274 g
• Package Size: 505025 cm
• Package Weight: 800 g

Power and Operating Conditions

• Power: 12-28V DC Lipo or Li-ion
• Operating Temperature: -10 to 40 °C

Enhanced Workflow Efficiency: ADTi 42MP FULL FRAME Mapping Camera Surveyor 42S V1 streamlines workflows. Thus reducing the time and effort required for post-processing. This Surveyor Drone Camera’s compatibility with PPK systems ensures accurate image geotagging. Thus eliminating the need for ground control points and significantly enhancing efficiency. The built-in HDMI to RTSP/IP module allows for seamless video streaming. That makes it easier to monitor and control operations in real-time.

Reliability In Extreme Conditions: This product is constructed using a full aluminum body. The ADTi 42MP 42S V1 can withstand harsh conditions and demanding environments. This ADTi Drone Mapping Camera’s rugged design ensures that it can endure the rigors of fieldwork. Thus providing reliable performance regardless of weather or terrain. This durability makes this 42MP Survey Drone a dependable choice for professionals. Professionals who require consistent results in challenging scenarios.

ADTi 42MP FULL FRAME Mapping Camera Surveyor 42S V1: Final Words

The ADTi 42MP FULL FRAME Mapping Camera Surveyor 42S V1 can better your drone mapping as well as surveying capabilities. This product is the ultimate tool for precision and performance in aerial imaging.

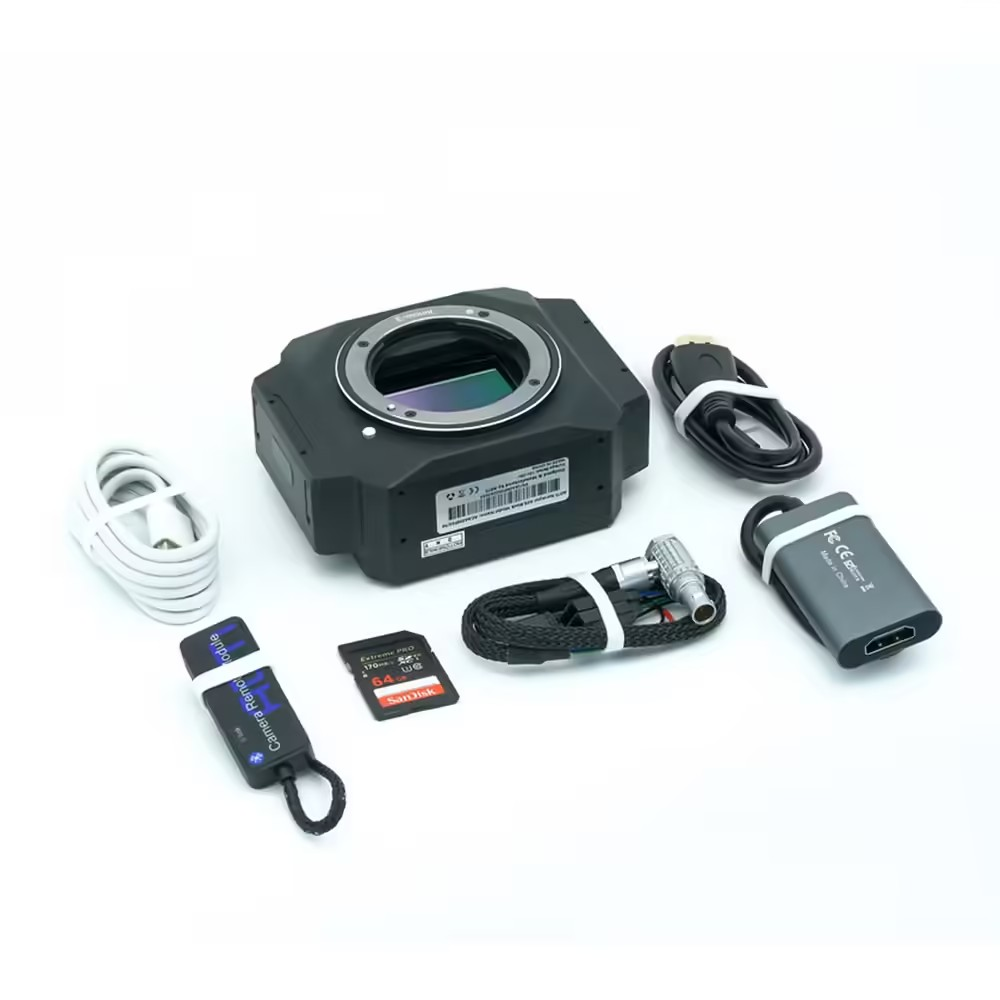

package Include.

1 X ADTi 42MP 42S V1 Surveyor Drone Mapping Cameras.

ADTi 42MP 42S V1 Surveyor Drone Mapping Cameras Overview

The ADTi 42MP 42S V1 Surveyor is a full-frame mapping camera built for professional drone use. Equipped with a Sony 42.4-megapixel CMOS sensor in an all-aluminum housing, it delivers high-resolution aerial imagery for surveying, inspection, and LiDAR integration.

Key Features of ADTi 42MP 42S V1 Surveyor Drone Mapping Cameras

• 42.4 MP full-frame Sony CMOS sensor for ultra-detailed captures
• Effective pixel pitch of 4.51 µm for sharp, low-noise images
• Robust aluminum construction ensures durability in field conditions
• Optimized for 3-axis gimbal mounting on mapping drones
• Seamless integration with LiDAR payloads for combined data collection
• Fast shipping from Zbotic within 24 hours for in-stock items

Applications and Use Cases

• Aerial topographic and cadastral mapping
• Construction site progress monitoring
• Precision agriculture field analysis
• Environmental change detection and forestry surveys
• Infrastructure inspection (roads, bridges, pipelines)
• Integration with LiDAR for 3D point-cloud generation

How to Use ADTi 42MP 42S V1 Surveyor Drone Mapping Cameras

Mount the ADTi 42S V1 onto your drone’s 3-axis gimbal using the integrated aluminum brackets. Connect power and data cables, then calibrate gimbal balance. Configure your flight plan in mapping software, set exposure parameters to match ambient light, and capture overlapping images at consistent altitudes to ensure accurate photogrammetry or LiDAR fusion.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What sensor format and size does the ADTi 42S V1 use?

It features a full-frame Sony CMOS sensor measuring 35.90 × 24.00 mm (861.6 mm²), delivering high dynamic range and detailed mapping imagery.

Can this camera integrate with LiDAR payloads?

Yes, its rugged aluminum housing and precise synchronization capability make it compatible with most drone-mounted LiDAR systems for combined photogrammetry and point-cloud data.

How is the camera mounted on a drone?

The Surveyor 42S V1 attaches to standard 3-axis gimbals via its integrated mounting points. Balance the gimbal, secure the camera, and confirm wiring before flight operations.
