Looking for Ad8561 Ic? AD8561 – IC is available at Zbotic with fast shipping across India.

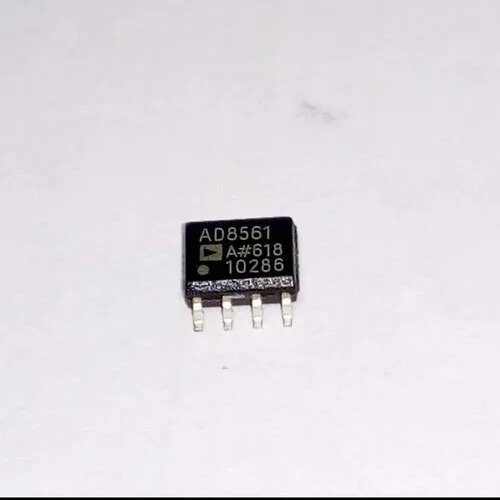

AD8561 – IC
Introducing the AD8561, a high-speed comparator delivering exceptional performance for your electronic projects. With a lightning-fast 7 ns propagation delay, this single comparator is ideal for timing circuits and line receivers, ensuring precision in your designs.
Designed with separate input and output sections, the AD8561 operates seamlessly with separate supplies, accommodating ±5 V dual supplies or +5 V single supplies. This flexibility enhances its versatility in various applications.
The AD8561’s closely matched propagation delays for rising and falling signals, along with its temperature stability, make it a top choice for clock recovery tasks. Its output duty cycle mirrors the input, ensuring reliable performance in critical timing applications.
Featuring the same pinout as the LT1016 but with lower supply current and a wider common-mode input range extending to the negative supply rail, the AD8561 offers enhanced functionality and compatibility.
Built to withstand industrial environments, the AD8561 is rated for operation from -40°C to +85°C, ensuring reliable performance across a wide temperature range. Choose from the convenient 8-lead plastic DIP, 8-lead TSSOP, or 8-lead narrow SOIC surface mount packages to suit your specific needs.
Upgrade your projects with the precision and reliability of the AD8561 comparator. Shop now to experience unparalleled performance and versatility in your electronic designs.
Specifications:
| Model Name/Number | AD8561 |
| Functionality | Micro Controller |
| Type | Leaded |
| Ic Pin | 8 |
| Packaging Type | Box |
| Minimum Order Quantity | 5 |
Features
- 7 ns propagation delay at 5 V
- Single supply operation: 3 V to 10 V
- Low power
- Latch function
- TSSOP packages
Package Includes
1 x AD8561 – IC
Pinout Diagram:-
AD8561 – IC Overview
The AD8561 is a high-speed single comparator designed for precision timing and signal conditioning in electronic circuits. With industry-leading 7 ns propagation delay and flexible supply options, it ensures rapid and reliable switching for line receivers, threshold detectors, and clock recovery modules.
Key Features of AD8561 – IC
- 7 ns maximum propagation delay at 5 V for ultra-fast response
- Wide single-supply operation from 3 V to 10 V for versatile deployment
- Low power consumption ideal for battery-powered and portable devices
- Built-in latch function to hold output state until reset
- Separate input and output supply sections support ±5 V dual supplies or +5 V single supply
- Compact TSSOP package for space-constrained PCB layouts
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- High-speed threshold detection in data acquisition systems
- Line receiver interfaces for digital communication links
- Clock and data recovery circuits in high-frequency networks
- Zero-crossing detectors for AC power monitoring and control
- Pulse-width modulation (PWM) waveform shaping in motor drives
- Signal conditioning front-end for analog-to-digital converters
How to Use AD8561 – IC
Mount the AD8561 in the recommended TSSOP footprint and provide a clean supply between 3 V and 10 V, with decoupling capacitors close to the pins. Connect the input signals to the comparator inputs, and use the latch enable pin to hold the output state when needed. Ensure proper layout to minimize stray capacitance and ground bounce for optimal 7 ns switching performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the required supply voltage for the AD8561?
The AD8561 operates from a single supply of 3 V to 10 V or dual supplies of ±5 V, allowing flexible integration into various power architectures.
How fast is the propagation delay of this comparator?
At a 5 V supply, the AD8561 achieves a typical propagation delay of 7 ns, making it suitable for high-speed timing and data applications.
Which package does the AD8561 come in and how do I mount it?
This comparator is available in a compact TSSOP package. Use the manufacturer’s recommended PCB footprint and place decoupling capacitors close to the supply pins for reliable performance.
Technical Specifications
| Model | AD8561 |
|---|---|
| Operating Voltage | 5V |
| SKU | AI0814 |
| Weight | 0.000137 kg |
| Availability | Out of Stock |
