6 Channel 24V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse

This is the 24V variant of the 6 Channel 24V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse in Relay Modules. Available at ₹605.34 Original price was: ₹605.34.₹572.30Current price is: ₹572.30. (₹485.00 + GST) with free shipping across India.

Looking for 24v Module 457273? 6 Channel 24V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse is available at Zbotic with fast shipping across India.

6 Channel 24V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse

6 Channel 24V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse

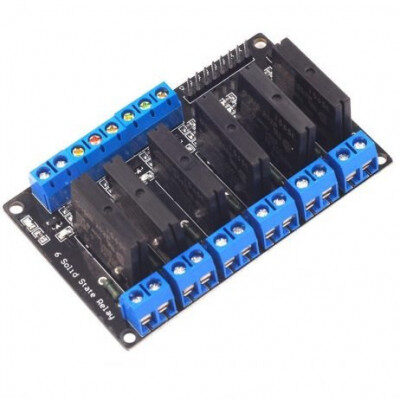

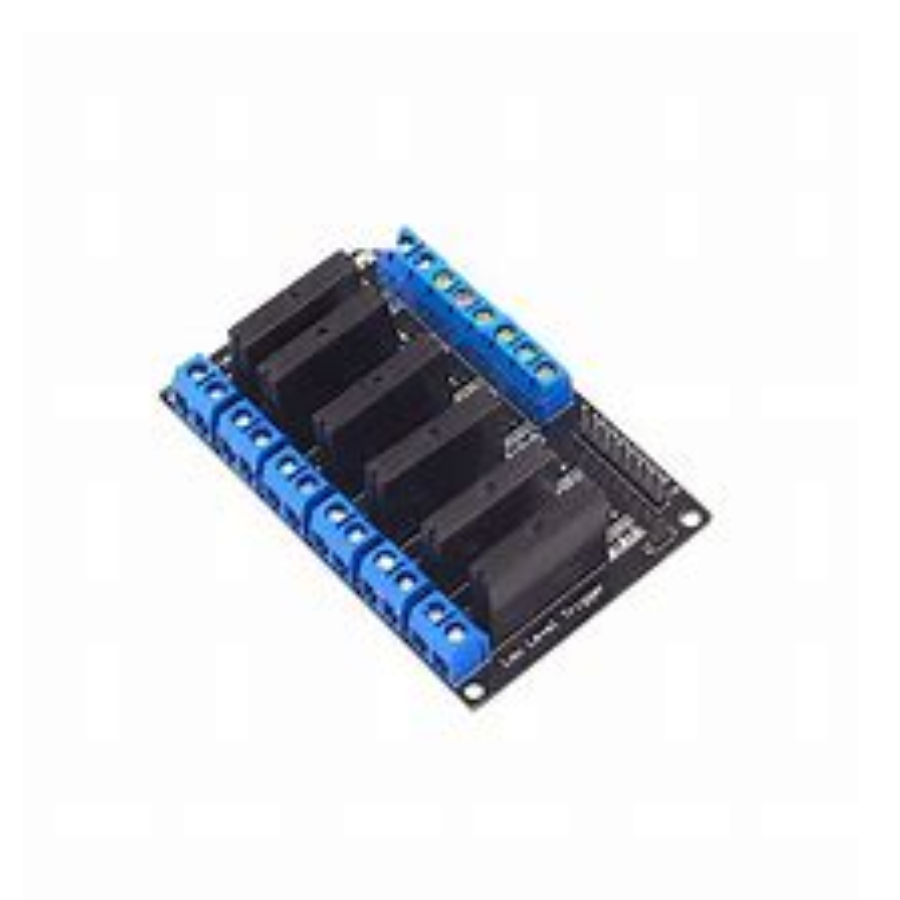

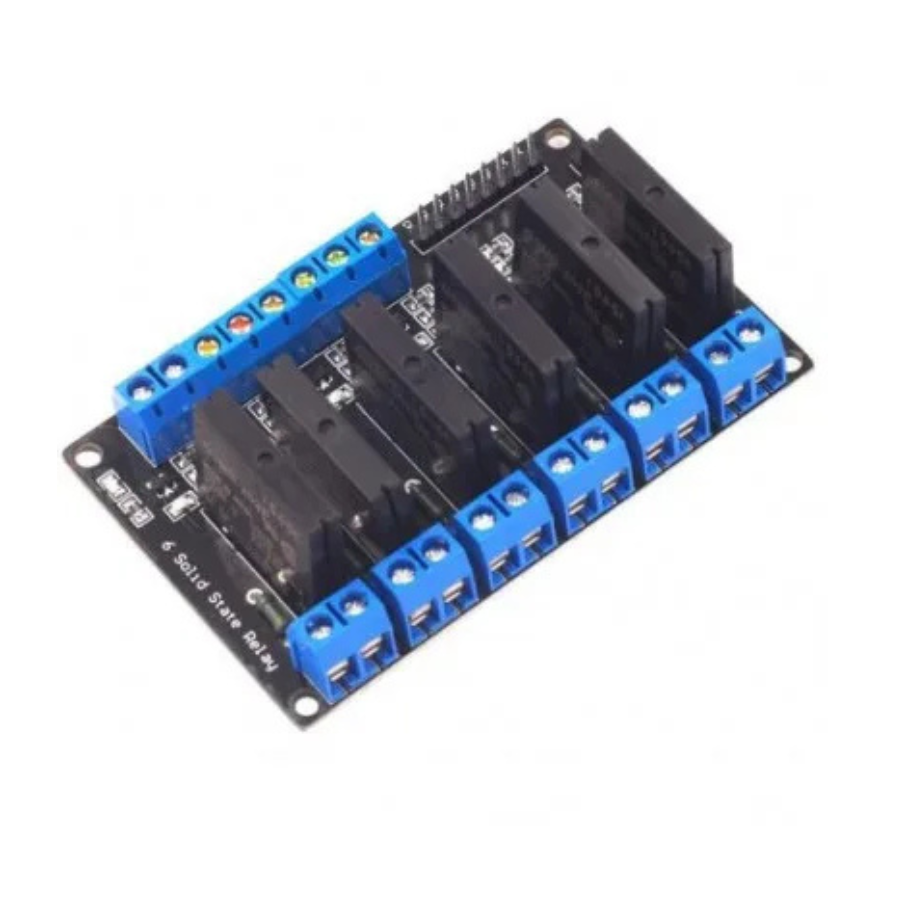

This 24V 6Channel SSR Solid State Relay Module 250V 2A Output with Resistive Fuse is based on the Omron G3MB -202P SSR relay which can control up to 2A at 240VAC. This is a 6 Channel SSR relay module, each relay channel has3 separate terminals, NO (Normal Open), COM (Common), NC (Normal Closed).

A Solid State Relay is similar to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan in compared to the traditional mechanic relay.

When the input logic voltage is applied to the coil, the NC will disconnect from the COM breaking the conductivity between the two. At the same time, the NO will connect with the COM allowing conductivity between them. Depending on your wiring this will turn on or off the connected load.

Input parts :

1. DC+:connect power positive
2. DC-:connect power negative
3. CH1:relay module signal trigger point (Effective low-level trigger)
4. CH2:relay module signal trigger point (Effective low-level trigger)
5. CH3:relay module signal trigger point (Effective low-level trigger)
6. CH4:relay module signal trigger point (Effective low-level trigger)
7. CH5:relay module signal trigger point (Effective low-level trigger)
8. CH6:relay module signal trigger point (Effective low-level trigger)

Features :

1. Has been assembled, and the electrical test passed.
2. Led indicator for each relay.
3. Use it to control various appliances and other equipment with a large current.
4. It can be controlled directly by a Microcontroller
5. Input control signal voltage:
   1. 0-2.5V status low level, relay OFF
   2. 3-5V status high level, relay ON

Specifications:

1. Part Number: G3MB-202P
2. Working current(mA):12.5
3. Trigger Current (mA):2
4. Trigger Voltage (VDC):25
5. Switching Voltage (VAC):240@2A
6. Max. Load:2A @240V AC

PACKAGE INCLUDES

1 X  6 Channel 24V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse

6 Channel 24V Relay Module Solid State Low Level SSR DC Overview

This 6 Channel 24V Solid State Relay (SSR) Module provides low-level DC control over six independent outputs, each rated for up to 2A at 250VAC. Built around Omron G3MB-202P relays with onboard resistive fuses and LED indicators, it’s ideal for direct interfacing with microcontrollers and control boards.

Key Features of 6 Channel 24V Relay Module Solid State Low Level SSR DC

• Six isolated SSR channels, each using Omron G3MB-202P relays for reliable switching
• Control AC loads up to 250VAC at 2A per channel
• Low-level trigger: 0–2.5V = OFF, 3–5V = ON for direct microcontroller interfacing
• Onboard resistive fuse per channel to protect against overloads
• Individual LED indicators for each relay status
• Fast shipping across India from Zbotic’s warehouse

Applications and Use Cases

• Home automation: switching lamps, fans and appliances via an Arduino or Raspberry Pi
• Industrial control panels: driving heaters, solenoids and small AC motors
• Prototyping lab setups: safe on/off control of multiple AC circuits
• IoT gateways: remotely switching high-voltage devices with low-voltage commands
• Test benches: automated cycling of loads under software control

How to Use 6 Channel 24V Relay Module Solid State Low Level SSR DC

Connect a stable 24V DC supply to the module’s VCC and GND terminals, wire each SSR output (NO/COM/NC) to your AC load and mains, then drive the input pins with a logic signal: pull below 2.5V to switch off, above 3V to switch on. LEDs will light when each channel is active, and the onboard fuses guard against overloads.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Can I control this SSR module directly from a 5V Arduino?

Yes. The module accepts a low-level trigger: any input above 3V (up to 5V) switches a channel ON, and below 2.5V turns it OFF, making it fully compatible with standard 5V microcontroller outputs.

What happens if a channel draws more than 2A at 250VAC?

Each channel includes a dedicated resistive fuse designed to blow safely under overload, protecting both the SSR and your wiring. Replace the fuse before resuming operation.

How do I wire a load between NO, NC, and COM terminals?

For normally open operation, connect your live AC wire to COM and the load to NO. The SSR will close the circuit when triggered. For normally closed behavior, use COM and NC instead.
