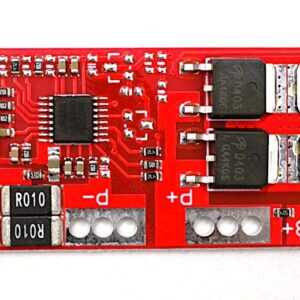

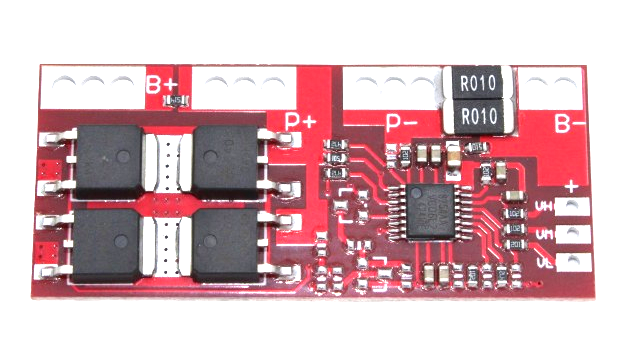

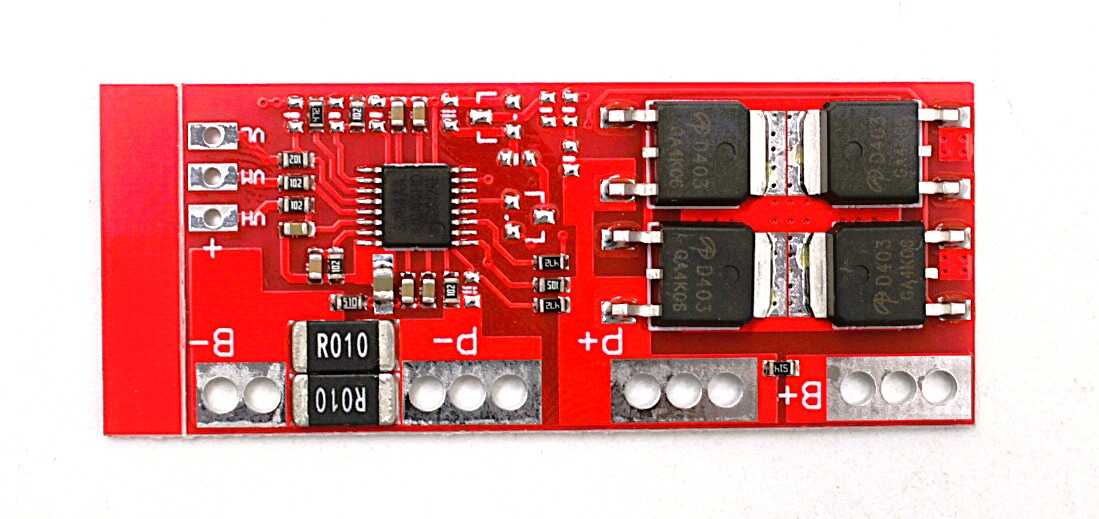

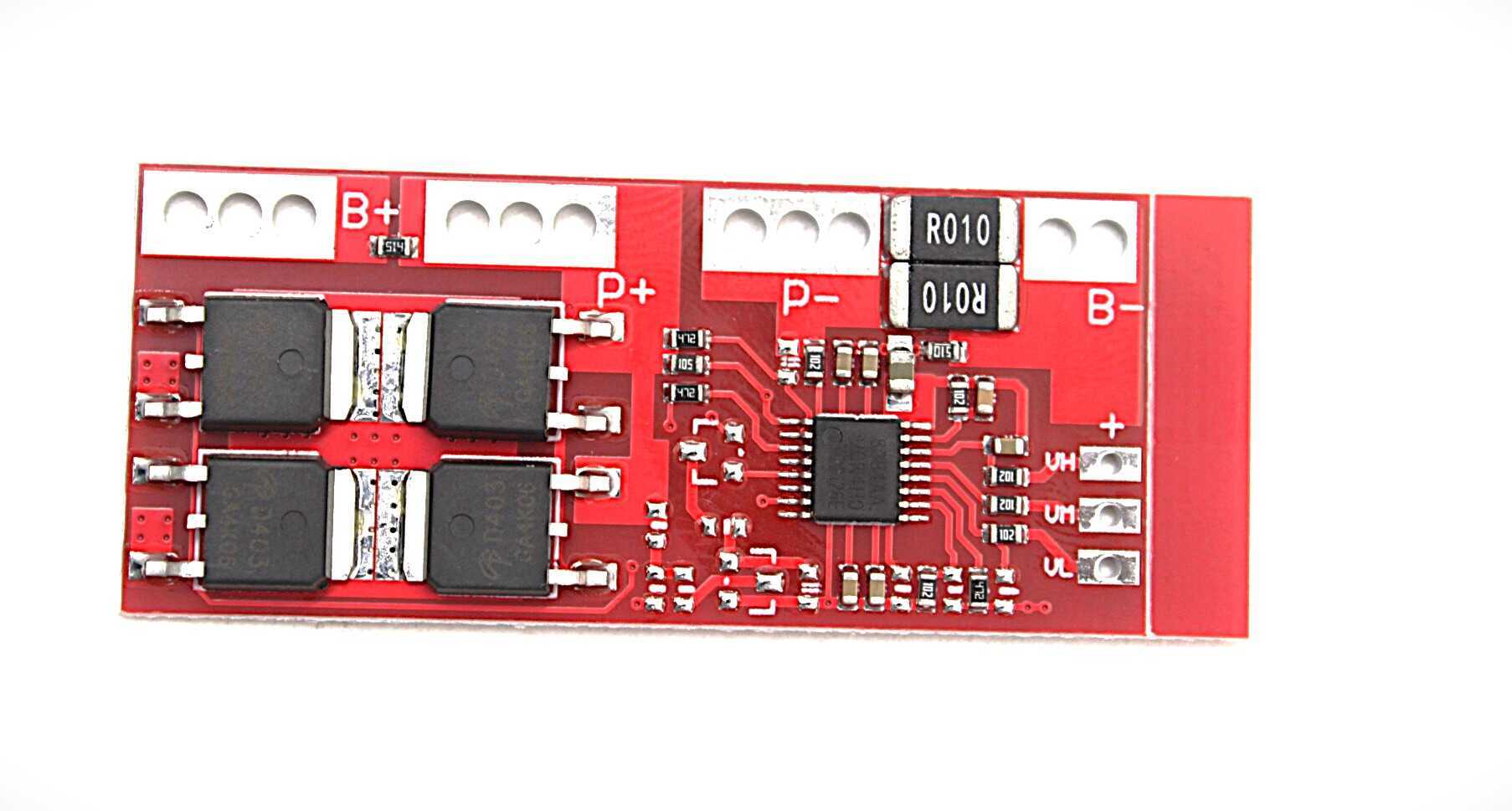

This is the 8V variant of the 4S High Current up to 30A Lithium Battery Protection Board Four Series of 14.8V 16.8V in Battery Protection Board. Available at ₹114.46 (₹97.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION
The 4-Series 14.8V 18650 Lithium Battery Equalization Board is designed for lithium battery packs that lack equalization charging, ensuring that each battery in the pack is balanced for optimal performance. It enables all batteries in the pack to charge fully and simultaneously.
This advanced 4-string lithium battery protection board is compatible with lithium battery packs with nominal voltages of 14.4V, 14.8V, or 16.8V. It features automatic activation and protection mechanisms that reset once the protective condition is no longer present, eliminating the need for manual charger activation and improving overall convenience.
The board can also be customized to meet specific voltage, current, and other parameter requirements, providing flexibility for various applications.
Features:
- The module name: 4 string lithium battery protection board.
- The modular nature: polymer lithium battery protection board.
- Overcharge release voltage: 4.15 ± 0.05V.
- Over-discharge termination voltage: 3 ± 0.1V.
- Working current: 15A (natural cooling:10A, plus the heat sink:15A, the maximum instantaneous current:30A)
- Termination conditions: the release of protection condition then automatic recovery, without activation (optional charger to activate).
- Main functions: the overcharge protection function, over-discharge protection, short-circuit protection, over current protection.
- Working temperature: -40~ 85 degrees (high-temperature environment and please strengthen radiating).
- Connection: welding output.
Specification:
| Overcharge detection voltage (V) | 4.25 ± 0.025 |
|---|---|
| Over-discharge detection voltage (V) | 2.50 ± 0.08 |
| Over current (A) | 20 ~ 30 |
| Working current (A) | 15 |
| Operating Temperature (°C) | -40 ~ +85 |
| Length (mm): | 50 |
| Width (mm) | 22 |
| Height (mm) | 3.5 |
| Weight (gm) | 4 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 6 × 4 × 2 cm |
Package Includes:
1 x 4S High Current up to 30A Lithium Battery Protection Board Four Series of 14.8V 16.8V
Power Consumption Calculator: Estimate Battery Life
Table of ContentsMeasuring Power Consumption Calculating Battery Life Sleep Modes and Their Impact Using INA219 for Measurement Common...
Read More →
TP4056 Charging Module Guide: Build a Battery Charger
The TP4056 is one of the most popular single-cell lithium battery charger ICs in the maker community —...
Read More →
Energy Harvesting: Powering IoT Devices from Ambient Sources
Energy Harvesting: Powering IoT Devices from Ambient Sources What if your IoT sensor never needed a battery change?...
Read More →Technical Specifications
| Voltage Range | 14.8V - 16.8V |
|---|---|
| Current Rating | 30A |
| Cell Configuration | 4S |
| SKU | AI3347 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 4S High Current up to 30A Lithium Battery Protection Board Four Series of 14.8V 16.8V is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
