4 Pin JST Cable Connector Male – 90 Degree
This is JST 4 Pin Connector Plug 90 Degree. These are often referred to as “JST” or “BEC” Connectors and are commonly used for battery and motor connections on small electric planes.
Features
- Current Rating: 3A
- Voltage Rating: 250V
- Pitch: 2.54mm
- Connector Type: 4 Pin JST-XH Male Right Angle 2.54mm Pitch Connector
- width: 12mm, Height: 7mm
Specification:
| Model No. | XH2.54mm 4P |
|---|---|
| Product Type | Bend Pin Header Connector |
| Pitch (mm) | 2.54mm |
| Operating Current (A): | 3 A |
| Operating Voltage (V) | 250V |
| Color: | White |
| Poles | 4 pins |
| Wire Length(mm) | 0.2mm² (24AWG) |
| Applicable printed board thickness | 0.8 ~1.6mm |
| Operating Temperature (°C) | -25°C ~+85°C |
| Insulation Resistance (MΩ) | ≥1000M ohm |
Package Includes

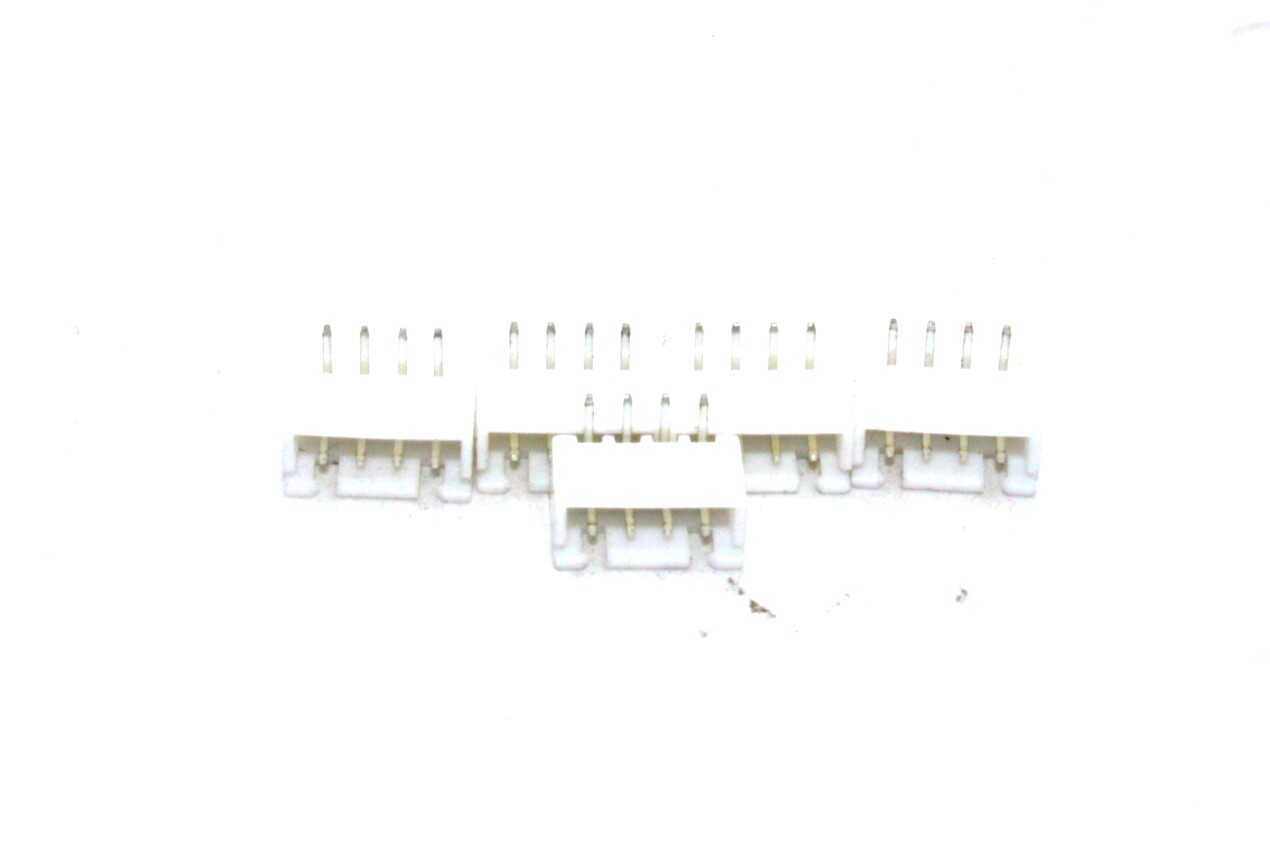

5 x 4 Pin JST Cable Connector Male – 90 Degree
4 Pin JST Cable Connector Male – 90 Degree Overview

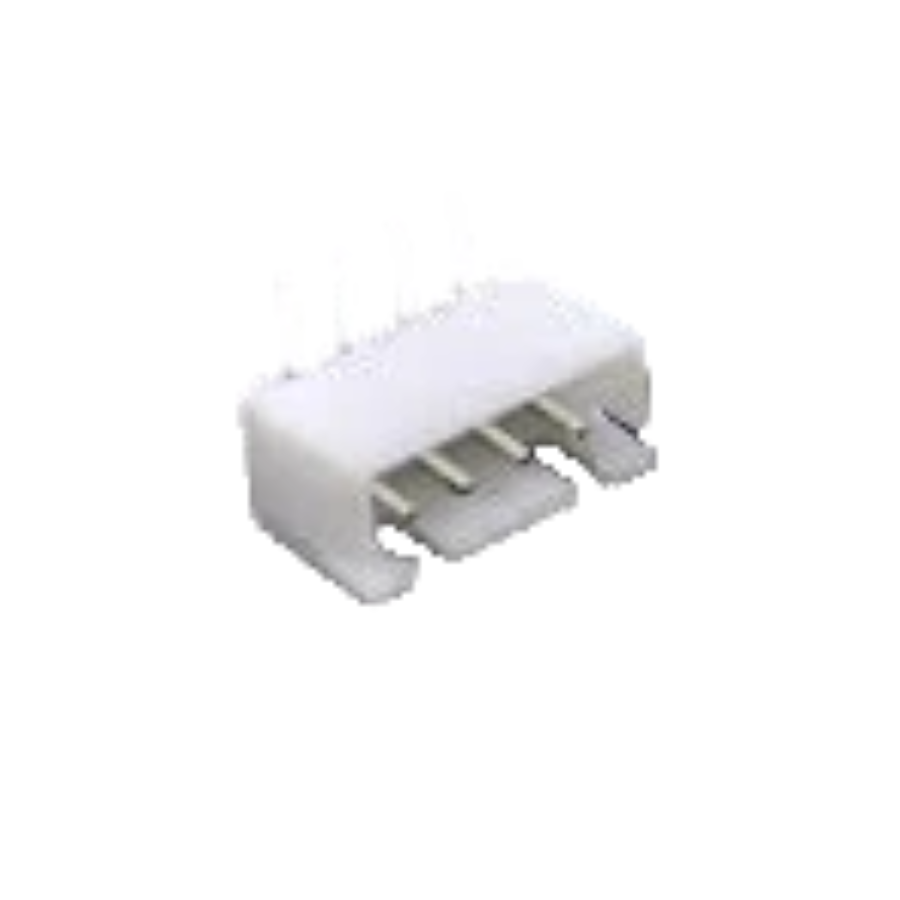

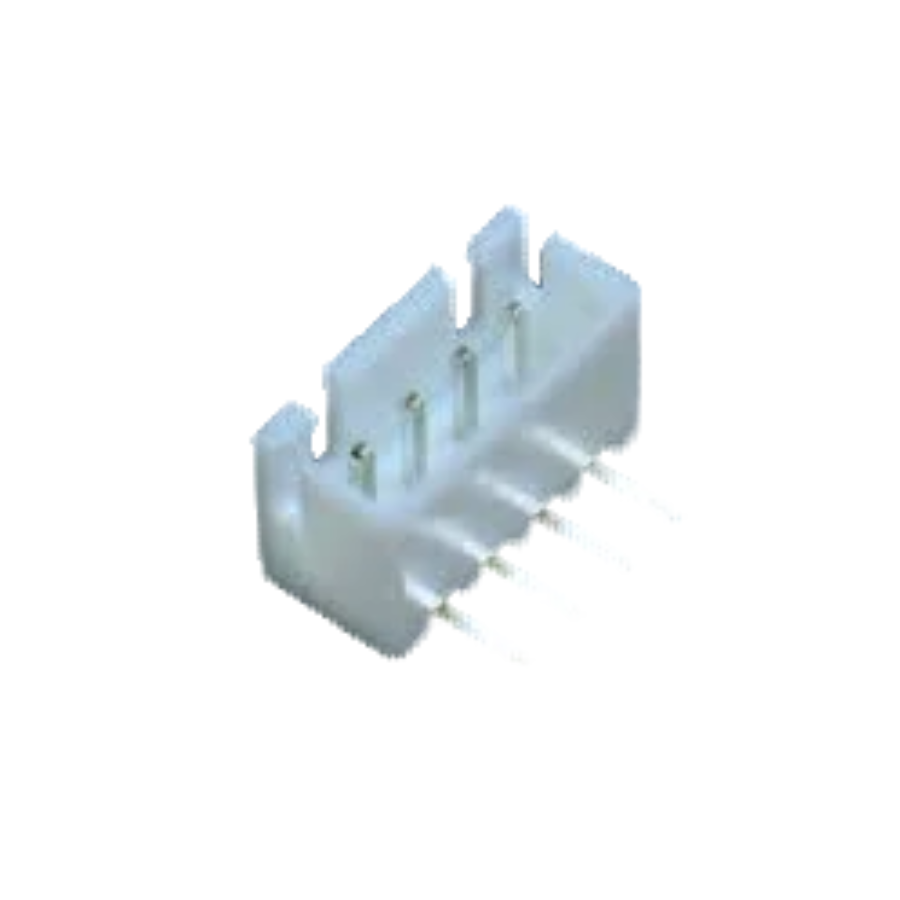

The 4 Pin JST Cable Connector Male – 90 Degree is a right-angle, 2.54 mm pitch JST-XH plug designed for reliable low-current power and signal connections. Supplied as a pack of five, this white L-shaped connector is ideal for compact assemblies where space is limited.
Key Features of 4 Pin JST Cable Connector Male – 90 Degree
- Rated for up to 3 A current and 250 V operating voltage for safe power delivery
- Standard 2.54 mm pitch compatible with JST-XH female housings and PCB headers
- 90° right-angle design (12 mm width, 7 mm height) for space-saving installations
- Pack of 5 white male connectors, each accepting 0.2 mm² (24 AWG) wires
- Operating temperature range from -25 °C to +85 °C with ≥1000 MΩ insulation resistance
- Fast shipping from Zbotic ensures you get your connectors within 24 hours
Applications and Use Cases
- Battery-to-PCB connections in small electric planes and drones
- Wire harness assemblies for RC cars, boats, and robotics projects
- Interfacing sensors or low-power modules to printed circuit boards
- Space-constrained power distribution in 3D printers and CNC machines
- Custom cable assemblies for hobby electronics and model railways
How to Use 4 Pin JST Cable Connector Male – 90 Degree
Strip 24 AWG wires to the recommended length, crimp them securely into compatible JST-XH female pins, and insert the pins into the male housing until they click. Align the right-angle connector with your PCB header or mating housing, then press firmly to engage—no soldering required on the connector itself.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Q: What wire gauge is recommended for this connector?
This 4 pin JST-XH male housing is designed for 0.2 mm² (24 AWG) wires, ensuring secure crimp contacts and reliable current flow up to 3 A.
Q: Can I mate this connector with standard JST-XH female headers?
Yes, the 2.54 mm pitch male right-angle housing mates perfectly with JST-XH female housings and PCB pin headers for seamless integration.
Q: What PCB thickness does this connector support?
The right-angle pins suit printed circuit boards from 0.8 mm up to 1.6 mm thick, making it versatile for most control and power boards.
